Product Description
XTOOL D8S is an automotive smart diagnostic system with 8 inches LCD display
It supports full OBDII function and automotive diagnostics for full-system
38 common special functions are supported
98% vehicle coverage, work on more than 85 brands, 10000 cars.

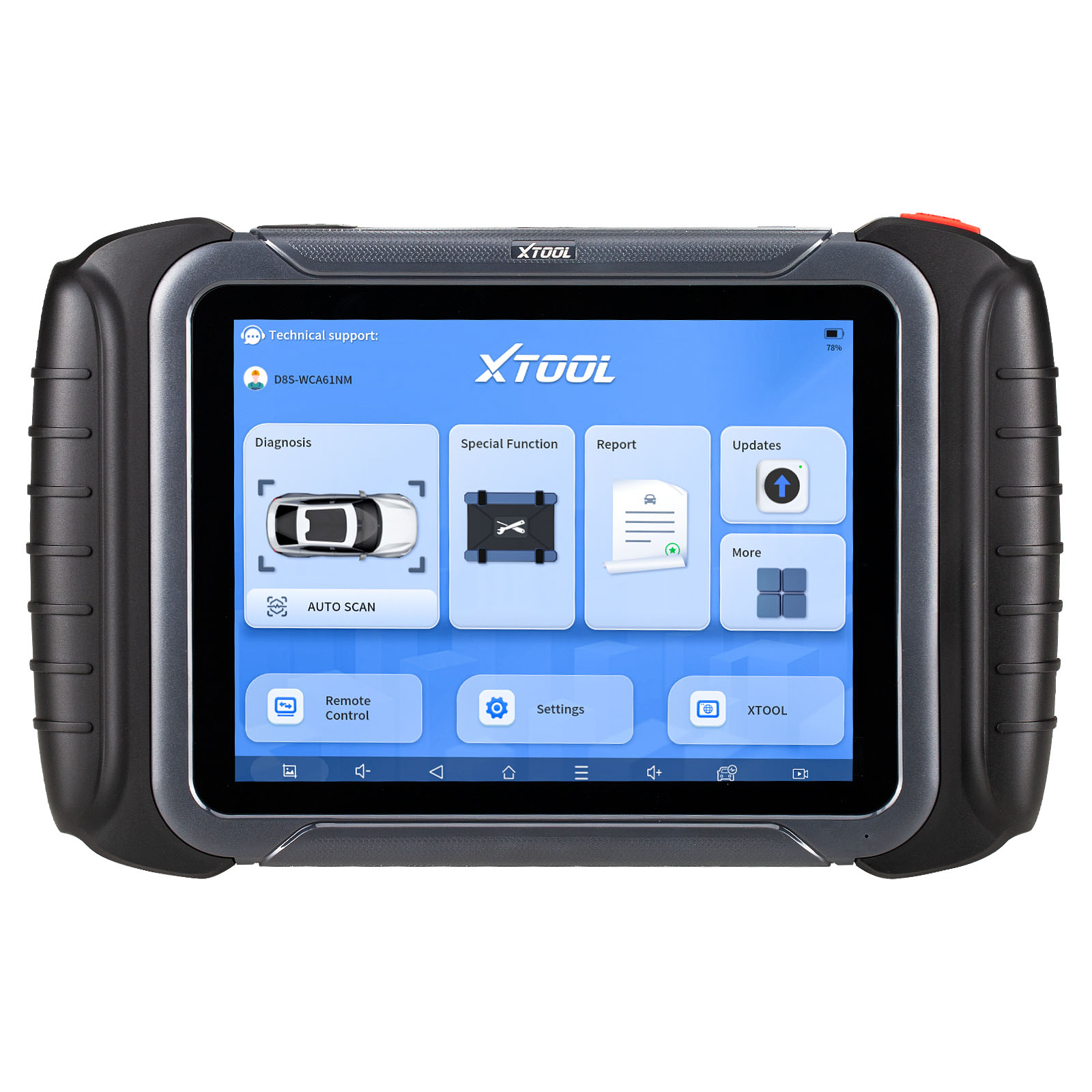

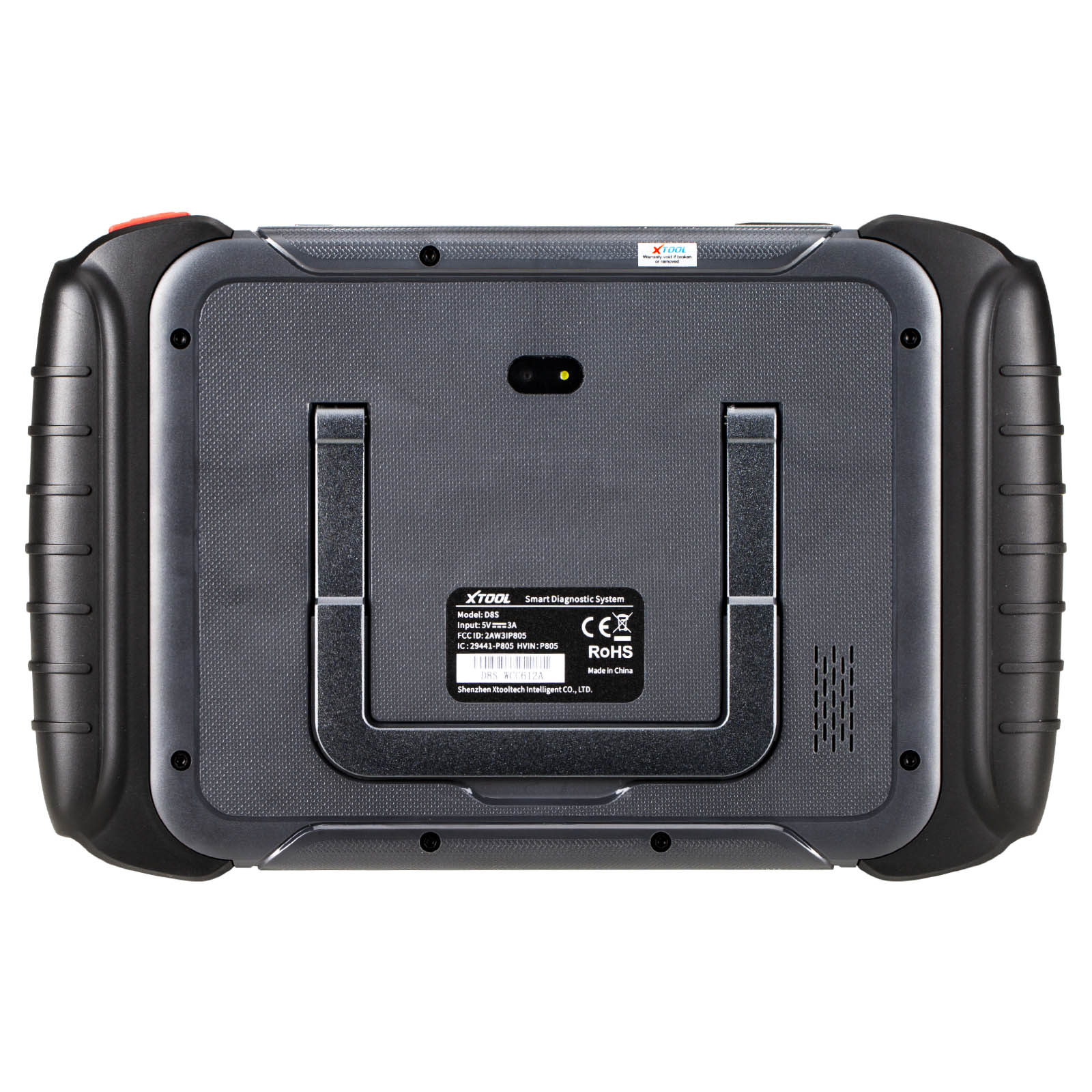

XTOOL D8S Smart Diagnostic Tool
Advantages for XTOOL D8S
- Bi-Directional Control:Receive information and send the commands to the system/components to perform active tests like EVAP Test, Fuel Pump Test, Fuel Injector Test, Cycling A/C Clutch On/Off, Cooling Fan Test, ect.
- Full-System Diagnostic:Perform OE-Level diagnosis on all available systems. Support ECU information, read and clear DTC, live data and freeze frame and special function under system menus.
- Offline Programming Supported:Support programmable module installation for Ford, Lincoln and Mazda.
- 35+ Maintenance Functions:Include top popular maintenance functions, like ABS Bleeding, Key Programing, Injector Coding, Oil Reset, EPB, ect.
- 15 supported languages: Arabic, German, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Traditional Chinese, Vietnamese, Turkish
D8S Introduction:
XTOOL D8S is an automotive smart diagnostic system with 8 inches LCD display, which is designed for mechanics, electricians, and car maintenance shops. It supports full OBDII function and automotive diagnostics for full-system, including reading ECU version information, reading fault codes, live data, and freeze frames. 38 common special functions are supported, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage, work on more than 85 brands, 10000 cars.
D8S Functions:
Basic function: OBDⅡ, Auto VIN, Read ECU Information, Read code, Clear code, Read live data, Read freeze frame, Actuation test
Other function: Special functions under systems, Guided function for VW, ECU Configurations, ADAS Calibration, PMI, HELP
Special Function:
Oil Light Reset, ECU Configuration, EPB, A/F settings, SAS
Start/Stop Reset, BMS Reset, Airbag Repair, Throttle, Instrument Cluster, TPMS Reset, Language Change, ABS Bleeding, Transporter Mode, Injector Coding, Tire Upgrade, Key Programmer, Gear Learning, Gearbox Match, Power Balance, Suspension, EEPROM, Window Initialization, Electronic Pump Activation, Seat Calibration, ADAS Calibration, Headlight, Speed Limit, DPF, Clutch Adaption, SRS, EGR Relearn, FRM Reset
VGT Relearn, HV Battery, A/C Relearn, Rain/Light Sensor, Control unit Reset
Vehicle Coverage:
LANCIA |
FIAT |
TOYOTA |
LEXUS |
SCION |
HUMMER |
BUGATTI |
ROEWE |
SQTYWL |
GM |
SEAT |
CHANGHE |
ABARTH |
VAUXHALL |
EURFORD |
CITROEN |
LIFAN |
YQVW |
AUSFORD |
MAZDA |
BMW |
HONDA |
ACURA |
GAC GONGW |
AUDI |
NISSAN |
INFINITI |
NISSANGTR |
GMC |
HYUNDAI CV |
SUBARU |
HYUNDAI |
KIA |
DFPEUGEOT |
RENAULTSAM |
CHRYSLER |
DODGE |
JEEP |
MIT |
SSANGYONG |
CHEVROLET |
ROMEO |
PORSCHE |
RENAULT |
ISUZU |
TLISUZU |
BENTLEY |
BENZ |
MAYBACH |
BUICK |
JAC |
VW |
MASERATI |
BAOJUN |
CADILLAC |
CHANGAN FORD |
LANBORGHINI |
USAFORD |
PEUGEOT |
DACIA |
PROTON |
HOLDEN |
GEELY |
FERRARI |
BRILLIANCE |
ZHONGHUA |
DAEWOO |
SAAB |
PERODUA |
VOLVO |
DAIHATSU |
POLESTAR |
ASTONMARTIN |
LANDROVER |
CHERY |
DFCITROEN |
LINCOLN |
SKODA |
SATURN |
SMART |
SUZUKI |
CHINA MAZDA |
MG |
JAGUAR |
GAZ |
UAZ |
LUXGEN |
YQAUDI |
GREATWALL |
BYD |
TRANSPORTER |
CVVW |
MINI |
MAXUS |
OPEL |
ROLLS |
Product Specifications:
Items |
Description |
Operating System |
Android 10 |
Processor |
4 Core 1.50GHz |
Memory |
4G RAM, 64 ROM |
Display |
8-inch capacitive touch screen with 1024×768P resolution |
Communication Method |
Wired |
Connectivity |
WIFI 2.4/5G | DB15 to VAG USB |
Camera |
Rear camera, 8.0 Megapixel, AF with Flashlight |
Sensors |
Gravity Accelerometer, Ambient Light Sensor |
Auto Input/Output |
Microphone, Speaker |
Input Voltage |
9 to 36V |
Operating Temperature |
-10 to 40℃ |
Storage Temperature |
-40 to 60℃ |
Humidity |
<90% |

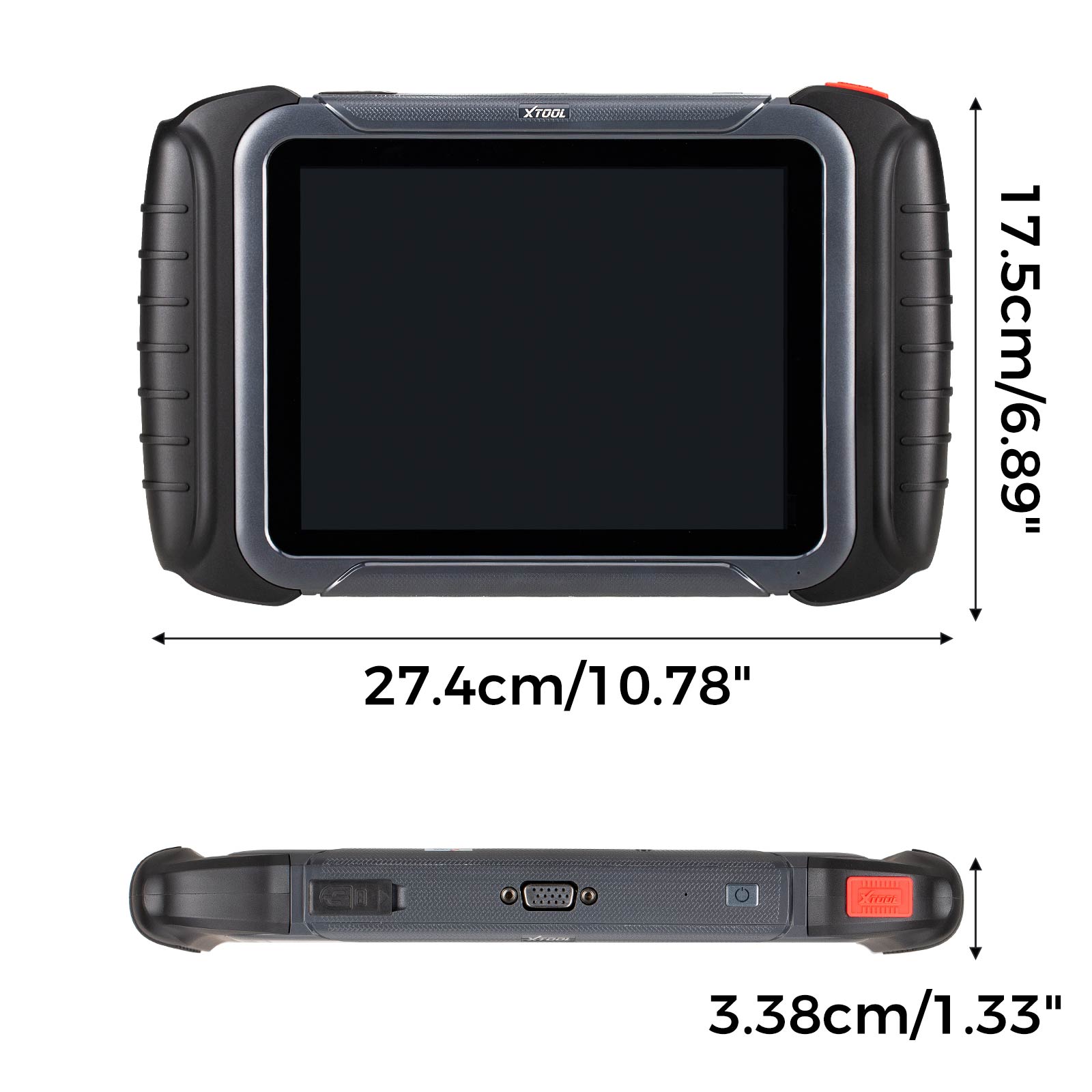

Dimension (L×W×H) |
274.0×175.0×33.8 mm |
Protocol |
CANFD, DOIP |
Weight |
2.9KG |
Live or not |
Live |

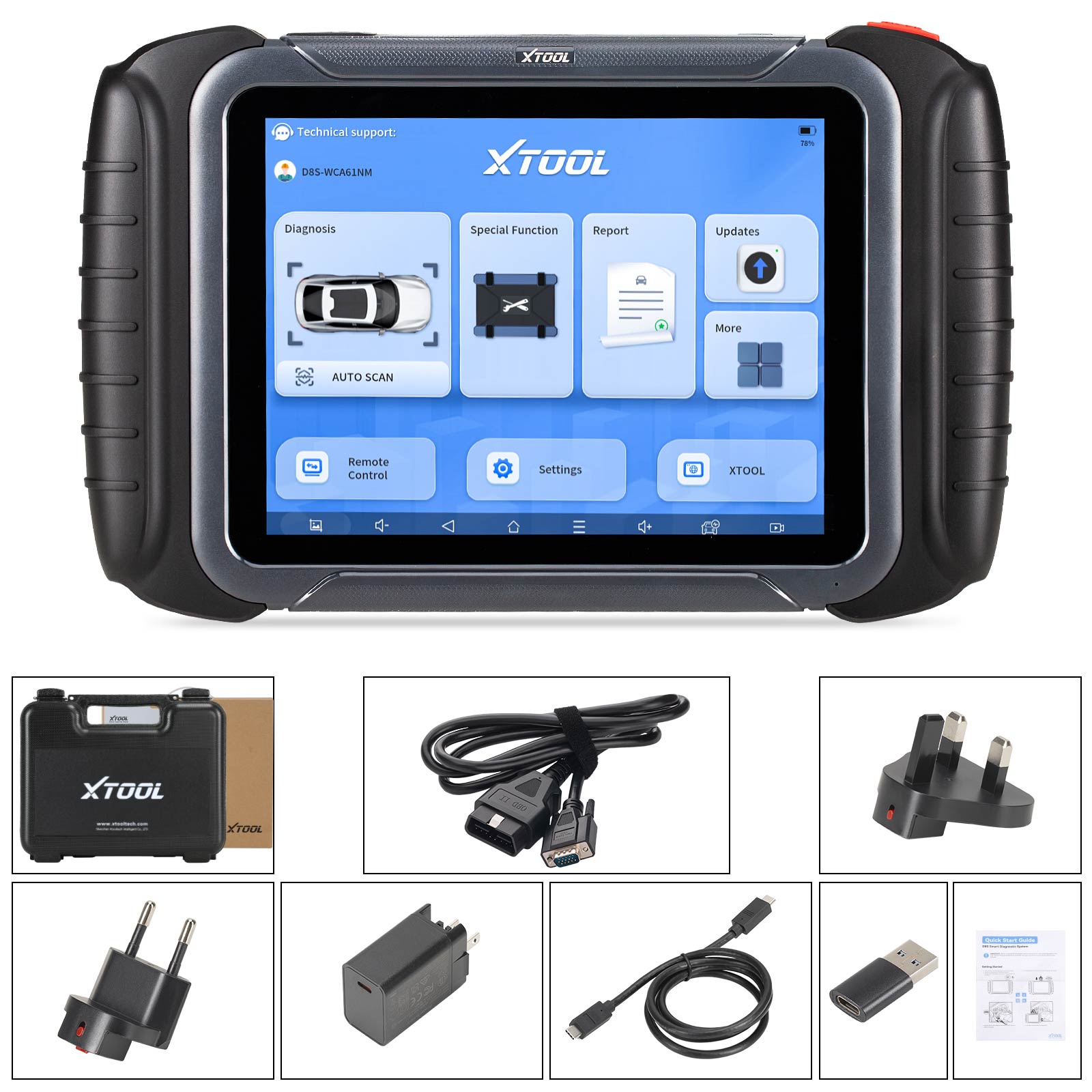

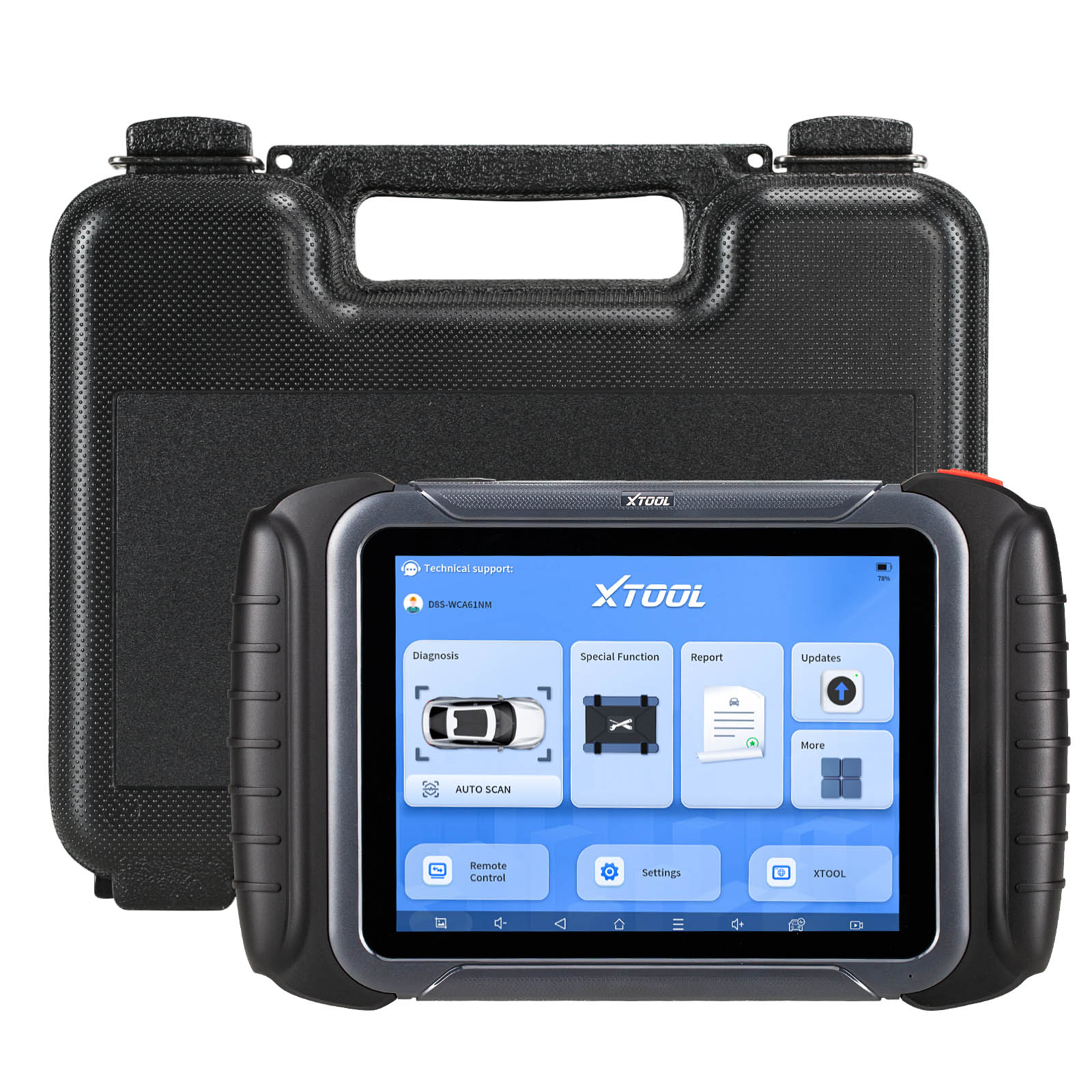

Package Includes:
Category |
No. |
Name |
Accessories |
1 |
Tool kit |
|
2 |
Packing List |
|
3 |
Carton |
|
4 |
Certificate of Quality |
|
5 |
Quick Start Guide |
|
|
|
Main Units |
7 |
Power adapter |
|
8 |
EU power cable |
|
9 |
Tablet |
|
10 |
US power cable |
|
11 |
UK power cable |
|
12 |
USB cable |
Test Connectors |
13 |
OBDII-16 Adapter |
|
14 |
DB15 Main Cable |
