Yanhua Mini ACDP Module 29 Audi Gen5 BCM2 IMMO Module

Brand: Yanhua Item No. CN-SK247-29 In Stock. History 1 sold.

Buy Now: £113
Good day :) Fast delivery no tax !

£33 MQB RH850/V850 Adapter for Xhorse Multi Prog
Deposit £163 for XDMLB0GL MLB Tool
£650 Xhorse Multi-Prog (Auto 4% OFF)
£324 Launch X431 CRP919XBT
£809 Lonsdor K518 PRO Full Version

Any inquiry or questions contact: +86 13983755934
Shipping:
Free Shipping Standard Flat Rate Shipping ServiceEstimated delivery time: 7-15 working days.See details »
Weight:
0.2KG
Package:
23cm*16cm*6cm ( Inch: 9.03*6.28*2.36 )
Returns:
Return for refund within 7 days,buyer pays return shipping. Read details »

Product Description

Yanhua Mini ACDP Audi Gen5 BCM2 IMMO Module supports adding key and all-key-lost for 2013-2018 Audi A4/A5/Q5 and other models, and also supports adding a key for 2013-2019 Audi A6/A7/A8 and other models.

Yanhua ACDP Module 29 Audi Gen5 BCM2 IMMO Module


ACDP Module 29 Supported Models:

1. Support adding key and all-key-lost for 2013-2018 Audi A4/A5/Q5 and other models. BCM2 types: 0711, 0650, 0641, etc.
2. Support adding a key for 2013-2019 Audi A6/A7/A8 and other models. The BCM2 IMMO data can be read when all keys are lost. But the sync data needs to be obtained from a third party. BCM2 types: 0824,0825,0827 etc.


Yanhua ACDP Module 29 Functions:

1: Support Audi Gen5 unencrypted and partially encrypted version BCM2 to read IMMO data by OBD.
2: Support Audi Gen5 encrypted version BCM2 to read IMMO data by ICP.
3: Support chip models: D70F3381 / D70F3382 / D70F3634 / D70F3635.


Yanhua ACDP Module 29 Features:

1: OBD identifies to know, whether the vehicle supports reading IMMO data via OBD, whether the BCM2 type is an encrypted version, and whether the BCM2 module needs to be removed to read IMMO data.
2: Special interface board to read BCM2 IMMO data, pin intelligent detection, data read and write safe and reliable.


ACDP Module 29 Connection Diagram:

Take BCM2-A as an example.

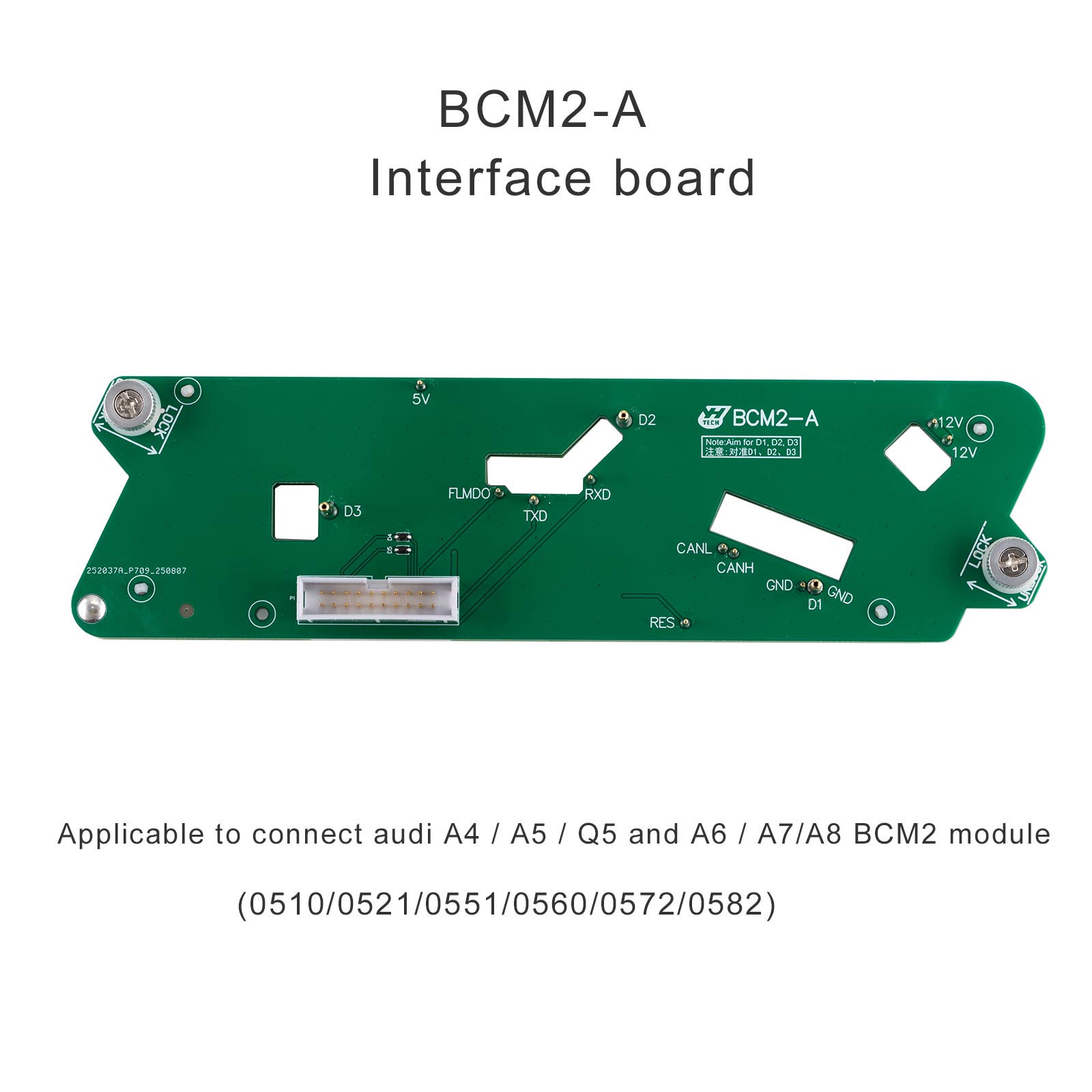

① Prepare ACDP, OBP+ICP adapter, BCM2-A interface board and BCM2 module.
acdp module 29 connection diagram 01
② Locate the D1, D2, D3 anchors on the BCM2 module.
acdp module 29 connection diagram 02
③ Locate the probe test point location on the BCM2 module.

acdp module 29 connection diagram 03

④ Install the interface board fixing studs.
acdp module 29 connection diagram 04
⑤ Install BCM2-A interface board based on the registration point D1/D2/D3.
acdp module 29 connection diagram 05
⑥ Lock the studs and clamp the PCB lock.
acdp module 29 connection diagram 06
⑦ Short the jumper cap to the "CAN-R-NC" port according to the marked position.
acdp module 29 connection diagram 07
⑧ Connect ACDP, OBP+ICP adapter, BCM2-A interface board and BCM2 module.
acdp module 29 connection diagram 08
APP Operation interface:

Take Audi A4/A5/Q5 BCM2 encrypted for example.

how to operate on app 01

Step 1. OBD identify

how to operate on app 02

Step 2. Get BCM2 IMMO data

how to operate on app 03


how to operate on app 04


Step 3. Make dealer key

Prepare the BCM2 IMMO data obtained in step 2, and then put the blank key into the BAV-KEY adapter.

how to operate on app 05
how to operate on app 06
Step 4. OBD learn key

how to operate on app 07


ACDP Module 29 Package List:

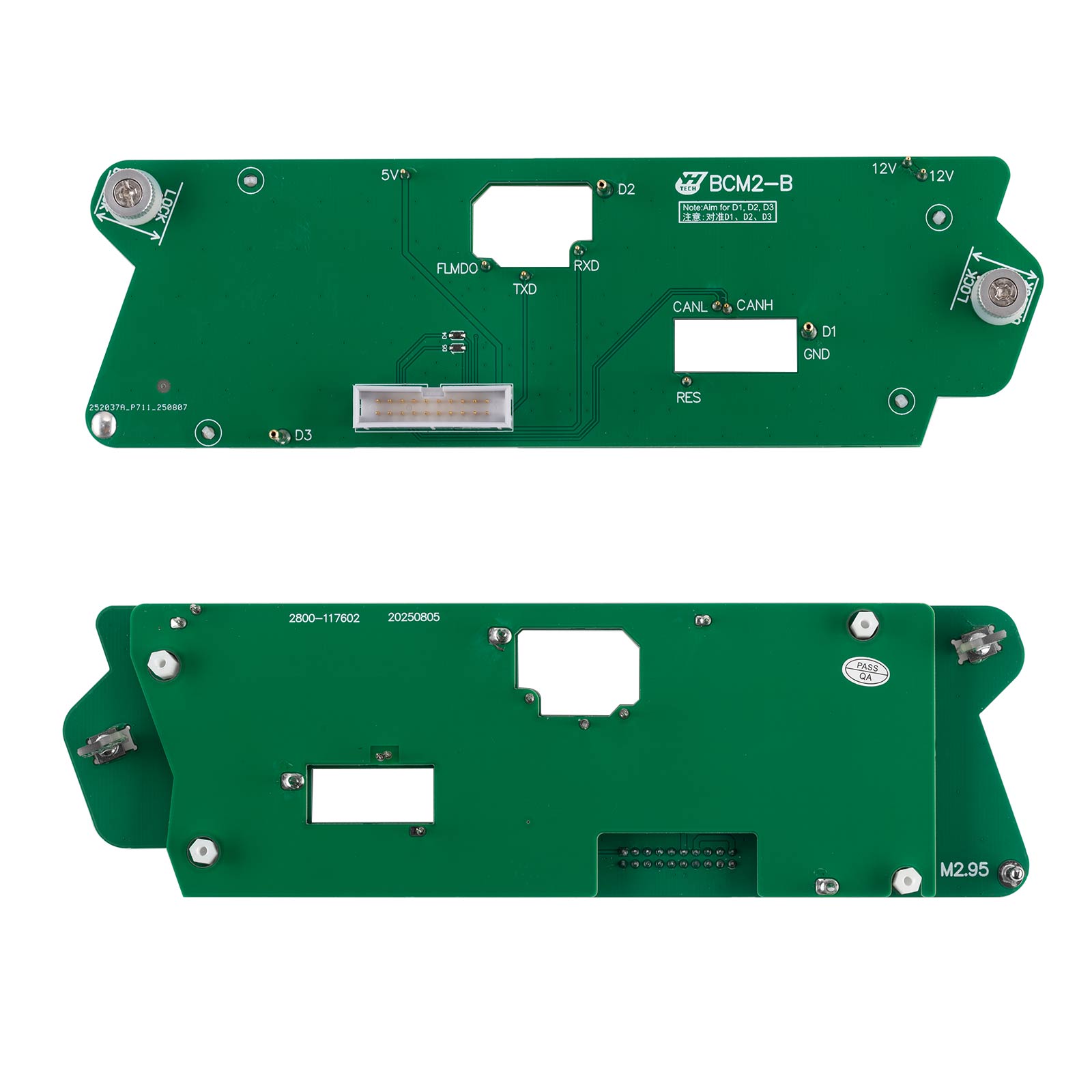

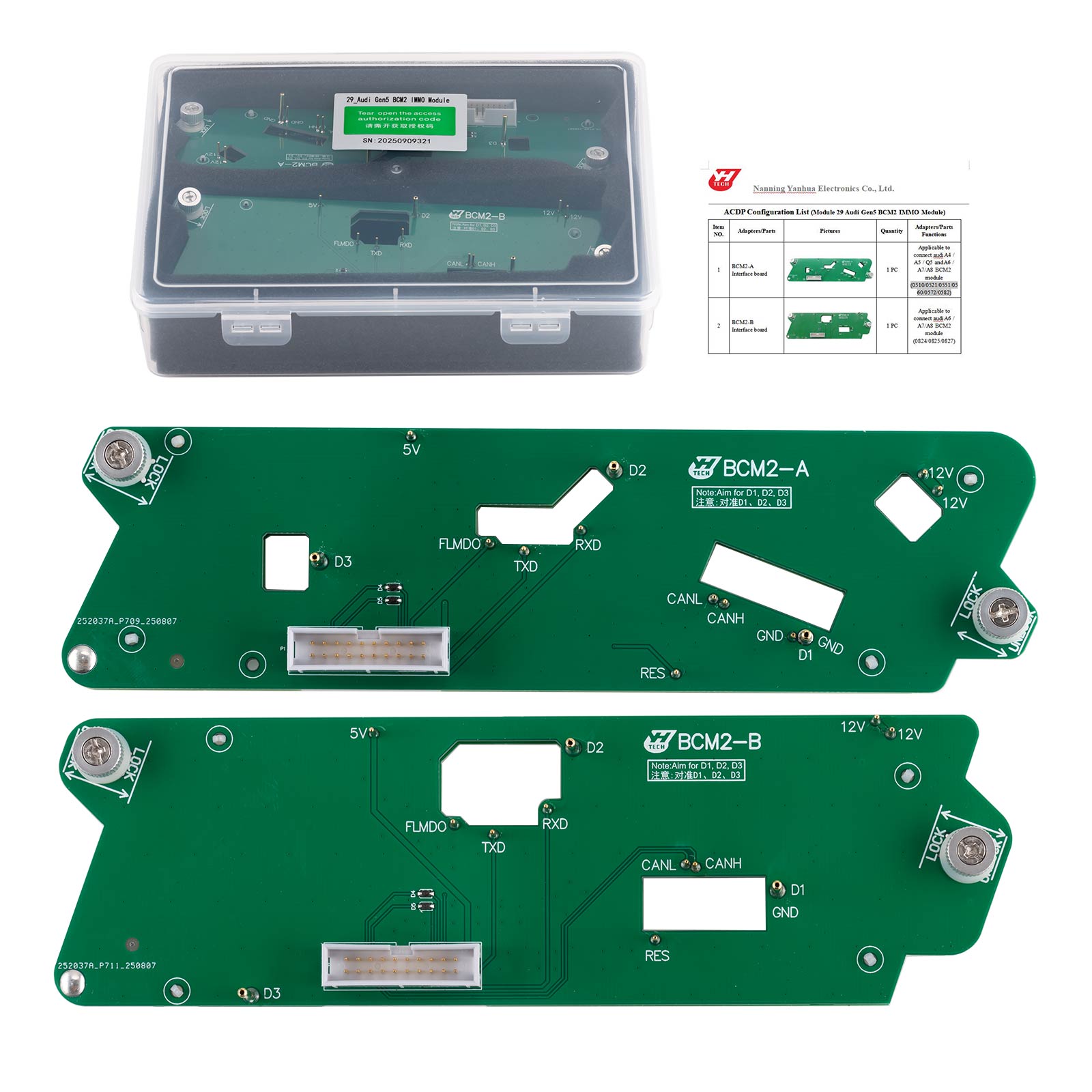

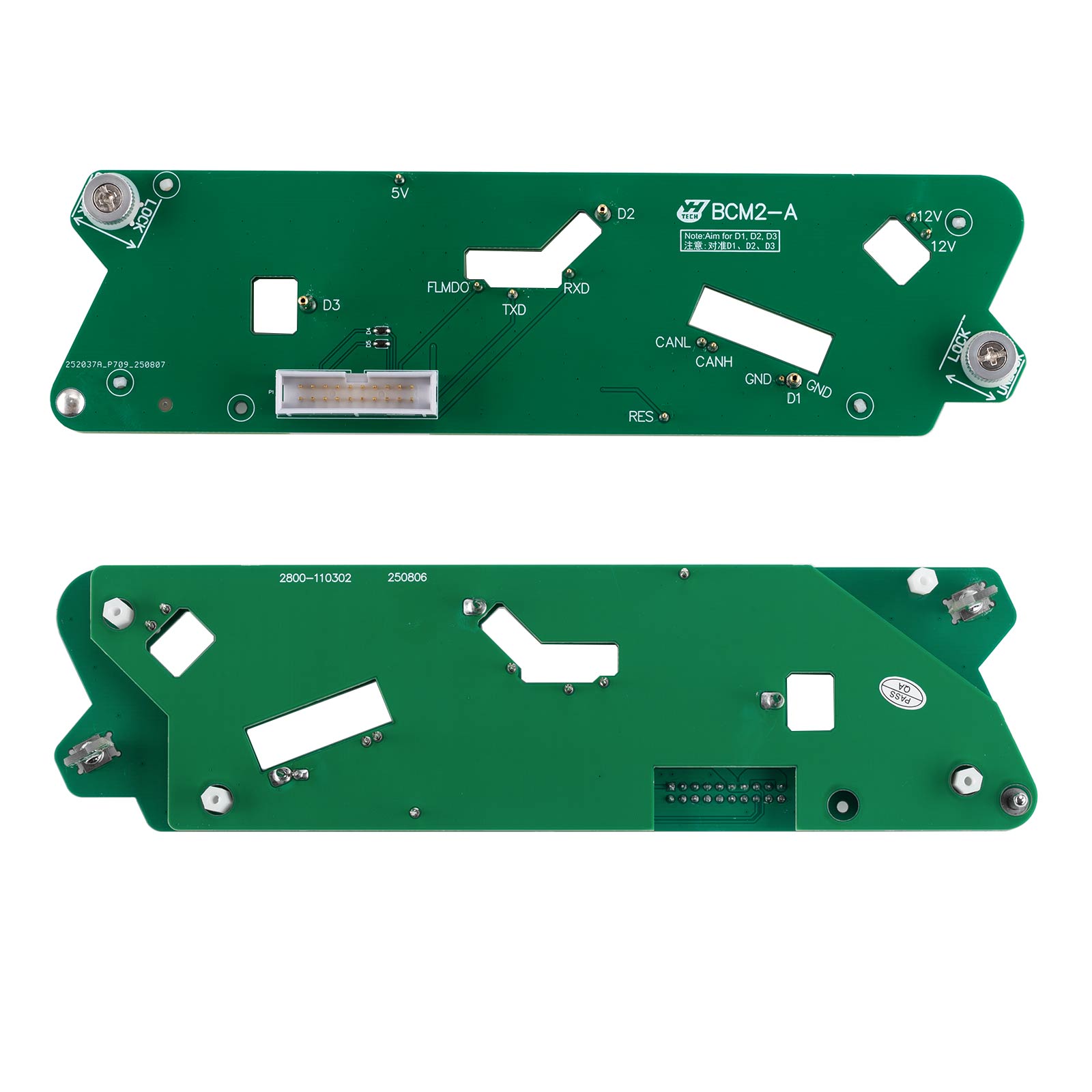

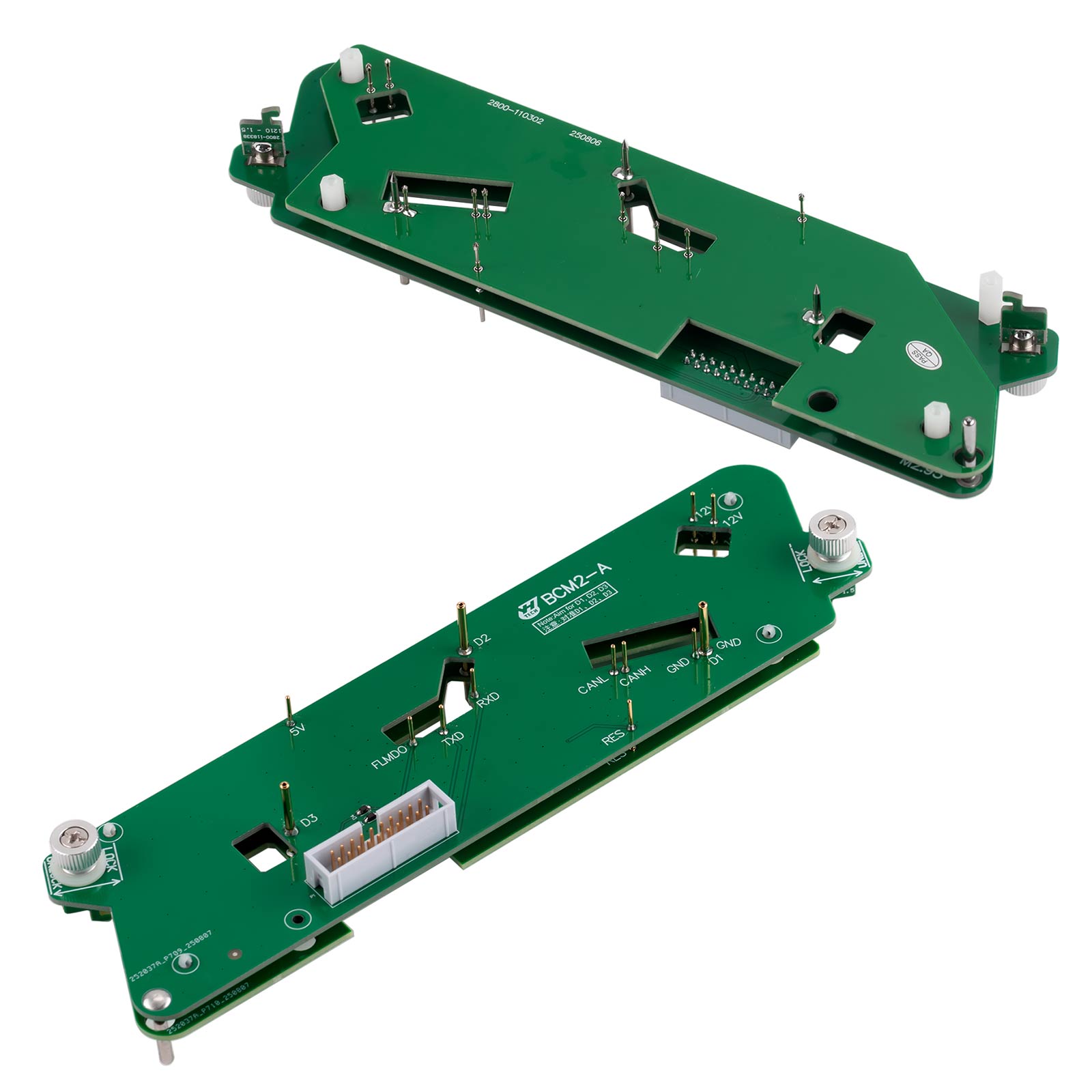

1pc x BCM2-A interface board

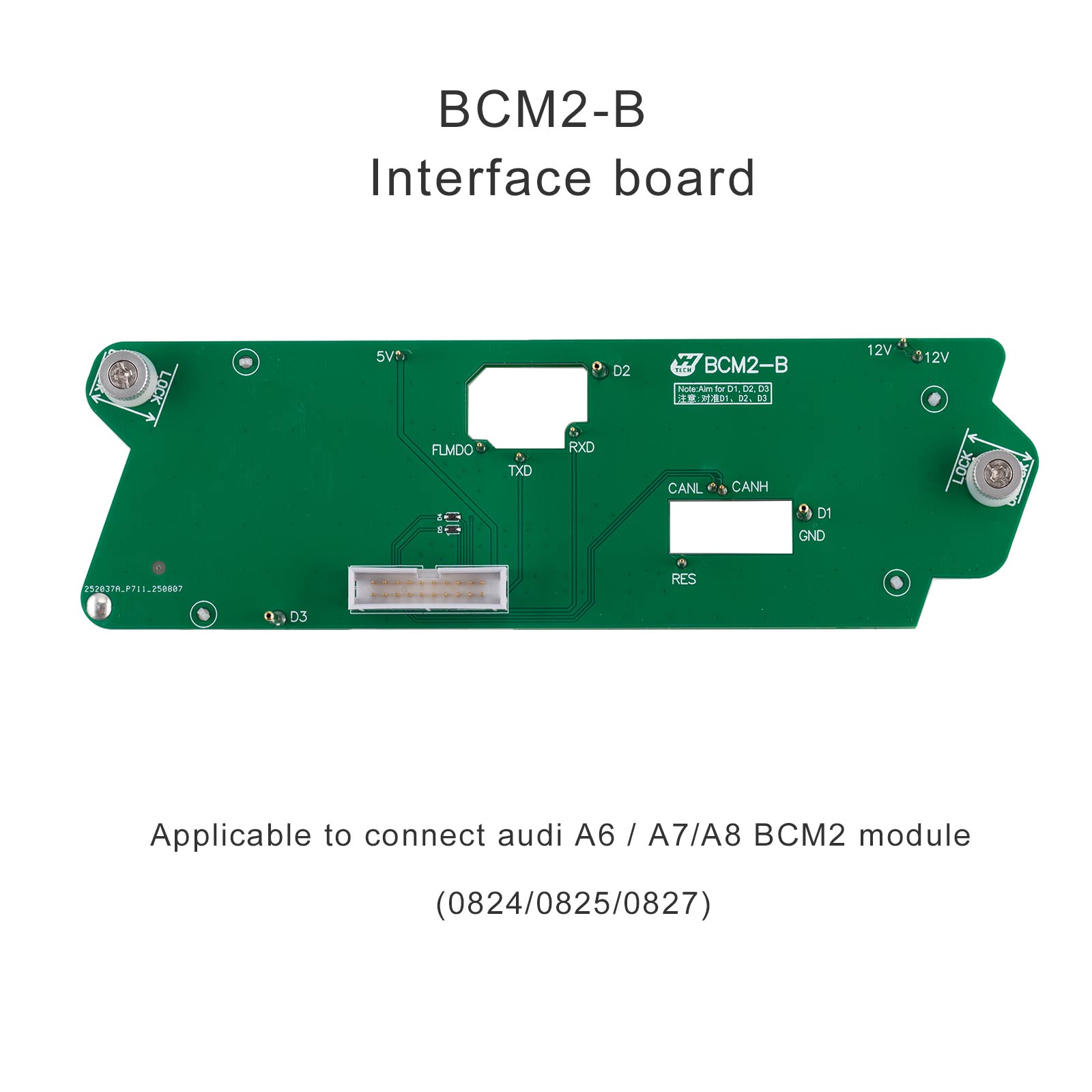

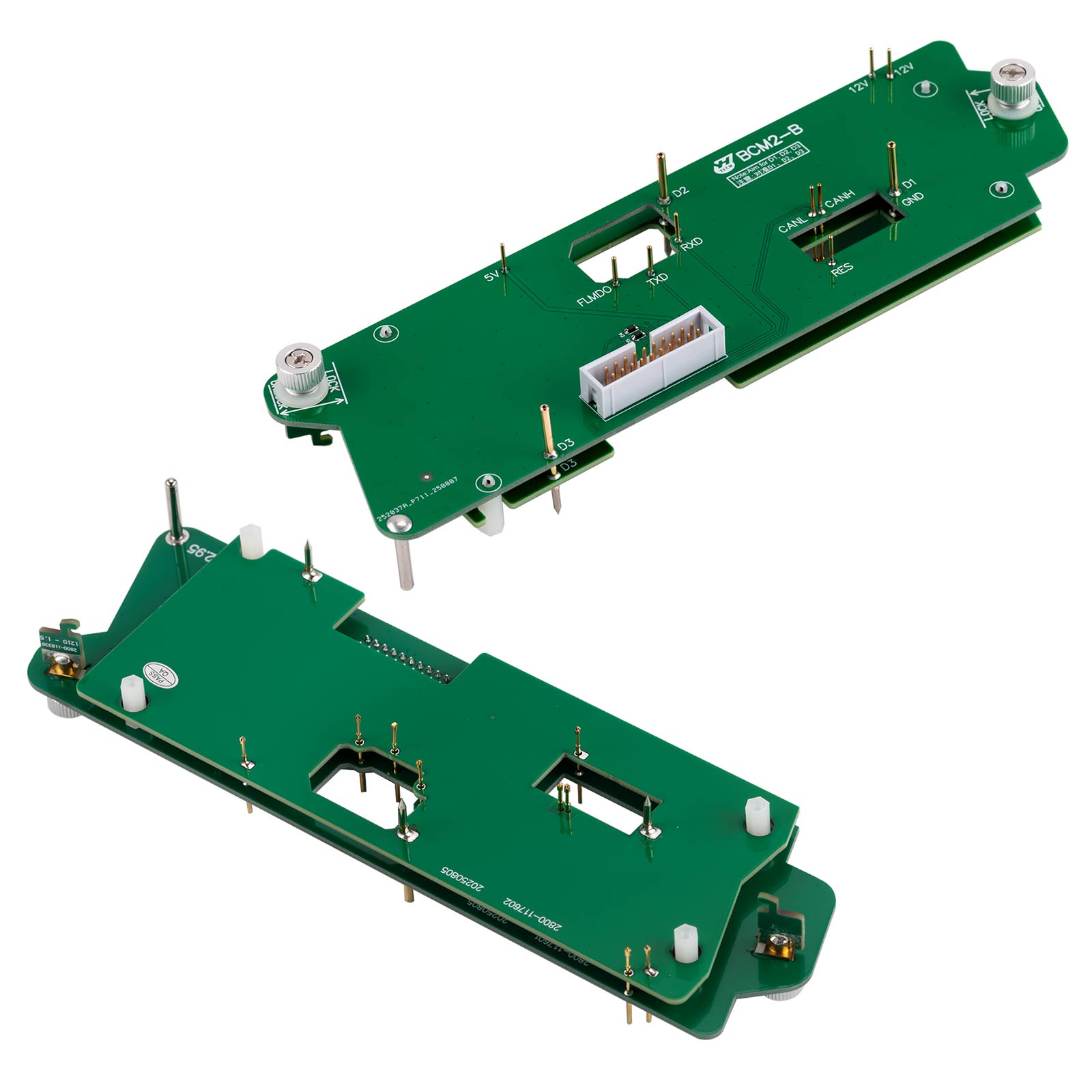

1pc x BCM2-B interface board
6pcs x Plastic pillar

yanhua acdp module 29 package list
