Product Description

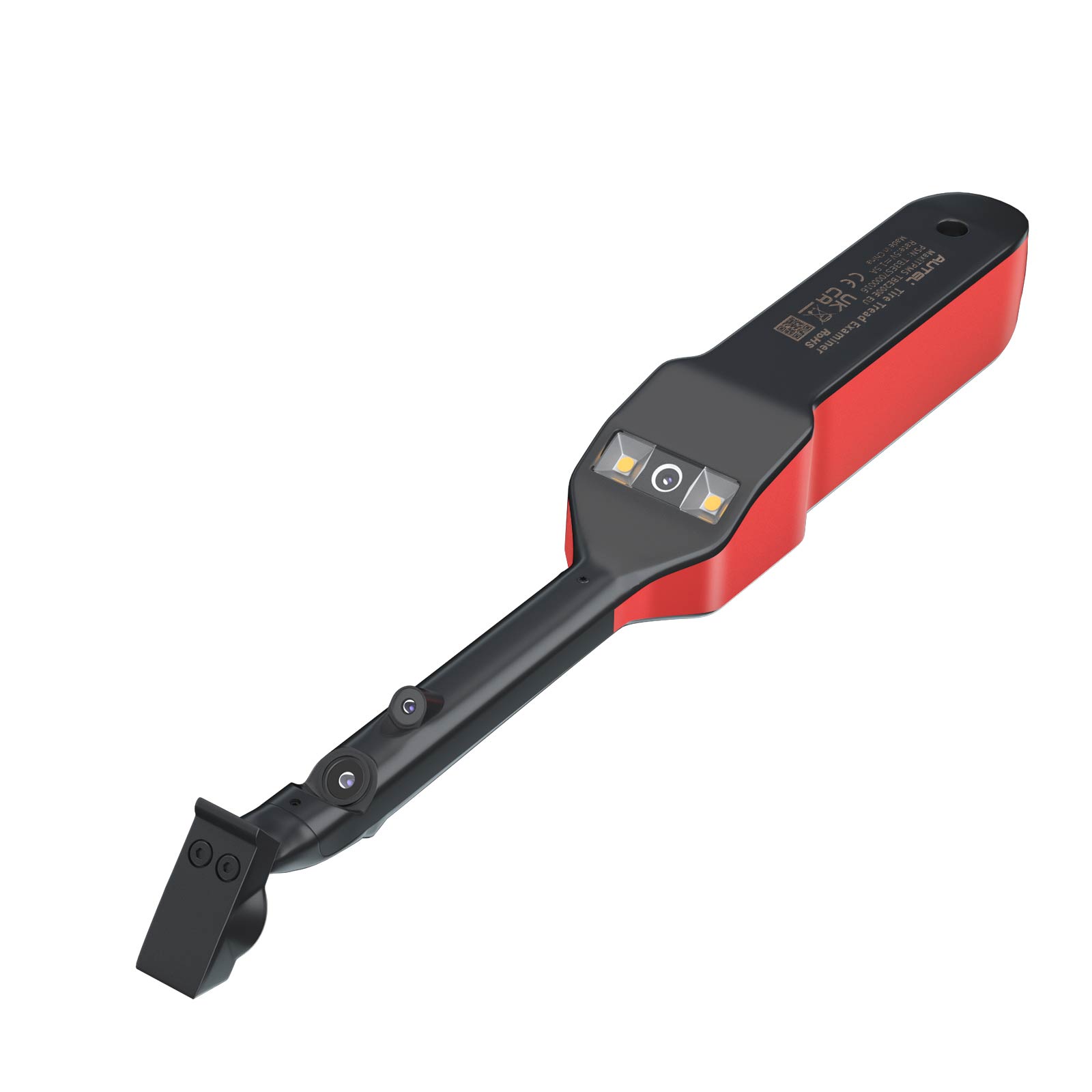

Autel MaxiTPMS TBE200 is a laser tread depth and brake disc wear analysis that measures the brake disc wear without having to remove the tires.
Autel MaxiTPMS TBE200E Tread Depth Measurement & Brake Disc Wear Analysis
Autel MaxiTPMS TBE200E Description:

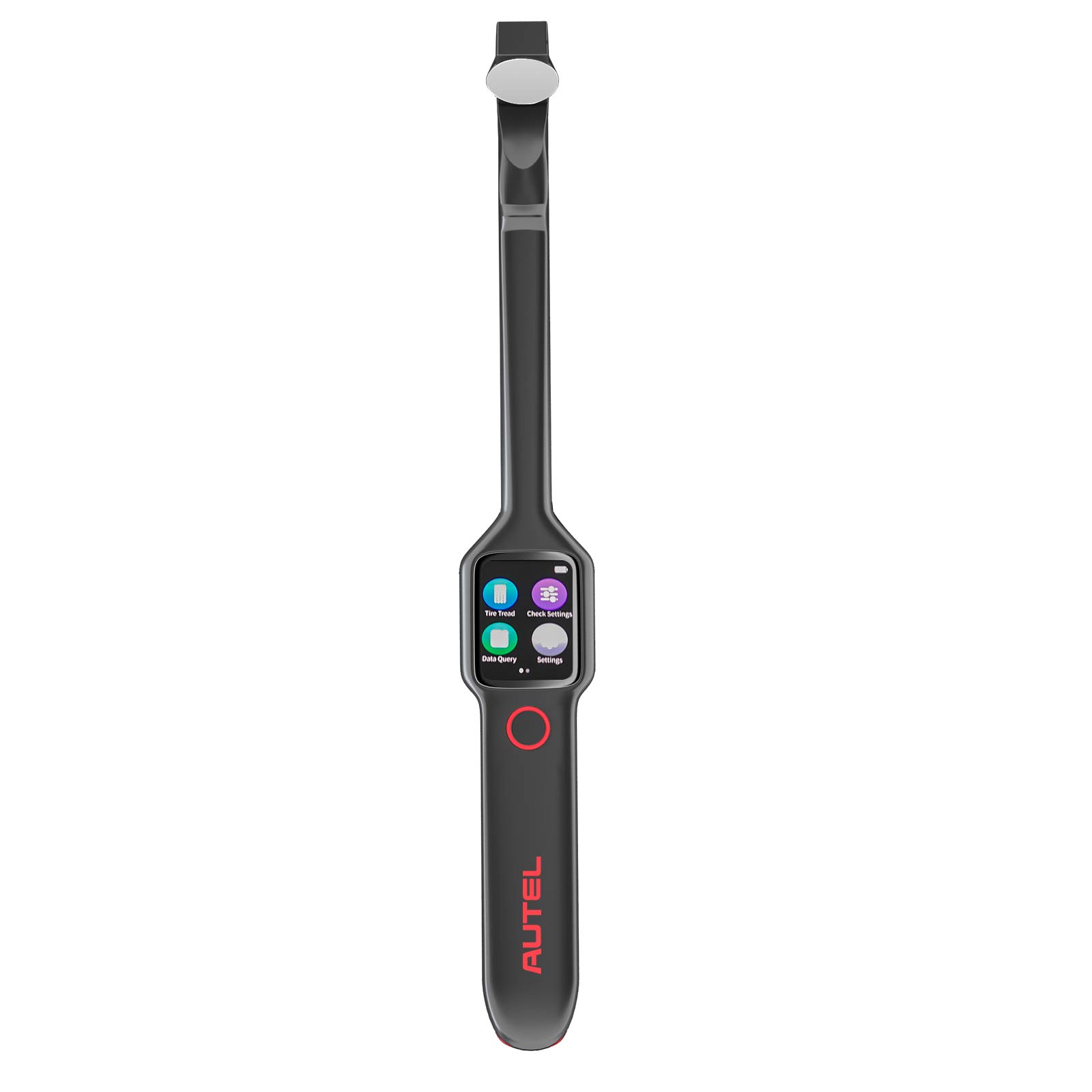

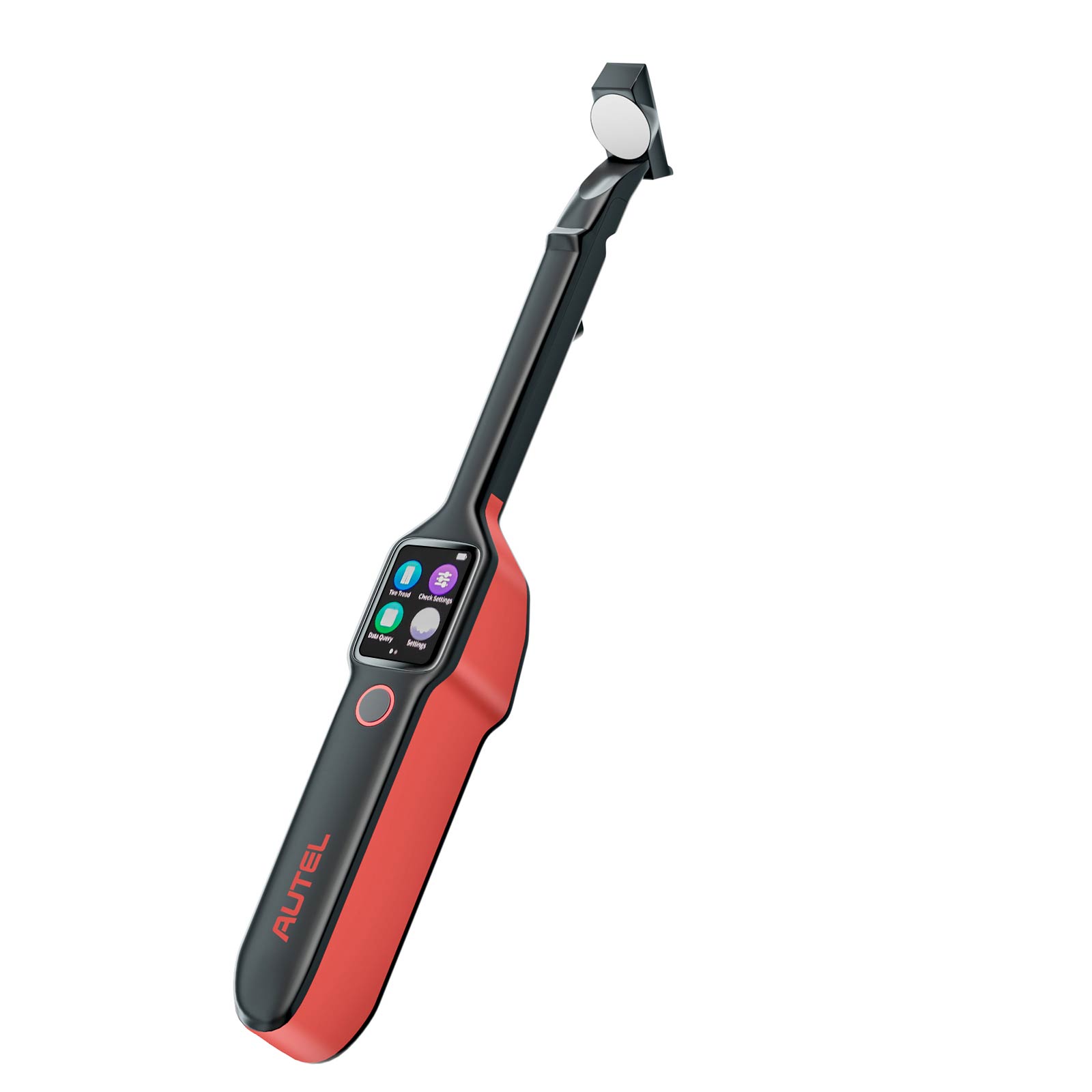

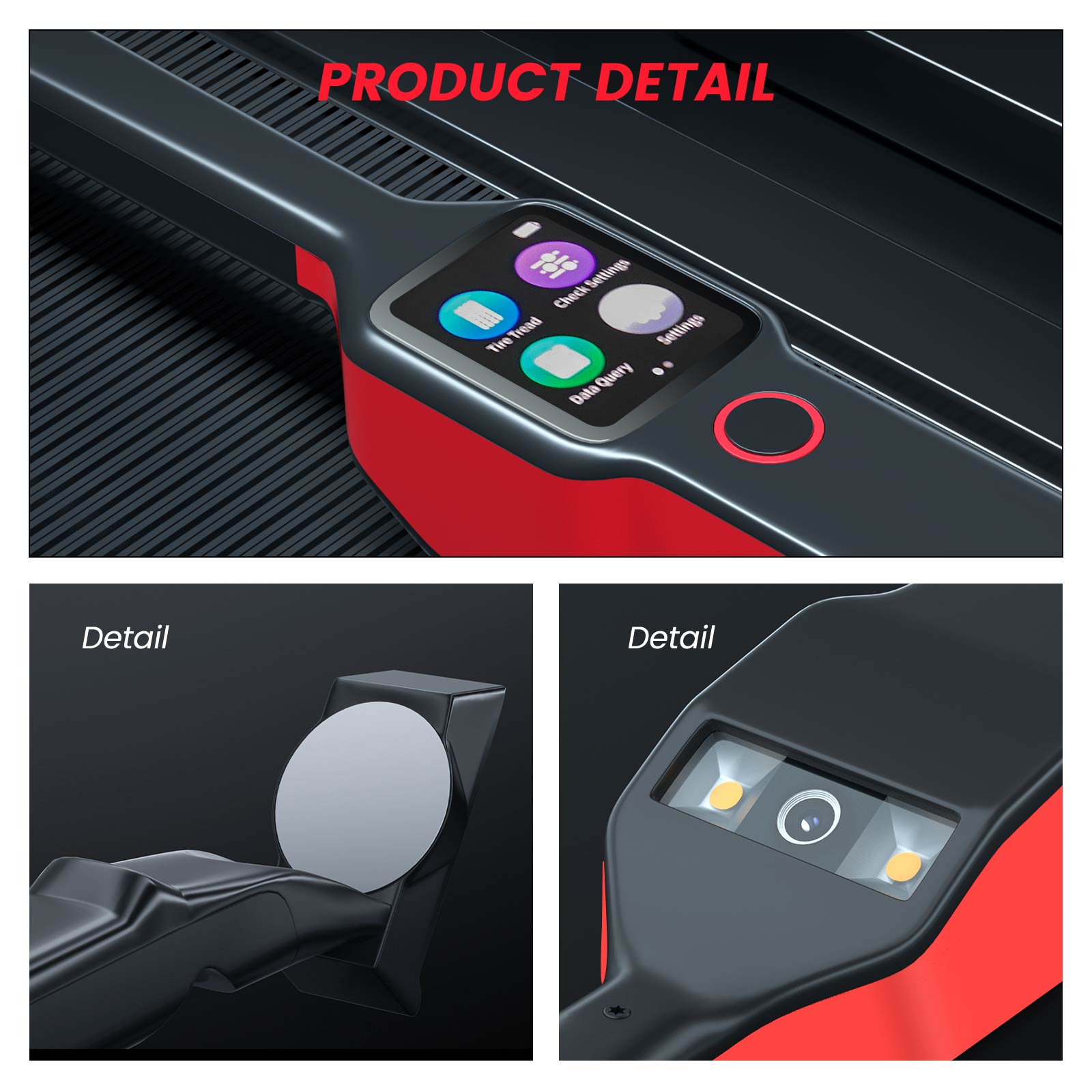

The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time.

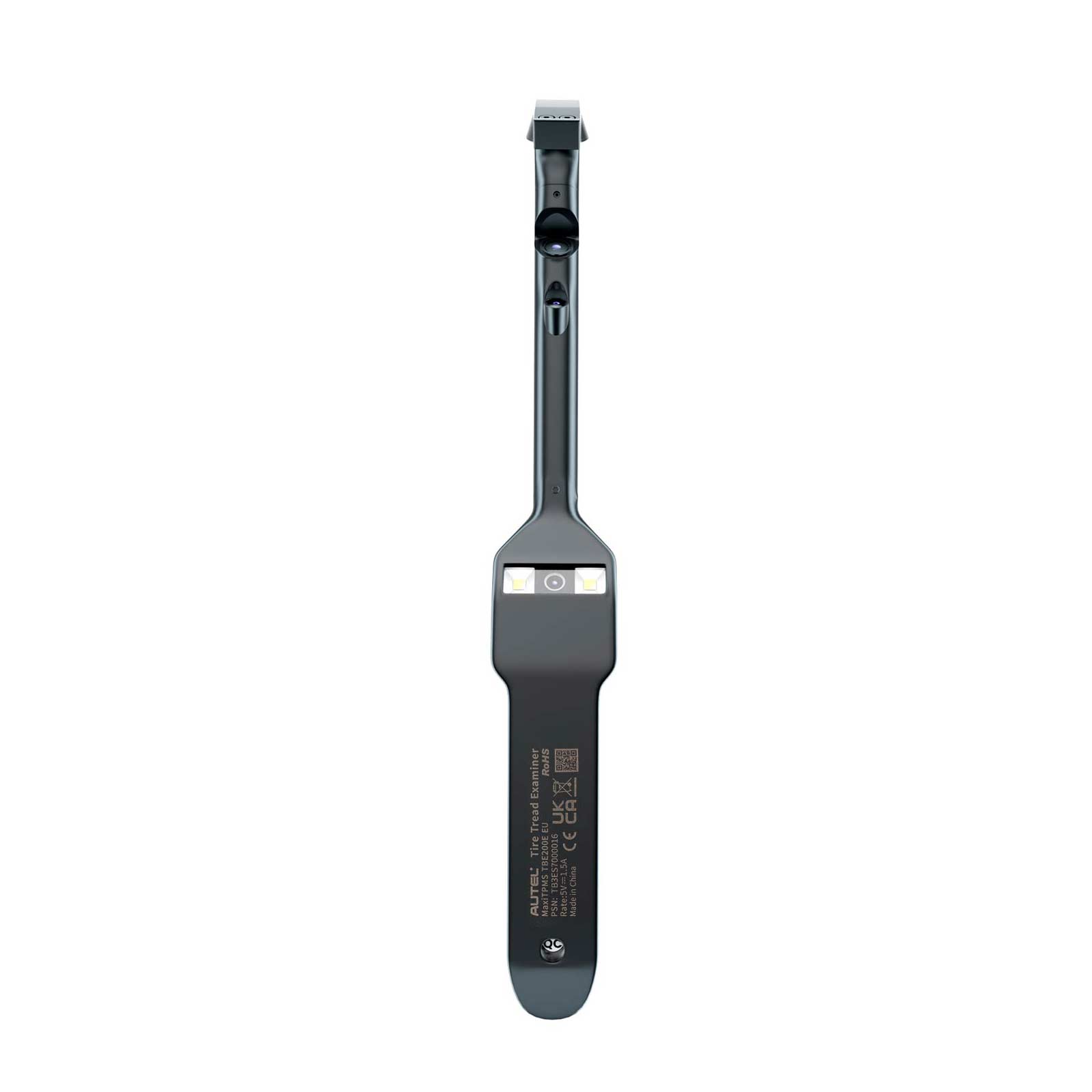

TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service. The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.
Autel MaxiTPMS TBE200E Advantages:
Laser Measurement
• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during the measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake disc
Real-Time Tire Health Analysis
• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread/brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage
Comprehensive Test Report

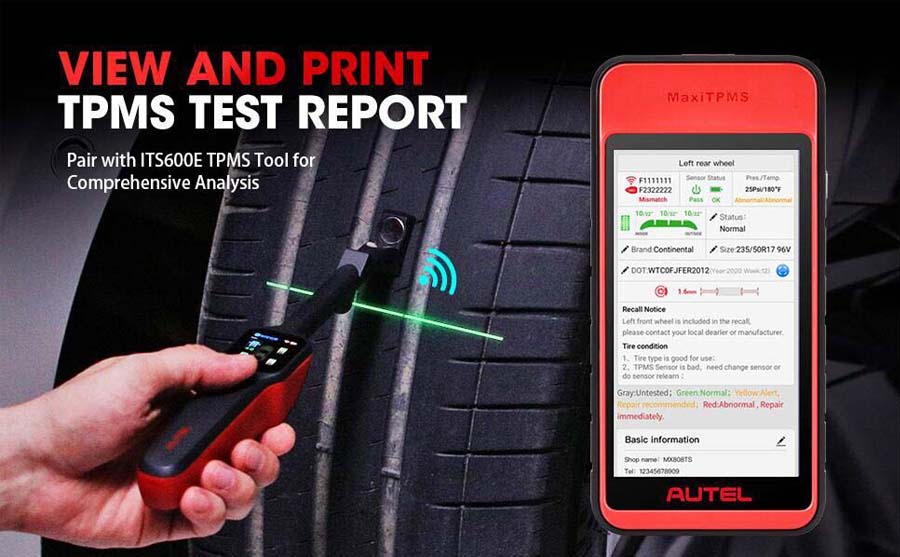

• Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
Easy To Use Qr Code Report Download & Sharing
• Generate QR codes for tire tread depth and brake disc measurements to allow for easy report sharing & download via mobile phones or tablets.
Autel MaxiTPMS TBE200E Specifications:
| Recommended Use | Indoor |
| Processor | 4x ARM Cortex-A35 (1.5 GHz) |
| Memory | 1GB RAM LPDDR3 & 4GB ROM |
| Display | 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution |
| Connectivity | • Wi-Fi • USB 2.0, Type C |
| Camera | CMOS WXGA, 1 megapixel & 8 megapixel, 30fps |
| Audio output | Output: Beep |
| Power and Battery | • 3.7 V/3000 mAh 18650 lithium-ion battery • Charges via 5 V AC/DC power supply |
| Tested Battery Life | Around 8 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 300 mA (AMOLED on with default brightness) @3.7 V |
| Operating Temp. | -10 to 45°C(14 to 113°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”) |
| Net Weight | 188 g (0.41 lb.) |
Autel MaxiTPMS TBE200 Vs TBE100:
| Comparison | MaxiTPMS TBE200 | MaxiTPMS TBE100 |
| FEATURES | ||
| Tire tread depth/ brake disc wear measurement | √ | √ |
| No need to remove the wheel during the measurement | √ | √ |
| Laser measurement | √ | √ |
| Measurement accuracy | 0.1mm | 0.1mm |
| Real-time measurement data on touchscreen | √ | √ |
| Measurement data curve display | √ | √ |
| Full tread measurement | √ | √ |
| Uneven wear analysis | √ | √ |
| Replacement & Maintenance suggestions: Tire replacement, brake disc replacement, tire rotation, four-tire alignment |
√ | √ |
| Quick Check | √ | √ |
| Test detail for single tire tread/brake disc | √ | √ |
| Comprehensive Test Report with TPMS | √(When used with ITS600) | √(When used with ITS600) |
| Scan DOT | √ | × |
| Tire expiration notice | √ | × |
| Tire recall lookup | √ | × |
| Take photos of tire wear and damage | √ | × |
| Compatible with Passenger cars, off-roads, commercial vehicles | √ | √ |
| Hardware | ||
| Size | 283x38.9x33.5mm | 277x28.7x33.5mm |
| Weight | 188g | 138.8g |
| Screen | 1.65” AMOLED super retina touchscreen | 1.65” AMOLED touchscreen |
| Camera | 1 Megapixel, 4cm macro camera; 8 Megapixel 10cm zoomable camera | 1 Megapixel, 4cm macro camera |
| Vibration reminder | √ | √ |
| Flash / RAM | 4GB/1GB | 4GB/1GB |
| Lithium-ion Battery | 3000mAh | 1300mAh |

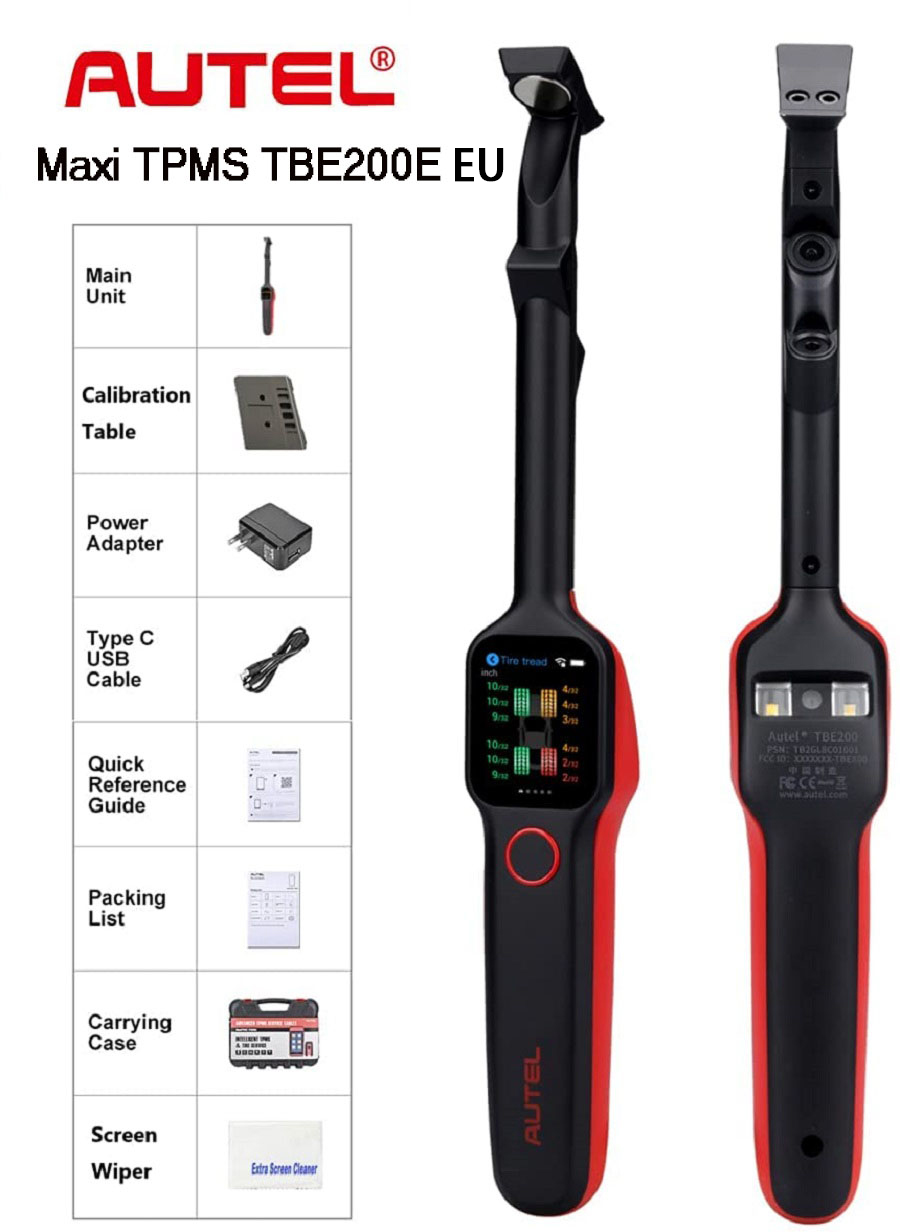

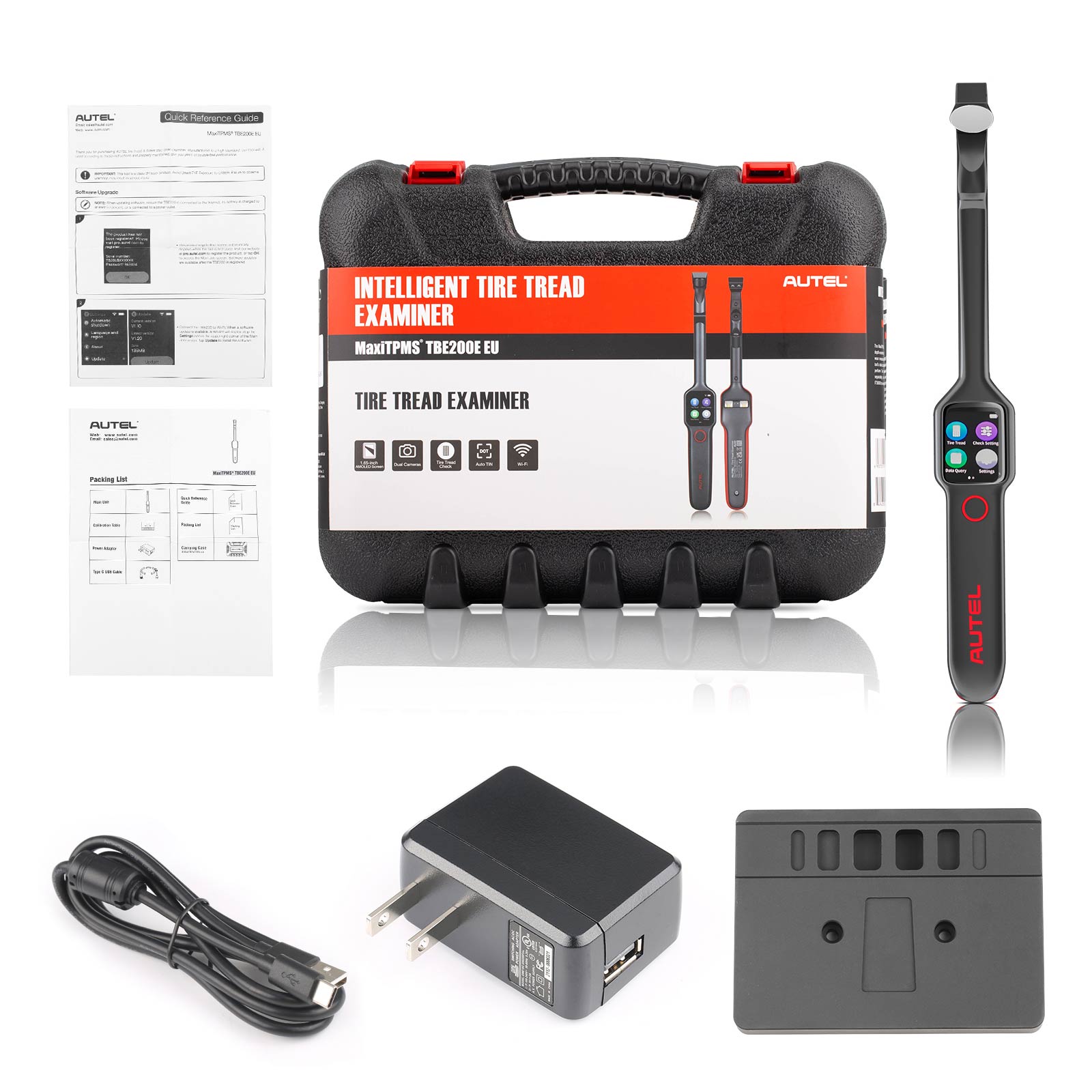

MaxiTPMS TBE200 Package list:
1pc x Main Unit
1pc x Calibration Table
1pc x Power Adapter
1pc x Type C USB Cable
1pc x Quick Reference Guide
1pc x Packing List
1pc x Carrying Case
1pc x Screen Wiper
