This CAN Filter 18 in 1 for Benz / BMW universal filter should be added to the car after odometer adjustment for most chassis models. But for W222/W205/W447 models, CAN filters should be added before odometer adjustment.

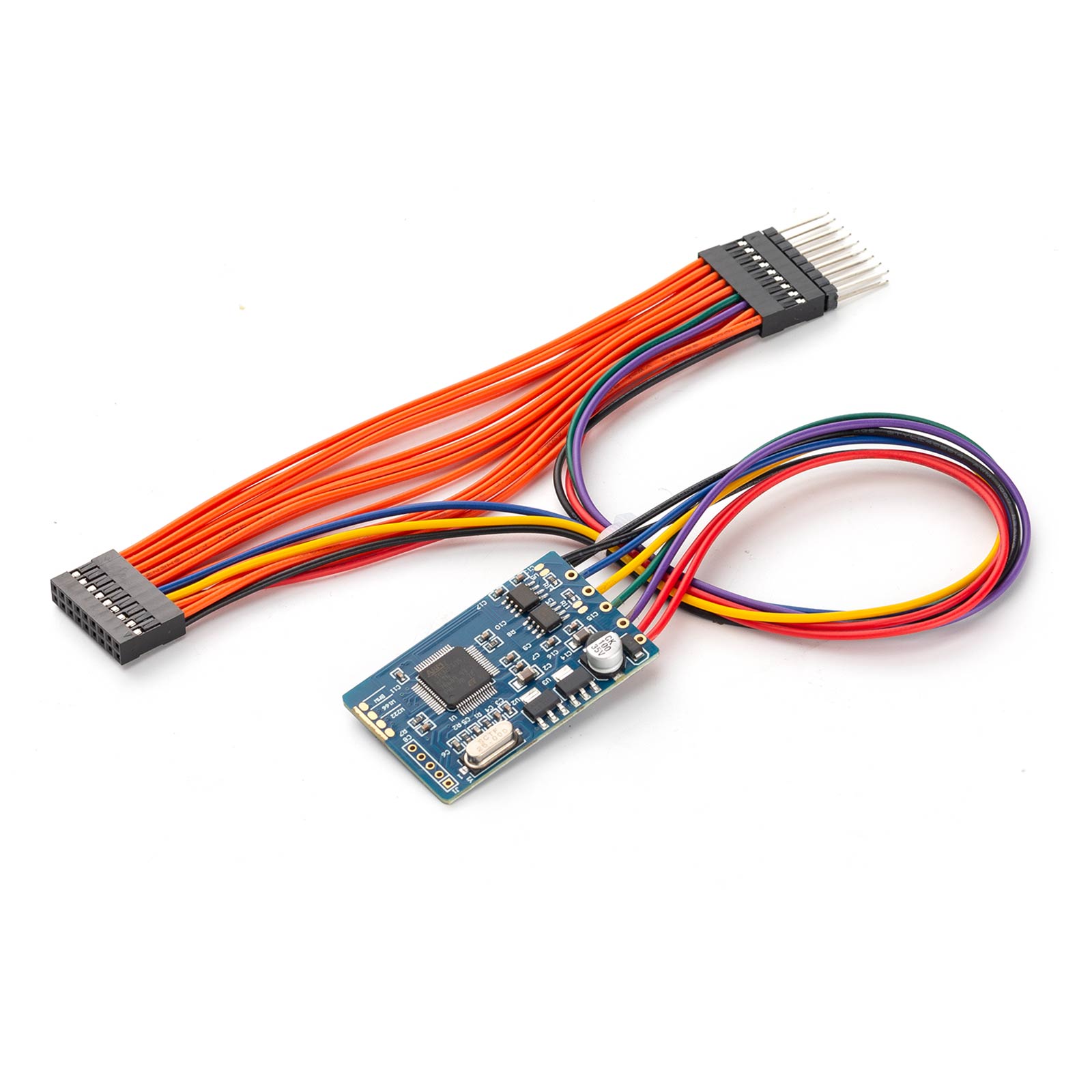

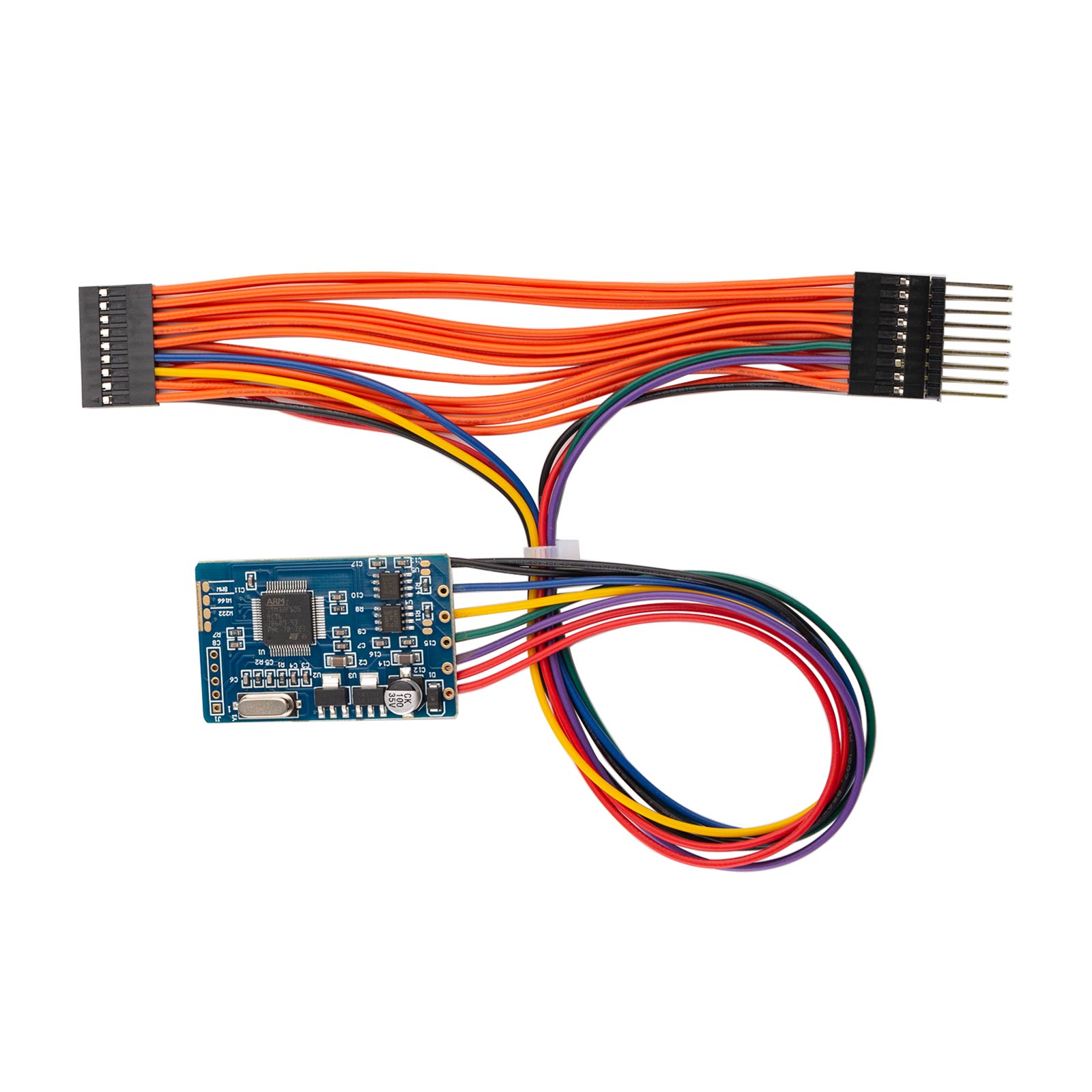

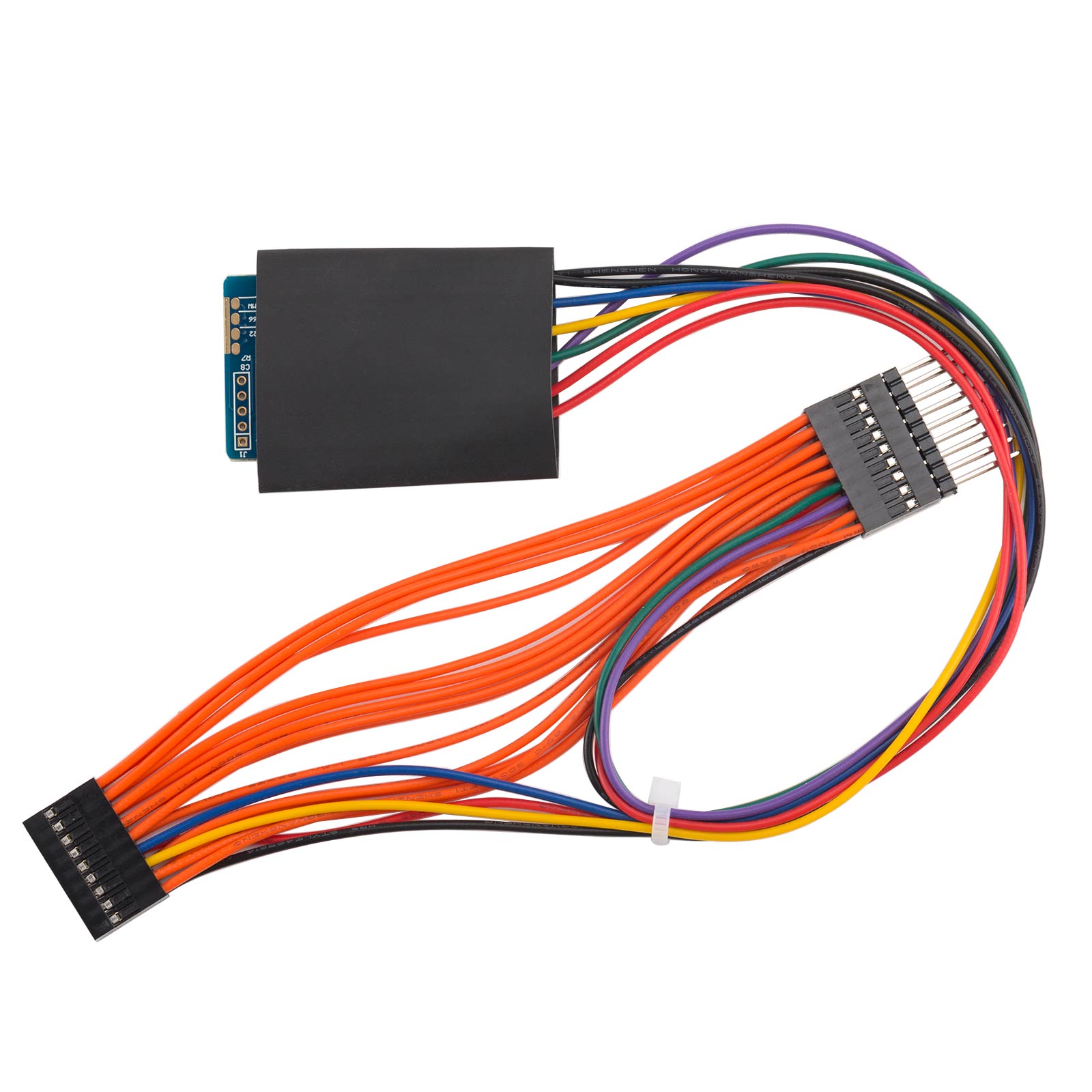

CAN Filter 18 in 1 Benz/BMW Universal Filter
Latest Benz / BMW Universal CAN Filter
CAN Filter 18 in 1 Benz/BMW vehicle list:
a. Benz Model:
Benz 18 types chassis model: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
New style: 222/205/217
Old style: 166/212/463
CHECK the car model correctly before mileage adjustment.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1
2. BMW Model:
BMW: CAS4/FEM Fxx
BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).
This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.
YH Benz / BMW Universal filter --- Diagram for BMW

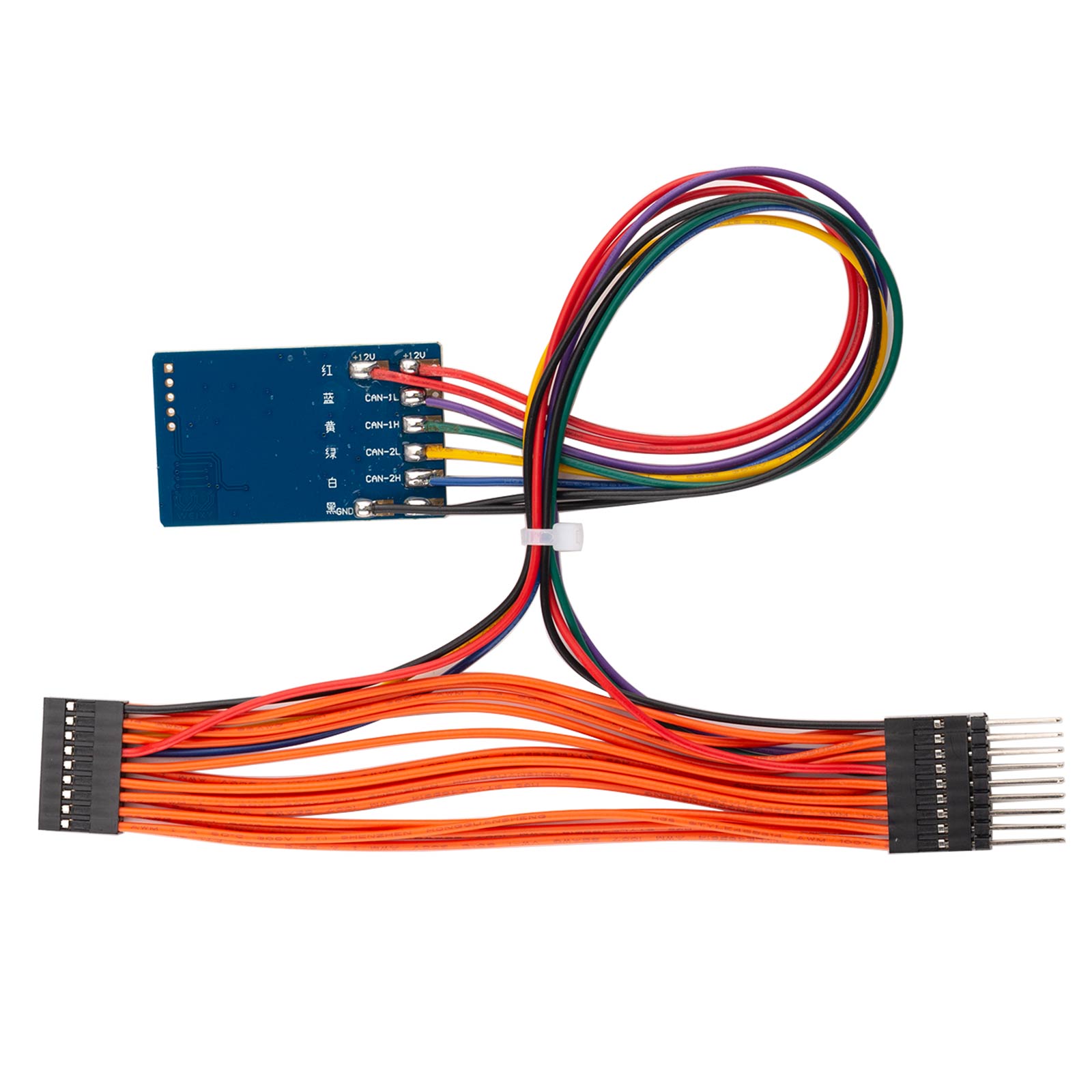

Here is the wiring diagram:
Black --------- GND Red --------- +12V White --------- +5V
Purple -------- L1(CAN_L1) Green --------- H1(CAN_H1)
Yellow --------- L2(CAN_L2) Blue --------- H2(CAN_H1)
NOTICE! Please connect the 2 BMW dots together (short circuit) BEFORE connection to the car!
1. diagram for BMW 1 series F20 instrument:
2. diagram for BMW 3 series F30 instrument:
3. diagram for BMW 3 GT series F30 instrument:
4. diagram for American Standard BMW X5 F15 instrument:
5. diagram for USA Standard BMW X5 F15 instrument:
6. diagram for BMW FEM:
7. diagram for BMW CAS4(1L15Y/5M48H/1N35H)
8. diagram for BMW X3 F25 instrument:

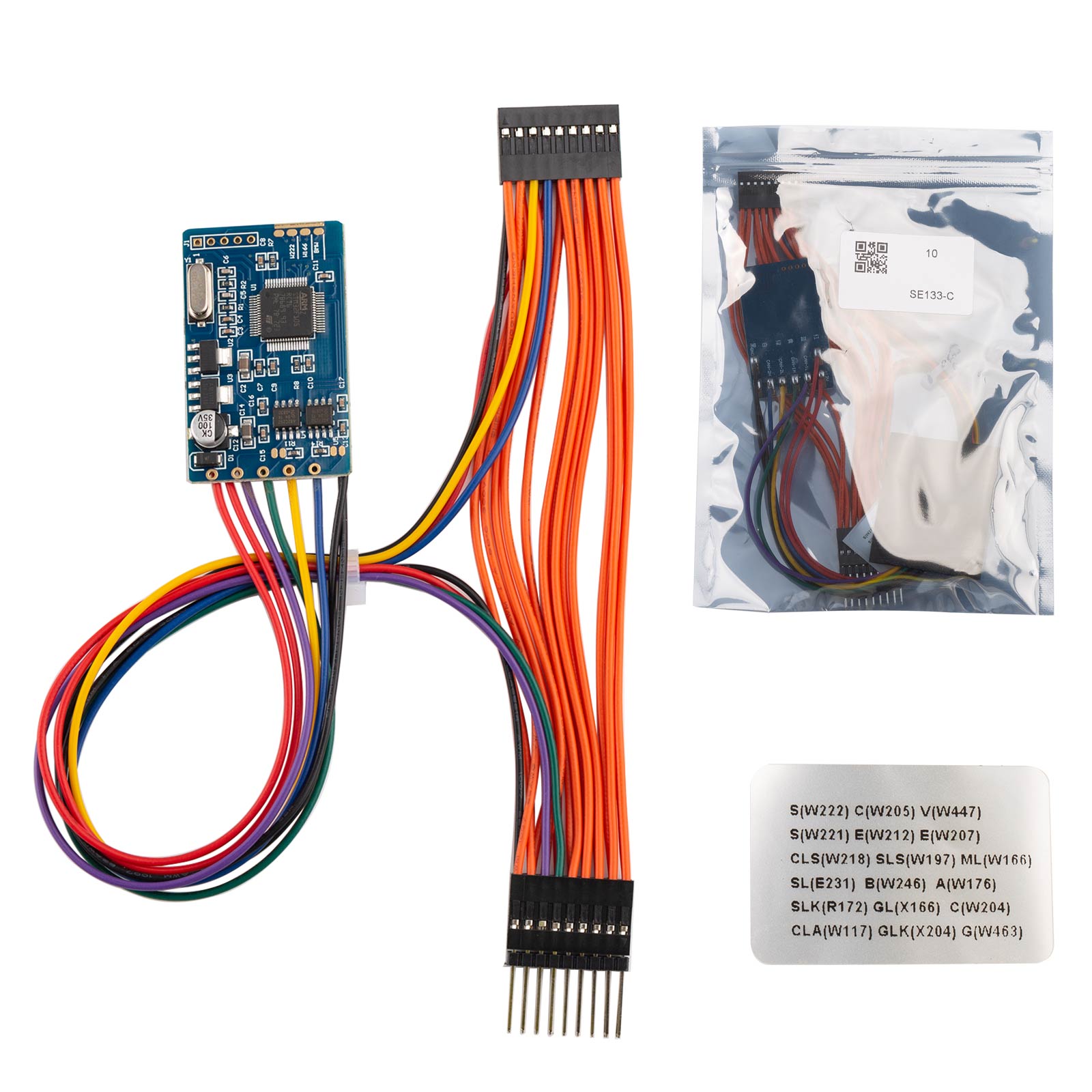

1pc x CAN Filter 18 in 1 for Benz/BMW Universal filter
