Product Description
DAP adapter for CG FC200 Programmer wide compatibility with mainstream ECU chips including Toyota Gen1 DENSO and Delphi DCM7.1AP/DCM7.24, enabling secure read/write and verification. Supports one-click online firmware updates with continuously expanding chip coverage.

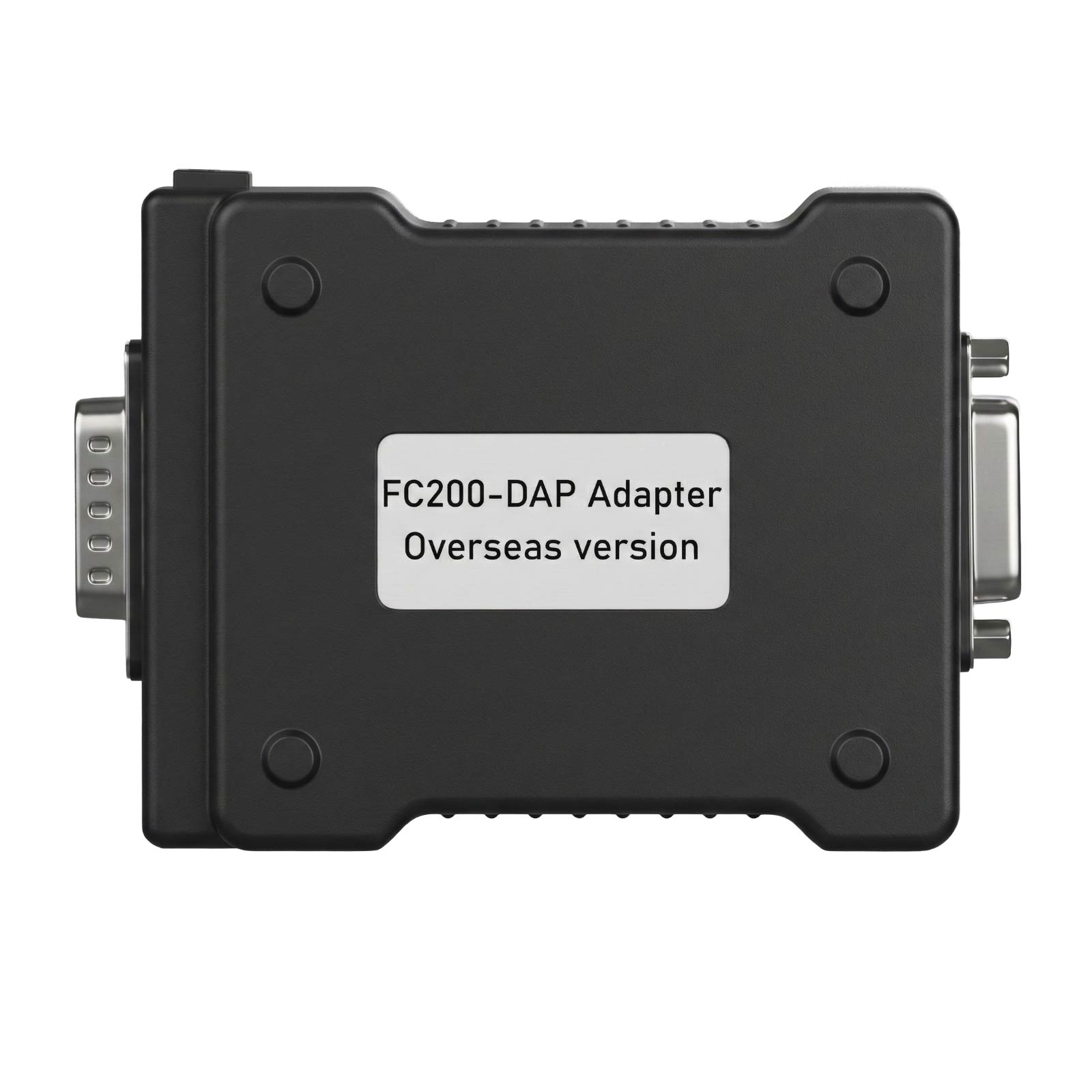

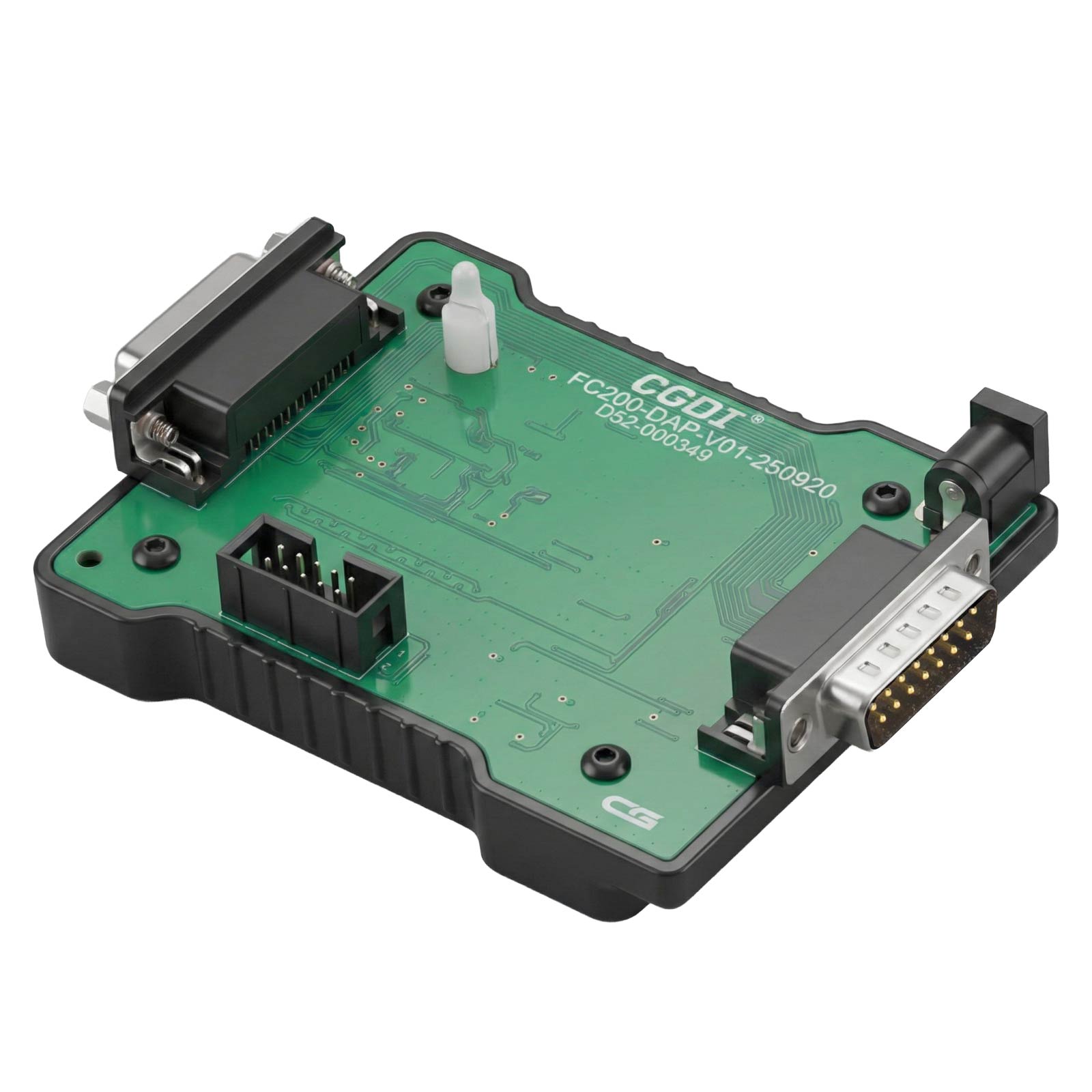

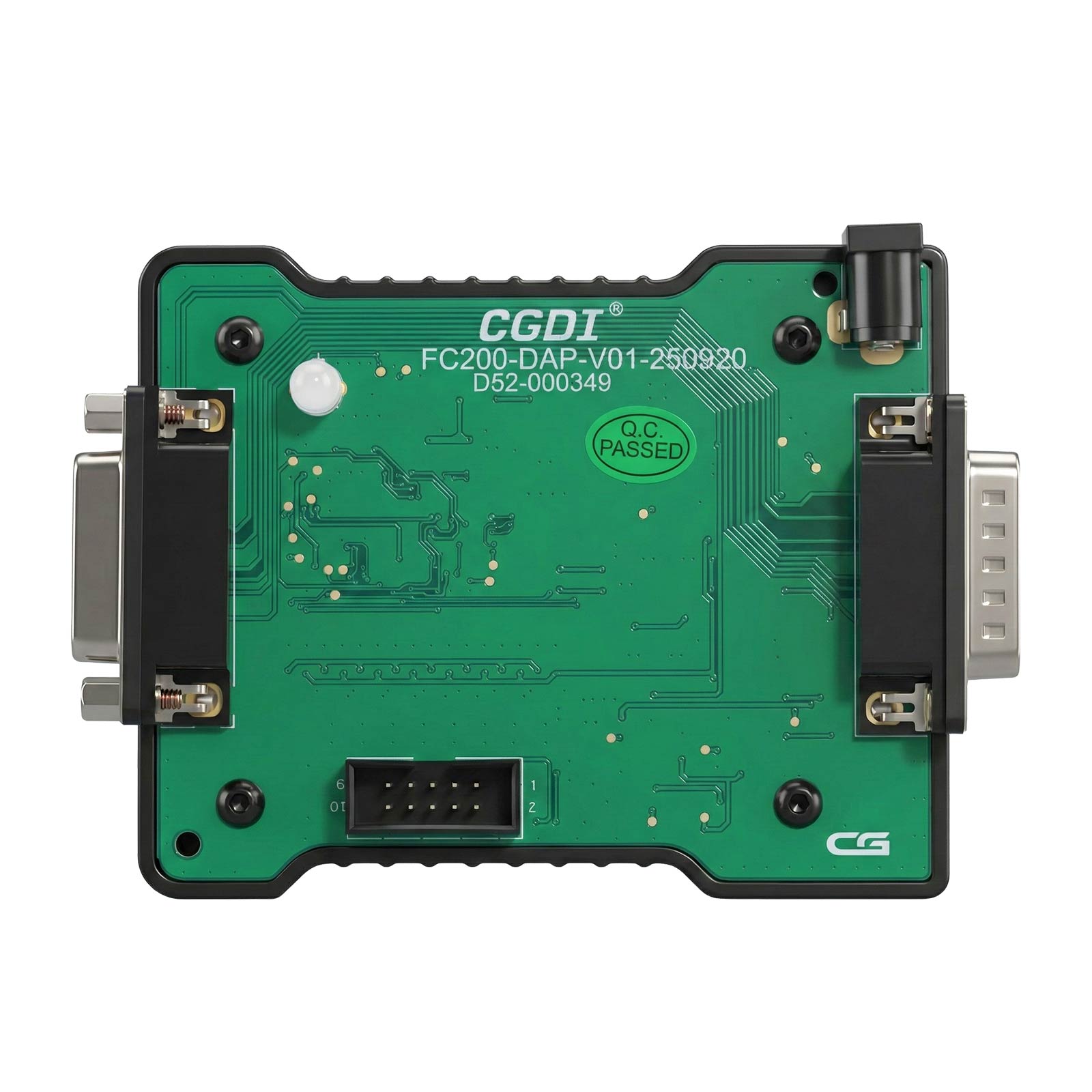

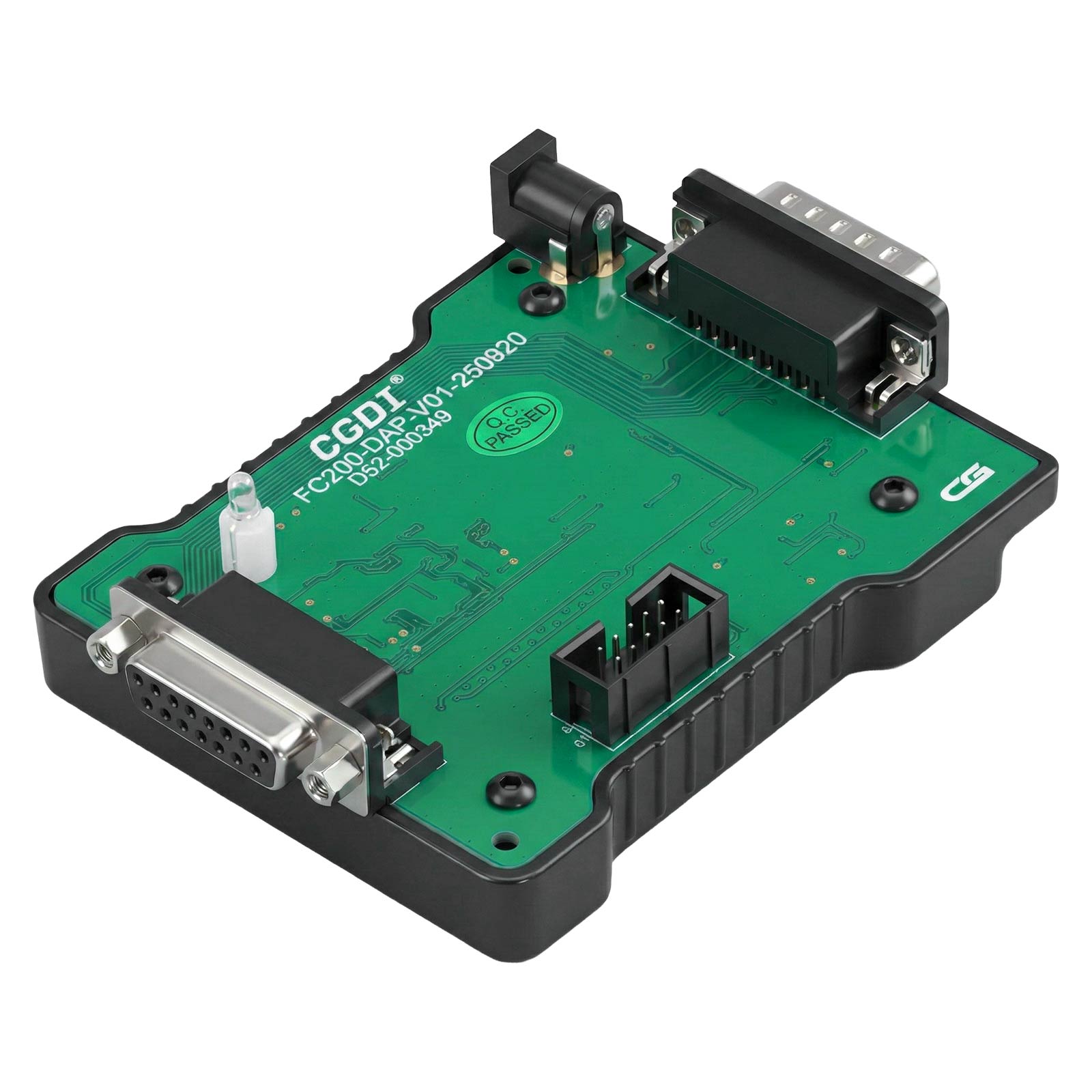

CGDI FC200 DAP Adapter Mainly For Toyota's First-generation DENSO Series, Delphi's DCM7.1AP & DCM7.24 Chips
DAP ADAPTER Features:
Wide Compatibility with Mainstream Chips: The adapter primarily supports reading/writing and verification operations for key chips such as Toyota's first-generation DENSO series, as well as Delphi's DCM7.1AP and DCM7.24. Optimized communication protocols and stable hardware interfaces ensure more efficient and secure ECU data reading and flashing.
Online Firmware Updates: Simply connect to the internet to obtain and install the latest official firmware with one click.
Continuously Expanding Chip Support: The FC200-DAP is developed based on a scalable hardware platform and software architecture. We will continuously expand its supported chip models through ongoing firmware updates.
FC200 DAP Adapter Functions:
1. DAP Function: Primarily for reading and writing ECUs with TC2xx (Infineon) chips, only supports boot (opening cover) mode.
Main Models:
DCM7.1AP—Chinese cars, Hyundai, Kia, and Indian market models (Tata, Mahindra, Isuzu, etc.), can read Dflash, Pflash, modify VIN, includes a built-in verification program; ECU cloning requires customer verification upon installation.
DCM7.24—Chinese Yuchai
Note: Adding ECUs for other models or ECUs with chips like TC297 is possible, but it's best to have the customer provide the ECU.
Precautions: ① The correct vehicle model must be selected for operation; ② Diesel engines require a stable 12V power supply.
2. Toyota/Lexus ECU (first generation, early 2000s) NEC76F00xx chip Boot mode read/write, supports the following 8 chip types:
76F0038GD
76F0038AGD
76F0039GD
76F0039AGD
76F0040GD
76F0040AGD
76F0070
76F0085
Important Note:
Since Denso ECU housings come in many different versions, you must verify the chip model when using this function. If the chip is among the eight chips supported by the device, you can use the DAP adapter without needing to check the ECU cover model; only check if the chip matches. The model number on the FC200 menu corresponds to the silkscreened model number on the PCB board after opening the ECU cover. Select the corresponding wiring diagram from the menu based on this silkscreened model number.
The Connection Diagrams:

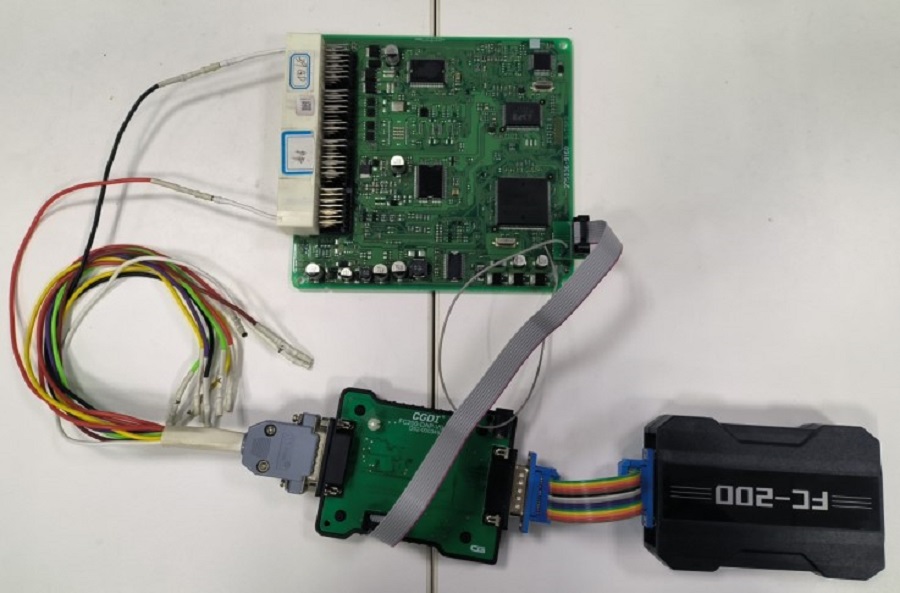

1. Use pin headers for connection.

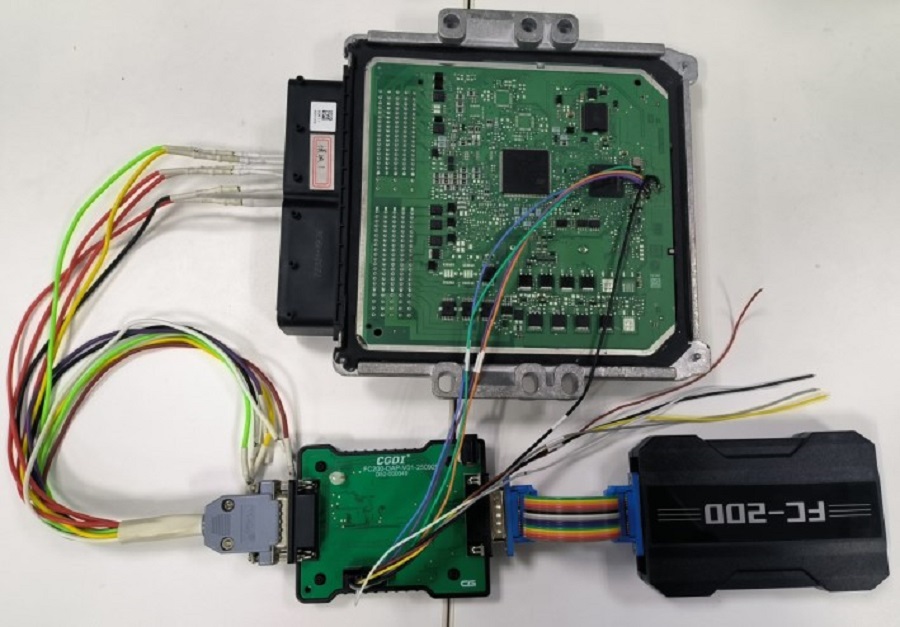

2. Use DAP cable harness for connection.
Specifications:
Operating Voltage: 12V
Operating Current: 1A
Operating Temperature: -20℃~+85℃
Storage Temperature: -40℃~+80℃
Operating Humidity: 30%RH~60%RH
Shell Material: ABS+PC30%

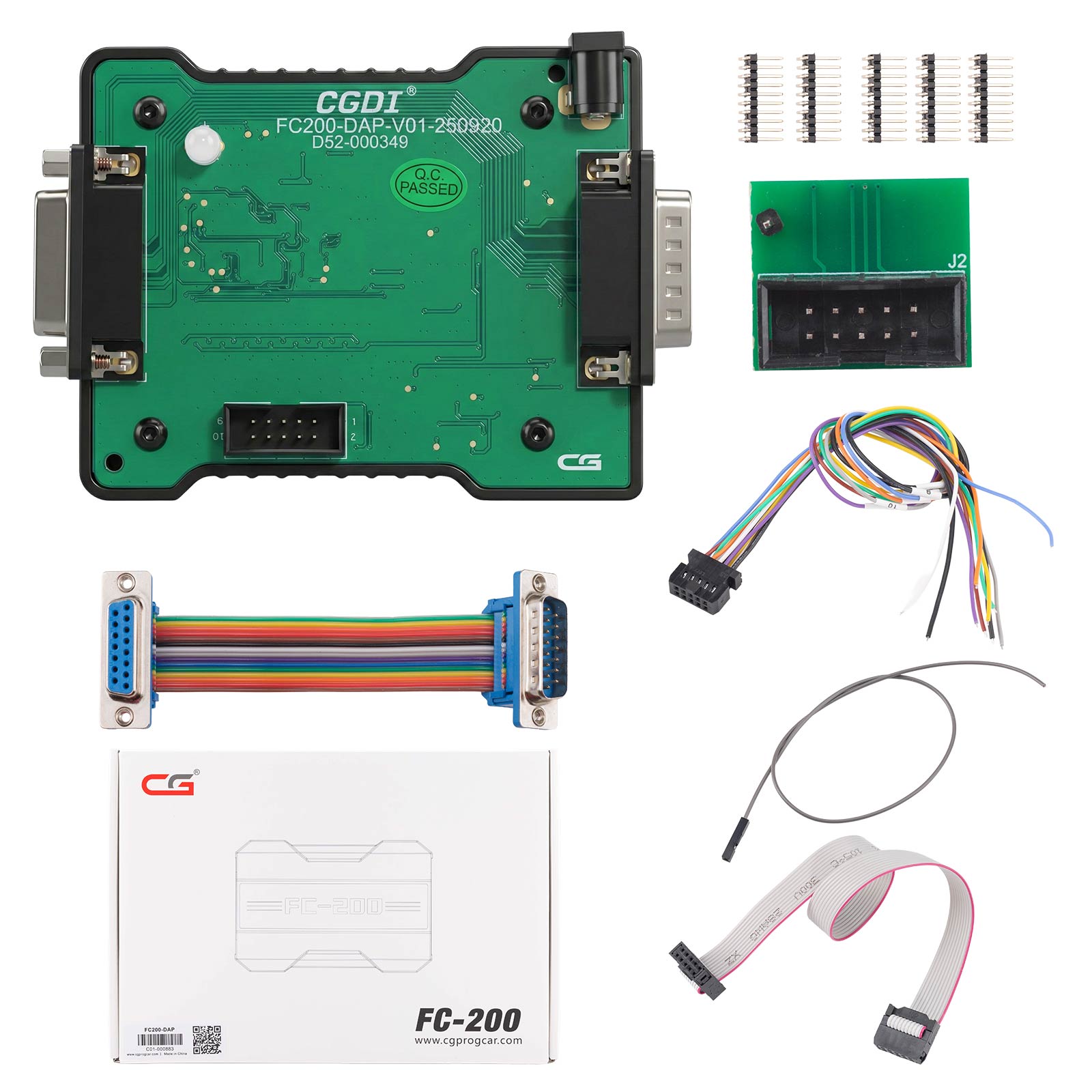

Package includes:
1pc x CGDI FC200 DAP Adapter
1pc x Pin header
1pc x Gray ribbon cable connector
1pc x FC200-DAP cable
1pc x 76F adapter board
1pc x DB15 two-row male-female connector
1pc x DIDC ribbon cable extension cable
