LAUNCH EVB648 EV Battery Pack Cell Equalizer
Buy Now: £4,687
Whatsapp +86 13983755934
Shipping:
Free Shipping
Express Shipping ServiceEstimated delivery time: 3-5 working days.See details »
Weight:
37.7KG
Package:
70cm*67.5cm*43.5cm
( Inch: 27.49*26.51*17.08 )
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »
Product Description
The EVB648 helps reduce battery pack repair costs and shortens maintenance time, making it an essential tool for EV detection and diagnostics.

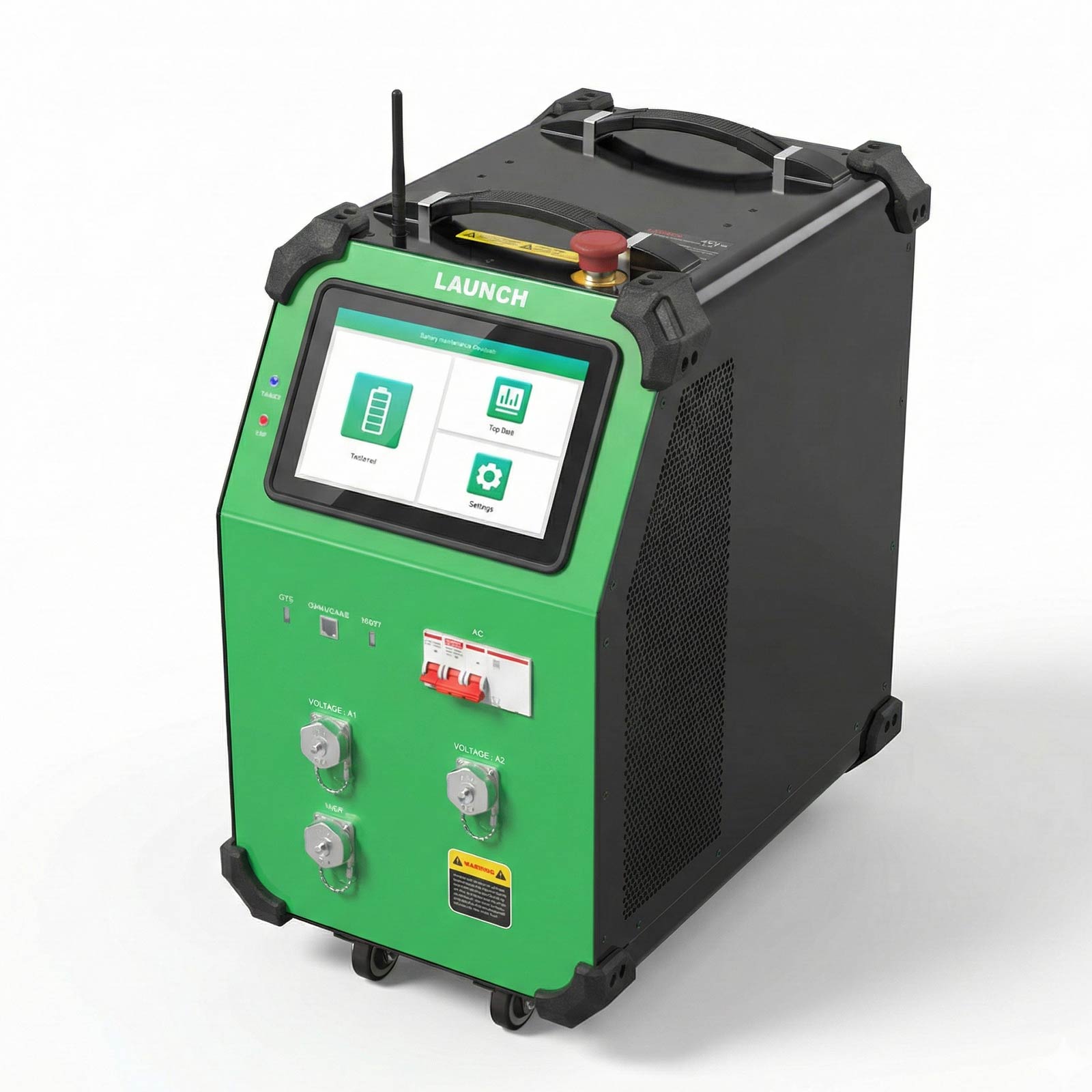

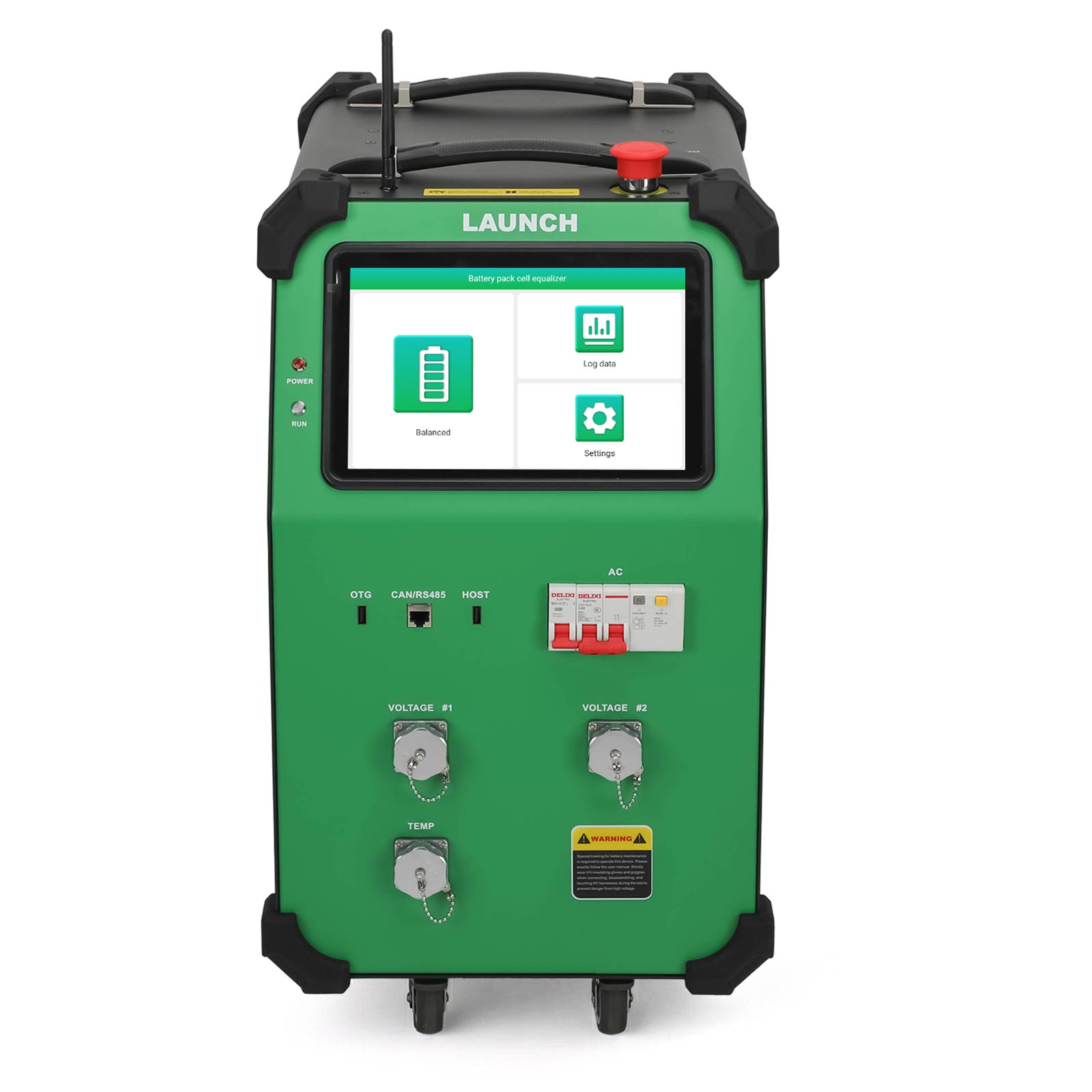

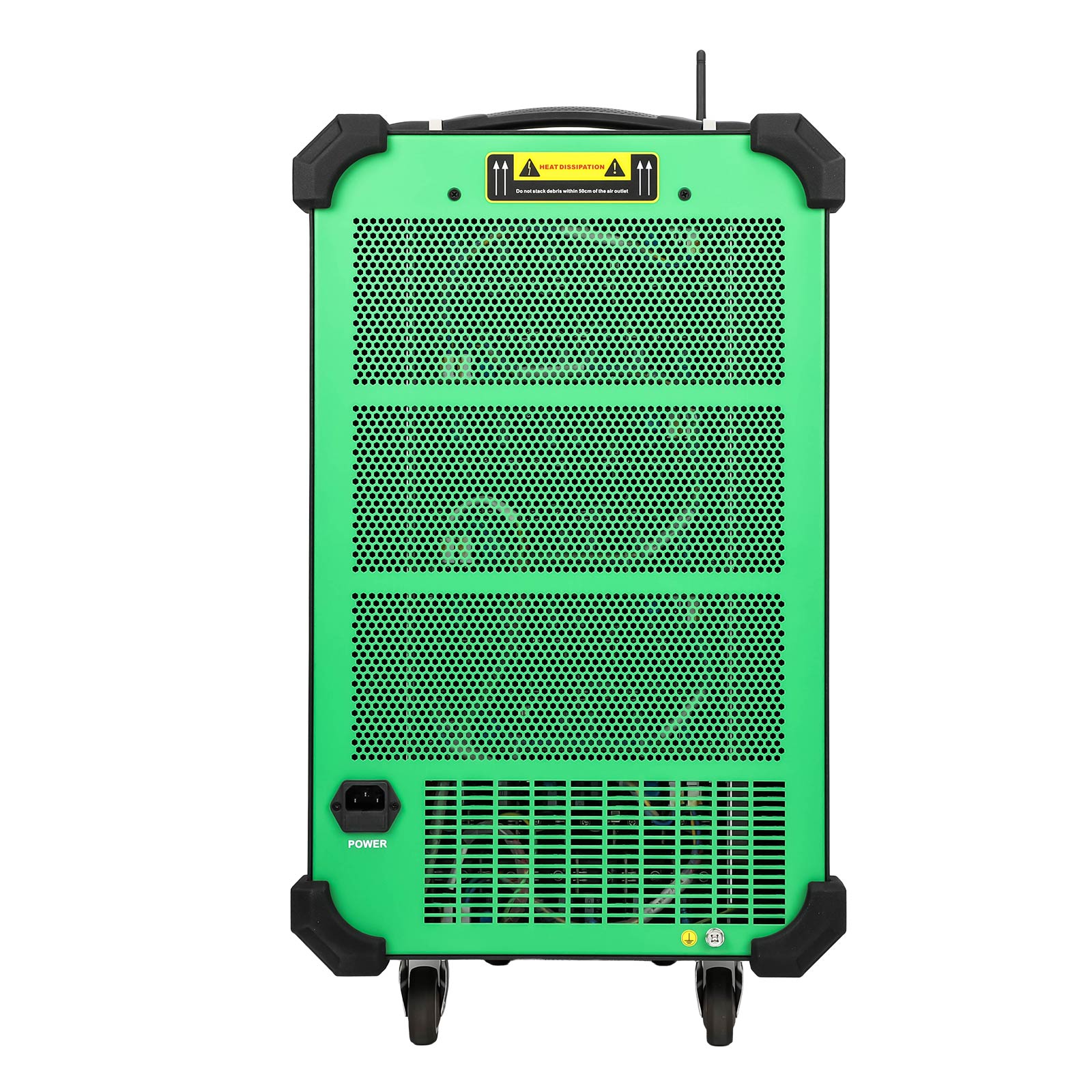

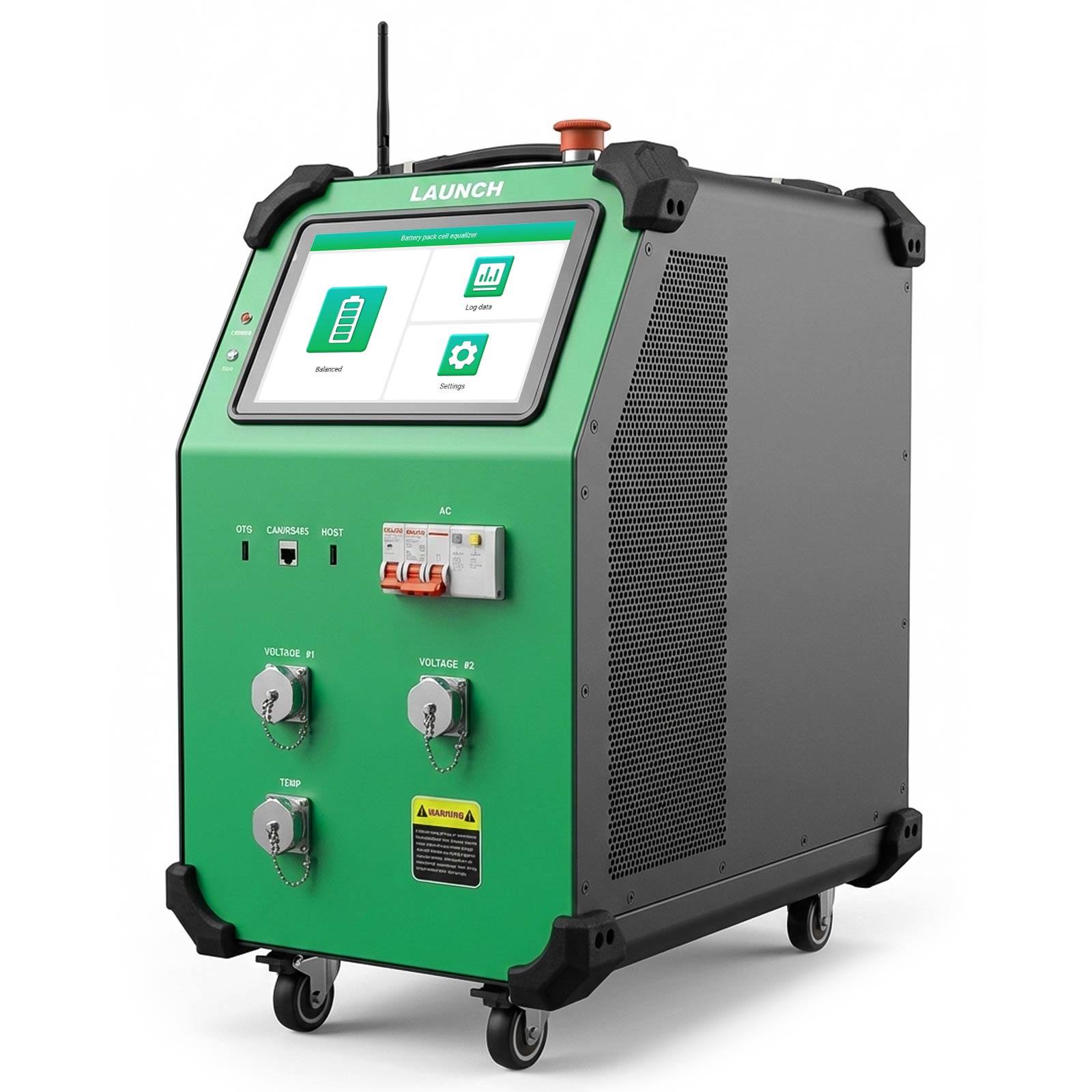

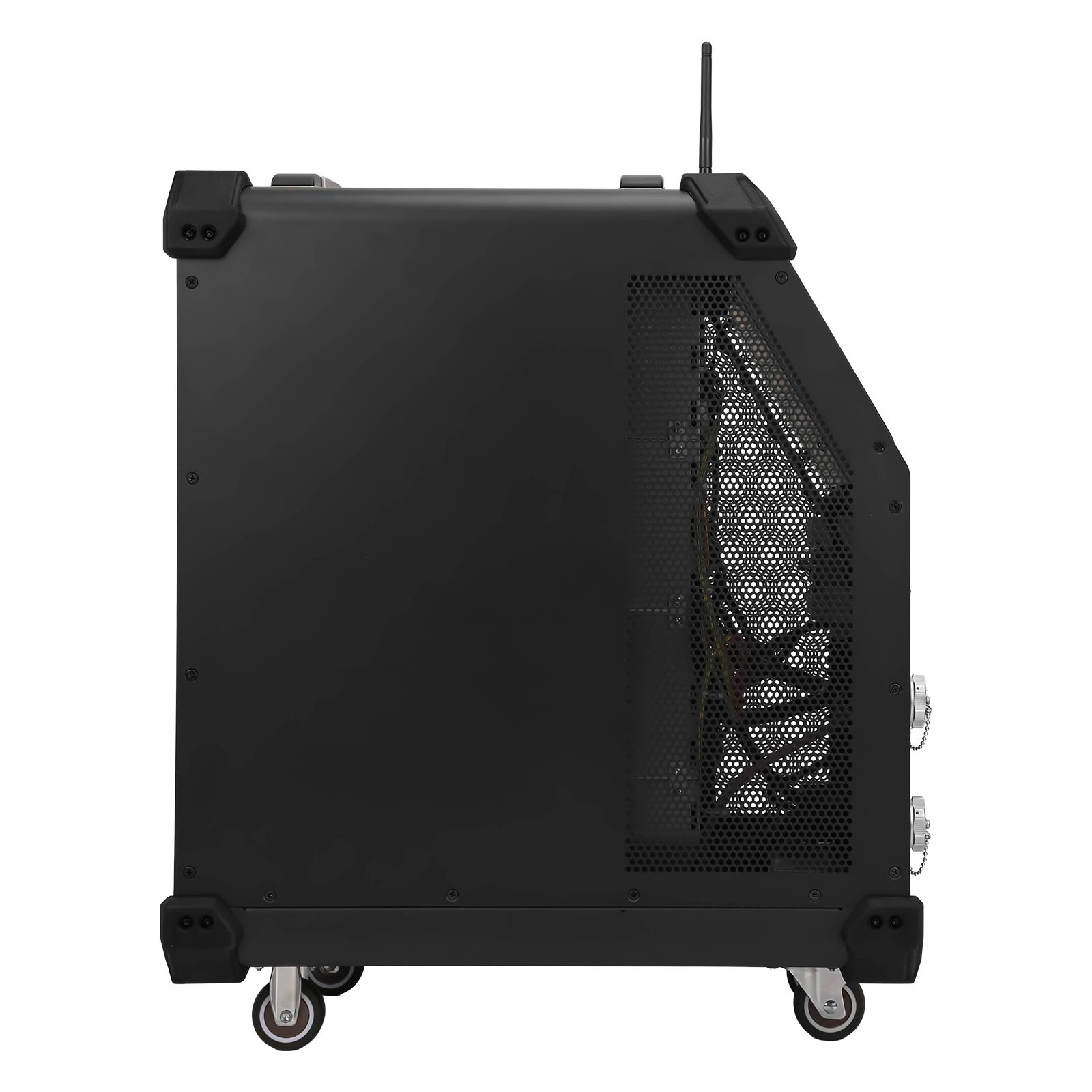

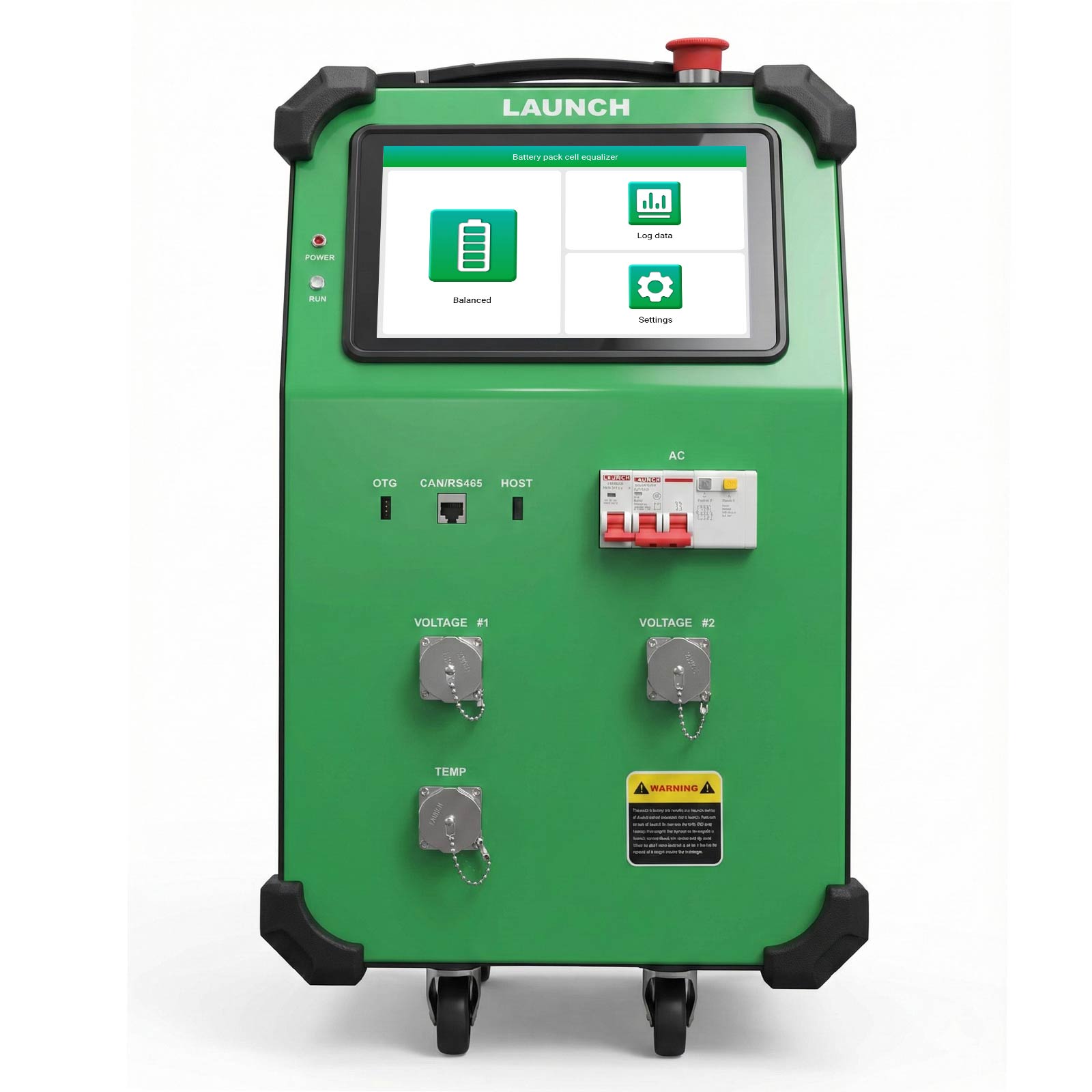

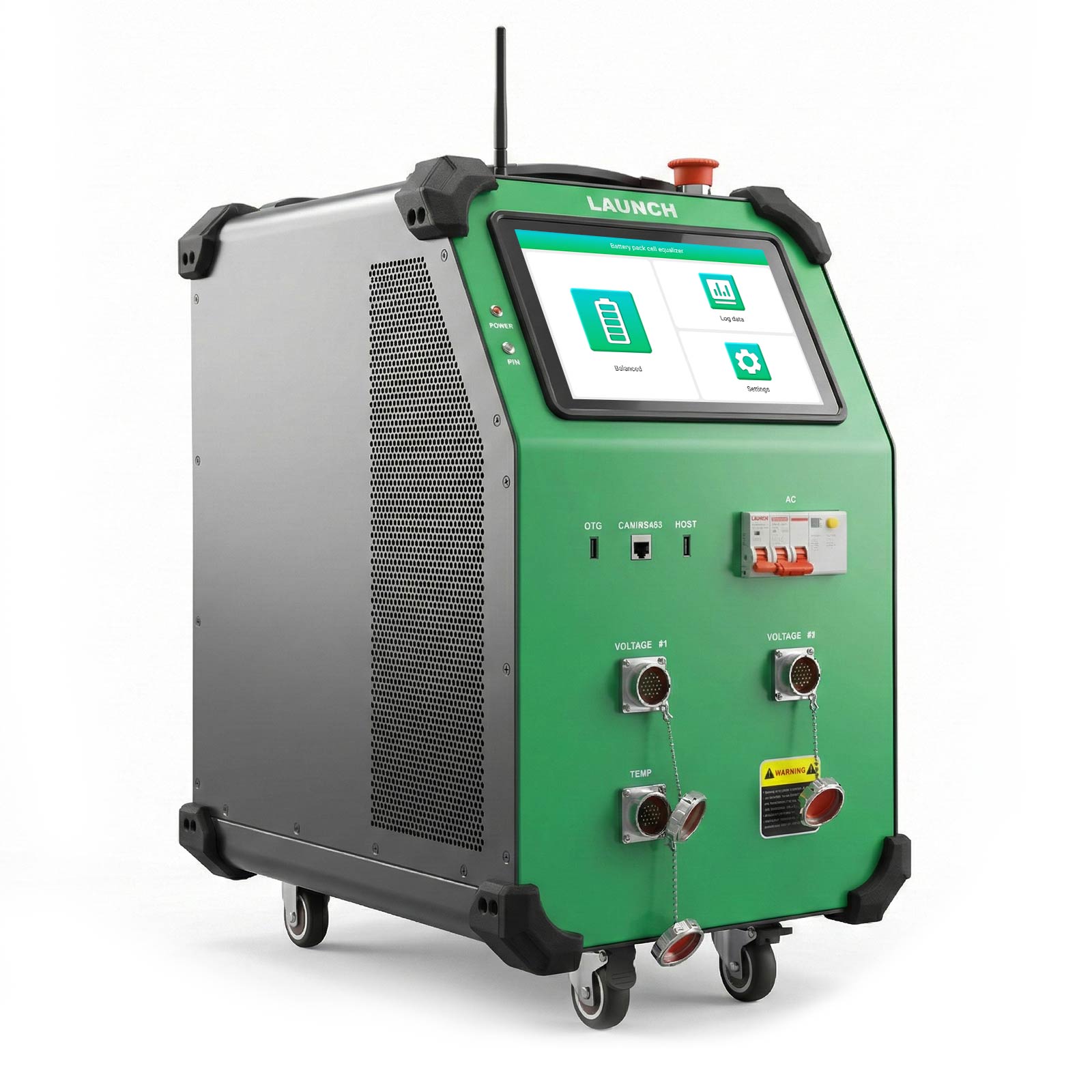

LAUNCH EVB648 EV Battery Pack Cell Equalizer
Description
Based on the charge and discharge characteristics of lithium batteries, the EVB648 enables technicians to effectively address voltage inconsistencies among battery modules and cells. The EVB648 helps reduce battery pack repair costs and shortens maintenance time, making it an essential tool for EV detection and diagnostics.
Superior Battery Health, Premium EV Efficiency.
Superior Battery Health, Premium EV Efficiency.
Features:
1. 48 Balancing Channels & Single Cell Balancing Design
Provides an independent single cell balancing solution, supporting precise single-cell balancing, up to 48 battery cells simultaneously.
2. Intelligent Cell Balancing
Supports multiple battery types, including ternary lithium(NCM/NCA), lithium iron phosphate(LiFePO4), lithium manganese oxide(LMO), and lithium titanate(LTO).
Allows for the setting of balancing maintenance parameters, pre-selects voltage ranges based on the battery type, and automatically switches charging and discharging modes.
3. High Precision & Balancing Gain
Supports high-precision voltage measurement for single cells, effectively improving vehicle power output and ensuring consistent battery pack performance.
4. Safety Protection & Worry-Free Process
Provides comprehensive safety for both the device and battery.
Overcurrent Protection
Output Overcurrent Protection
Overvoltage Protection
Over-temperature Protection
...
5. Log Management & Data Visualization
Supports comparison of "pre-balancing" and "post-balancing" differences, with the ability to export balancing data.
Real-time monitoring of single cell voltages and balancing status, ensuring a clear and visualized process.
Specifications:
Specifications:
Power Input: AC 90~264V
Discharge & Charge Voltage Range: 1.8~4.5V
Voltage Measurement Accuracy: ±(0.1%FS±2mV)
Discharge & Charge Current Range: 0.1~5A
Current Measurement Accuracy: ±(1%FS±0.05A)
Discharge & Charge Power: 1200W Max
Voltage Port: 26Pin*2
Temp Port: 24Pin
Display: 10.1" TFT LCD, 1280*800
PC Data Communication: TCP/IP, USB-Device
Wireless Communication: Wi-Fi
Data Storage Mode: Internal storage of device or data transfer to USB flash drive
Charge Mode: Constant current charging + constant voltage charging
Discharge Mode: CC+CA
Working Temperature: -5℃~45℃
Dimension: 616.5 x 349.0 x 518.3 mm

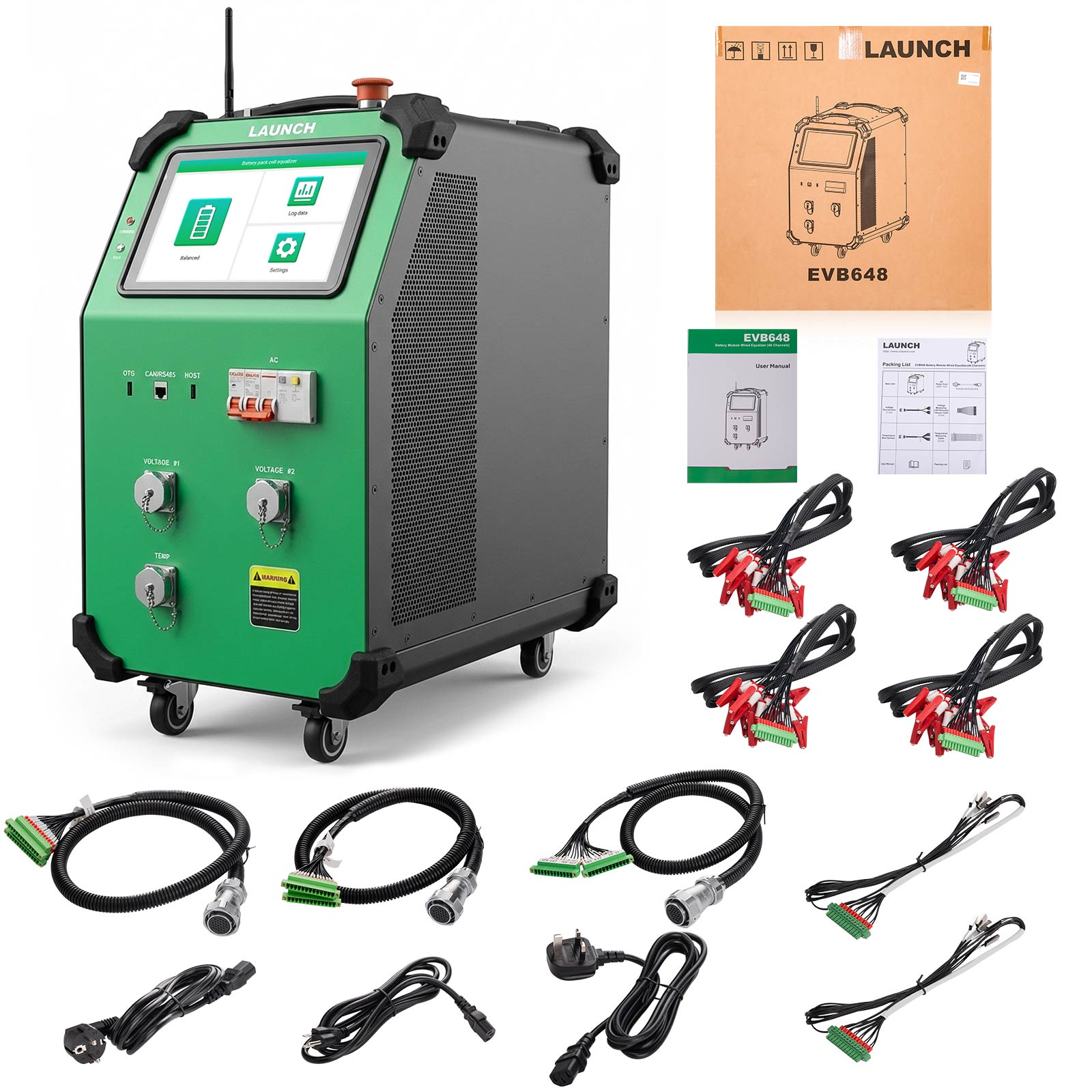

Package includes:
1pc x main unit
1pc x UK AC power cord
1pc x US AC power cord
1pc x EU AC power cord
2pcs x Voltage Bus-harness
4pcs x Voltage measuring(12P+Ground) clamps cables
1pc x temperature Bus-harness
2pcs x temperature measuring cables
1pc x user manual
1pc x packing list
1pc x UK AC power cord
1pc x US AC power cord
1pc x EU AC power cord
2pcs x Voltage Bus-harness
4pcs x Voltage measuring(12P+Ground) clamps cables
1pc x temperature Bus-harness
2pcs x temperature measuring cables
1pc x user manual
1pc x packing list
