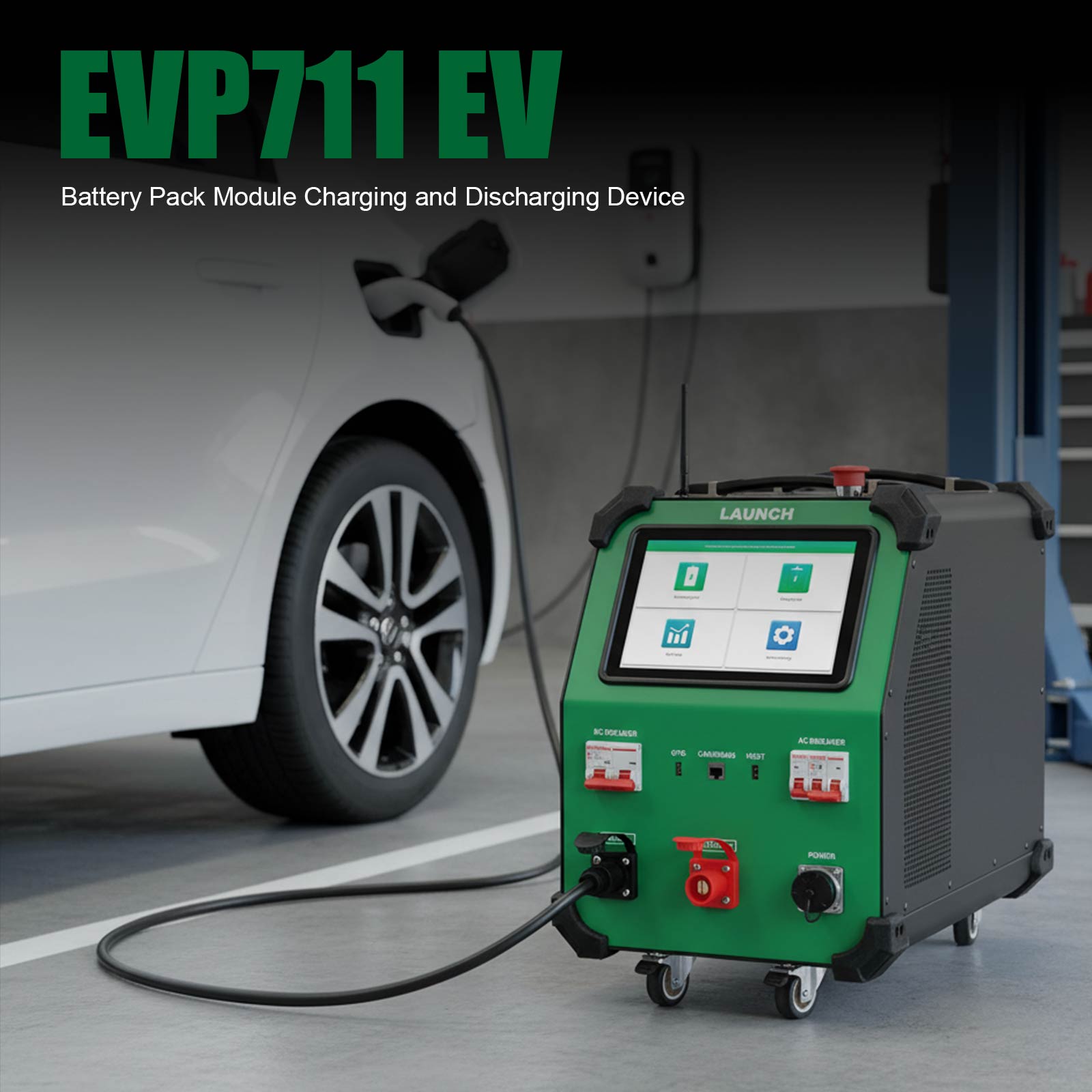

LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device

Brand: Launch- x431 Item No. Y-HKSO800 In Stock.
0 rating
|
Buy Now: £3,905
GBP 3,905.00 EUR 4,503.25 USD 4,998.40
Whatsapp +86 13983755934
Shipping:
Free Shipping Express Shipping ServiceEstimated delivery time: 3-5 working days.See details »
Weight:
40.6KG
Package:
71cm*58cm*43cm ( Inch: 27.88*22.78*16.89 )
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »

Product Description

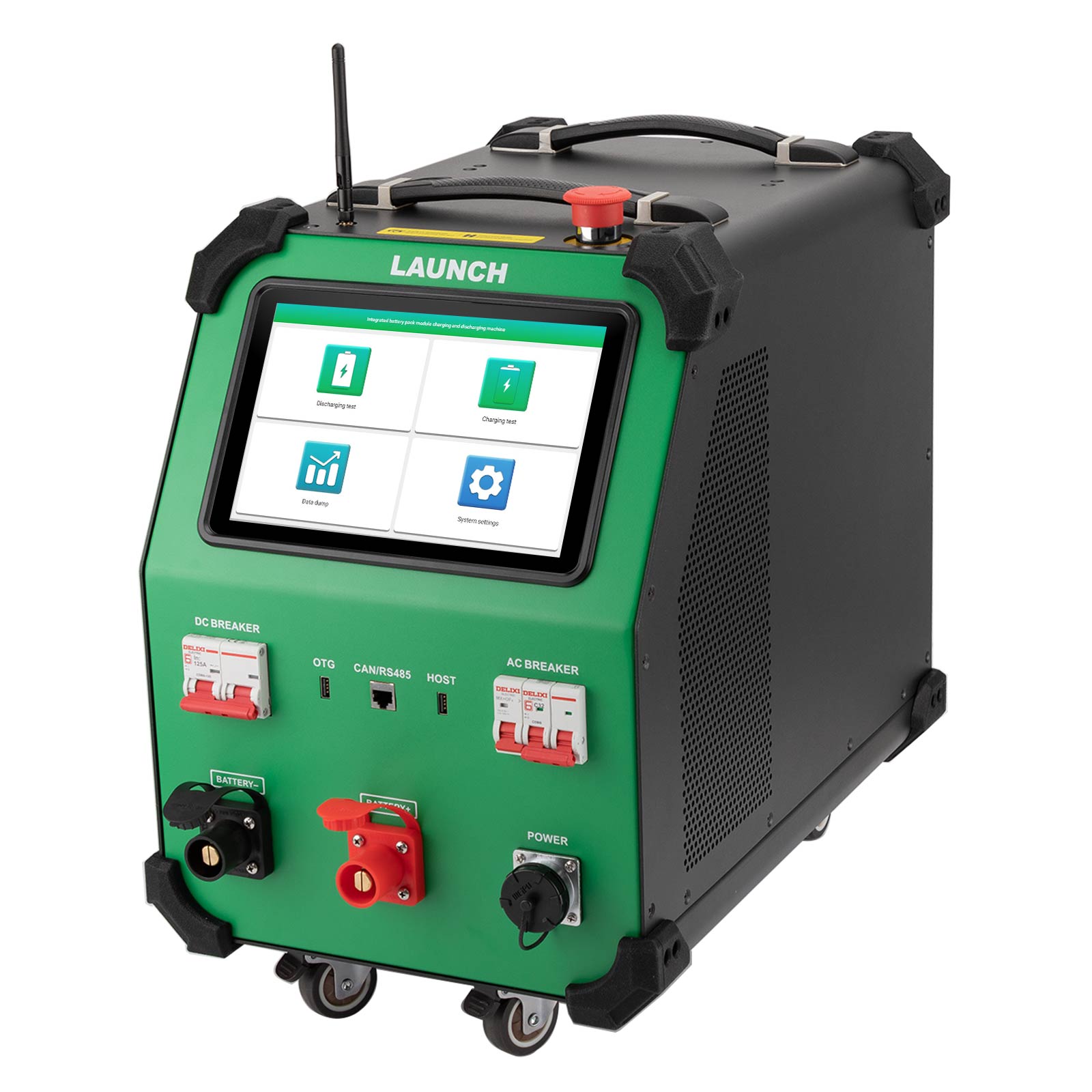

LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device
Supports charging and discharging maintenance for all common lithium-ion and nickel-hydrogen batteries on the market.
Adopts state-of-the-art charge&discharge testing technology to prevent interference with the BMS system.

LAUNCH EVP711 EV Battery Pack Module Charging and Discharging Device


Description

When the detection tool indicates an issue with the internal cells of the battery pack, technicians typically replace the entire module (as repairing individual cells is challenging and time-consuming, hereby ref. to EVB624/ELB300 for cells balancing). After replacing the module, the EVP711 can be used for balancing. Once the voltage of the module is consistent, it can be installed into the vehicle.

During the balancing process with the balancer, it may take a considerable amount of time to complete. In such cases, you can use the EVP711 to charge the battery module first. When the voltage levels are approximately equal, use an equalizer(such as EVB624/ELB300) to balance the cell voltage consistency. Combining the use of the equalizer and the charge&discharge tool improves repair efficiency.


Features:


  1. Supports charging and discharging maintenance for all common lithium-ion and nickel-hydrogen batteries on the market.
  2. Adopts state-of-the-art charge&discharge testing technology to prevent interference with the BMS system.
  3. Allows for the customization of charging and discharging rules.
  4. Takes a wide voltage design and built-in multiple charging and discharging modes to meet the voltage and current requirements of various battery pack modules, ensuring safety while enhancing charging and discharging efficiency.
  5. Safety Protections: Provides warning alerts for reverse polarity, high temperature, overcurrent, fan malfunction, high voltage, and excessive current to safeguard hardware safety.

Specifications:

Power input: AC90-264V,
Group Terminal Voltage Accuracy:≤±(0.5%FS+0.3V),resolution:0.01V
Single Cell Voltage Accuracy: ≤± (0.1%FS+5mV), resolution: 0.01V
Test Current Accuracy:≤± (1%FS+0.2A), resolution: 0.1A
Charging&Dsicharging Voltage Range: DC 2~400V
Charging Current Range:0~100A, maximum power: 4.4kw
Discharging Current Range: 0~100A, maximum power 7.2kw
Data Communication:RS485
Display: 10.1' LCD
Charging Control: Constant current charging + constant voltage charging
Discharging Mode: Constant current discharging
Dimensions: 551*349*598 (mm)

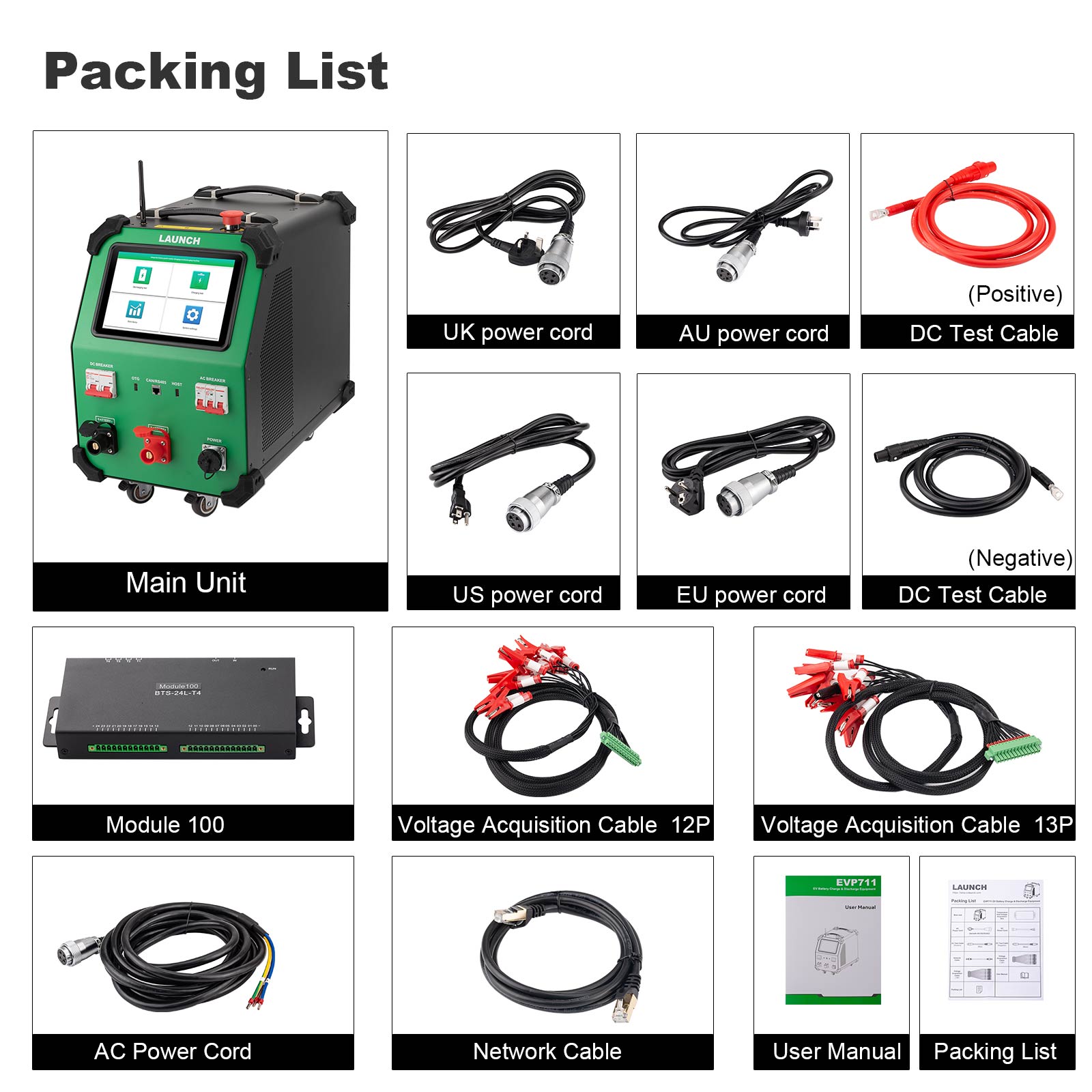

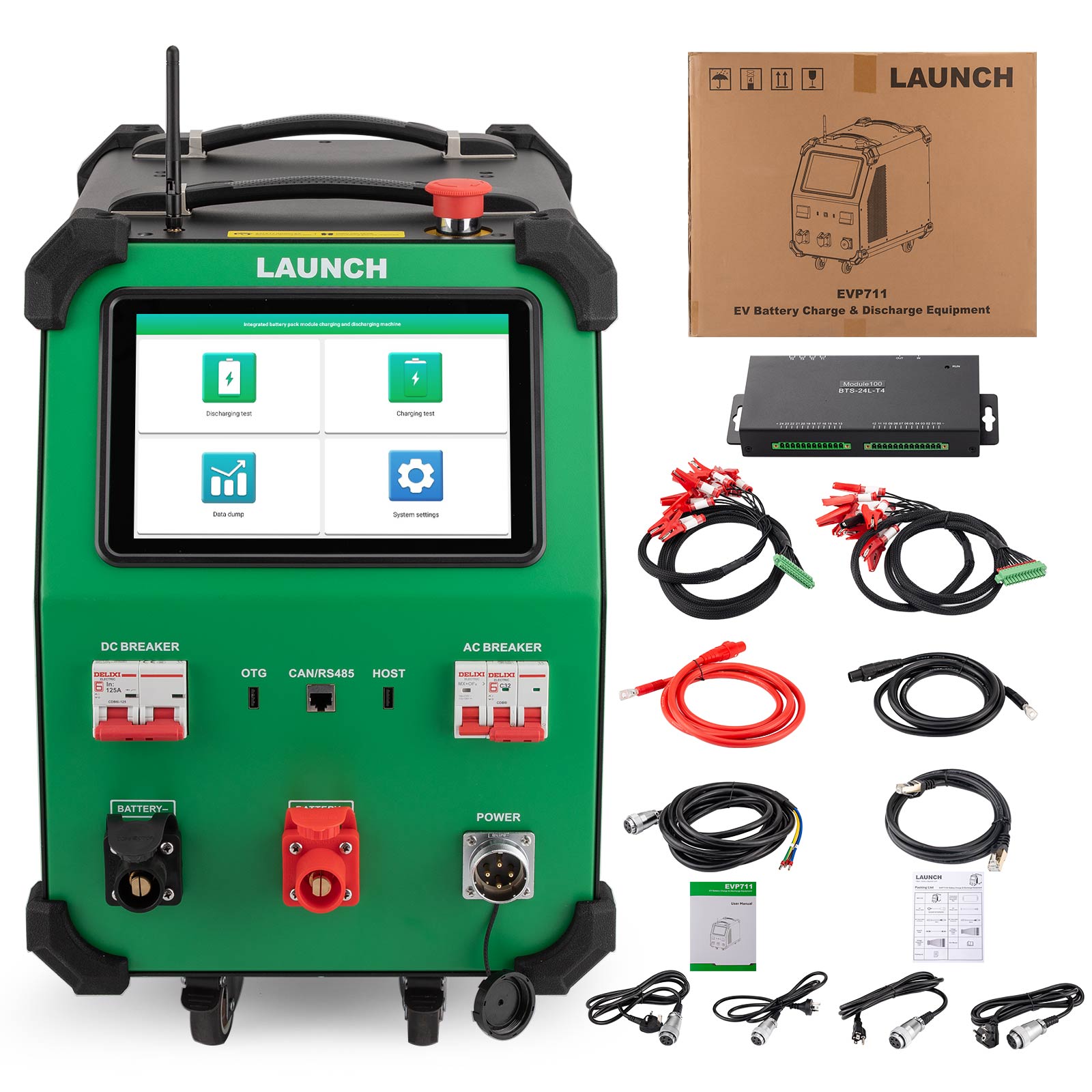

Package includes:

1pc x main unit
1pc x temperature and voltage acquisition box
1pc x AC power cord(include UK/US/EU/AU)
1pc x AC power cord(single-phase three wire)
1pc x DC test cable-positive(Red)
1pc x DC test cable-negative(Black)
1pc x network cable
1pc x voltage acquisition cable(12P)
1pc x voltage acquisition cable(13P)
1pc x User manual
1pc x Packing list
