LAUNCH X-431 SmartLink C HD V2 Heavy Duty Truck Module Overseas Online Expansion Package Work with X431 PRO3 (V+ 5.0)/PRO3 APEX/PRO3 ACE/PRO3S+ 5.0

Product Description

LAUNCH X-431 SmartLink C HD V2 Heavy Duty Truck Module Standard Configuration



• This LAUNCH X-431 SmartLink C HD V2 Truck Module work with Launch X431 PRO3 (V+ 5.0) /PRO3 APEX/PRO3 ACE/PRO3S+ 5.0
• Add this module, your launch machine will support both cars and trucks!
• Support 2 Years Free Update !
• If your machine is X431 PRO ( PROS V5.0), X431 PRO V5.0), X431 PRO TT, X431 PRO DYNO , please order X-431 SmartLink C HD LITE Module

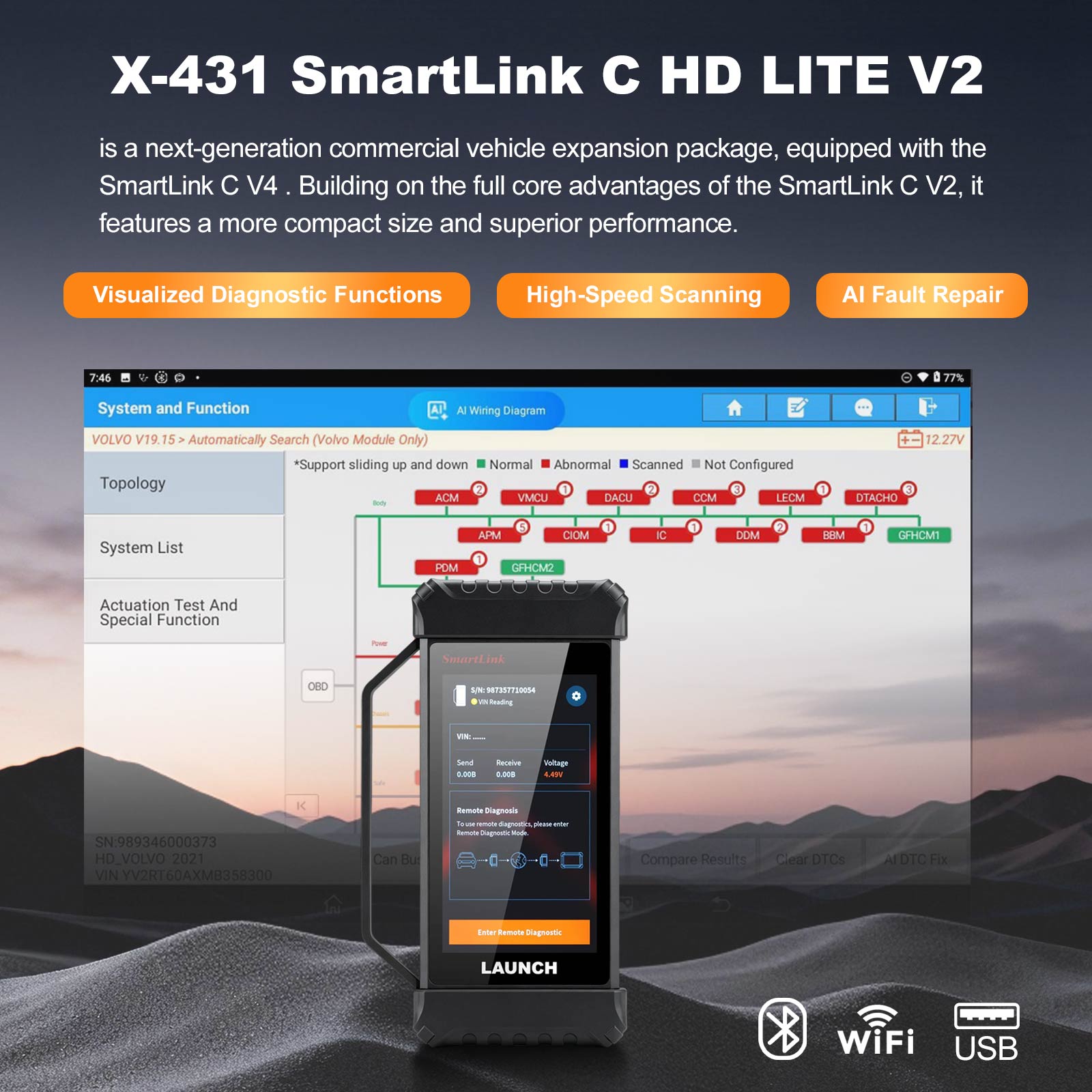

The X-431 SmartLink C HD V2 is a next-generation commercial vehicle expansion package, equipped with the SmartLink C V4 . Building on the full core advantages of the SmartLink C V2, it features a more compact size and superior performance.


Product Specifications Comparison Between SmartLink C V2 and SmartLink C V4


	SmartLink C V2	SmartLink C V4
CPU	Single-core 528MHz	dual-core 1.7G
Working Voltage	DC 9V ~ 36V	DC 8V ~ 36V
Screen	3.95 inches, 320*480	5 inches, 1280*720
RAM	256M	1G
Storage	8G	8G
Communication	Local Diagnosis: WIFI/BT/USB SmartLink Remote Diagnosis: Wi‑Fi / Wired	Local Diagnosis: WIFI/BT/USB SmartLink Remote Diagnosis: Wi‑Fi / Wired
WIFI	WIFI 5	WIFI 6
Bluetooth	BT4.2	BT5.0
I/O	DB15 male, USB-B, RJ45, DC IN	DB15 female, USB-B, RJ45, DC IN
Working Tenperature	0℃ ~ 50℃	0℃ ~ 50℃
Size	200*47*110mm	187.6*32.8*106mm
Weight	0.55kg	0.35kg

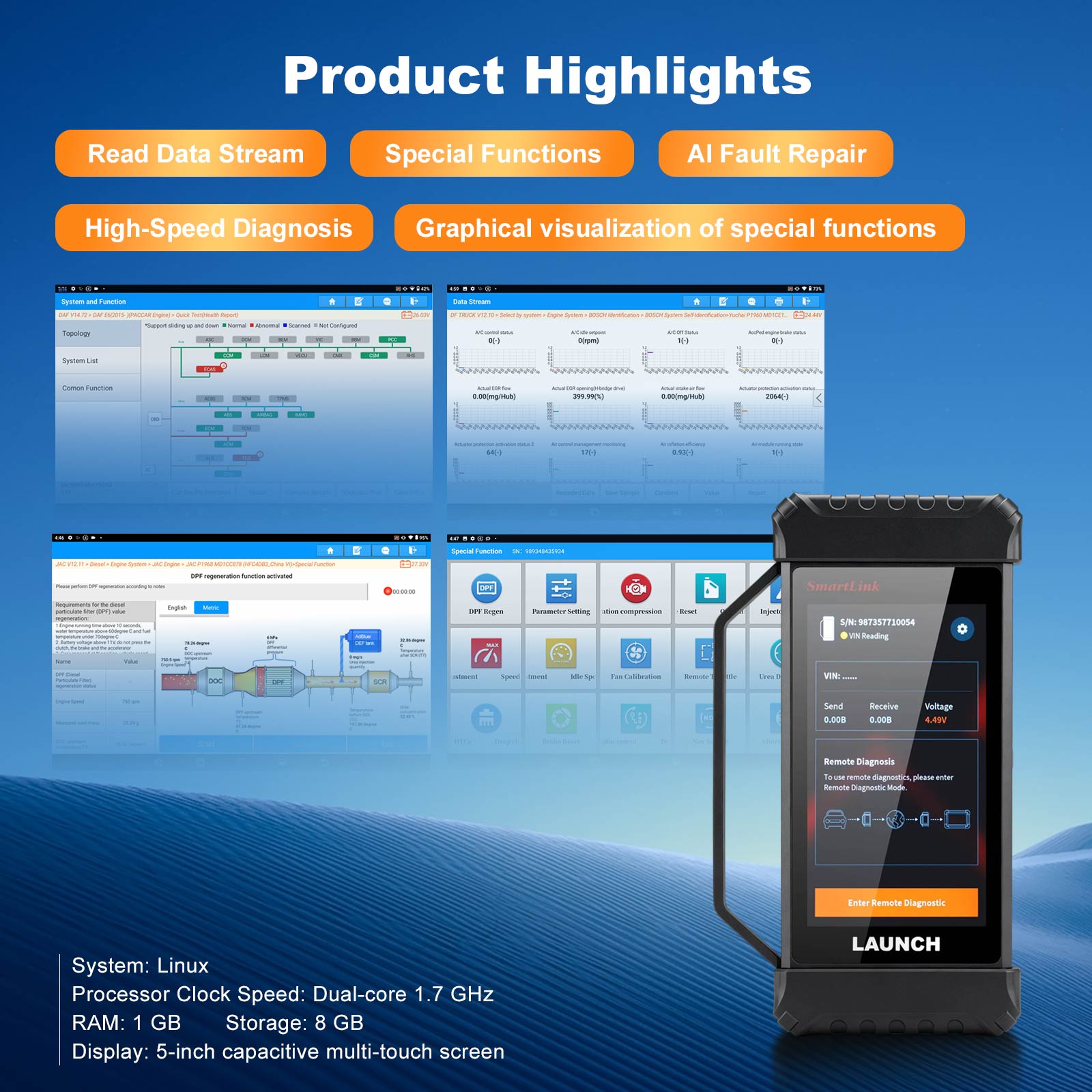

Product Specifications:

System: Linux
Processor Clock Speed: Dual‑core 1.7 GHz
Input Voltage: 8–36 V
RAM: 1 GB
Storage: 8 GB
Display: 5‑inch capacitive multi‑touch screen, resolution 1280×720
Wi‑Fi: Wi‑Fi 6
Bluetooth: 802.11 a/b/g/n/ac/ax + BT 5.0
Operating Environment: Operating temperature: –10 to 50°C; Operating humidity: 20%–90%
Storage Environment: Storage temperature: –20 to 70°C; Storage humidity: 10%–90%

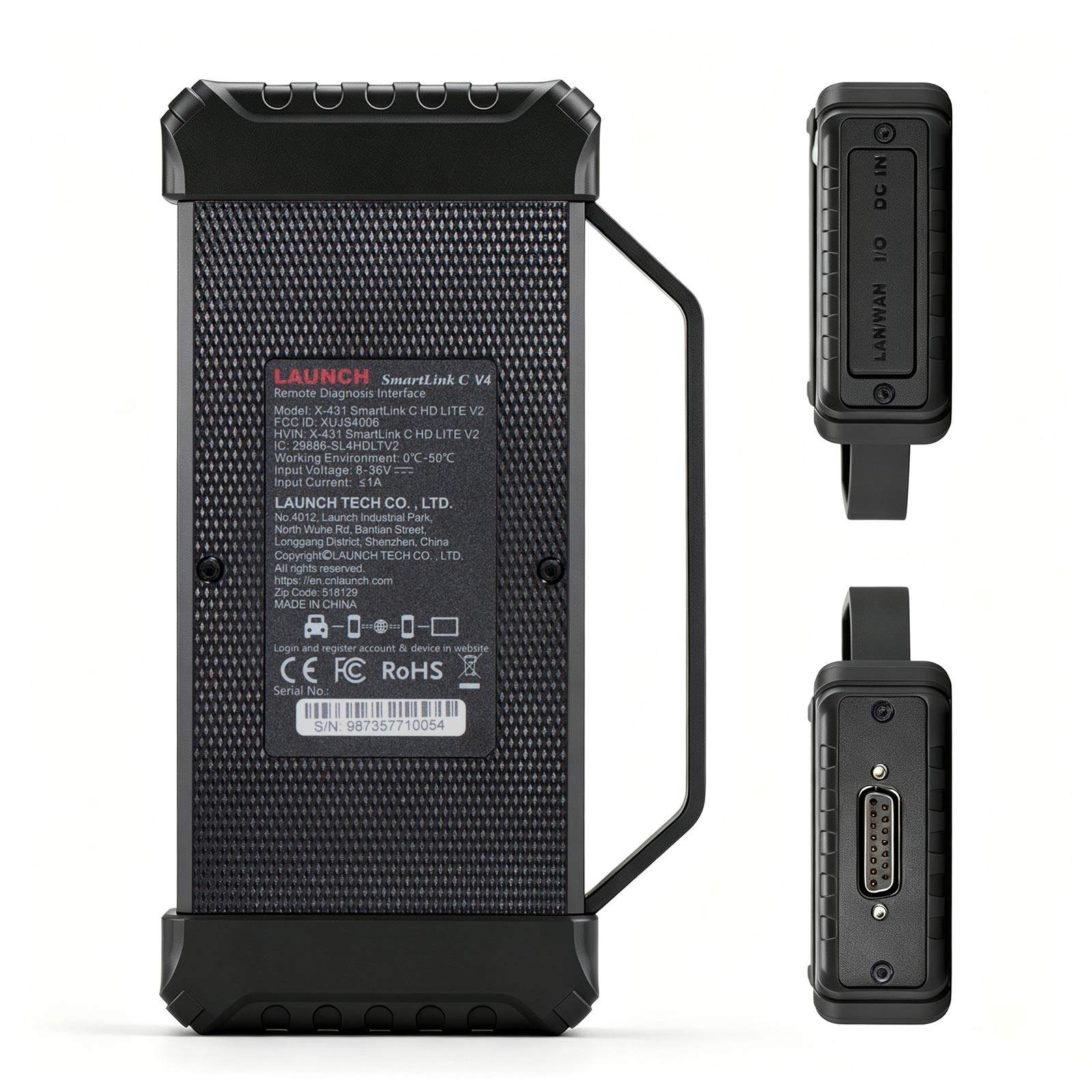

I/O Ports: USB 2.0 Type‑B, RJ45, DC IN, DB15 female connector
Diagnostic Communication: Wi‑Fi / Bluetooth / USB
Dimensions (Main Unit): Approx. 180 × 80 × 26.5 mm

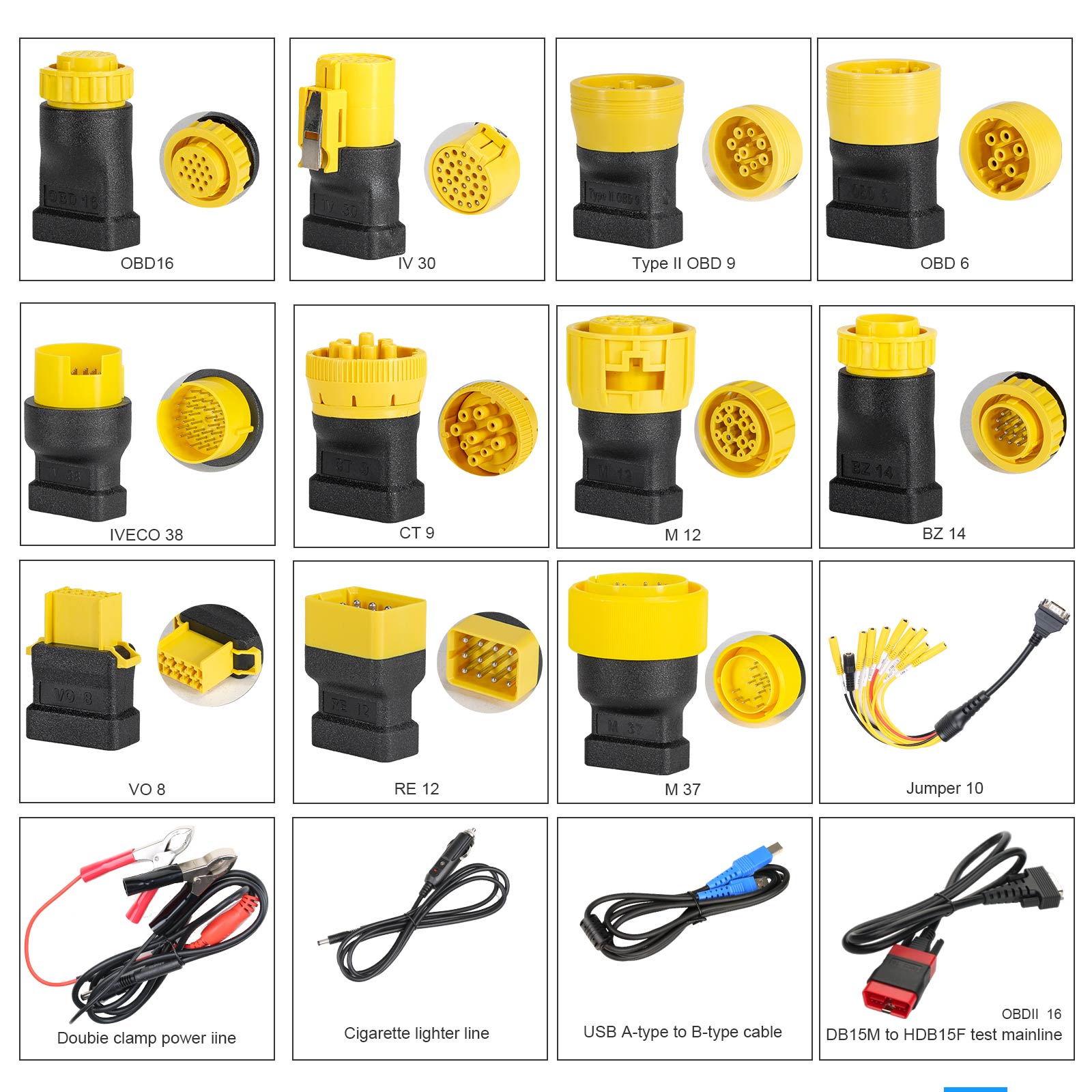

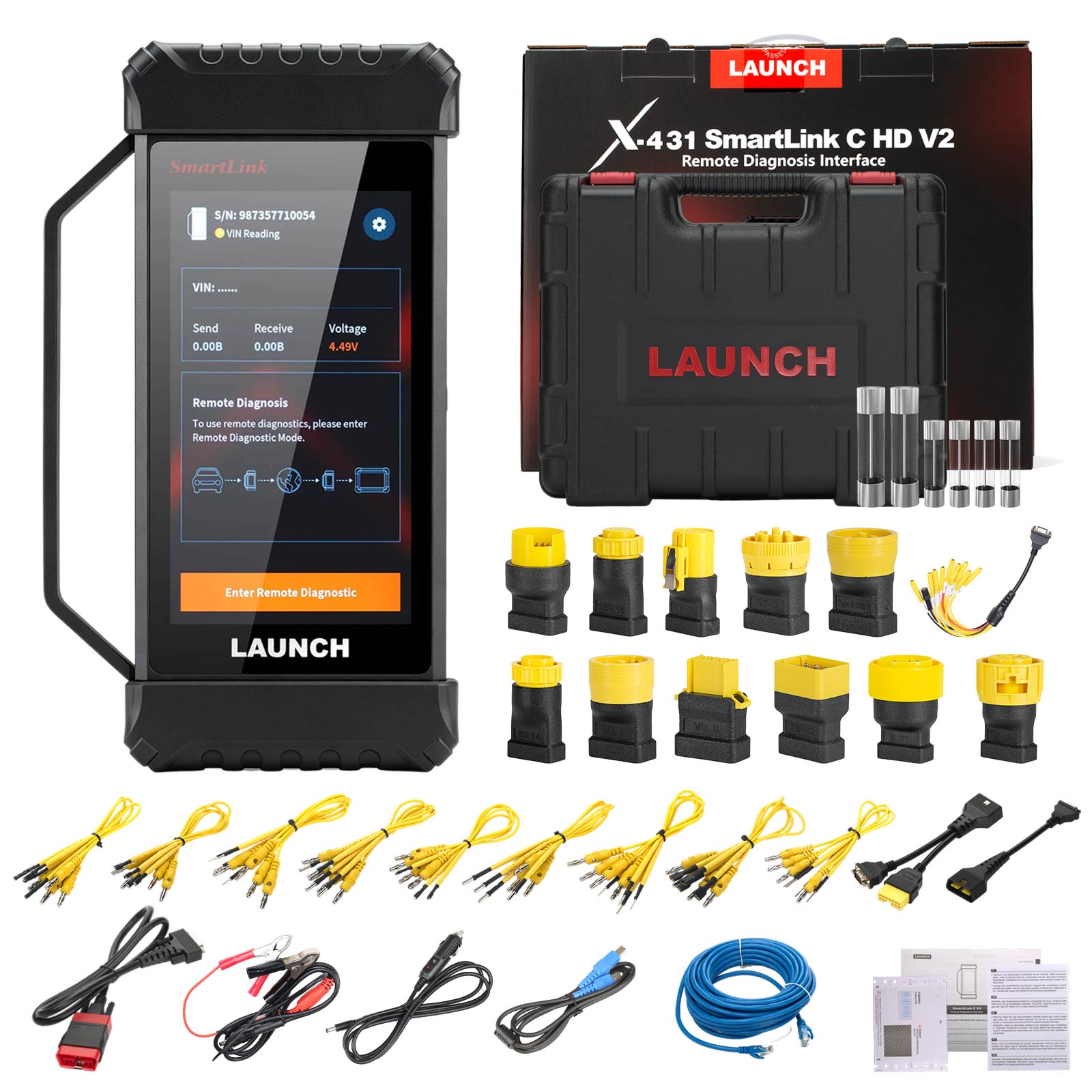

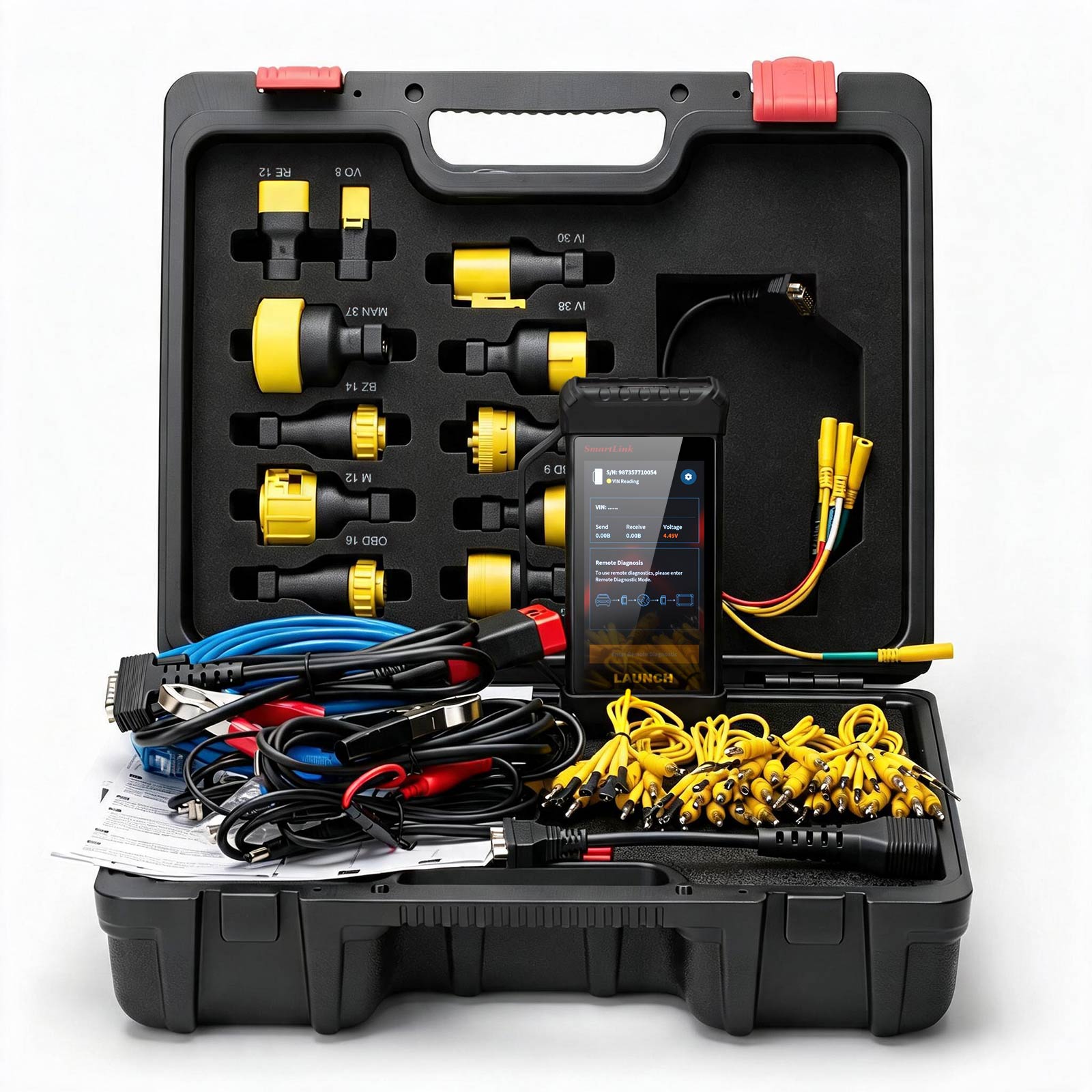

Package includes:

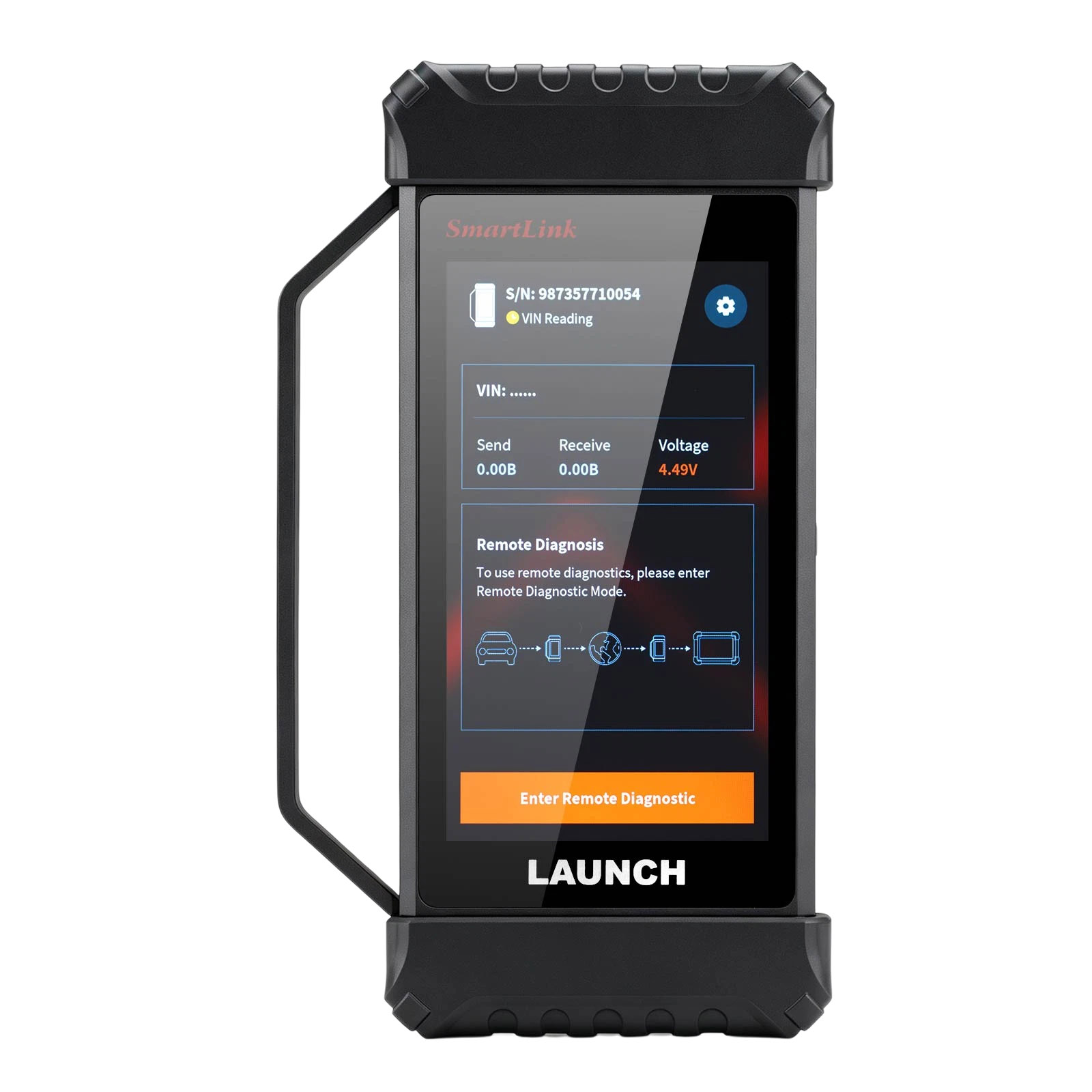

1pc x X-431 SmartLink C V4
1pc x JUMPER‑10 Diagnostic Adapter Connector (JUMPER 10)
1pc x HYUNDAI‑16 Linear Diagnostic Connector (HY 16)
1pc x Type II OBD‑9 Integrated Diagnostic Connector (Type II OBD 9)
1pc x OBD 16 Integrated Diagnostic Connector (OBD 16)
1pc x RENAULT‑12 / Renault 12‑PIN Integrated Diagnostic Connector (RE 12)
1pc x MAN‑37 Integrated Diagnostic Connector (M 37)
1pc x BENZ‑14 Integrated Diagnostic Connector (BZ 14)
1pc x MAN‑12 Integrated Diagnostic Connector (M 12)
1pc x IVECO‑38 Integrated Diagnostic Connector (IV 38)
1pc x IVECO‑30 Integrated Diagnostic Connector (IV 30)
1pc x OBD 6 Integrated Diagnostic Connector (OBD 6)
1pc x VOLVO‑8 Integrated Diagnostic Connector (VO 8)
1pc x Caterpillar-9 Integrated Diagnostic Connector (CT 9)
1pc x MITSUBISHI‑12+16 Linear Diagnostic Connector (M/F 12+16)
1pc x DB15M to HDB15F Test Mainline (includes HD15M to OBDII 16 male integrated test connector)

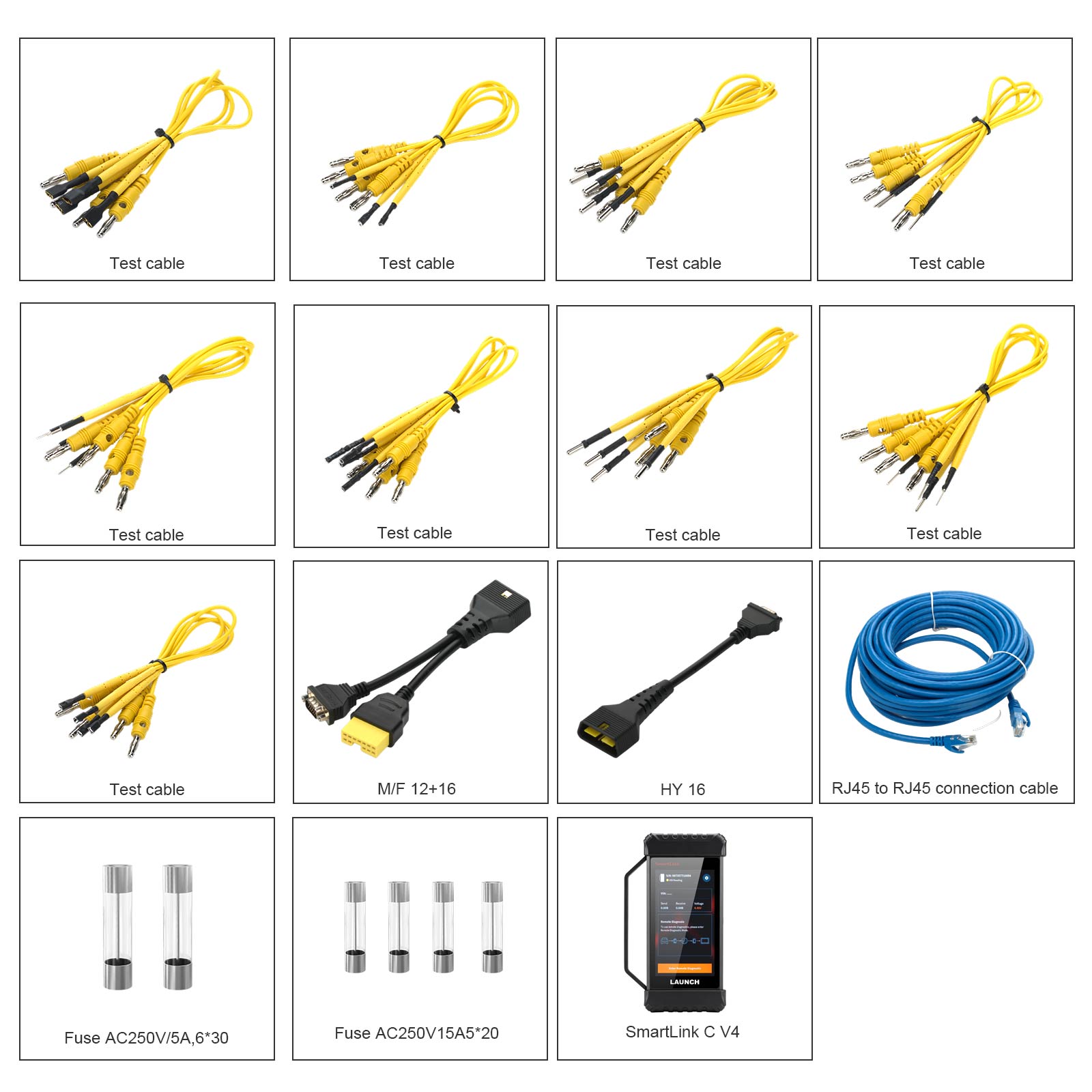

4pcs x Electrically controlled switching line 9
4pcs x Electrically controlled switching line 8
4pcs x Electrically controlled switching line 7
4pcs x Electrically controlled switching line 6
4pcs x Electrically controlled switching line 5
4pcs x Electrically controlled switching line 4
4pcs x Electrically controlled switching line 3
4pcs x Electrically controlled switching line 2
4pcs x Electrically controlled switching line 1
1pc x RJ45 to RJ45 connection cable
1pc x USB A-type to B-type cable
1pc x Cigarette Lighter line
1pc x Dual Clamp Power Line
2pcs x Fuse AC250V/5A, 6×30 mm
4pcs x Fuse AC250V/5A, 5×20 mm
1pc x GPSR Safety warning language
1pc x Universal PIN Envelope
1pc x Quick Start



---



---
