LAUNCH X-431 SmartLink C HD V2 Commercial Vehicle Overseas Online Expansion Package

Features

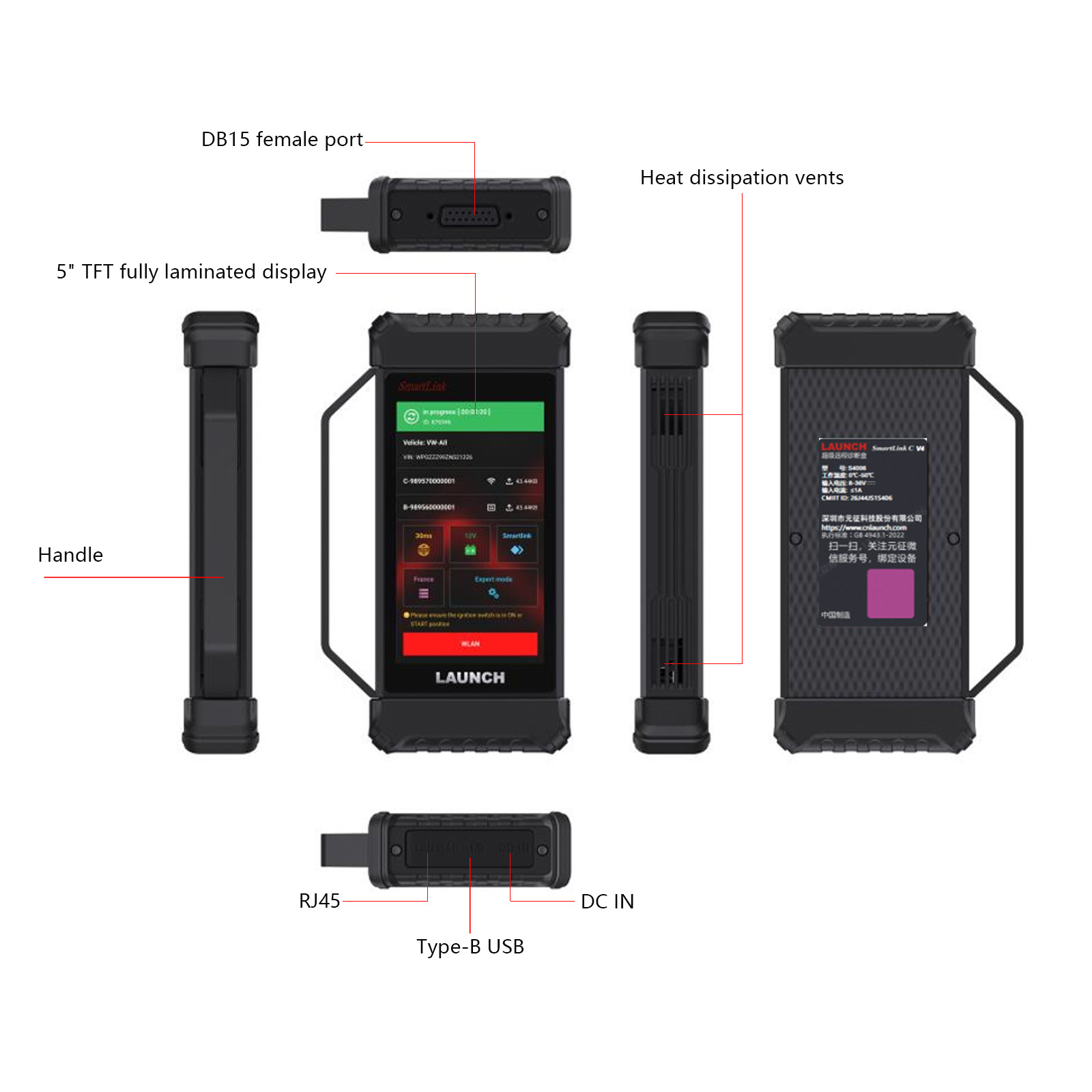

The adapter's performance has been significantly enhanced: its CPU has been upgraded from a single-core to a dual-core processor, with the clock speed increased to 1.7 GHz. The RAM has been expanded from 256 MB to 1 GB, greatly accelerating computational response speed and making instruction execution more efficient. The CAN bus has been upgraded to 4‑way CAN FD, comprehensively improving communication bandwidth and transmission capabilities to meet the diagnostic requirements of more new vehicle models.

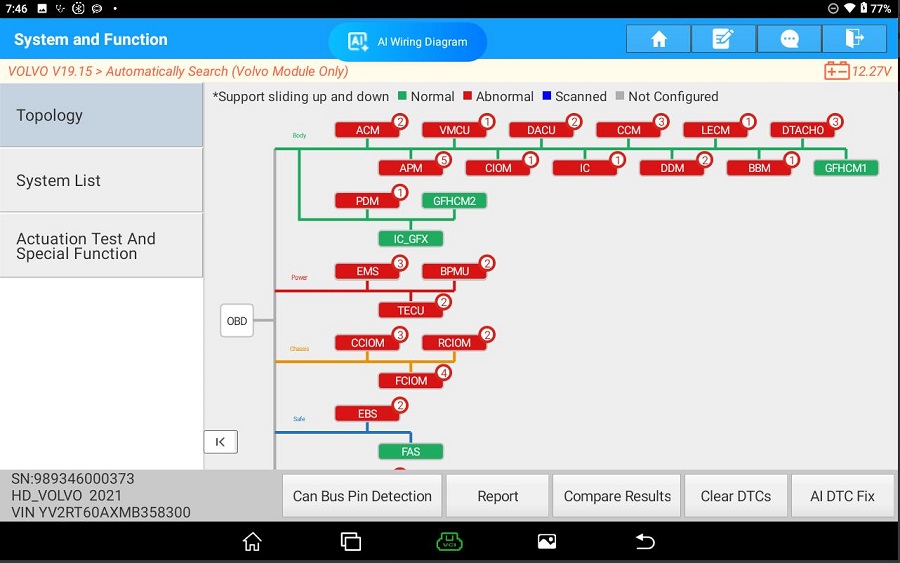

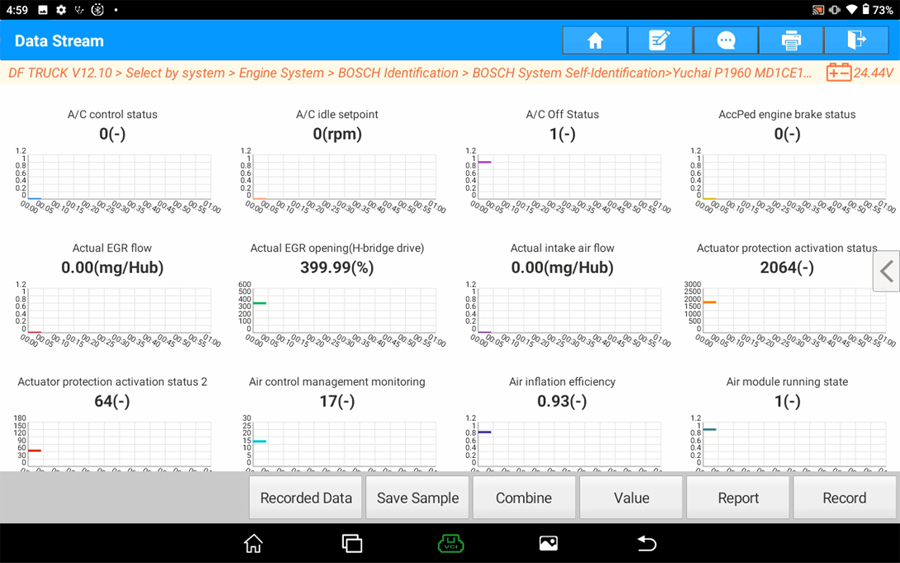

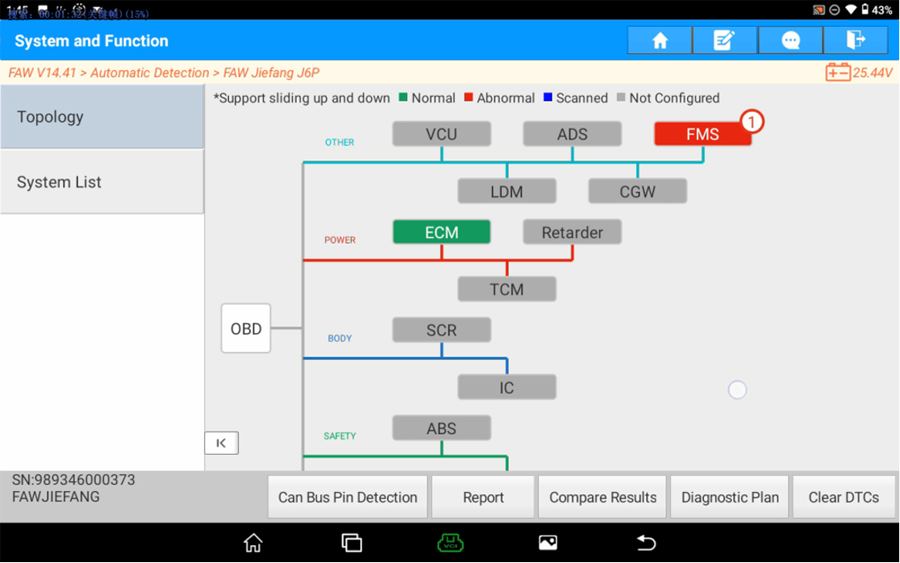

Visualized Diagnostic Functions: Supports graphical display of special functions, topology diagrams, and data streams. Data trends are intuitively visible, enabling more precise and efficient fault pinpointing, and eliminating the tedious interpretation of plain text.



High-Speed Scanning: Adopts multi-channel synchronous scanning technology to process diagnostic tasks in parallel. Compared with traditional single-channel scanning, it significantly improves efficiency, delivers faster diagnostic speed, and saves repair time.



AI Fault Repair: Visually displays fault points and provides targeted, highly feasible optimization solutions.




Advantages

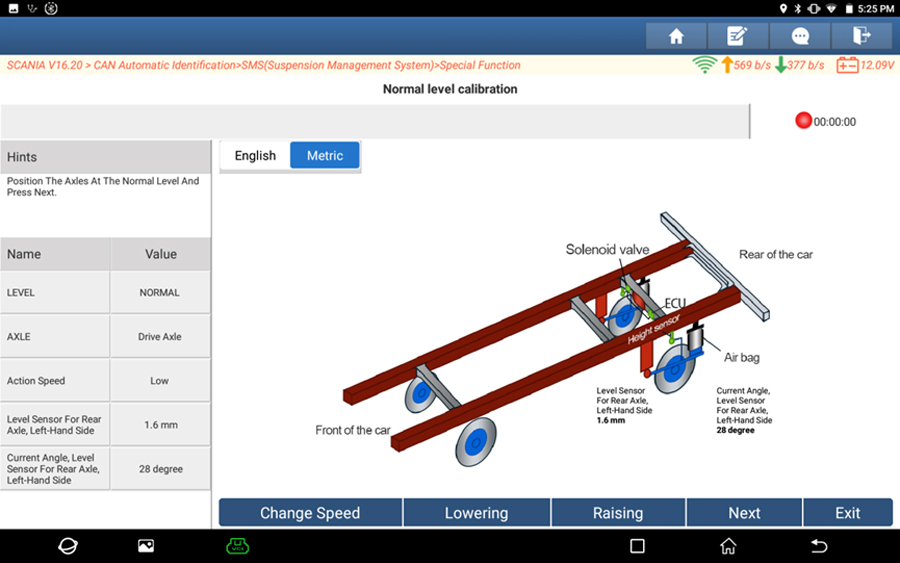

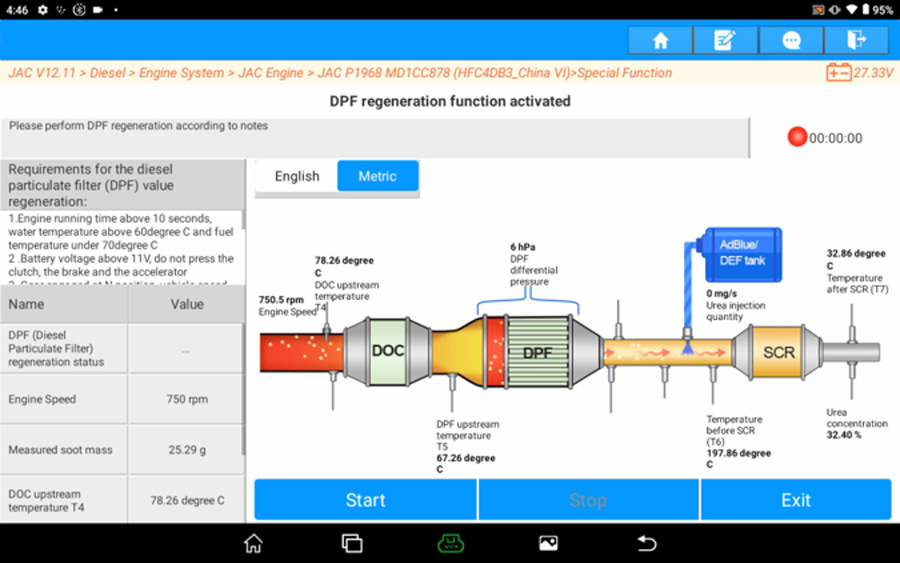

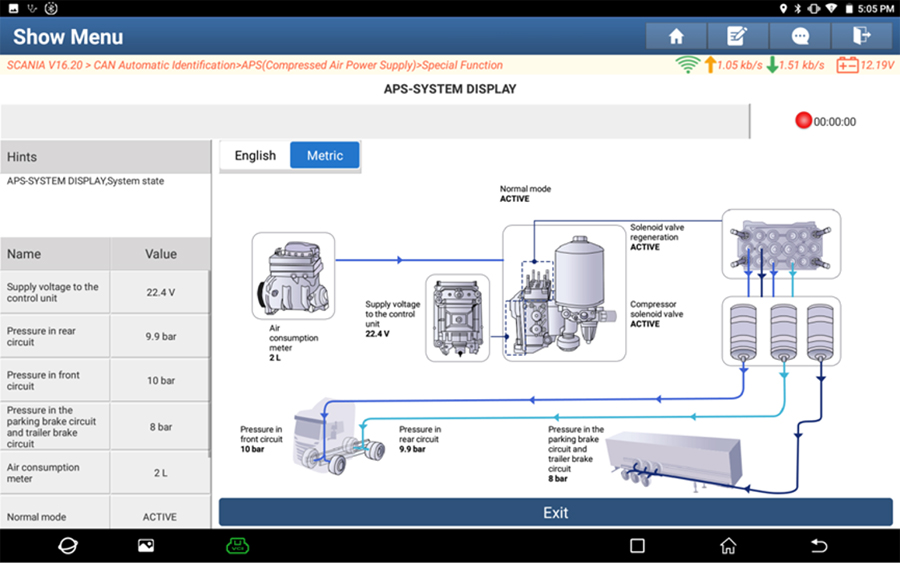

Graphical visualization of special functions: Covers D&P&F, APS system, urea injection, cylinder cut‑off detection, injector coding, suspension, clutch, and other functions, with intuitive display of dynamic vehicle data.

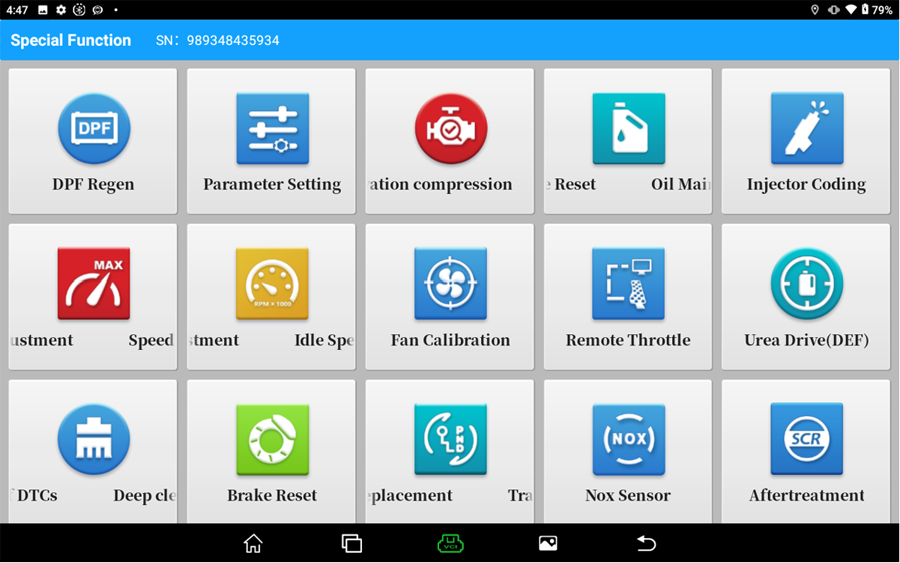

Special Functions: Supports commonly used special functions for most vehicle models, including D&P&F regeneration, parameter setting, cylinder cut‑off compression test, service reset, injector programming, speed limit adjustment, idle speed adjustment, fan calibration, remote throttle, urea injection drive, deep DTC clearing, transmission adaptation, NOx sensor, and others – covering a total of 20 special functions, with continuous updates.



AI Fault Repair: Intuitively pinpoint fault locations and deliver targeted, highly feasible optimization solutions



High‑Speed Diagnosis: Equipped with multi‑channel detection technology, it significantly improves operational efficiency and represents a major upgrade to vehicle diagnostic functions.

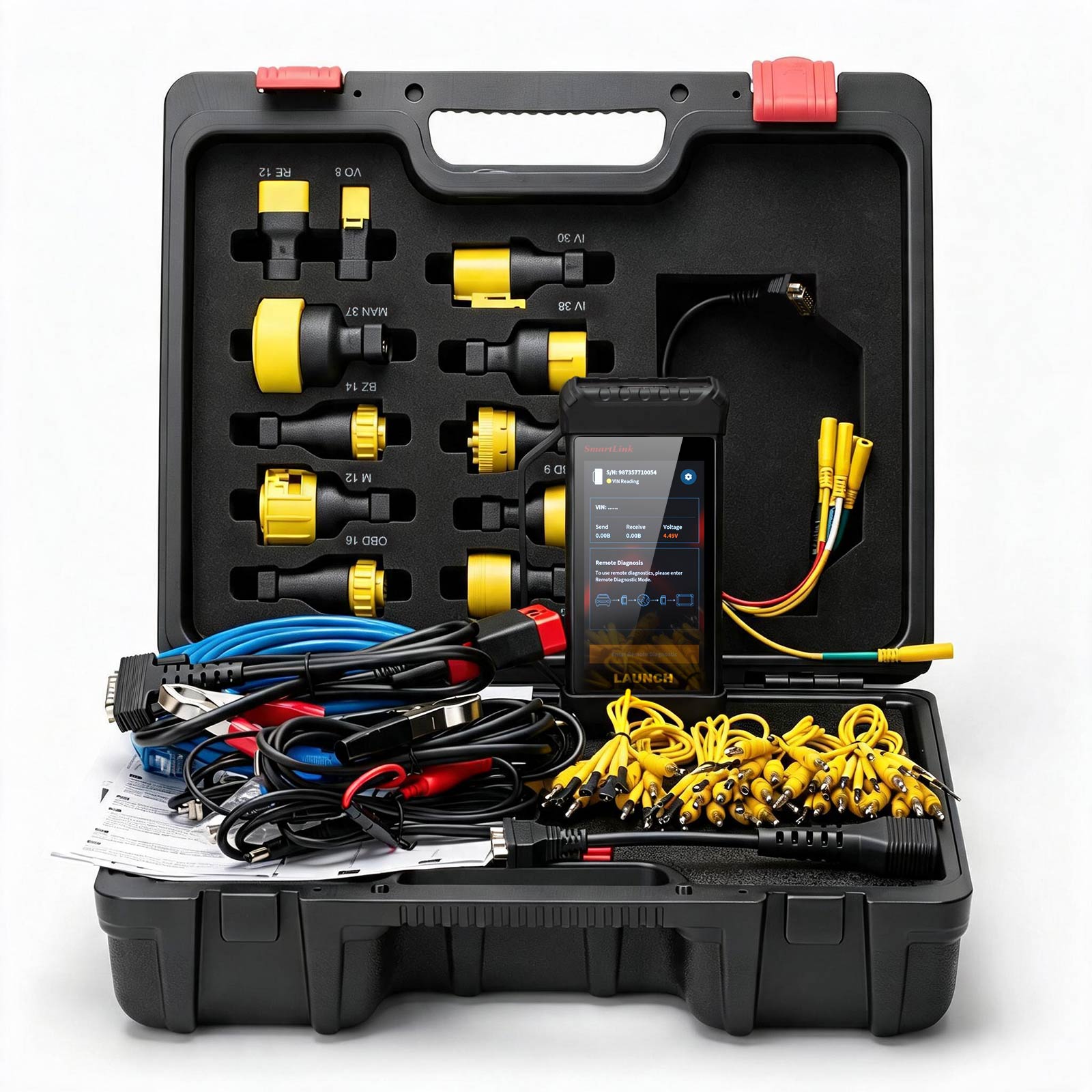

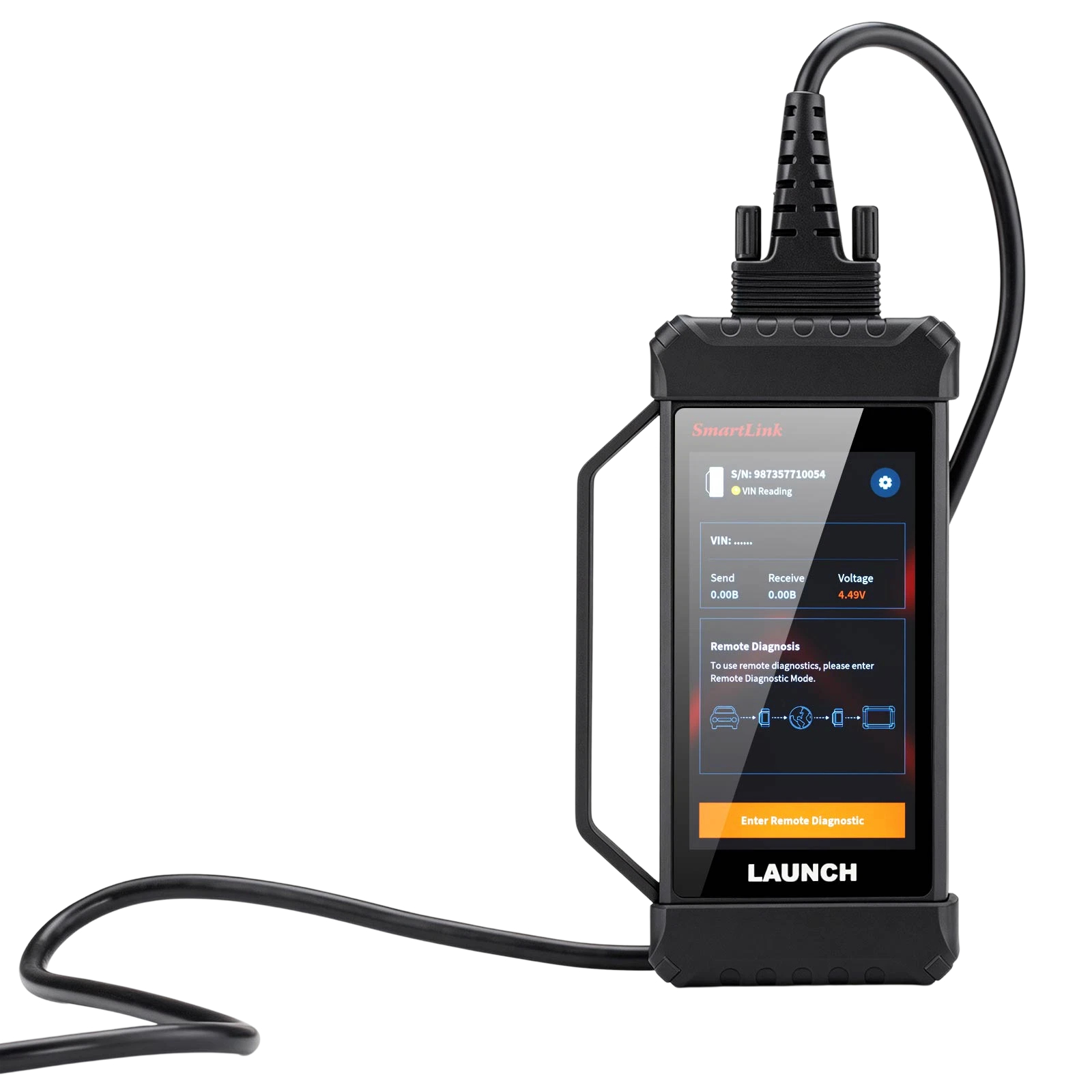

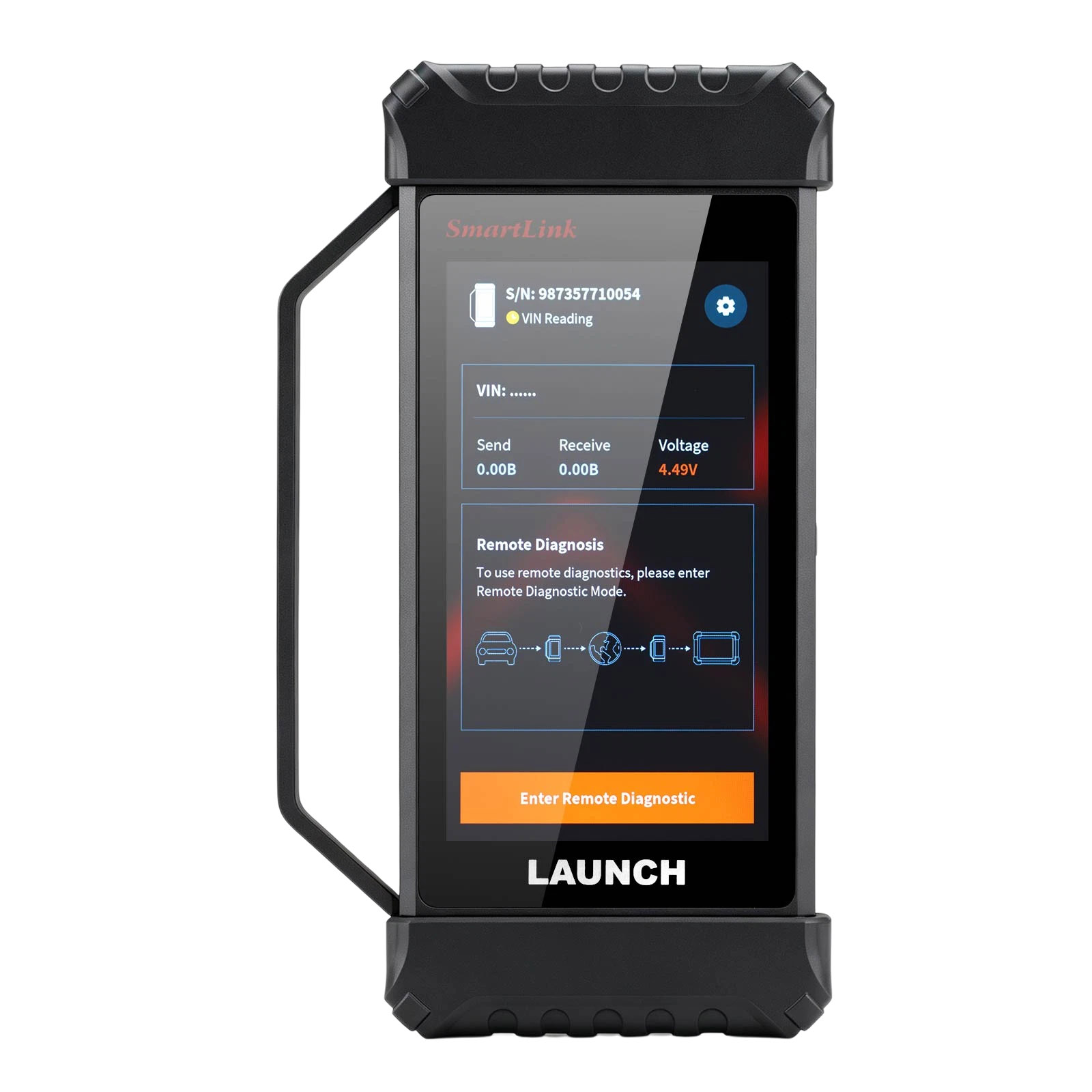

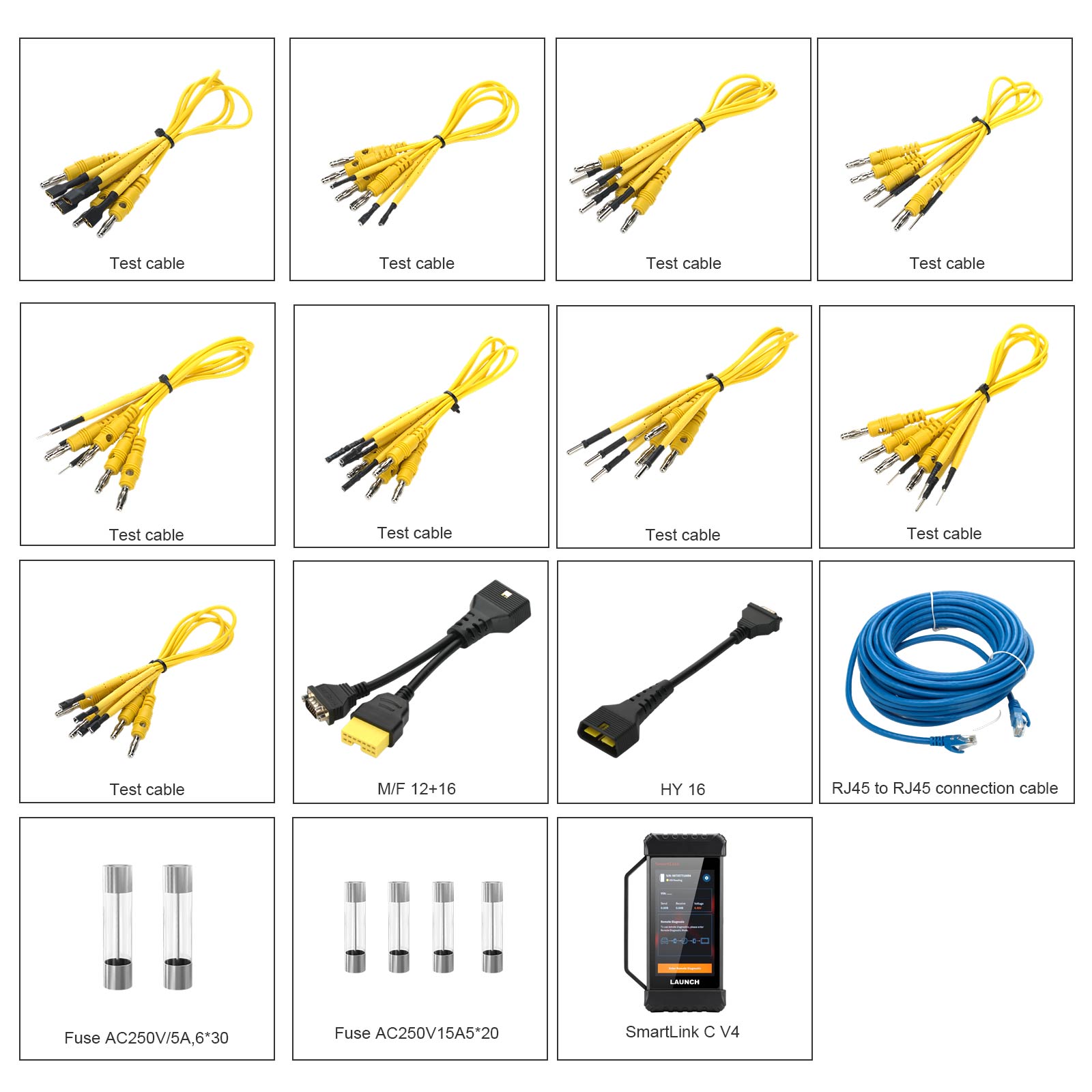

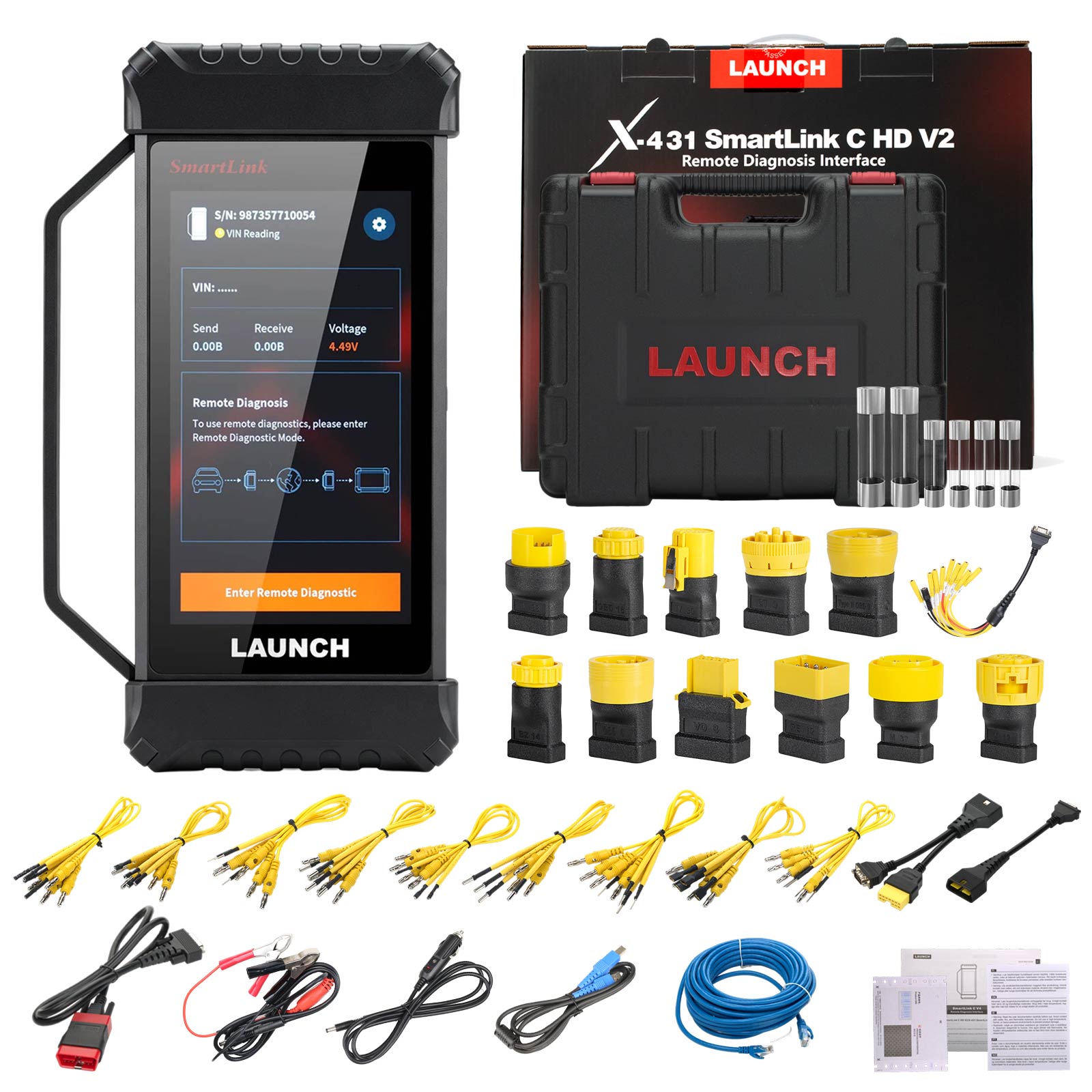

1 pc x X-431 SmartLink C V4

1pc x DB15M to HDB15F Test Main Cable (includes HD15M to OBDII 16-pin male integrated test connector)

1pc x Universal Password Envelope

1pc x Multilingual Quick Start Guide

1pc x SmartLink Dedicated RJ45 to RJ45 Connection Cable, Blue

1pc x USB A to USB B Cable

2pcs x Fuse F5A AC250V/5A, 6×30 mm

4pcs x Fuse SFC AC250V/5A, 5×20 mm

1pc x Cigarette Lighter Power Cable

1pc x Dual Clamp Power Cable

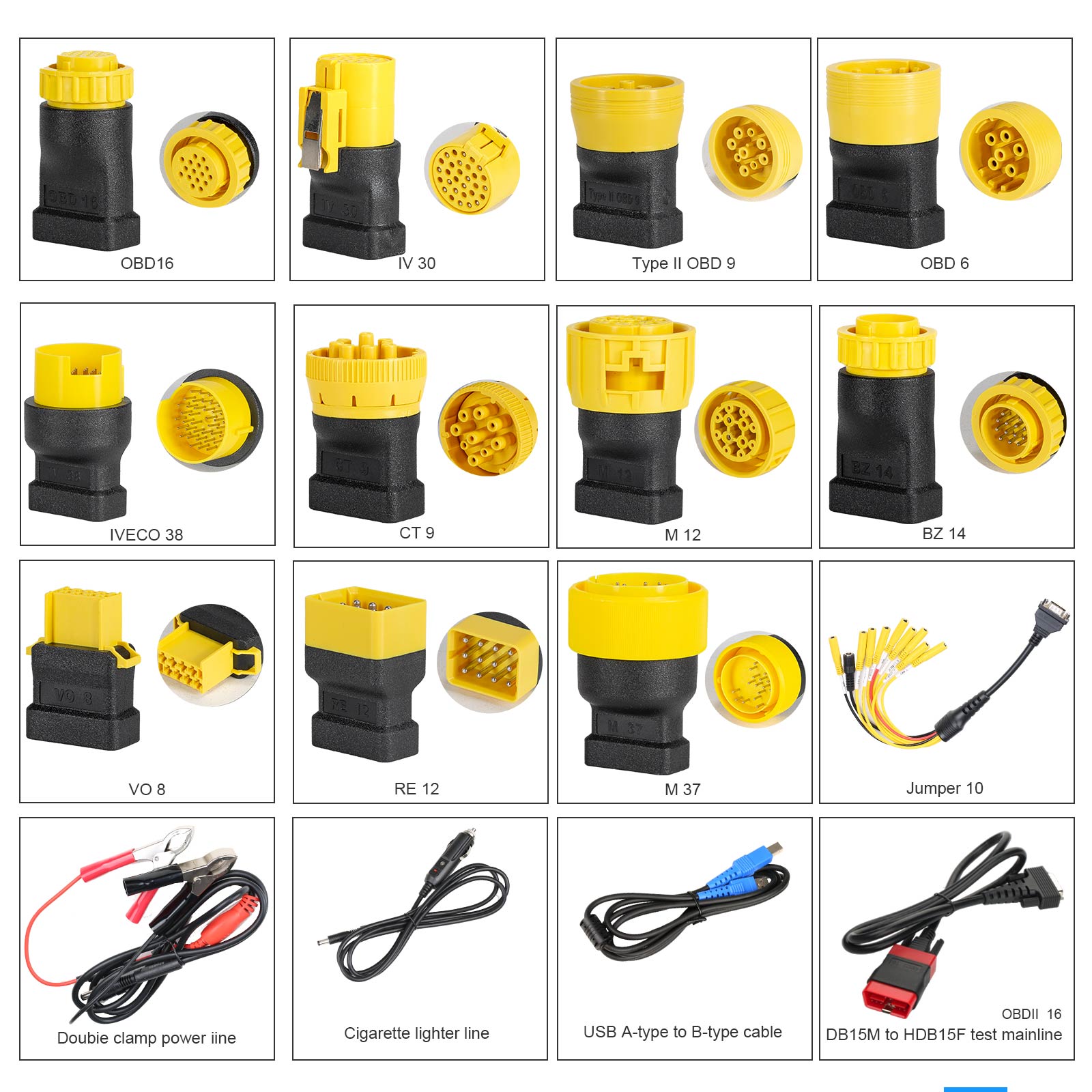

1pc x JUMPER‑10 Heavy‑Duty Truck 10‑PIN Diagnostic Adapter Cable (JUMPER 10)

1pc x HYUNDAI‑16 / Hyundai Truck 16‑PIN In‑Line Diagnostic Adapter Cable (HY 16)

1pc x MITSUBISHI‑12+16 / Fuso 12+16‑PIN In‑Line Diagnostic Adapter Cable (M/F 12+16)

1pc x RENAULT‑12 / Renault 12‑PIN Integrated Diagnostic Adapter Cable (RE 12)

1pc x MAN‑37 / MAN 37‑PIN Integrated Diagnostic Adapter Cable (M 37)

1pc x BENZ‑14 / Mercedes‑Benz 14‑PIN Integrated Diagnostic Adapter Cable (BZ 14)

1pc x MAN‑12 / MAN 12‑PIN Integrated Diagnostic Adapter Cable (M 12)

1pc x IVECO‑38 / Iveco 38‑PIN Integrated Diagnostic Adapter Cable (IV 38)

1pc x IVECO‑30 / Iveco 30‑PIN Integrated Diagnostic Adapter Cable (IV 30)

1pc x OBD 6 Integrated Diagnostic Adapter Cable (OBD 6)

1pc x Type II OBD‑9 Integrated Diagnostic Adapter Cable (Type II OBD 9)

1pc x OBD 16 Integrated Diagnostic Adapter Cable (OBD 16)

1pc x VOLVO‑8 / Volvo 8‑PIN Integrated Diagnostic Adapter Cable (VO 8)

1pc x CAT‑9 / Caterpillar 9‑PIN Integrated Diagnostic Adapter Cable (CT 9)

4 pcs x Electronic control adapter cable 9

4 pcs x Electronic control adapter cable 8

4 pcs x Electronic control adapter cable 7

4 pcs x Electronic control adapter cable 6

4 pcs x Electronic control adapter cable 5

4 pcs x Electronic control adapter cable 4

4 pcs x Electronic control adapter cable 3

4 pcs x Electronic control adapter cable 2

4 pcs x Electronic control adapter cable 1
