Product Introduction:
This package includes OBDSTAR ODO Master Full Version Airbag Repair Software Authorization + P004 Basic Kit (P004 Adapter and Jumper Cable) (No. HKSO647).
This OBDSTAR airbag reset kit works with ODO Master for airbag reset. With OBDSTAR ODO Master Full Version and this airbag reset kit, it is equivalent to having the functions of ODO Master and P50, helping you save more money.
It's friendly, economical, and convenient for vehicle repair plants and fast repair shops.

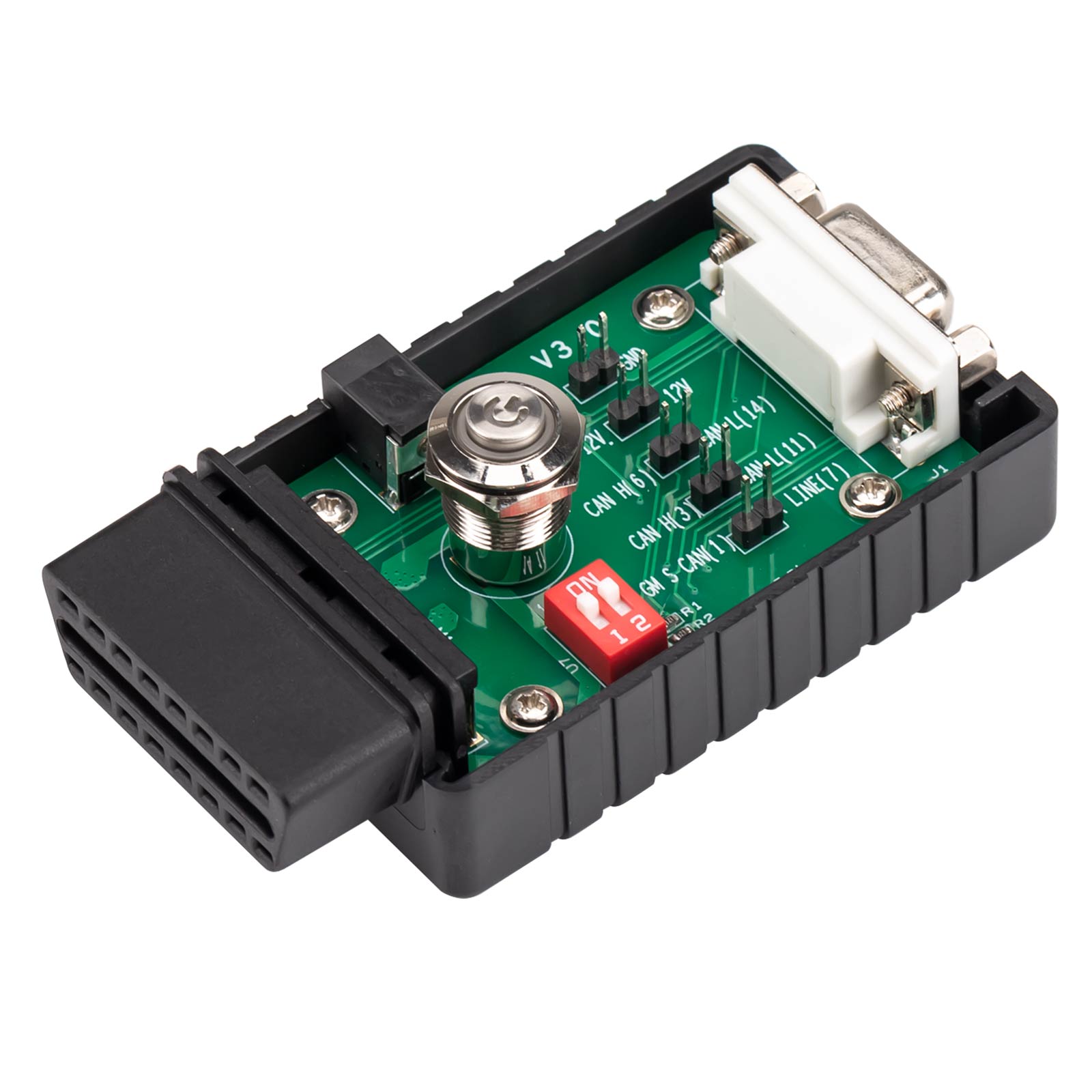

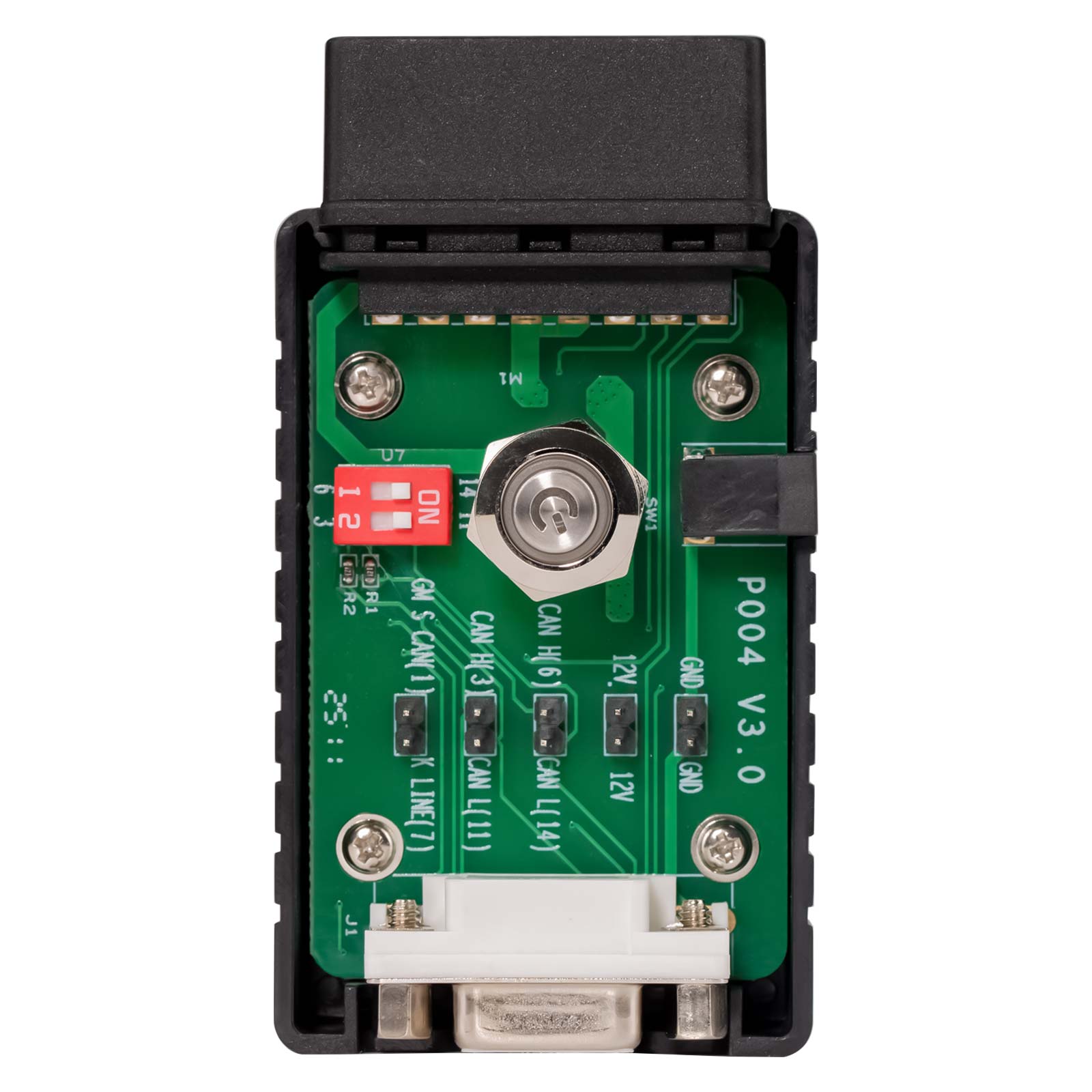

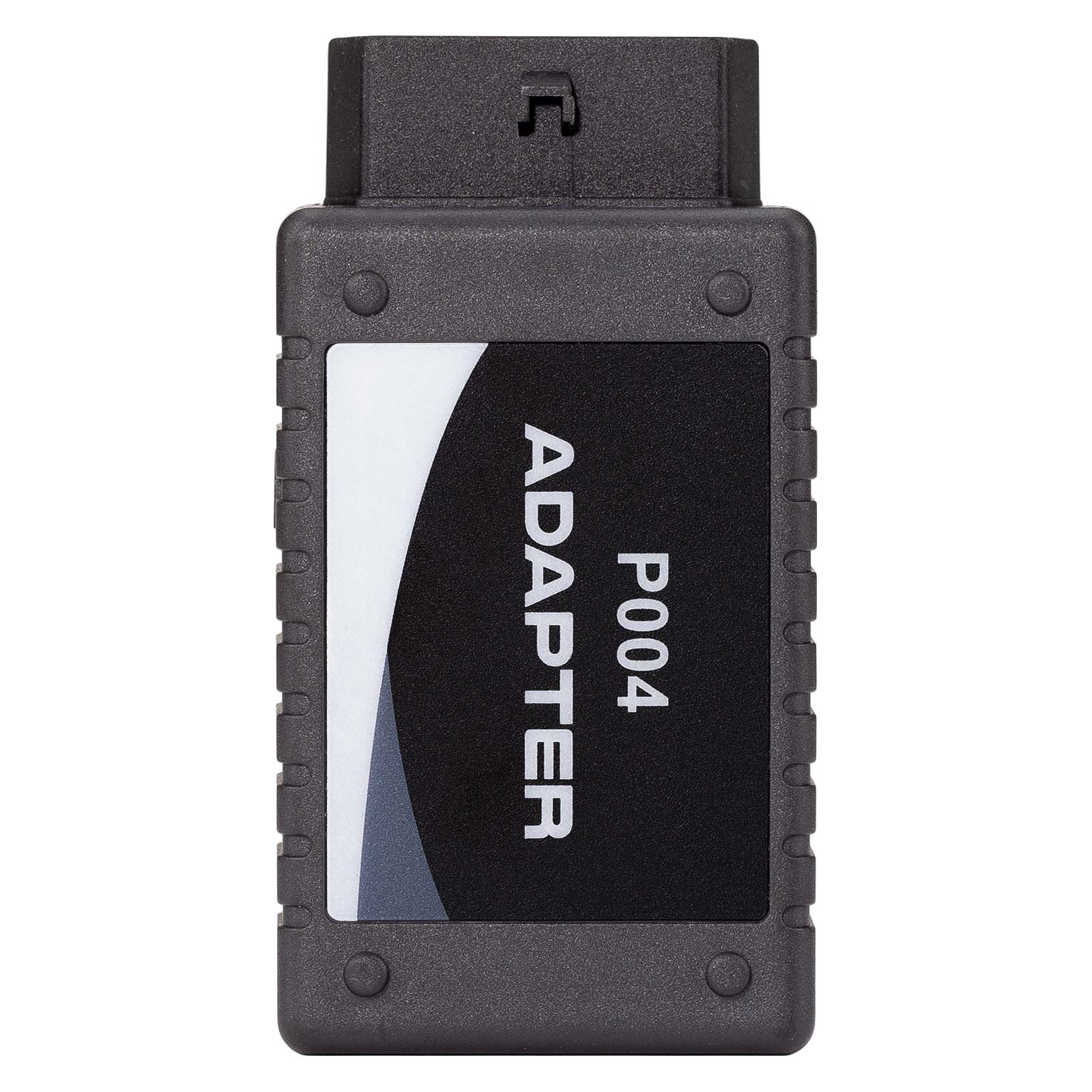

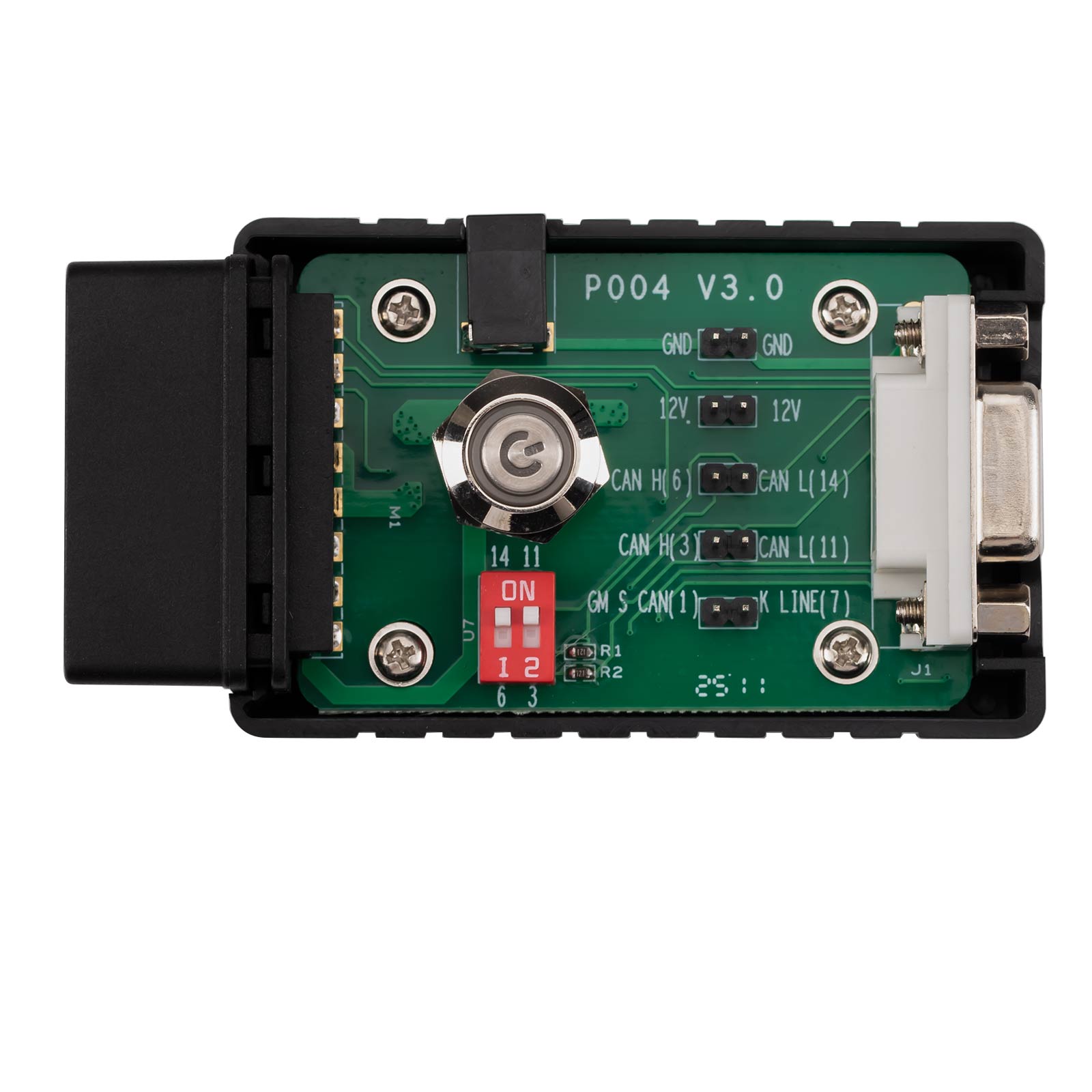

P004 adapter Description:
The P004 adapter is designed for ECU programming, reading, or writing data in bench mode. It has merits below:
1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6&14 and 3&11 CANBUS communication at the same time;
4. Support GM Single CAN(GM SCAN);
5. Support K communication;
6. DB15 connector can communicate with any OBDII-16 I/O interface.
P004 jumper Description:
The P004 jumper can connect with multiple wires at the same time, making wiring clearer and easier.
P004 Basic Kit Functions:
1. supports one-click airbag reset for 38 brands and over 3000 ECU part No.
2. supports fuzzy search for ECU part No.
3. contains clear BENCH mode wiring diagram
4. contains powerful and complete description files for fault code
5. calculate PinCode
More functions in developing...
Advanced Functions:
Ecu Info.
Read DTC
Erase DTC
Read EEPROM
Write EEPROM
Read FLASH
Write FLASH
Erase Crash
Write VIN
...
P004 Basic Kit Coverage:
1. Supported Brands(38 Brands)
Acura
Audi
Benz
Buick
Cadillac
Chevrolet
Chrysler
Citroen
Dacia
Dodge
Ford
GMC
GreatWall
Honda
Hyundai
Infiniti
Jaguar
Jeep
KIA
Land Rover
Lincoln
Maserati
Mazda
Mitsubishi
Nissan
Opel
Peugeot
Porsche
Renault
Seat
Skoda
Smart
Subaru
Suzuki
Tesla
Toyota
VW
Volvo
2. Over 3000 ECU part No. (supporting fuzzy search)
3. MCU types
H8SX
RH850
SPC
XC2XXX
TC2XXX
TMS570
...

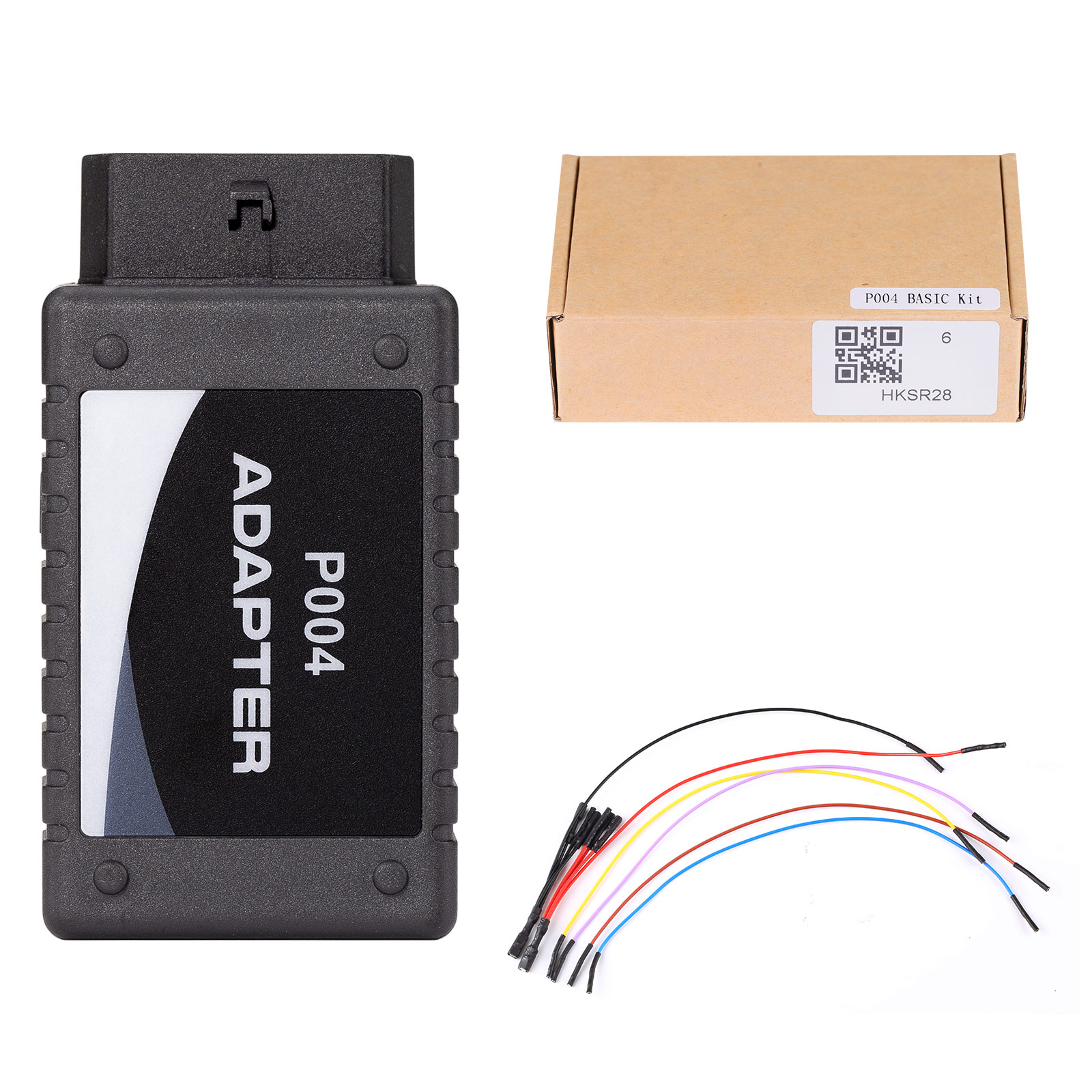

Product Package Includes:
1pc x Airbag Repair Software
1pc x P004 Adapter
1pc x P004 Jumper
