OBDSTAR C4-08 (MB-VGS4-500-NAG2) Adapter Kit Work with X300 Classic G3 and DC706
Buy Now: £92
Whatsapp +86 13983755934
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »
£92
Out of Stock.
Free Shipping
Product Description
OBDSTAR C4-08 Adapter Kit (MB-VGS4-500-NAG2) — For use with OBDSTAR X300 Classic G3, DC706, etc. Precision drilling. Solder-free. Safer data reading/writing!
OBDSTAR C4-08 (MB-VGS4-500-NAG2) Adapter Kit
Use with OBDSTAR X300 Classic G3, DC706, etc.
Precision Drilling. Solder-free. Safer Data Read/Write!

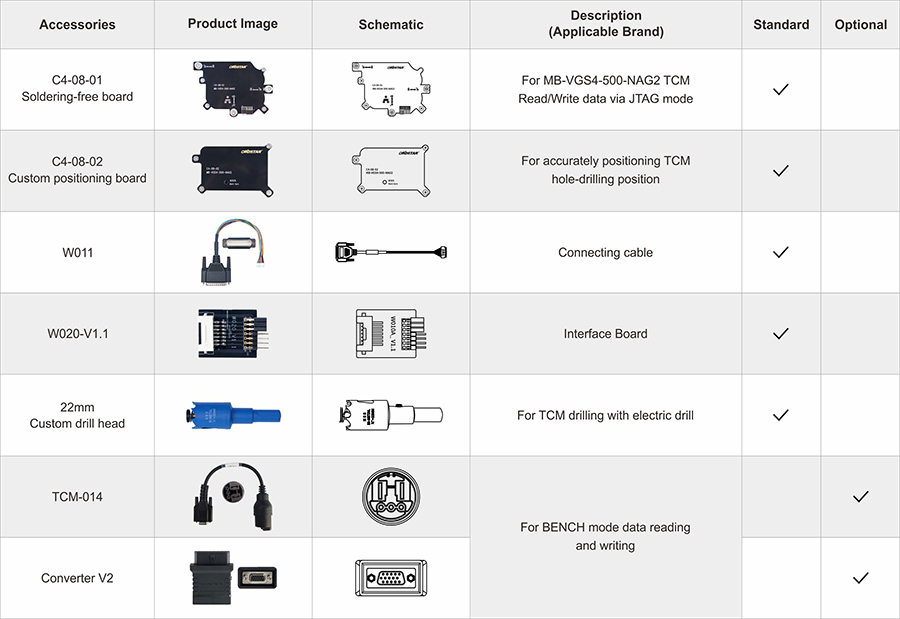

C4-08 (MB-VGS4-500-NAG2) Adapter Kit including

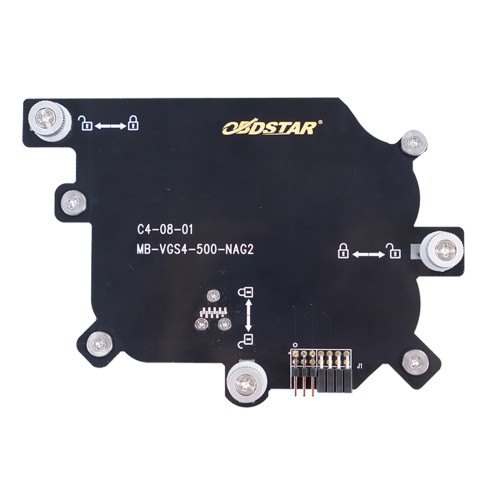

1. C4-08-01 Soldering-free board

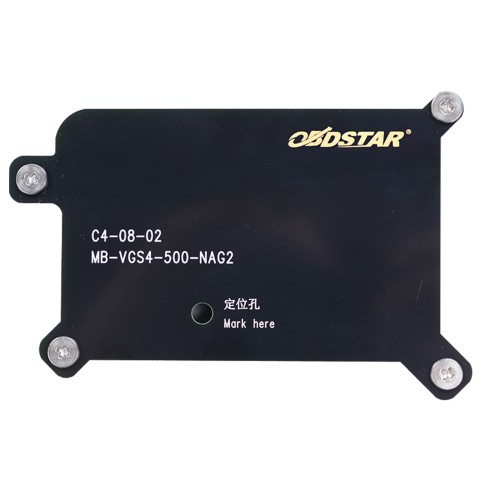

2. C4-08-02 Custom positioning board

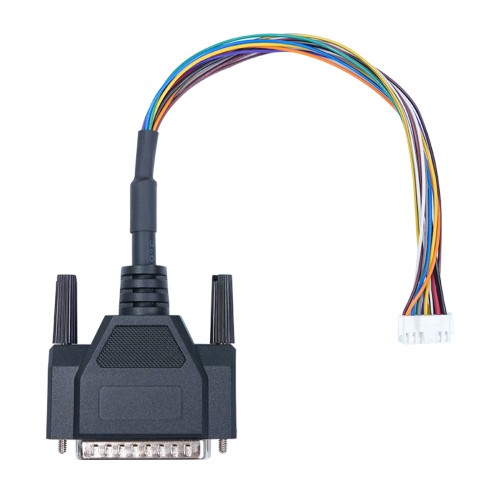

3. W011

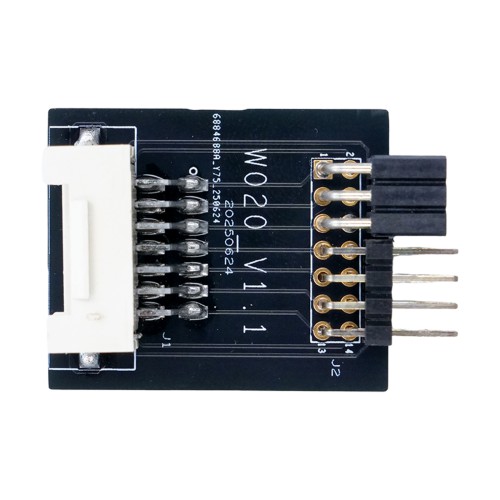

4. W020-V1.1

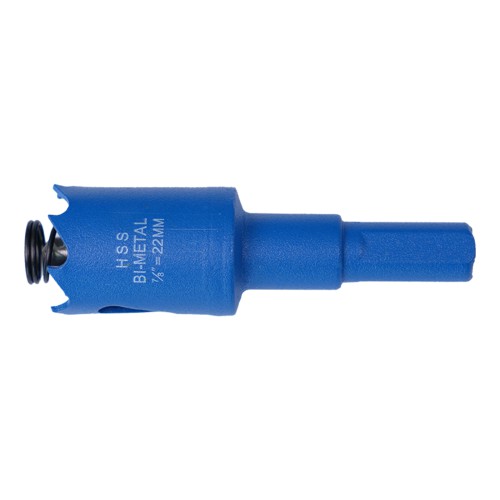

5. 22 mm Custom drill head
6. TCM-014 (Optional, need to buy separately)
7. Converter V2 (Optional, need to buy separately )
Note:
1. Needs to be used with MP001 multifunctional programmer;
2. All of the above accessories are required for completing TCM virginizing, and none can be omitted.
3. If you already have the TCM-014 and Converter V2, you do not need to purchase them again. They can be used with the existing adapter directly or connected via a jumper wire.
OBDSTAR C4-08 Supported Functions:
1. Support all vehicles with VGS4-500-NAG2 TCU of the FBS4 generation Mercedes-Benz;
2. Support solder-free virginizing of used TCM via JTAG mode, significantly lowering the technical skill barrier for users;
3. Support personalization (data transfer) via BENCH or OBD mode, achieving the same effect as TCM clone.
OBDSTAR C4-08 Advanced Functions:
1. Custom positioning board for precise and secure drilling access to the control unit, more accurate installation and smoother follow-up operations;
2. No advanced soldering skills required—even beginners can perform professional-level repairs with ease, eliminating the risk of damaging the control module or solder boards, while achieving fast and reliable results;
3. Used together with the custom drill head and a handheld drill, the TCM can be easily opened with minimal exterior damage;
4. High-precision custom board enabling safe, solder-free read/write operations—ensuring reliable data access and operational safety.

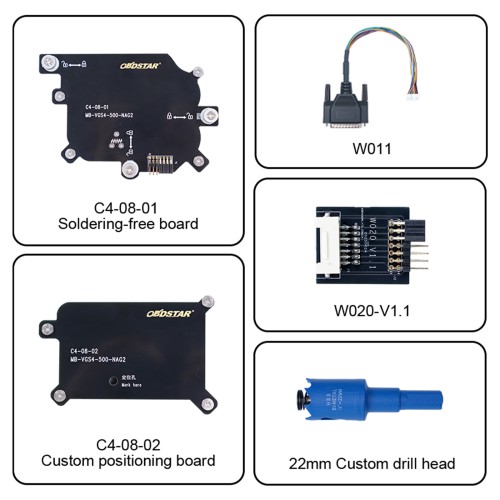

OBDSTAR C4-08 Package includes:
1pc x C4-08-01 Soldering-free board
1pc x C4-08-02 Custom positioning board
1pc x W011
1pc x W020-V1.1
1pc x 22 mm Custom drill head
TCM-014 (Optional, need to buy separately )
Converter V2 (Optional, need to buy separately )
1pc x C4-08-02 Custom positioning board
1pc x W011
1pc x W020-V1.1
1pc x 22 mm Custom drill head
TCM-014 (Optional, need to buy separately )
Converter V2 (Optional, need to buy separately )
