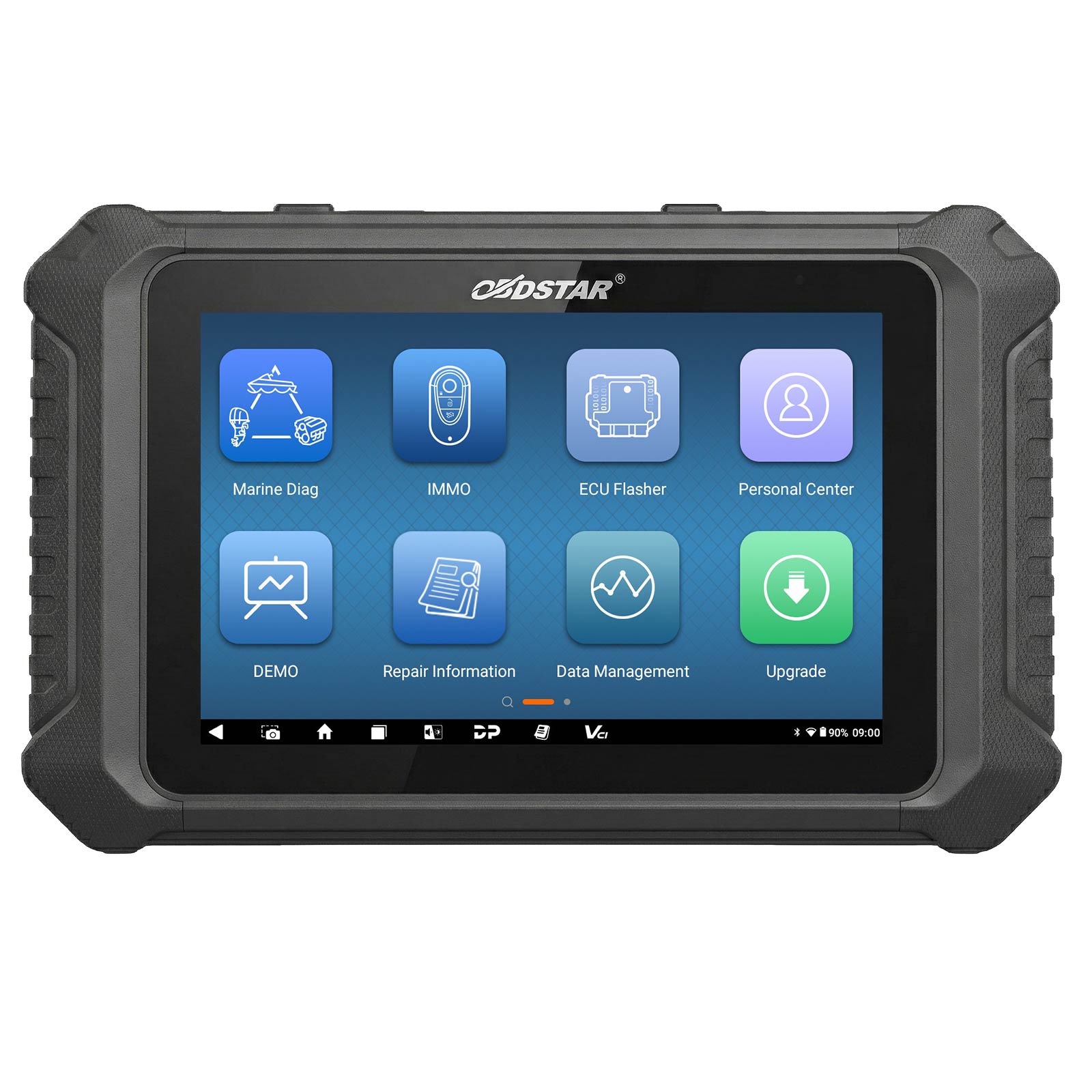

[Full Configuration] OBDSTAR MarineMaster Marine Diagnostic Tool A+B+C+D for Jet ski, Outboard, Inboard, Generator Update of D800 Free Update 2 Years
Buy Now: £2,187
Whatsapp +86 13983755934
Shipping:
Free Shipping
Express Shipping ServiceEstimated delivery time: 3-5 working days.See details »
Weight:
7.9KG
Package:
51.5cm*40cm*17cm
( Inch: 20.22*15.71*6.68 )
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »
Related Download Files
Product Description
OBDSTAR MarineMaster is a next-gen diagnostic tool for jet skis, outboards, inboards & generators. Samsung Exynos, 8" display, auto-ID, smart search, one-click feedback, fast upgrades & built-in help. Ideal for marine engineers.
OBDSTAR MarineMaster New Generation Marine Scanner
OBDSTAR MarineMaster Description:

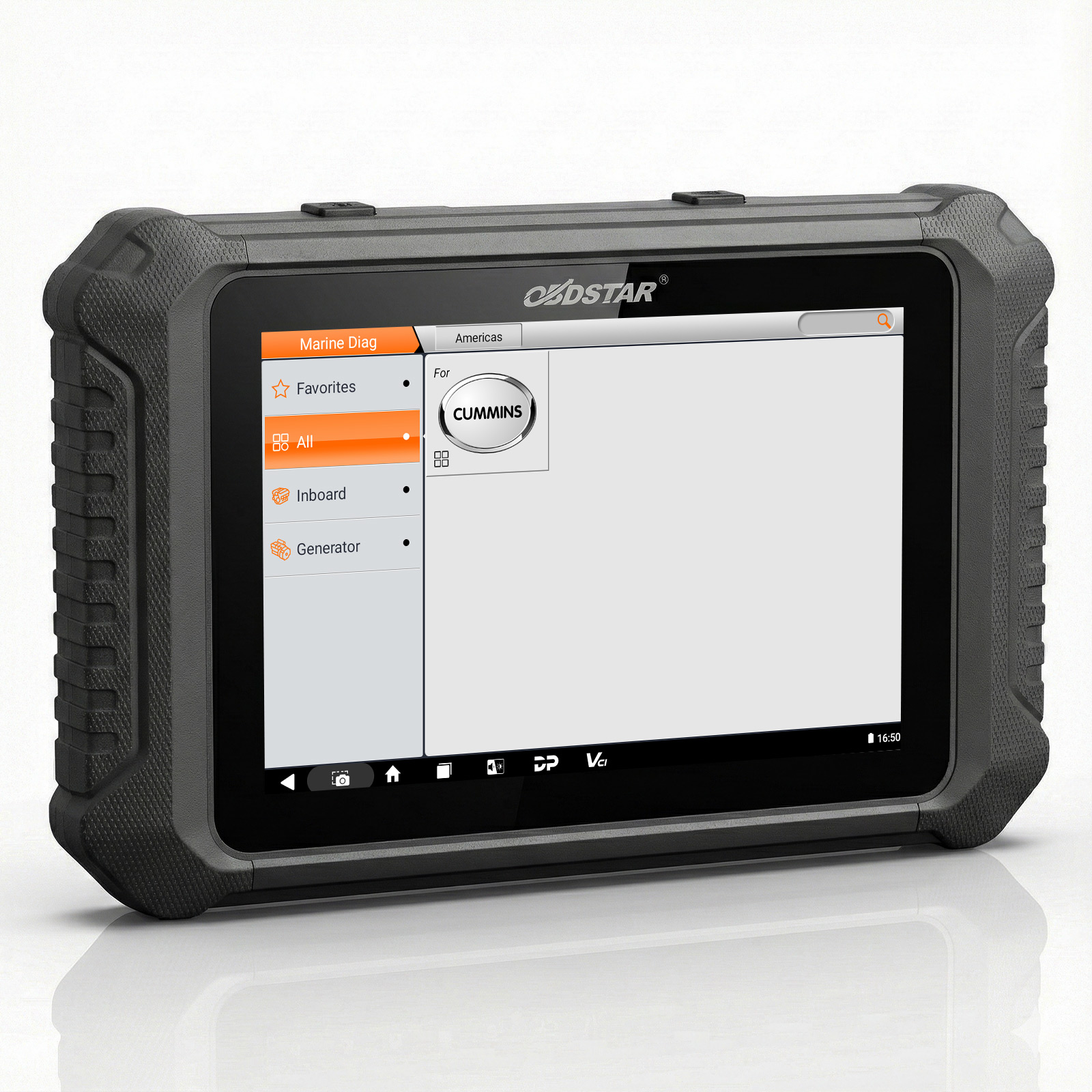

MarineMaster is OBDSTAR's new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis.
Powered by the Samsung Exynos processor, it features an 8-inch display that is extremely fast and smooth.
MarineMaster adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The MarineMaster marine scanner, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!
MarineMaster has the following configuration:
A: Jet ski B: Outboard C: Inboard D: Generator
MarineMaster A+B: Jet ski, Outboard
MarineMaster C+D: Inboard, Generator
MarineMaster A+B+C+D: Jet ski, Outboard, Inboard, Generator
This product is a full configuration A+B+C+D. If you need an A+B or C+D configuration, please get in touch with us for the best price (email sales@obd2shop.co.uk or WhatsApp +86 13983755934).
| A: Jet ski B: Qutboard C: Inboard D: Generator | ||||
| Function | Brand | MarineMaster A+B | MarineMaster C+D | MarineMaster A+B+C+D |
| Marine Diag | AIQIDI | √ | -- | √ |
| CATERPILLAR | -- | √ | √ | |
| CFMOTO | -- | √ | √ | |
| CRUSADER | -- | √ | √ | |
| CUMMINS | -- | √ | √ | |
| CUMMINS MERCRUISER DIESEL | -- | √ | √ | |
| DAEDONG | -- | √ | √ | |
| DAF | -- | √ | √ | |
| EVINRUDE | √ | -- | √ | |
| FLAGSHIP | -- | √ | √ | |
| FNM | -- | √ | √ | |
| FORD | -- | √ | √ | |
| FPT | -- | √ | √ | |
| HIDEA | √ | -- | √ | |
| HONDA | √ | -- | √ | |
| HYUNDAI | -- | √ | √ | |
| ILMOR | -- | -- | √ | |
| INDMAR | -- | √ | √ | |
| JOHNSON | √ | -- | √ | |
| KAWASAKI | √ | -- | √ | |
| KODIAK | -- | -- | √ | |
| KOHLER | -- | √ | √ | |
| LOMBARDINI | -- | √ | √ | |
| MALIBU | -- | √ | √ | |
| MAN | -- | √ | √ | |
| MARINE_POWER | -- | √ | √ | |
| MARINER | √ | -- | √ | |
| MERCRUISER | -- | √ | √ | |
| MERCURY | √ | √ | √ | |
| MERCURY DIESEL | -- | √ | √ | |
| MTU | -- | √ | √ | |
| OMC | -- | √ | √ | |
| OMC Diesel | -- | √ | √ | |
| PANTHER | -- | -- | √ | |
| PARSUN | √ | -- | √ | |
| PCM | -- | √ | √ | |
| PERKINS | -- | √ | √ | |
| SCANIA | -- | √ | √ | |
| SEA-DOO(BRP) | √ | -- | √ | |
| SEANOVO | √ | -- | √ | |
| SELVA | √ | -- | √ | |
| SEVEN | √ | -- | √ | |
| SISU | -- | √ | √ | |
| STEYR | -- | √ | √ | |
| SUZUKI | √ | -- | √ | |
| TOHATSU | √ | -- | √ | |
| TOYOTA | -- | √ | √ | |
| TURNKEY | -- | √ | √ | |
| VANGUARD | -- | √ | √ | |
| VETUS | -- | √ | √ | |
| VM MOTORI | -- | √ | √ | |
| VOLKSWAGEN | -- | √ | √ | |
| VOLVO | -- | √ | √ | |
| YAMAHA | √ | -- | √ | |
| YANMAR | -- | √ | √ | |
| Marine DEMO | CUMMINS | -- | √ | √ |
| HONDA | √ | -- | √ | |
| MERCURY | √ | √ | √ | |
| SUZUKI | √ | -- | √ | |
| VOLVO | -- | √ | √ | |
| YAMAHA | √ | √ | √ | |
| Marine lIMMO | KAWASAKI | √ | -- | √ |
| SEA-DOO(BRP) | √ | -- | √ | |
| YAMAHA | √ | -- | √ | |
| ECU Flasher | ECM | √ | -- | √ |

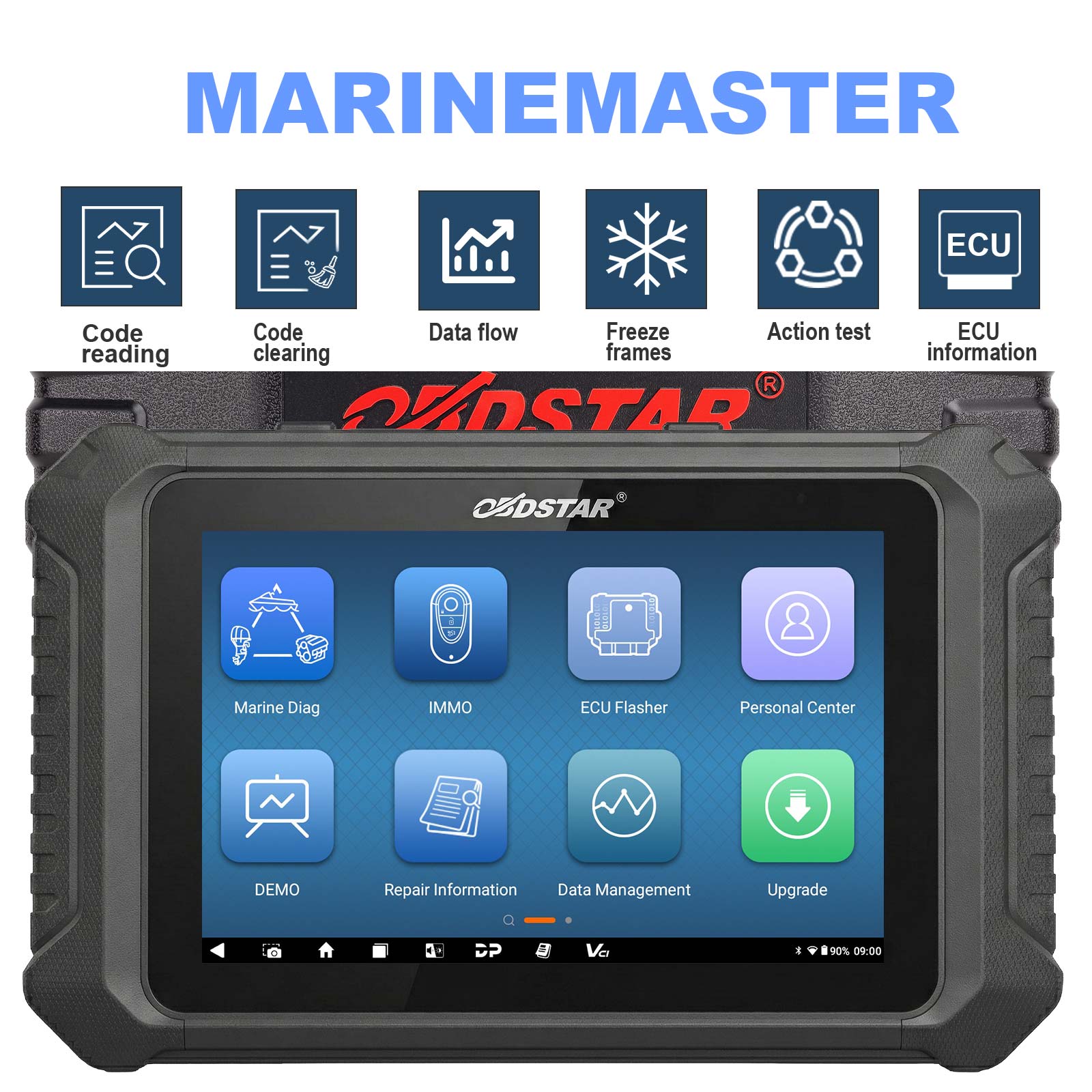

OBDSTAR MarineMaster Functions:
1. Android 11 operating system with one-click OTA (Over-The-Air) updates;

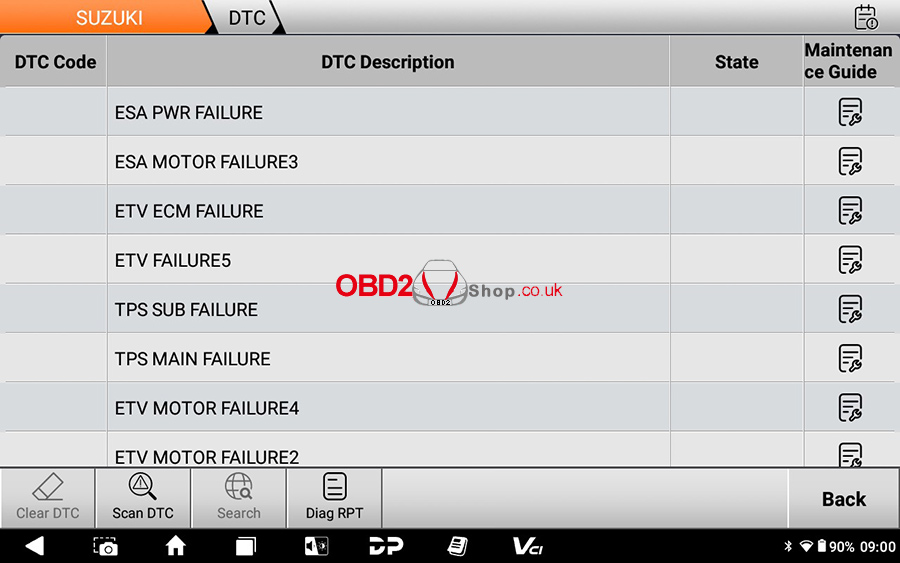

2. Provide complete diagnostic functions, including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding, read working hours, Helm Setup, etc.
3. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
4. Wi-Fi connection to the internet, one-click software upgrade;
5. One-click remote function, OBDSTAR technical staff remote assistance;
6. Built-in screen recording and wireless screen mirroring capabilities.
MarineMaster Advanced Functions:
1. The OBDSTAR mobile APP integrates functions such as diagnostic socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with MarineMaster to make marine diagnosis more accurate and efficient (some functions are only available for MarineMaster users to check for free).
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free.
3. Various data flow display modes, such as text, waveform diagram, and instrument diagram, allow you to easily analyze faults.
4. Supports Auto Scan, BCM Simulator, Instance Setting, Maintenance Setting, Remote Control Reset, System Calibration, Torque Adjustment, and other functions...

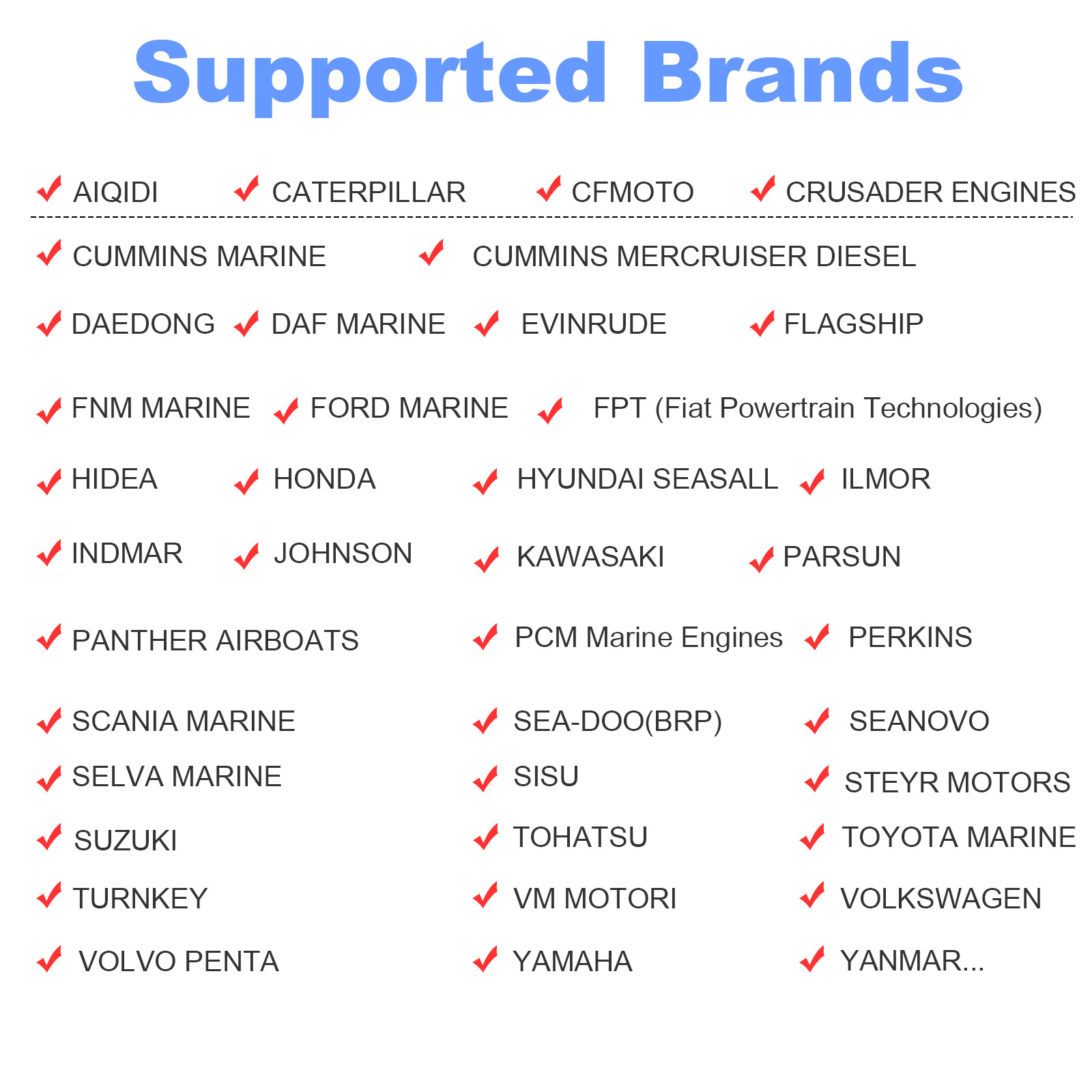

MarineMaster Supported Brands:
AIQIDI, CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, EVINRUDE, FLAGSHIP, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HIDEA, HONDA, HYUNDAI SEASALL, ILMOR, INDMAR, JOHNSON, KAWASAKI, KODIAK MARINE, KOHLER, LOMBARDINI MARINE, MALIBU, MAN MARINE, MARINER, MARINE POWER, MERCRUISER, MERCURY, MERCURY DIESEL, MTU, PARSUN, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SEA-DOO(BRP), SEANOVO, SELVA MARINE, SEVEN MARINE, SISU, STEYR MOTORS, SUZUKI, TOHATSU, TOYOTA MARINE, TURNKEY, VM MOTORI, VOLKSWAGEN, VOLVO PENTA, YAMAHA, YANMAR...
More functions are under development...
| MarineMaster | D800 | |
| Operation system | Android 11 | Android 5.1.1 |
| OTA | √ | x |
| Screen recording | √ | x |
| Wireless screen casting | √ | x |
| CPU | Quad-core 64-bit Cortex-A55 2.0GHz | Qual Core ARM Cortex A9 1.4GHz |
| Battery | 9000mA | 3700mA |
| Storage capacity | 4+64GB | 1+32GB |
| LCD | 8.0-inch fully laminated sunlight-readable screen | 8.0 inch |
| LCD resolution | 1280*800 | 1280*800 |
| Camera | Rear camera 800W pixels, auto-focus | Rear camera 500W pixels |
| Bluetooth | Bluetooth 5.0 | X |

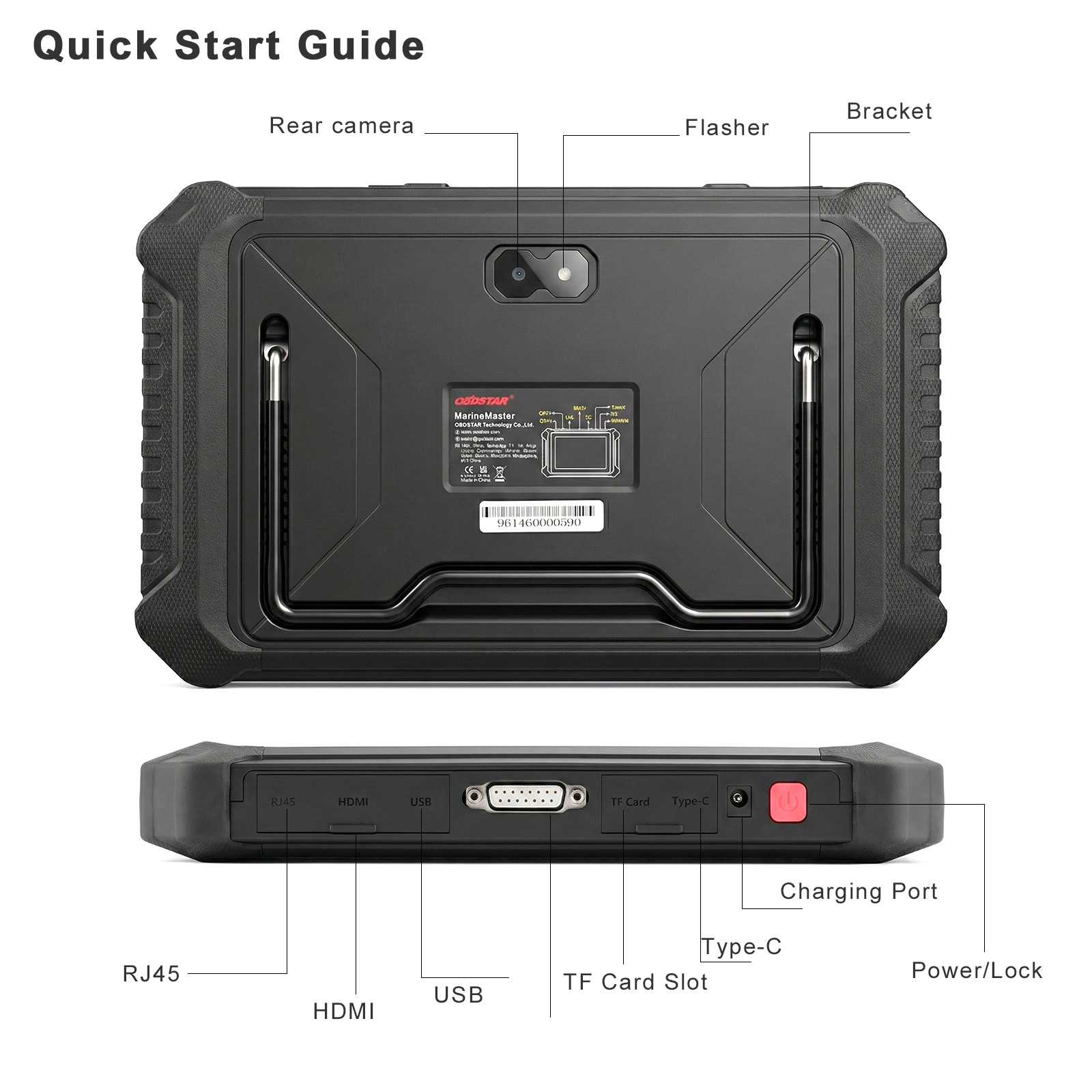

| External interfaces | RJ-45√ | X |
| WiFi | HDMI√ | X |
| VCI | TYPE-A, TYPE-C | TYPE-A |
| Dual-band 2.4G/5GHz | 2.4G | |
| CANFD built in√ | CANFD Adapter Required | |
| DOlP built in√ | X | |
| Low Speed (Fault Tolerant) CAN built in√ | X | |
| All other common protocol types | All other common protocol types |
MarineMaster Function Display:

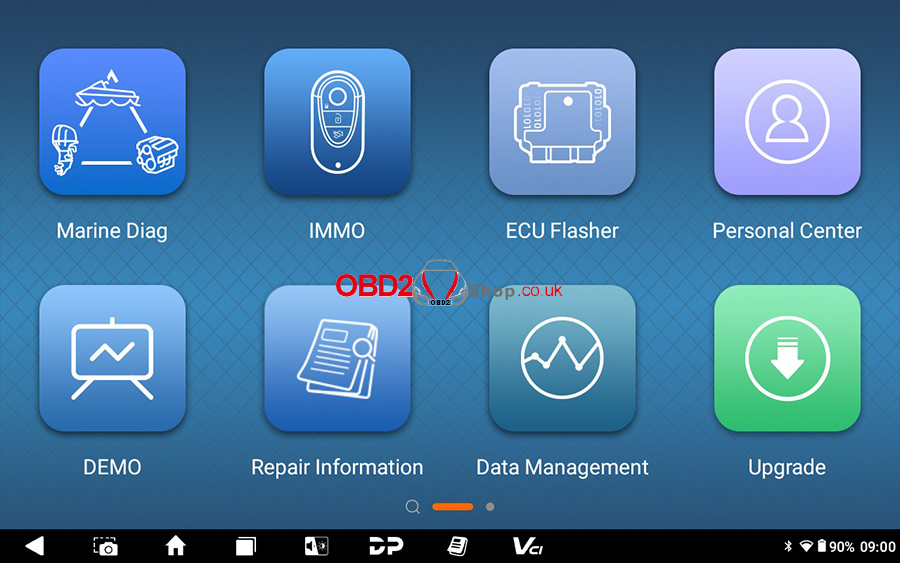

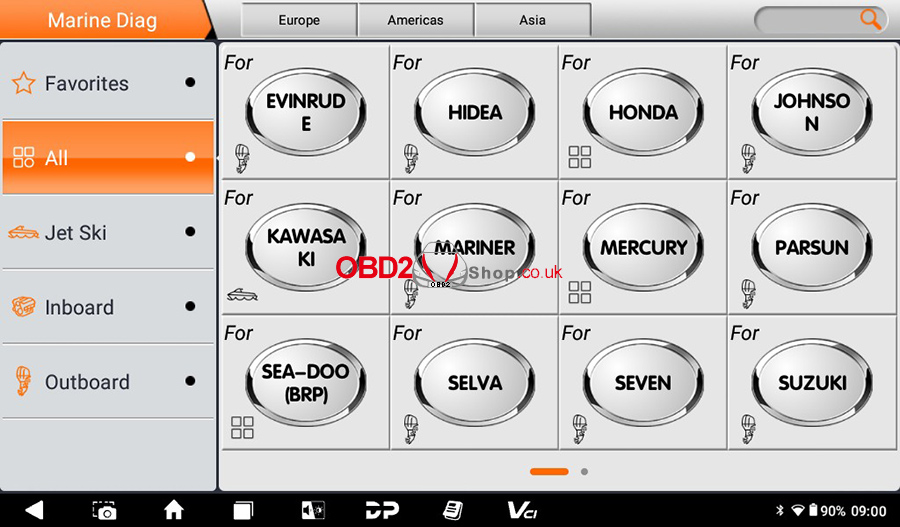

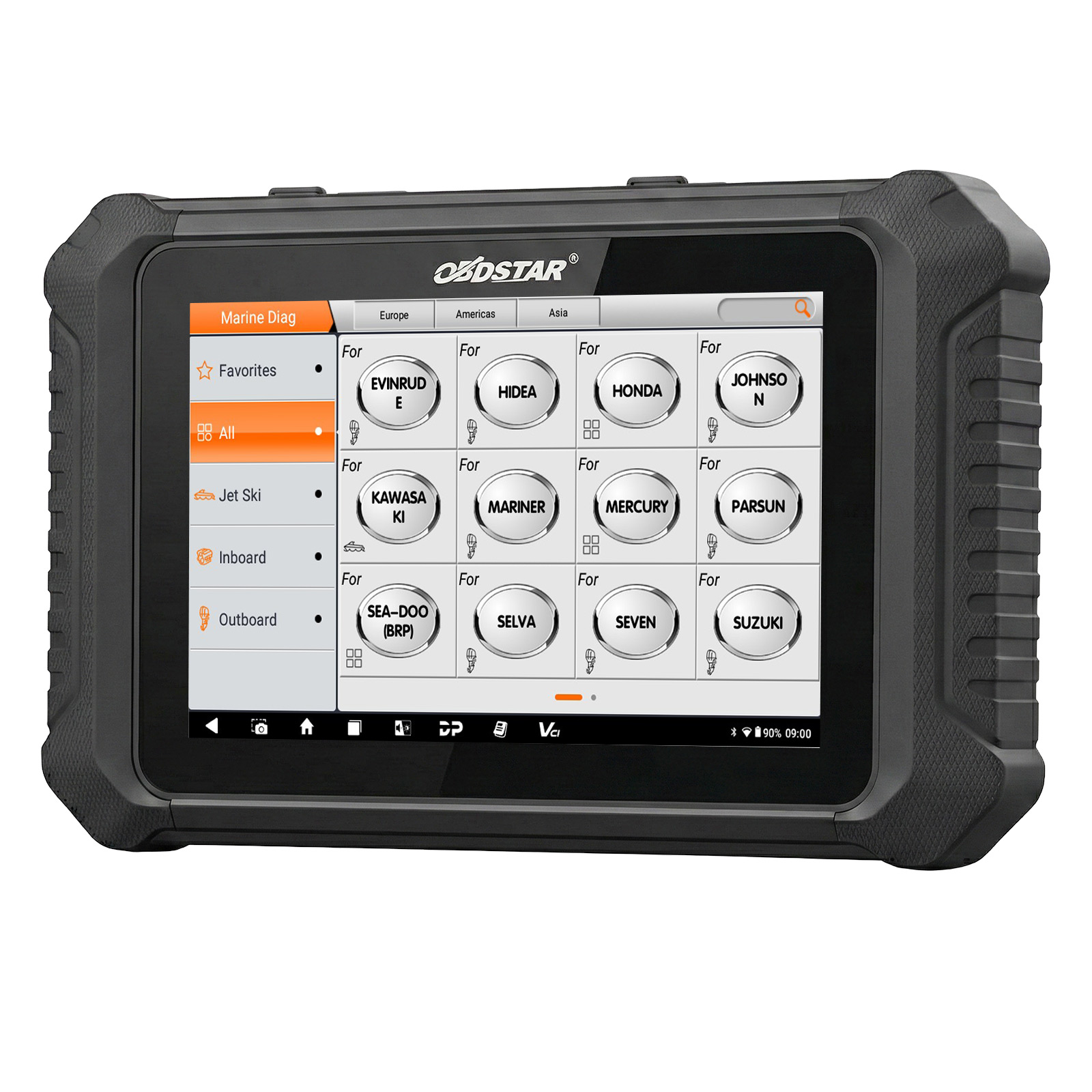

1) Main Page/Brand Supported

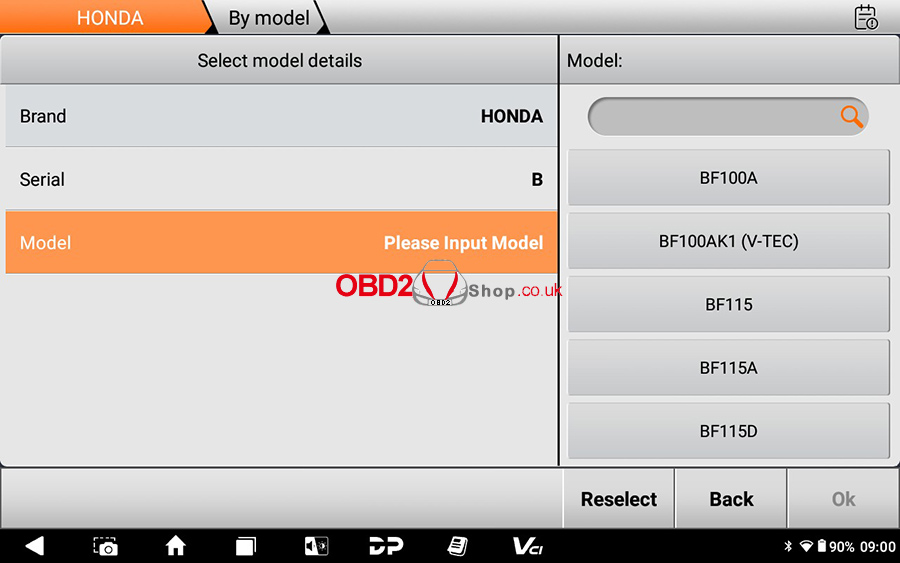

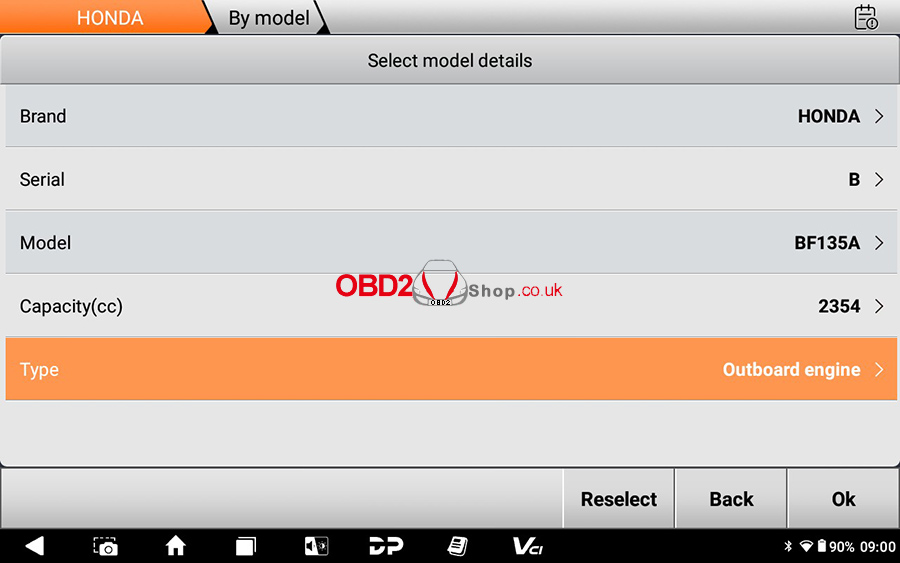

2) Menu Selection

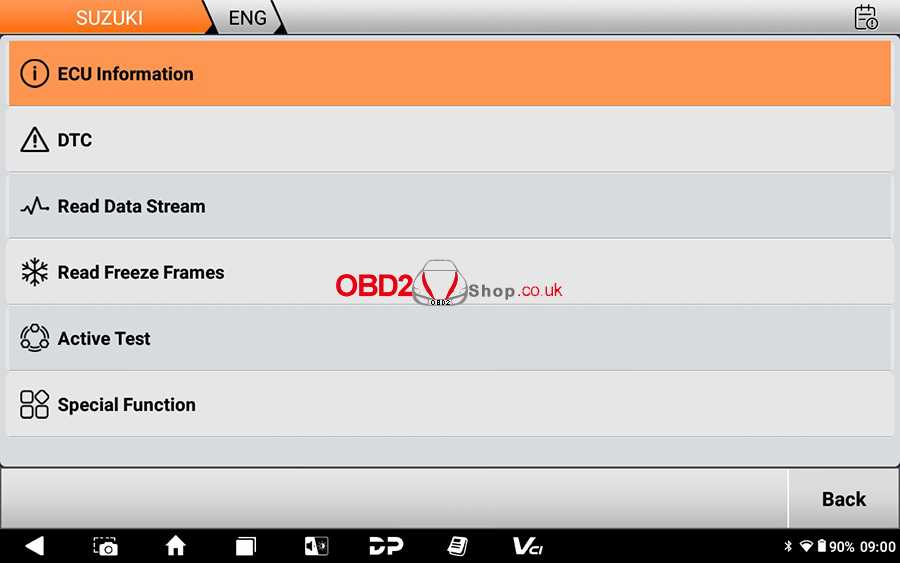

3) Function Menu

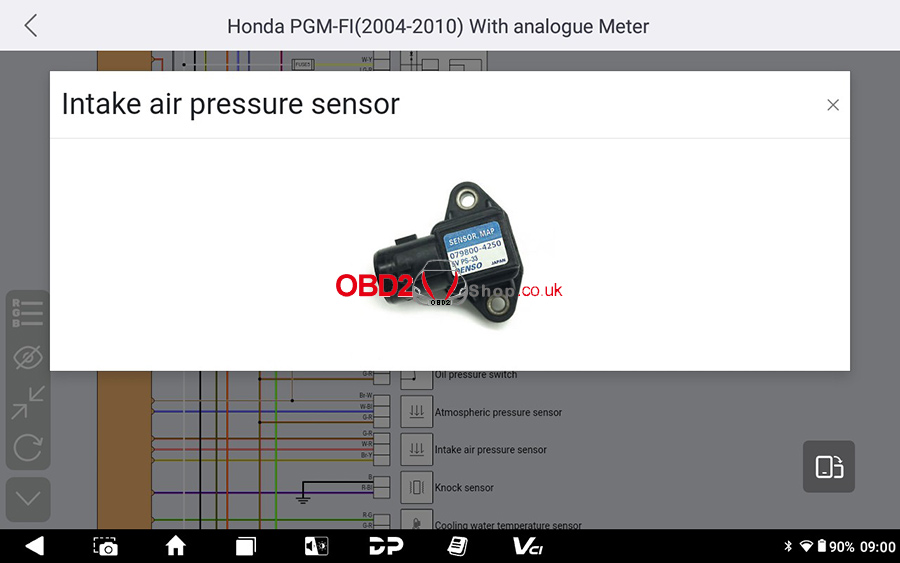

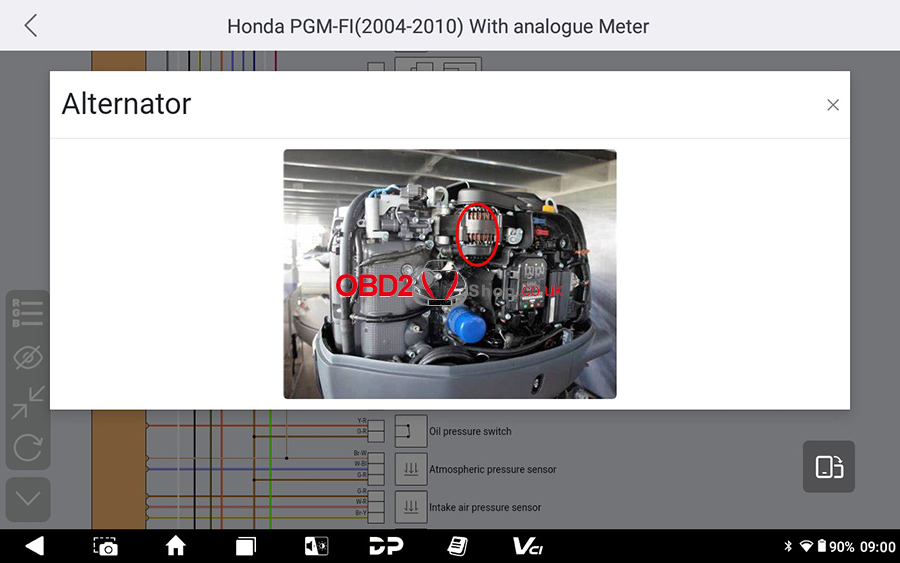

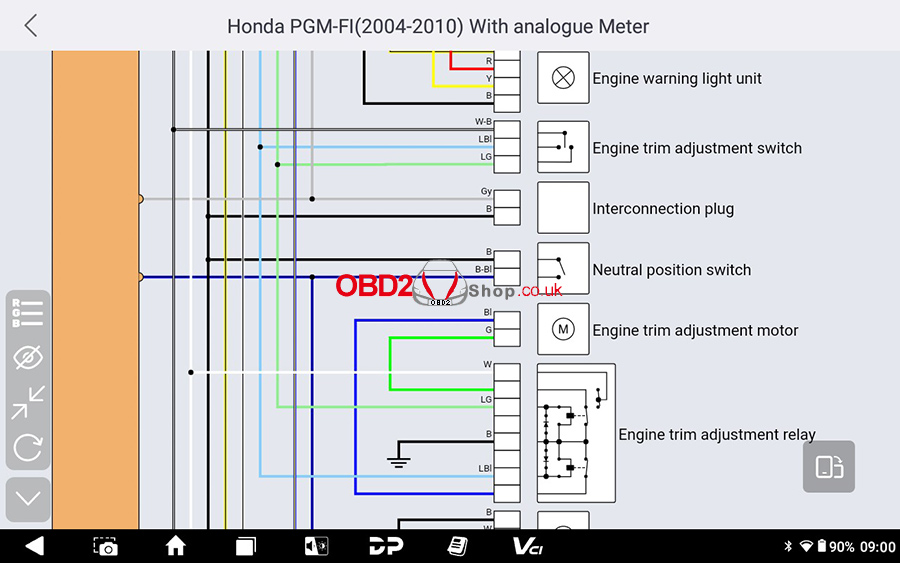

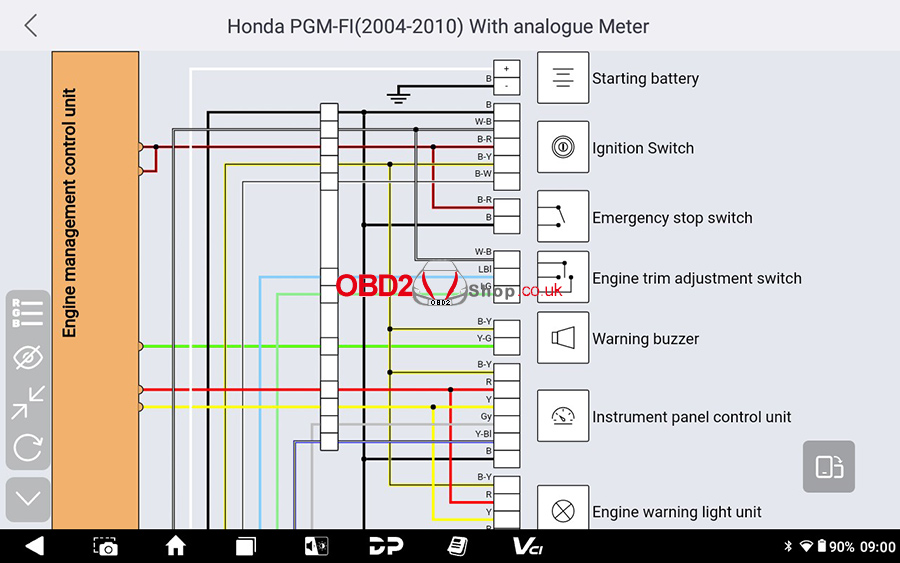

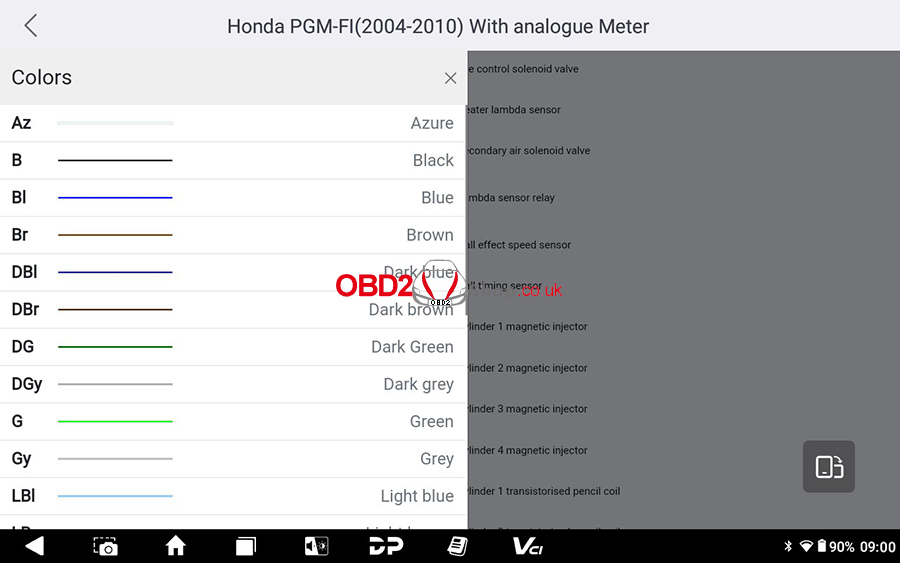

4) Interactive Circuit Diagram

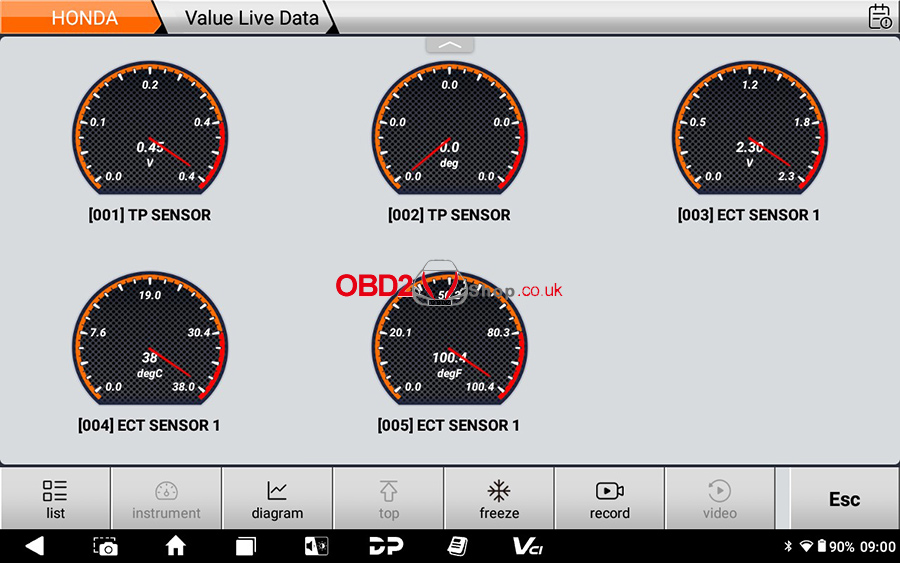

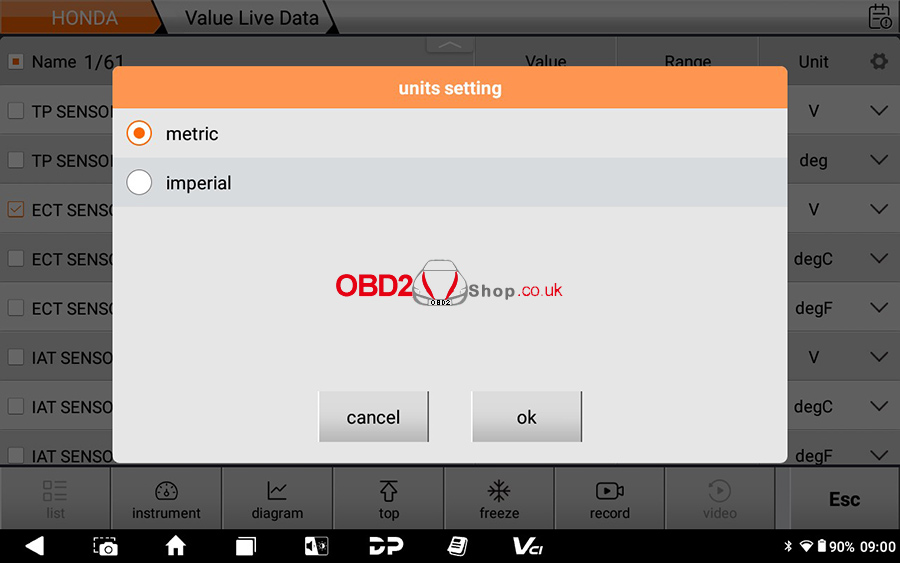

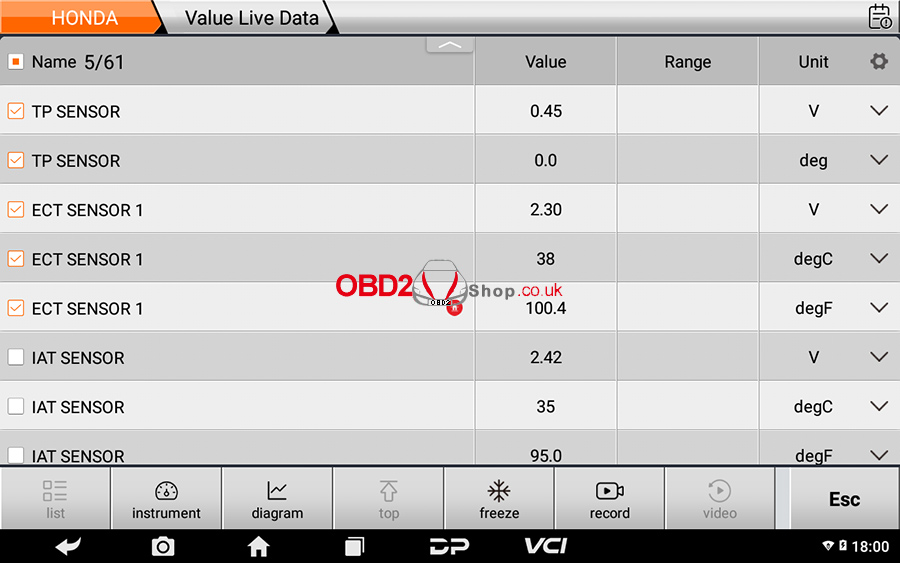

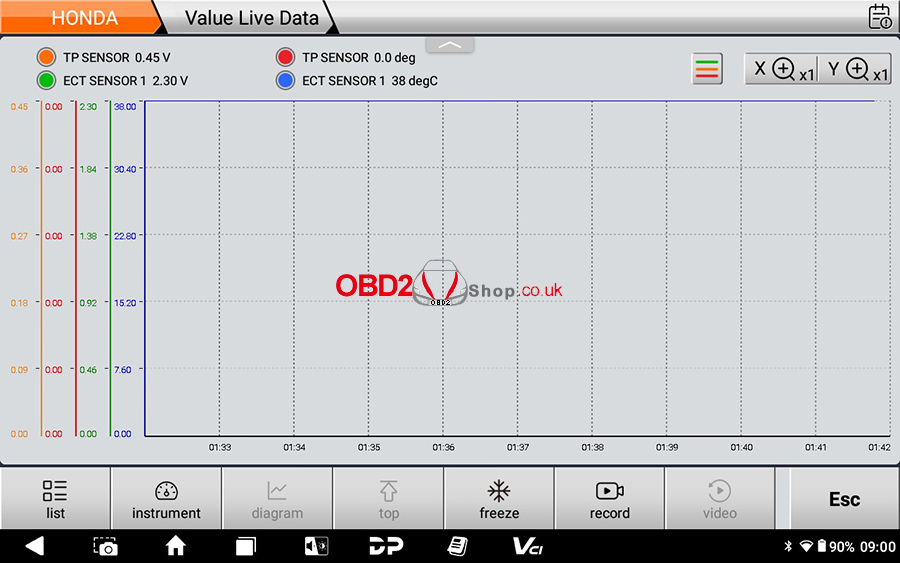

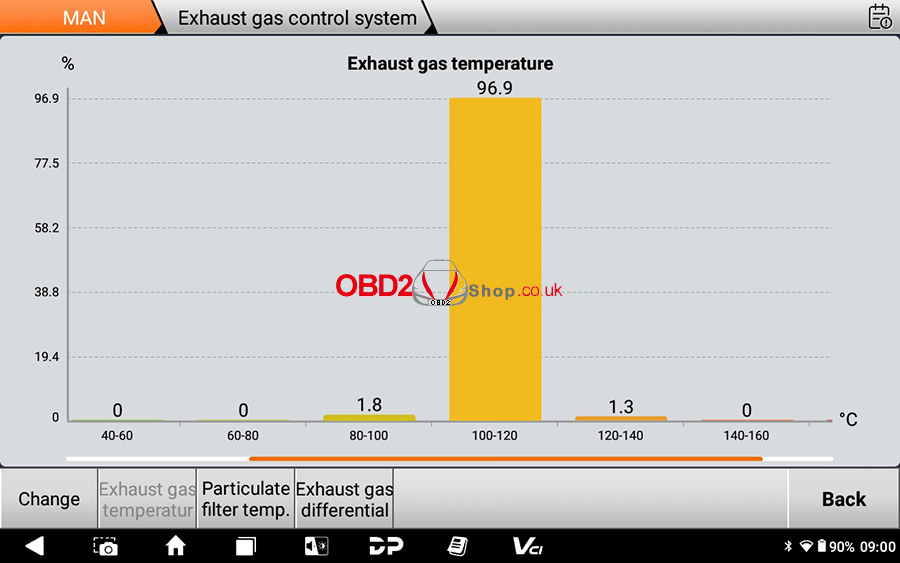

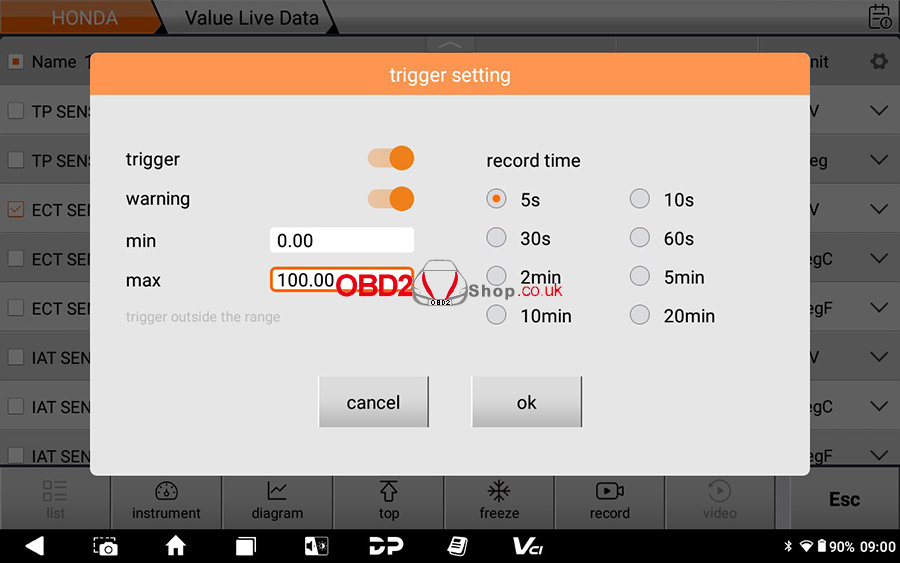

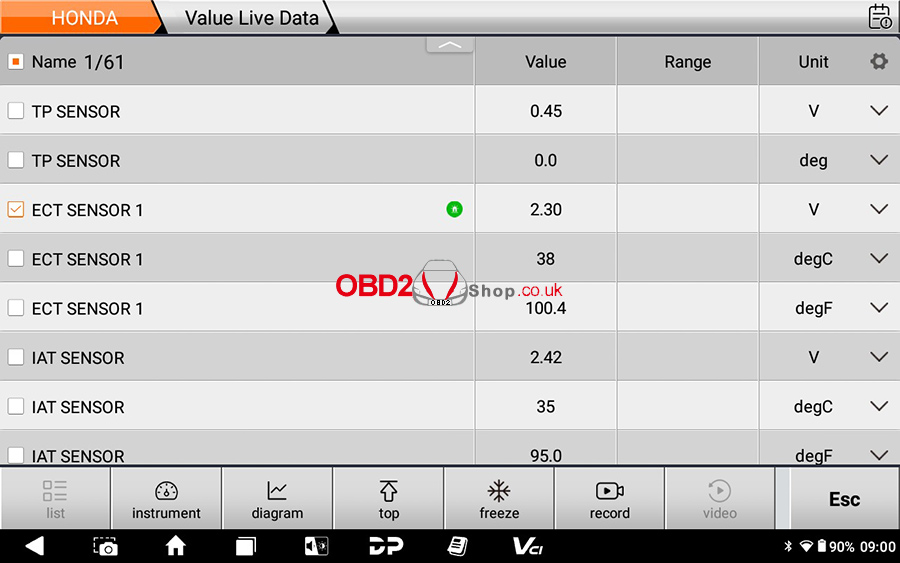

5) Data Flow Text/Waveform Diagram/Instrument Diagram

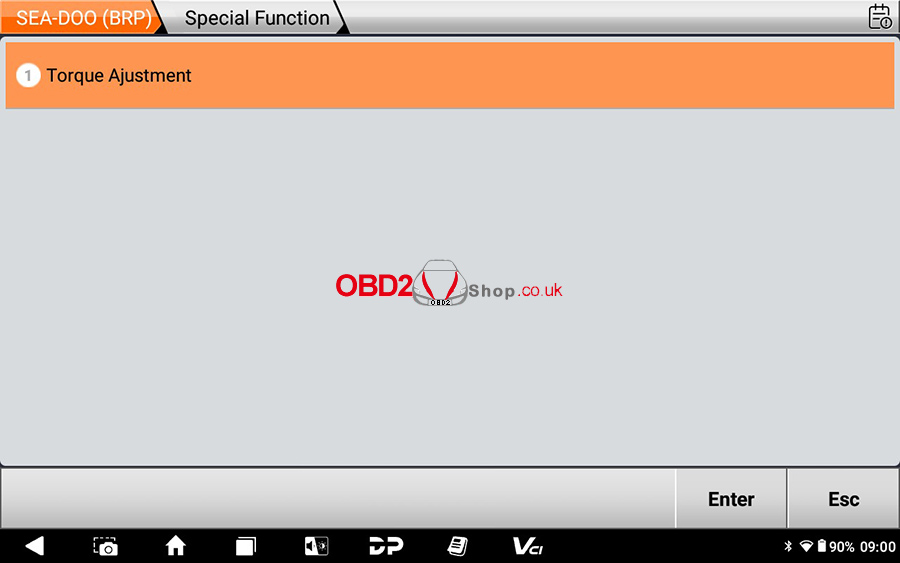

6) Special Function-BRP

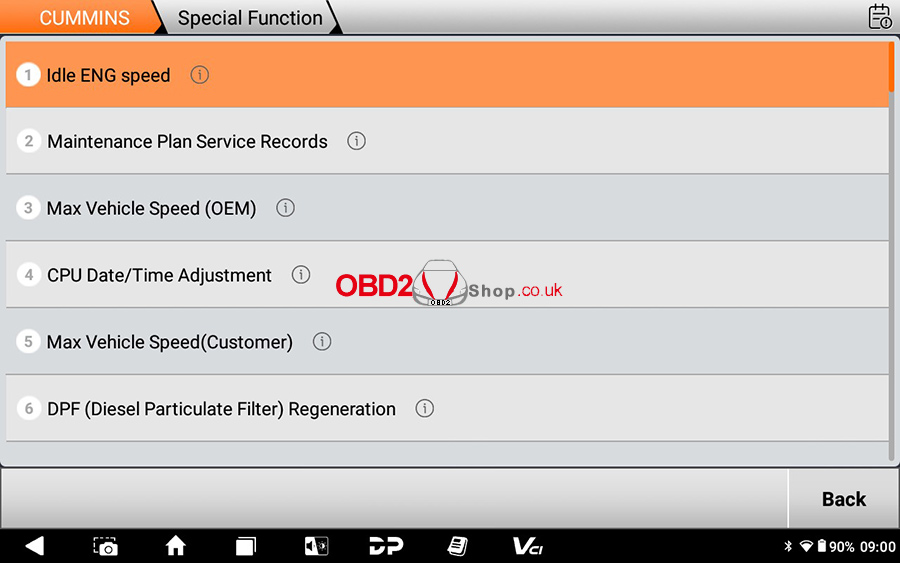

7) Special Function-CUMMINS

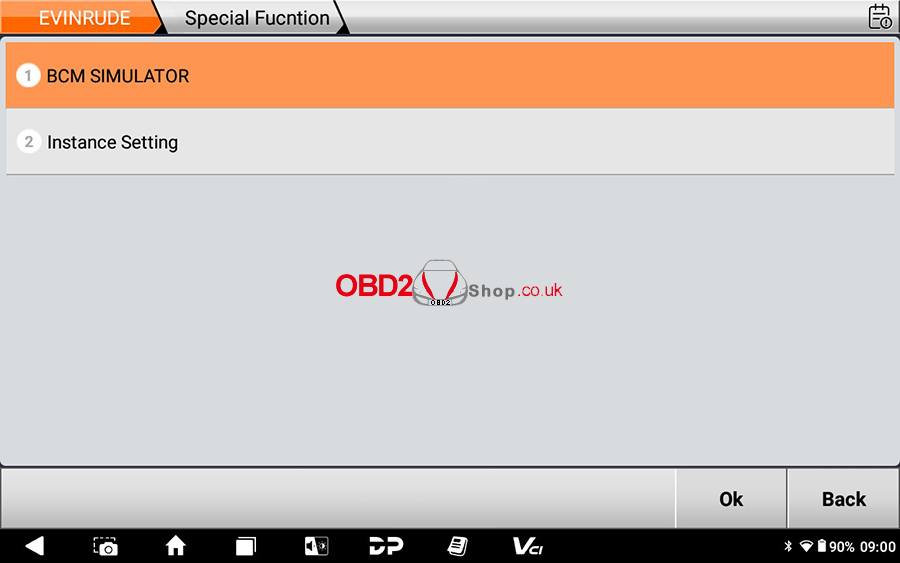

8) Special Function-EVINRUDE

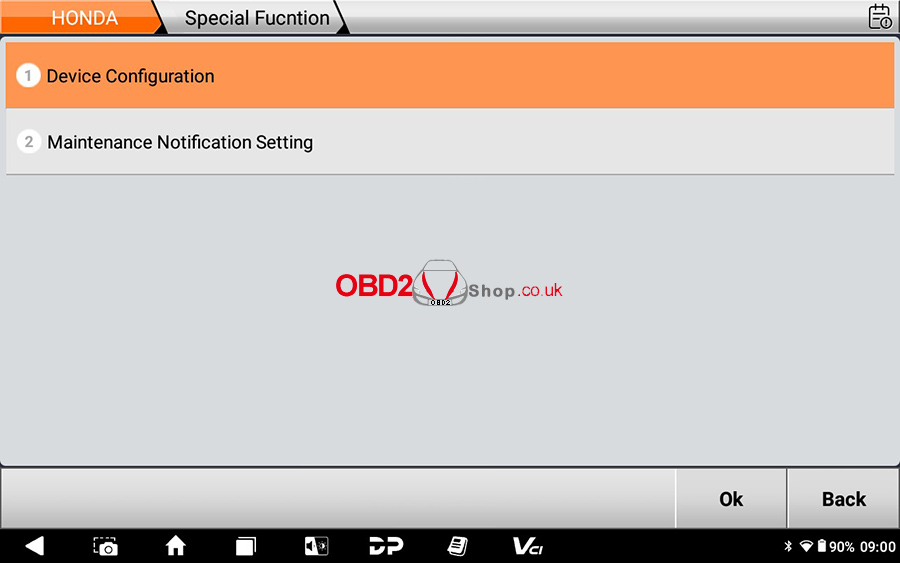

9) Special Function-HONDA
10) Special Function-JOHNSON
11) Special Function-MAN

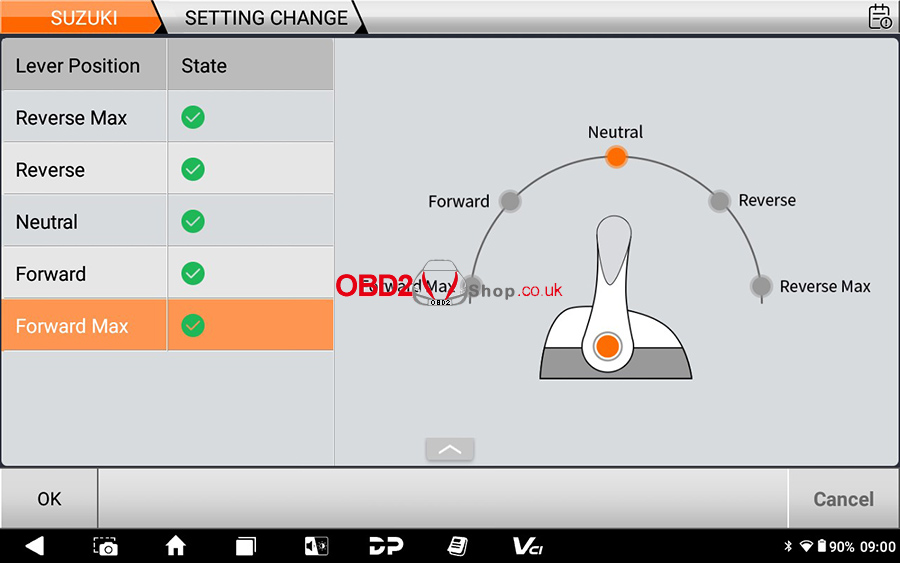

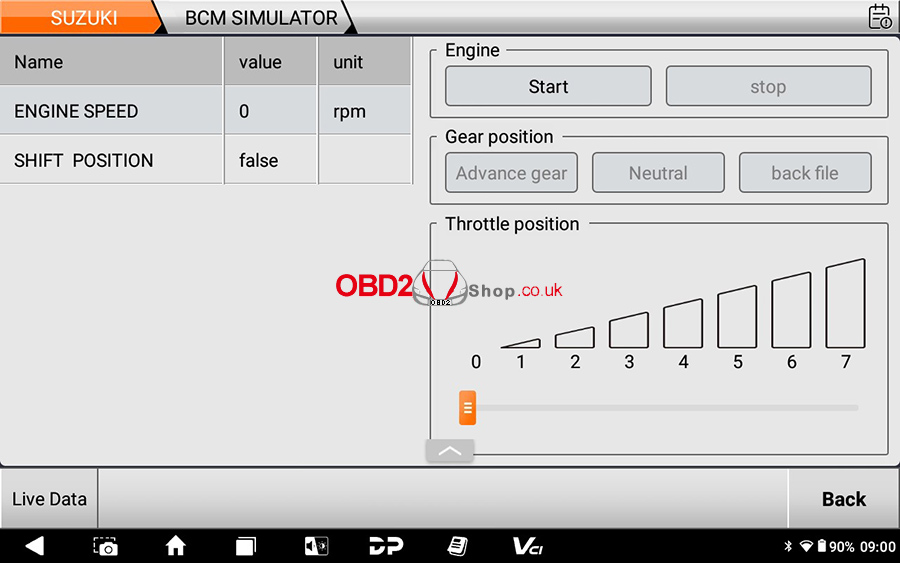

12) Special Function-SUZIKI

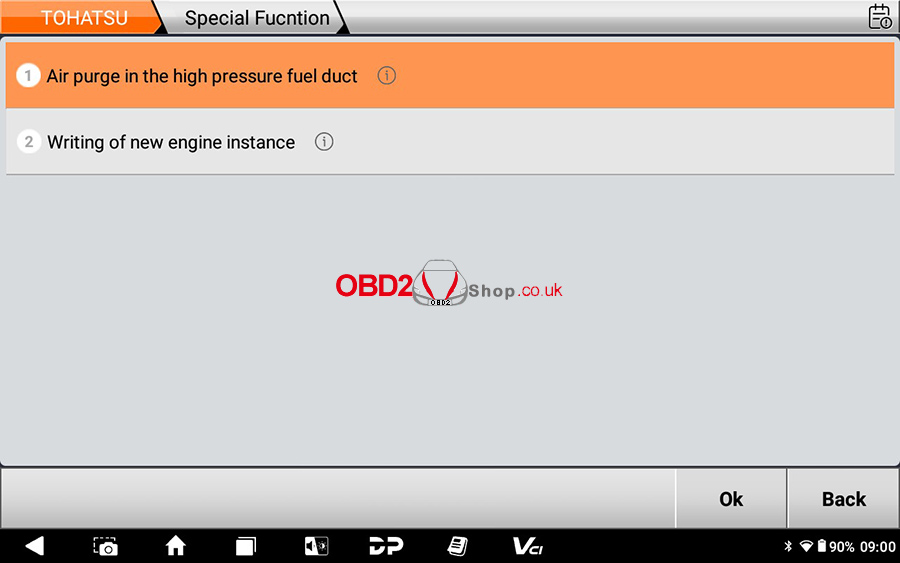

13) Special Function-TOHATSU

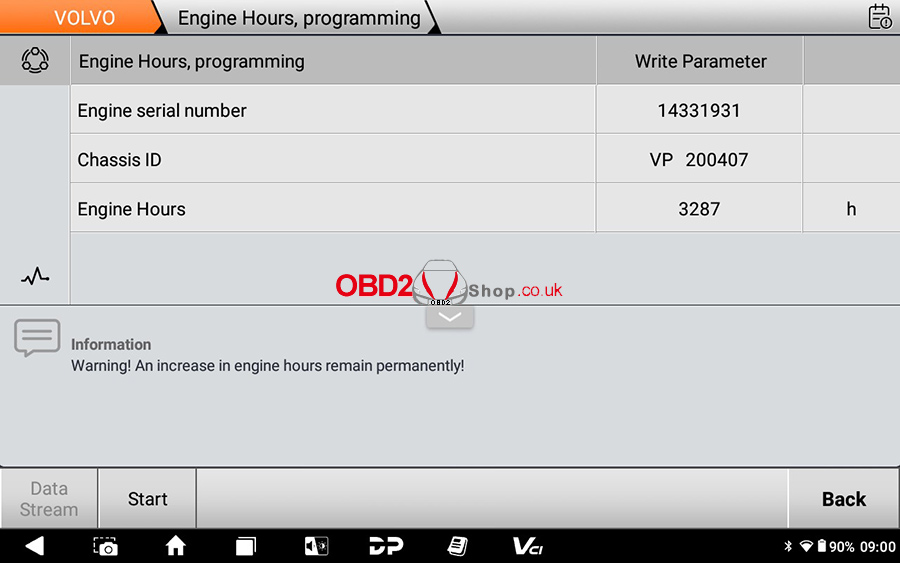

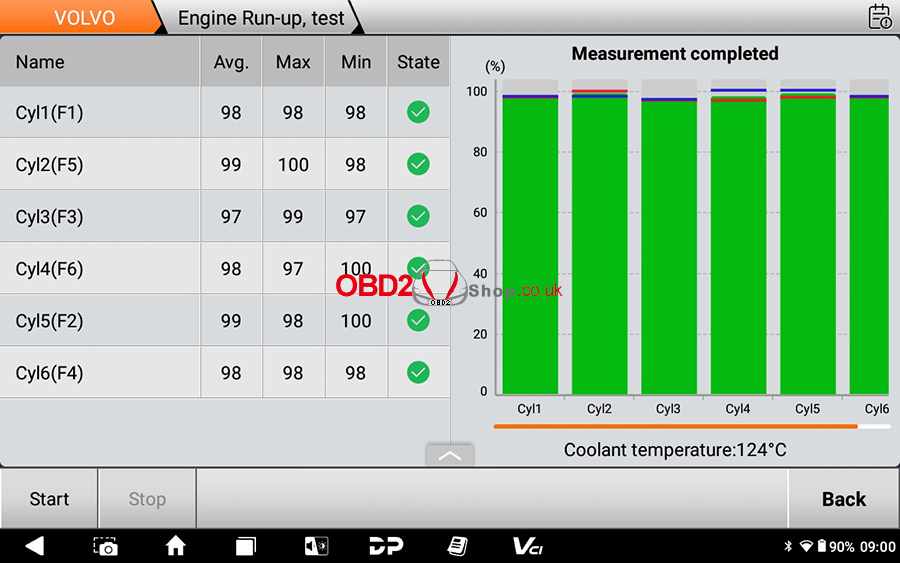

14) Special Function-VOLVO

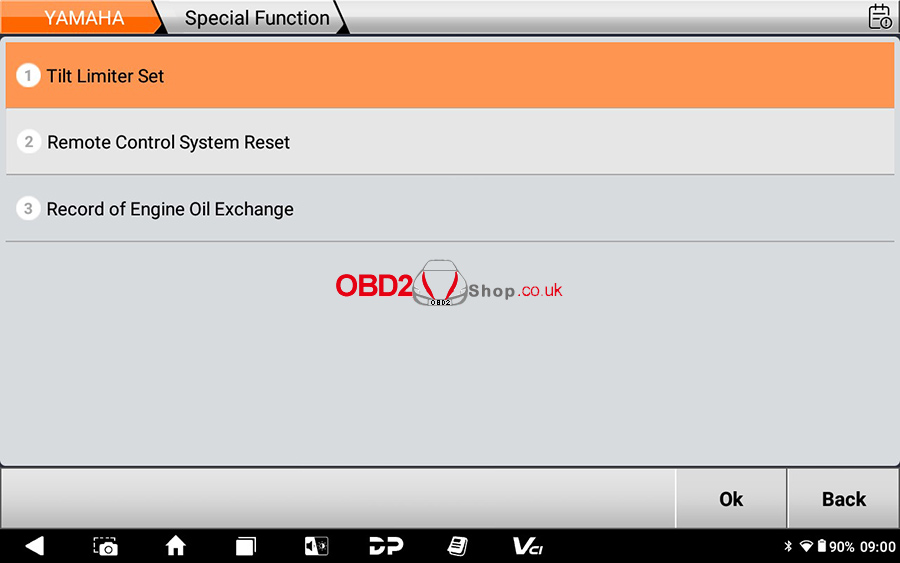

15) Special Function-YAMAHA

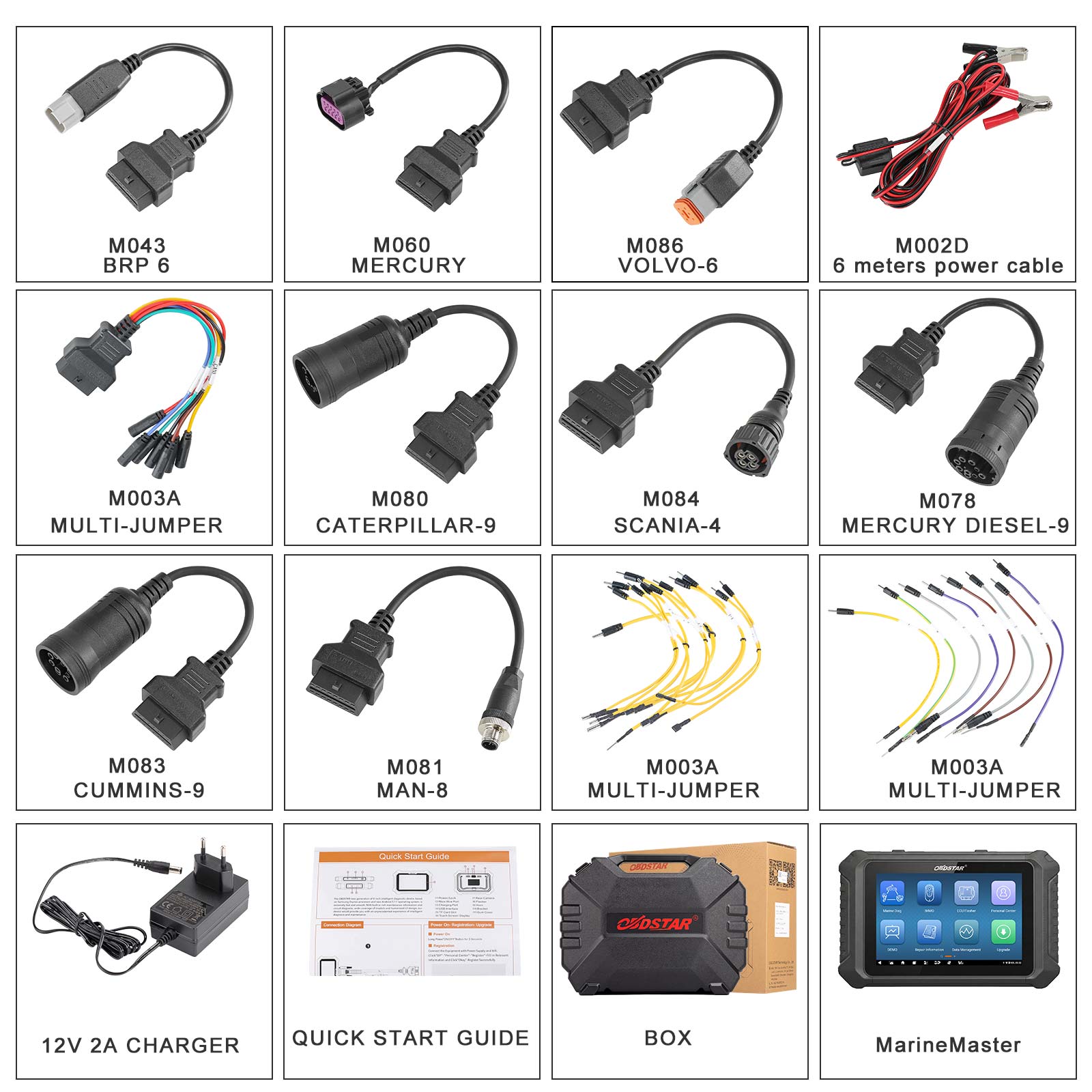

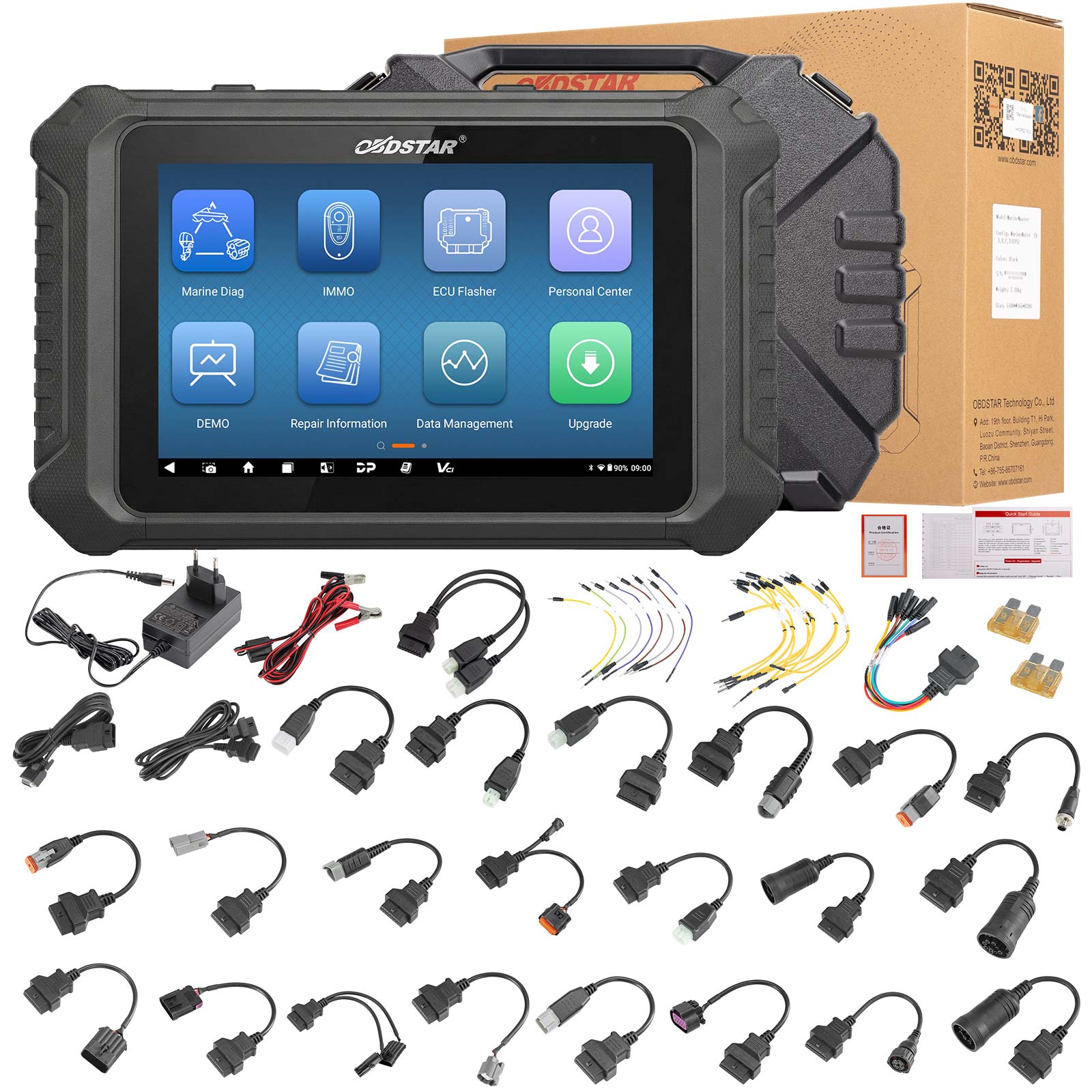

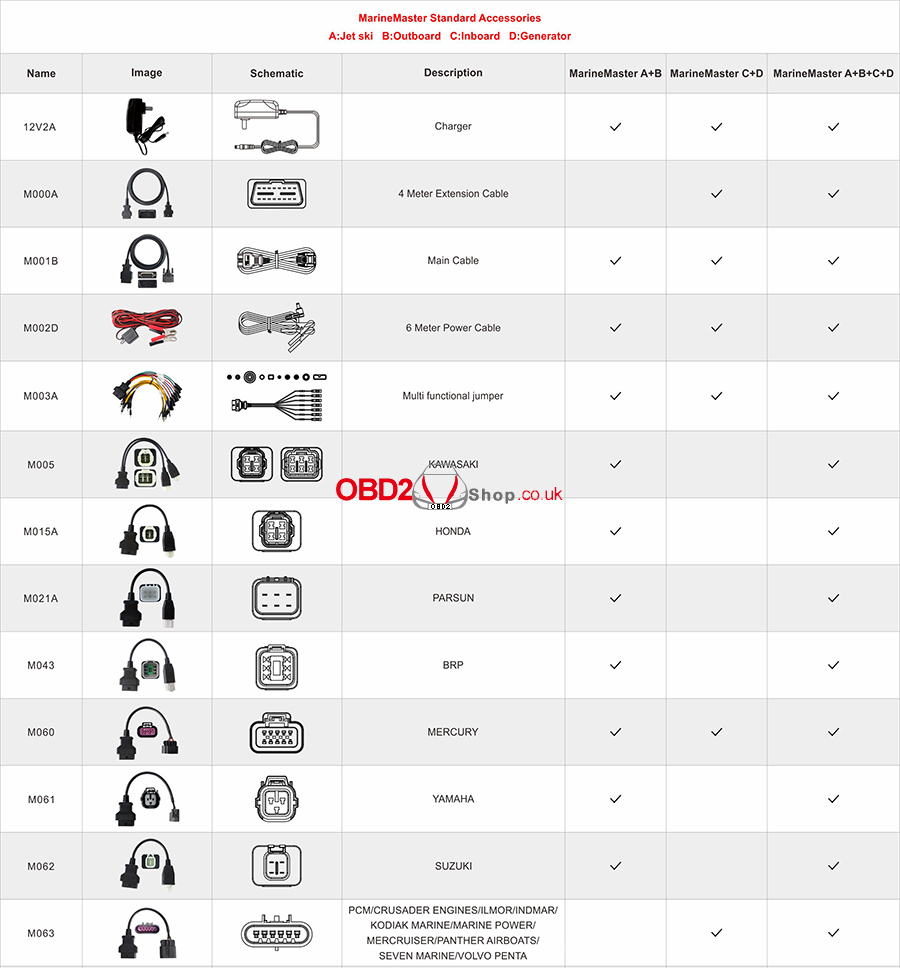

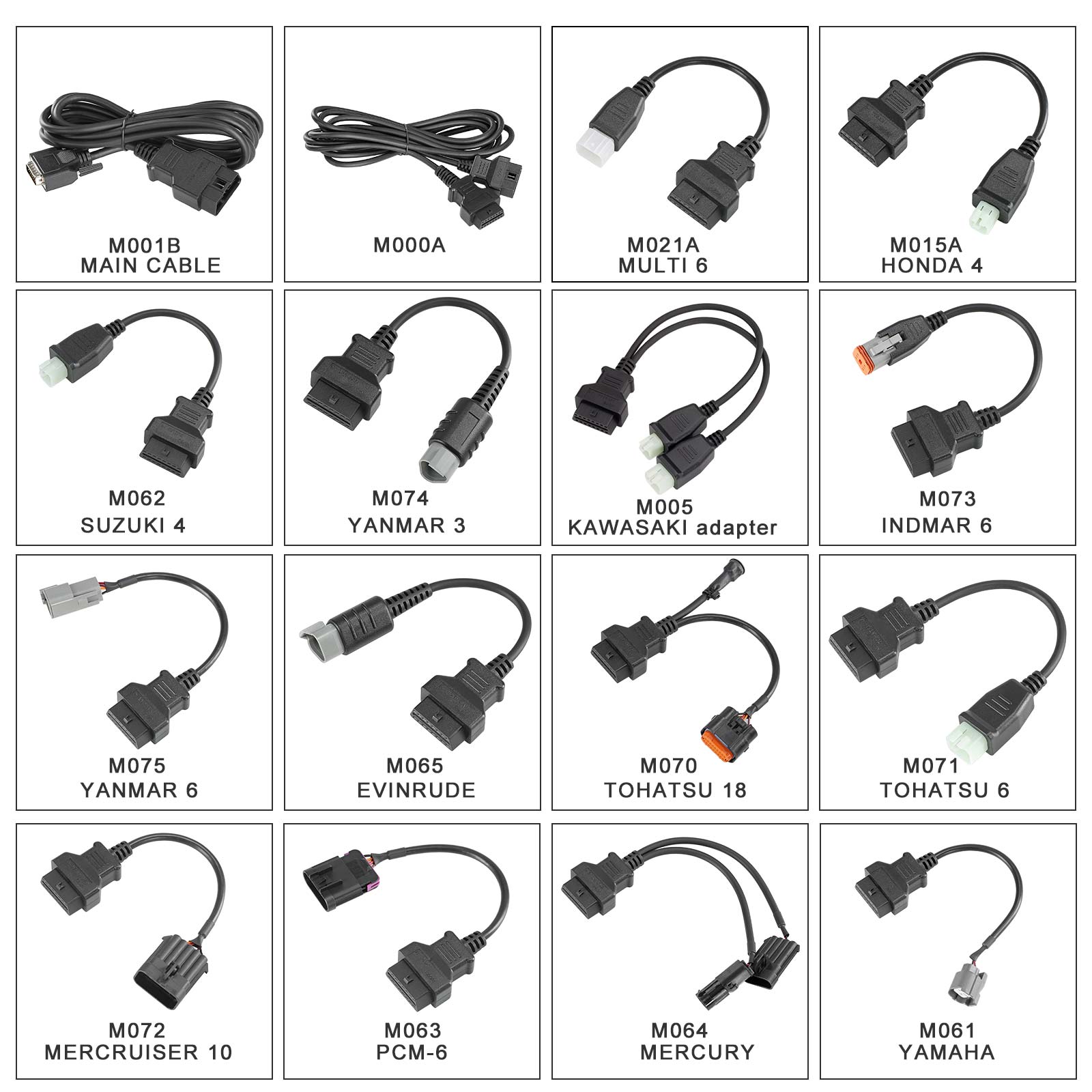

OBDSTAR MarineMaster Package list:
1pc x tablet
1pc x 12V2A Charger
1pc x M000A 4 Meter Extension Cable
1pc x M001B Main Cable
1pc x M002D 6 Meter Power Cable
1pc x M003A Multi-functional jumper
1pc x M005 KAWASAKI adapter
1pc x M015A HONDA adapter
1pc x M021A PARSUN adapter
1pc x M043 BRP adapter
1pc x M060 MERCURY adapter
1pc x M061 YAMAHA adapter
1pc x M062 SUZUKI adapter
1pc x M063 PCM/ CRUSADER ENGINES/ ILMOR/ INDMAR/ KODIAK MARINE/ MARINE POWER/ MERCRUISER/ PANTHER/ AIRBOATS/ SEVEN MARINE/ VOLVO PENTA adapter

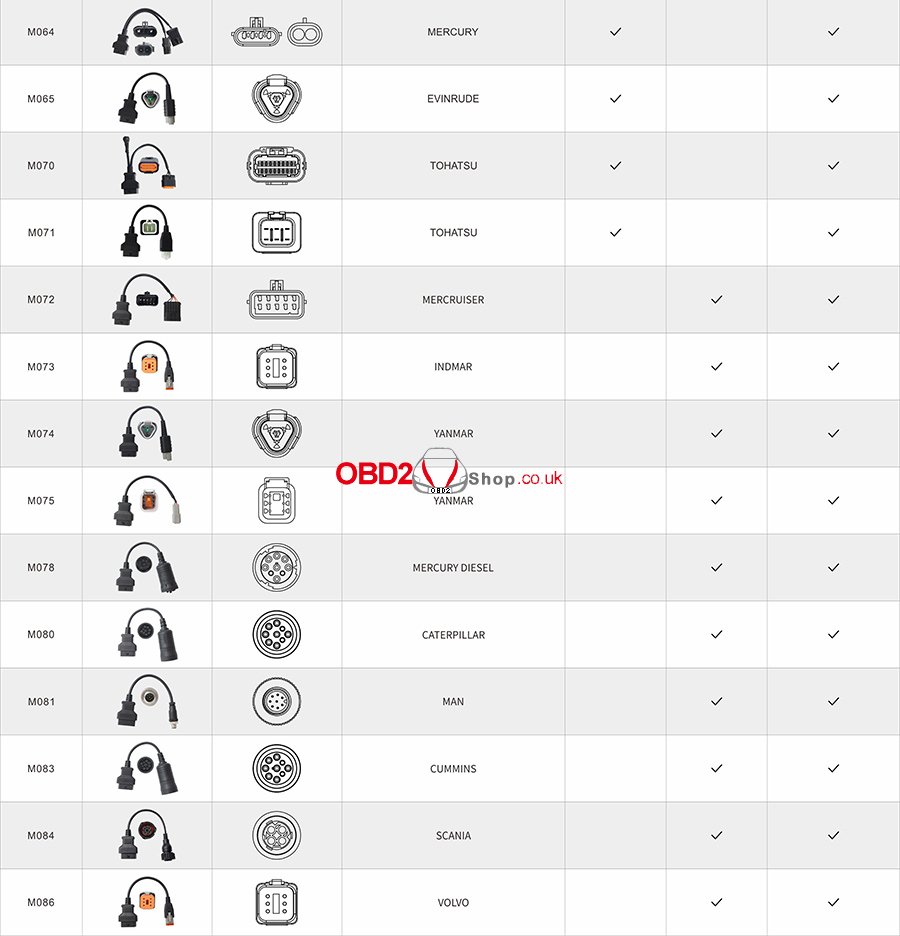

1pc x M064 MERCURY adapter
1pc x M065 EVINRUDE adapter
1pc x M070 TOHATSU adapter
1pc x M071 TOHATSU adapter
1pc x M072 MERCRUISER adapter
1pc x M073 INDMAR adapter
1pc x M074 YANMAR adapter
1pc x M075 YANMAR adapter
1pc x M078 MERCURY DIESEL adapter
1pc x M080 CATERPILLAR adapter
1pc x M081 MAN adapter
1pc x M083 CUMMINS adapter
1pc x M084 SCANIA adapter
1pc x M086 VOLVO adapter
