Product Description
ONE Moto is TOPDON's professional diagnostic tool for motorcycles, ATVs, and marine vehicles. It supports full-system diagnostics for 100+ motorcycle brands and 9 marine brands, with service functions and module flashing.
Support 2 years free update
Support 2 years free update

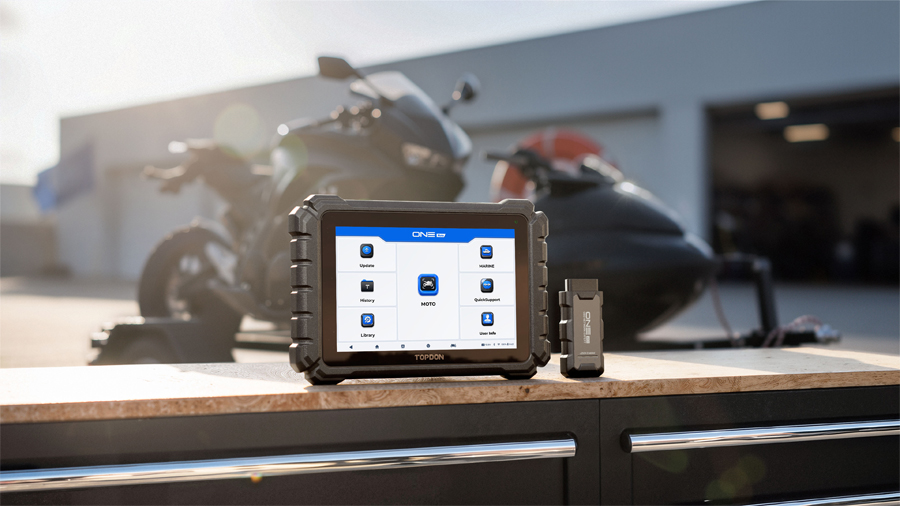

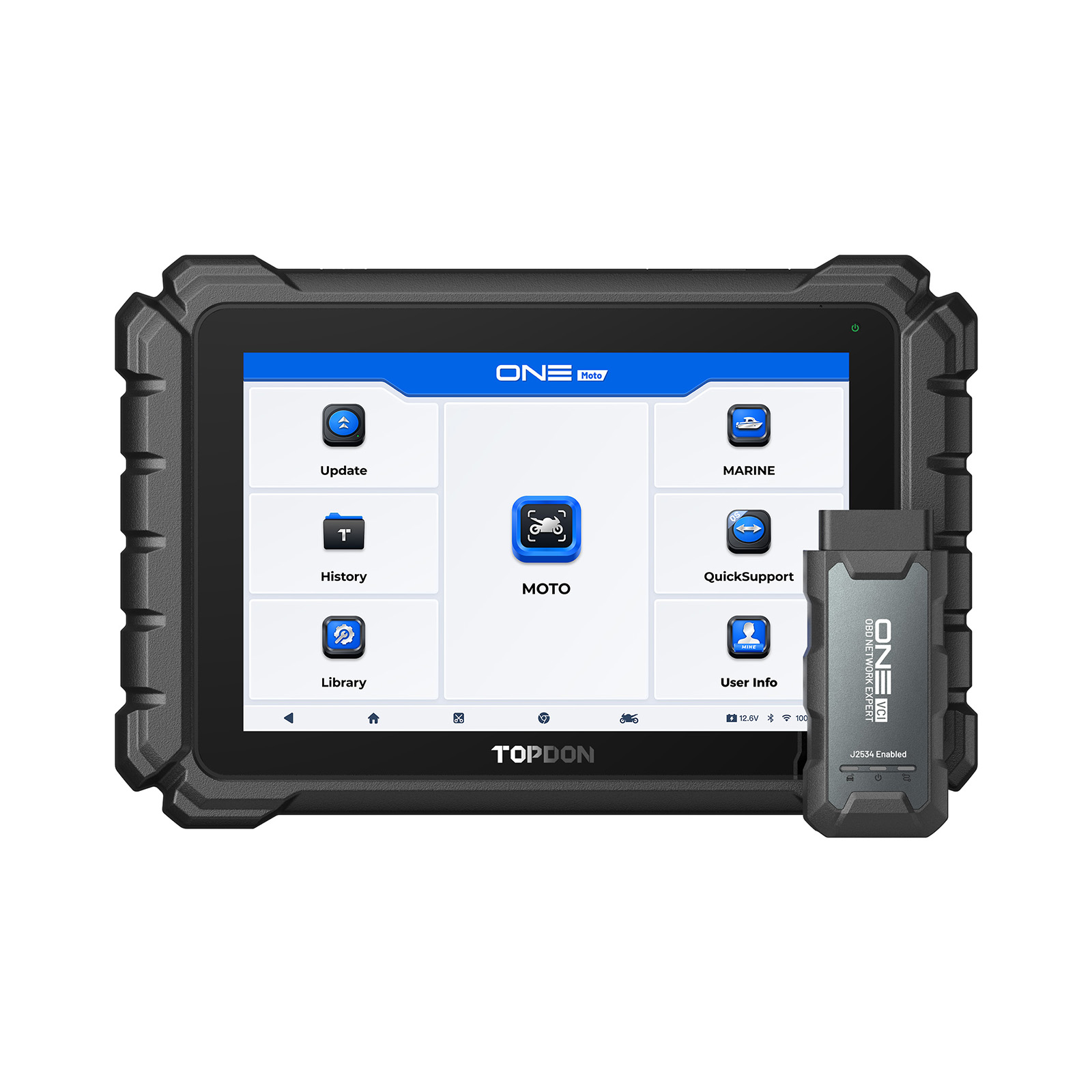

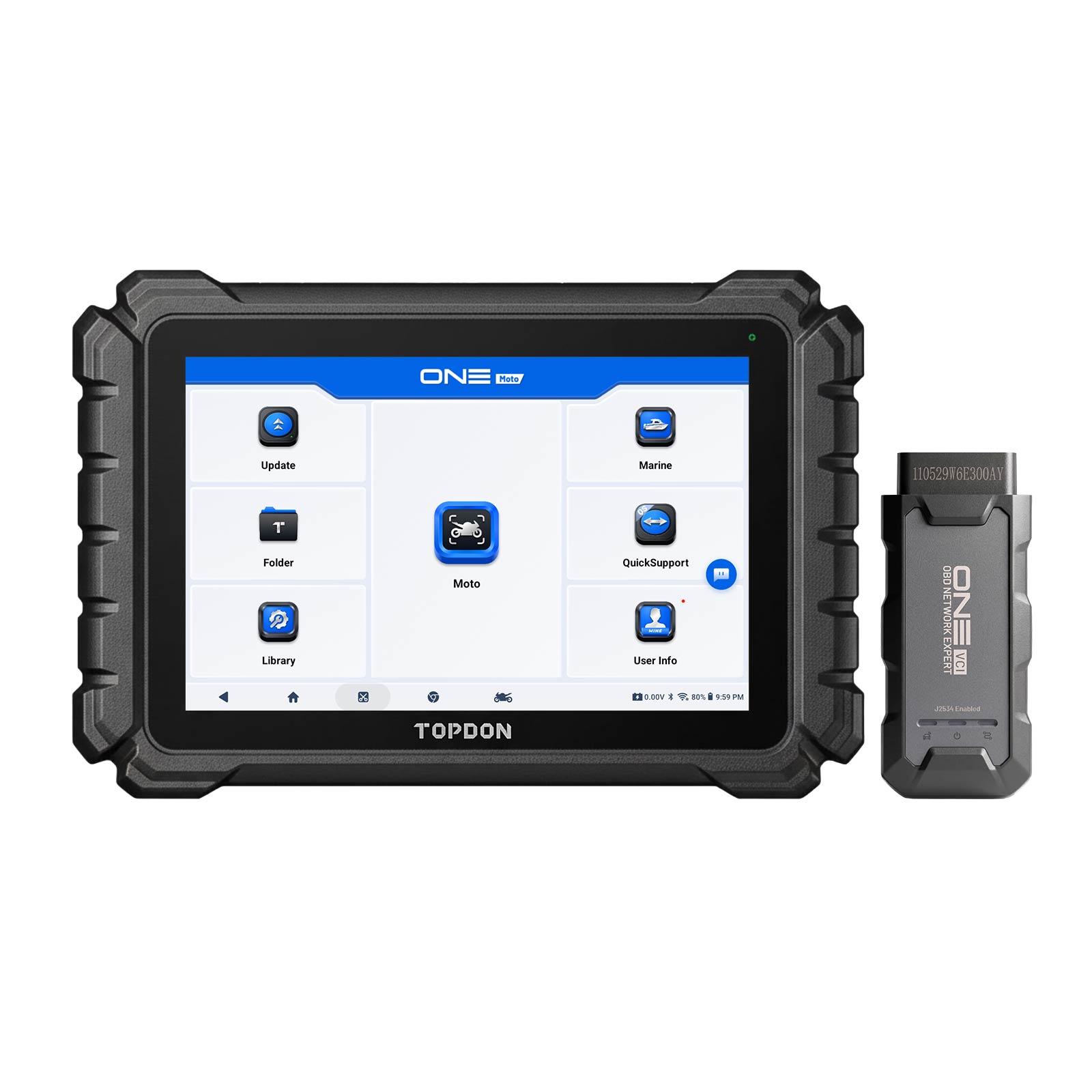

TOPDON ONE Moto Diagnostic Scanner
TOPDON One Moto Introduction:

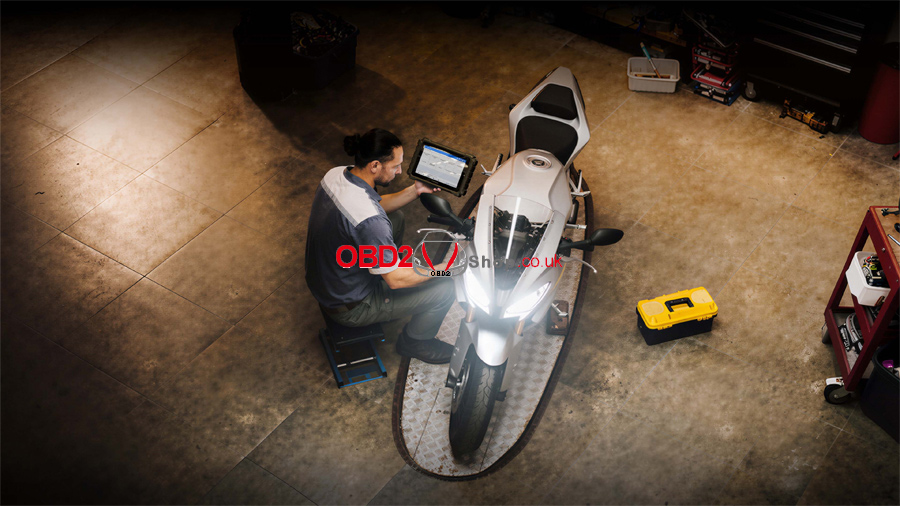

ONE Moto is TOPDON's latest professional diagnostic tool for motorcycles, ATVs, and marine vehicles. Built to withstand the toughest garage and dockside environments, it offers unmatched full-system scanning for 100+ motorcycle brands, alongside marine diagnostic support for 9 brands, including Honda, Yamaha, Kawasaki, and BRP. From routine oil resets to advanced module flashing, the ONE Moto is the comprehensive tool for the modern powersports professional.
TOPDON ONE Moto Highlights:
- 2-Year Free Updates: Keep the motorcycle diagnostic tool up to date with the latest vehicle coverage, new functions, and performance improvements, at no additional cost. After 2 years, the update price is 499 USD/year ( item XNR-SS610)
- Supports 45 languages including English, Spanish, French, German, Portuguese, Russian, Japanese, Korean, Italian, and Chinese
- Professional Motorcycle Diagnostics for 100+ Brands: Access OE-level functions, live data, maintenance resets, and diagnostics for engine, ABS, immobilizer, and instrumentation systems.
- One Platform for Motorcycle & Marine: Expand your service capability beyond motorcycles with marine diagnostics support for 9 brands, including for Honda, for Yamaha, for Kawasaki, and for BRP.
- Complete Adapter Kit: Includes a full set of dedicated diagnostic connectors to ensure fast, stable communication across diverse motorcycle and marine DLC standards.
- Take Diagnostics Beyond the Basics: Perform essential maintenance including oil reset, throttle matching, clutch matching, and module flashing, supporting both routine services and advanced workshop operations.
- Cut Diagnostic Time with Bi-Directional Testing: Control components, perform functional tests, and validate system responses to dramatically reduce troubleshooting time.
- Find Any DLC Port in Seconds: Integrated port-finding guidance helps technicians instantly locate diagnostic connectors, minimizing setup time and improving efficiency, especially when diagnosing unfamiliar models.
TOPDON ONE Moto Features:
1. Dealer-Level ECU Access for 9 Leading Manufacturers
Go beyond diagnostics with advanced ECU programming capabilities for nine major motorcycle brands including Honda, Harley, Ducati, and more. Perform ECU matching, software updates, and module configuration directly through the ONE Moto, helping you complete more repairs in-house without relying on dealership support. From replacement control modules to advanced electronic systems, ONE Moto gives technicians the tools needed to tackle complex ECU-related repairs with confidence.
2. Diagnostics for 100+ Motorcycle and Marine Brands
Expand your diagnostic capabilities with coverage for more than 100 motorcycle and ATV brands, plus dedicated marine diagnostics for nine major manufacturers, including Honda, Yamaha, Kawasaki, and BRP. With full-system diagnostics, ONE Moto helps shops service a wider range of vehicles without having to invest in multiple diagnostic platforms.

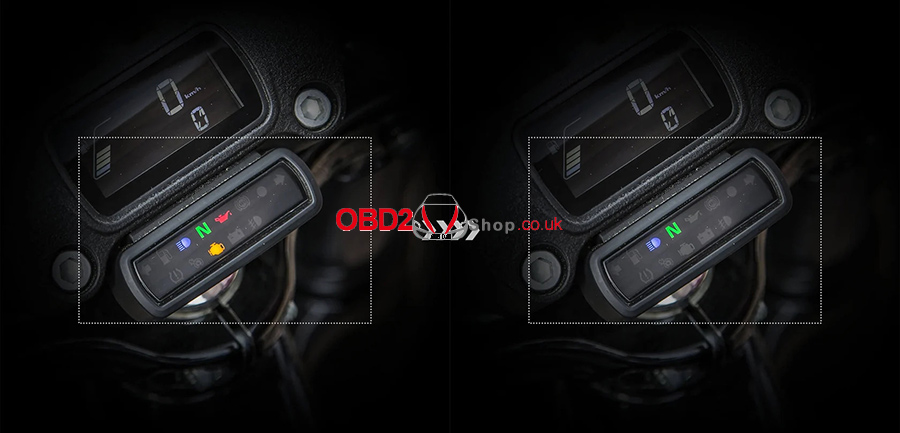

3. Routine Maintenance Made Faster
Speed up everyday jobs with dedicated maintenance functions, including Oil Resets, TPMS Registration, and Air/Fuel (A/F) Adjustments. By simplifying common procedures and reducing manual steps, ONE Moto helps technicians complete routine maintenance more efficiently.
4. Advanced Service & Calibration Functions

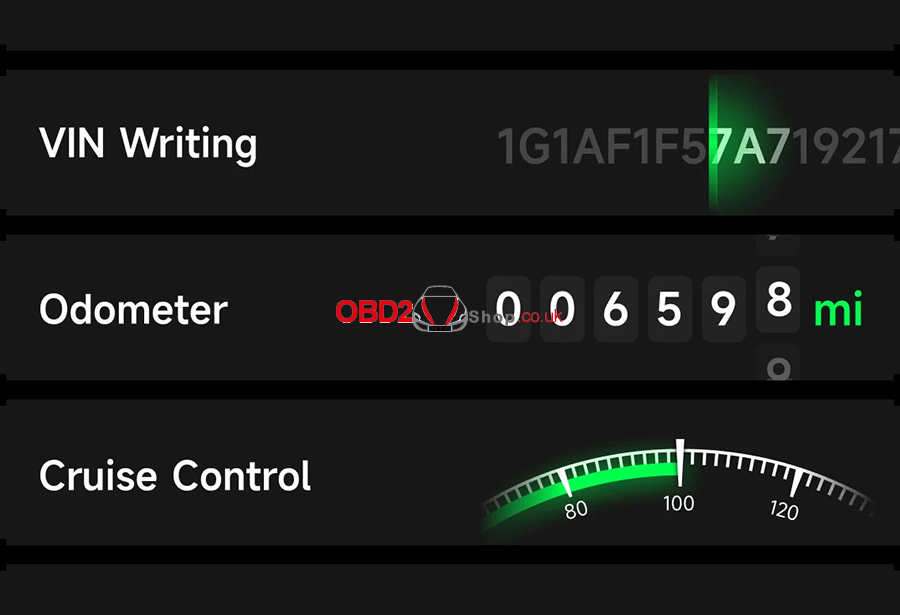

Complete advanced repair and replacement procedures with support for functions such as VIN Writing, Odometer Recalibration, and Cruise Control Realignment. ONE Moto helps technicians perform critical service operations without additional tools or dealership support.
5. Vehicle Customization Features
Customize supported vehicle settings to match rider preferences. Functions such as Daytime Running Light control, audio system adaptations, and Transport Mode management help users personalize vehicle behavior without additional tools or the dealership.
6. Bi-Directional Control for Faster Troubleshooting
Verify component operation and pinpoint faults with bi-directional control. Command systems and actuators directly, including fuel pumps, ABS valves, cooling fans, fuel injectors, and relays.By testing components on demand, technicians can isolate problems, reduce guesswork, and avoid unnecessary parts replacement.

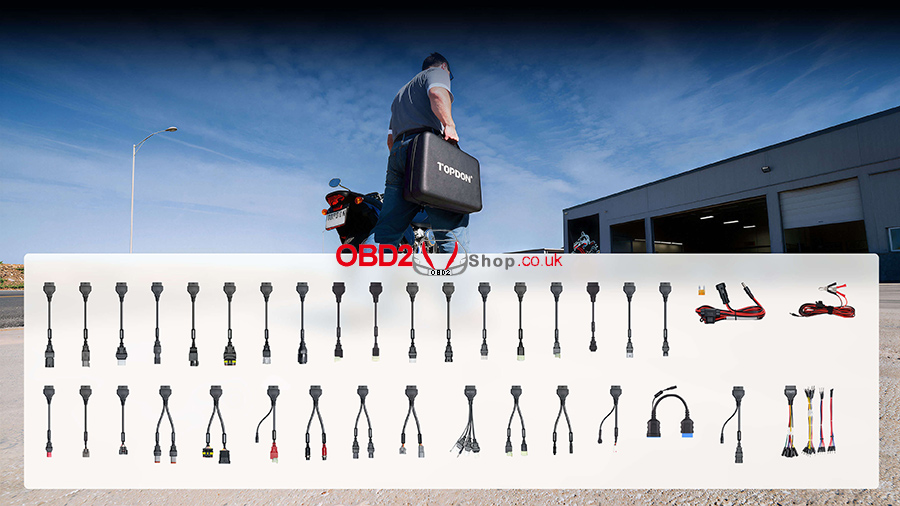

7. Ready for a Wide Range of Vehicles

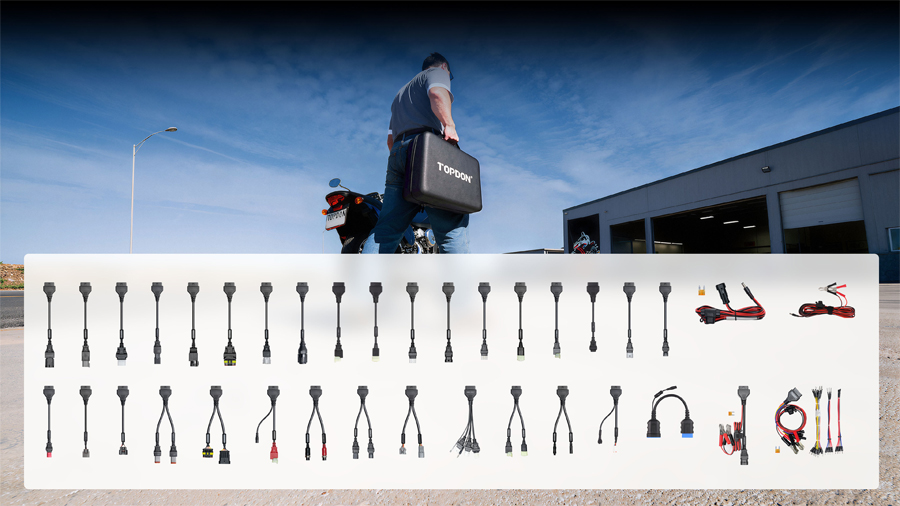

ONE Moto comes with a wide range of adapters, helping users connect to more vehicles right out of the box. With the most common connectors included, technicians can spend less time sourcing accessories and more time getting to work.

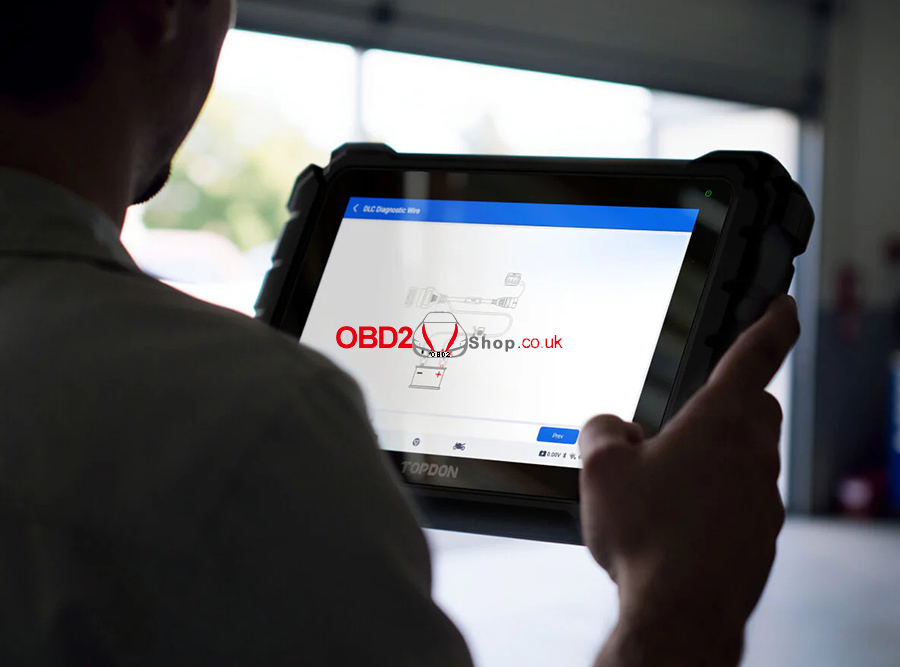

8. Built-In DLC Location Guide
Motorcycle and marine diagnostic ports aren't always easy to find. Instead of searching manuals or online forums, simply select the vehicle model to view an image of the DLC location. With guided connector placement, users can locate the port faster and begin diagnostics with less guesswork.
9. Expand Your Key & Immobilizer Services
ONE Moto equips technicians with the advanced capabilities required for modern anti-theft and key servicing. From key replacement and remote registration to PIN code resets and immobilizer restorations, ONE Moto delivers the tools you need to complete critical security services with speed and precision.

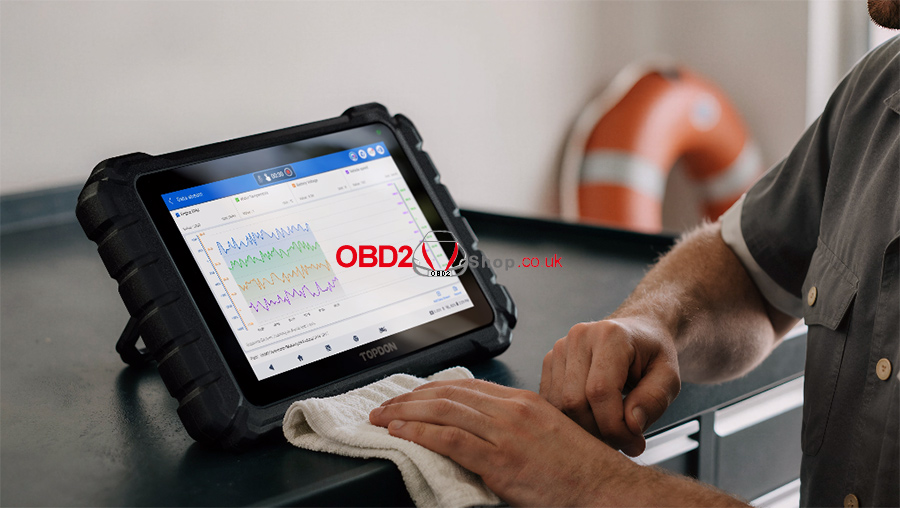

10. Diagnose with Real-Time Data
View up to 12 live data streams simultaneously and compare up to four parameters using dynamic waveform graphs. Built-in recording and playback functions make it easier to track performance, identify intermittent issues, and confirm repairs after service.

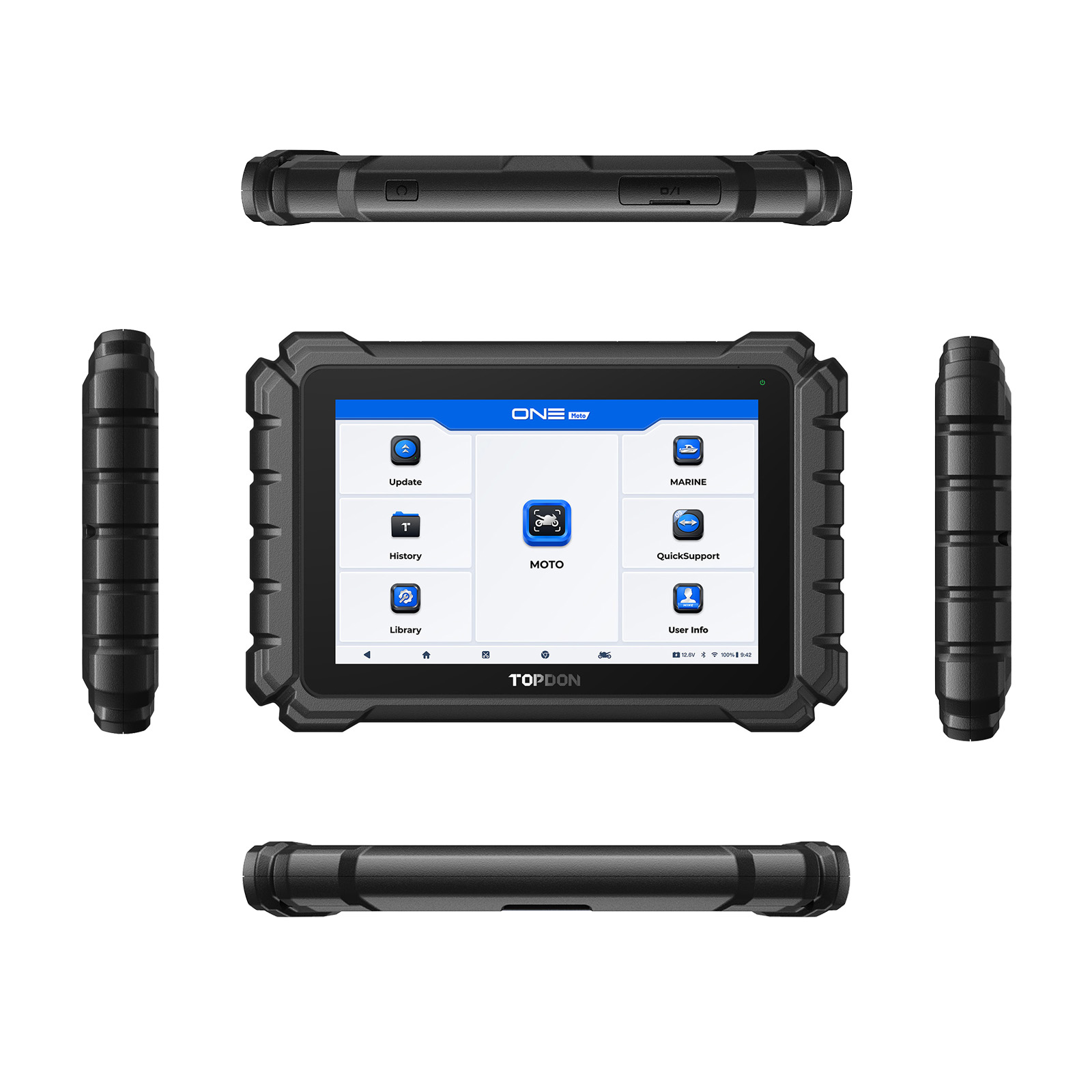

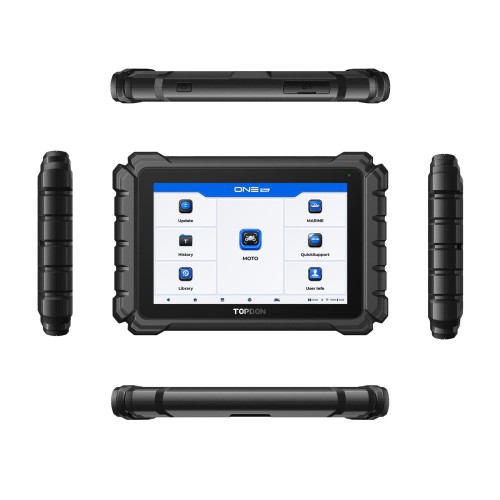

Specifications of the ONE MOTO Tablet:
CPU: 8-Core 2.0 GHz Processor
Storage: RAM 4 GB; ROM 128 GB
Screen: 10.1-Inch LCD, 1280×800 resolution
Battery: 10000 mAh/3.8V
Charging: PD fast charging (5V/3A, 9V/3A, 12V/2.5A)
Camera: 16 MP with autofocus
Bluetooth: 5.0 with 10m/33-foot range
Dual WiFi Modules: Supports 2.4GHz & 5GHz (802.11 b/g/n/ac)

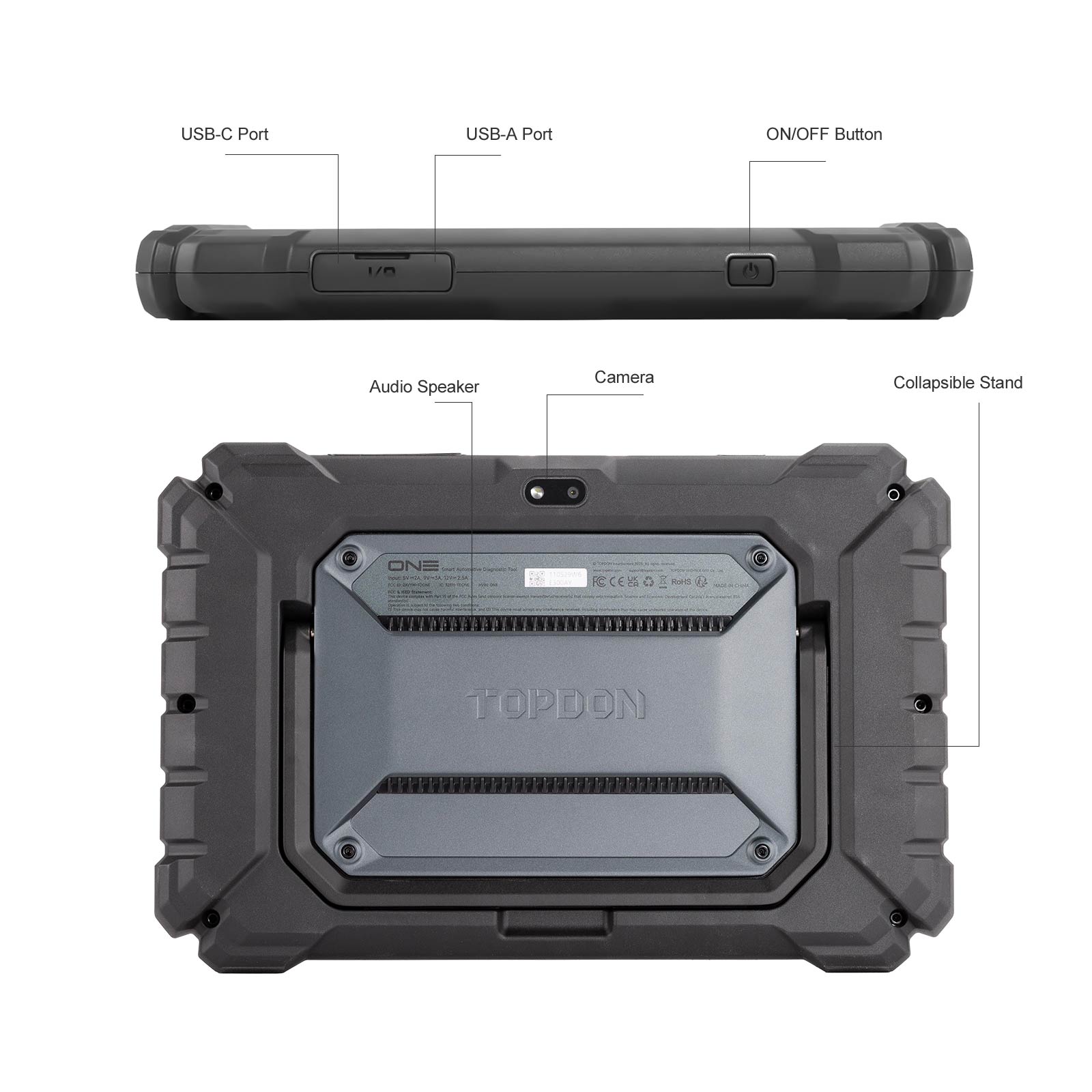

Buttons & I/O: Power button, one USB-A (Host mode), one USB-C (Host/Device mode)
Operating System: Android 12.0 (closed system)
Storage Temperature: -20℃ to 70℃ (-4℉ to 158℉)
Operating Temperature: -10℃ to 50℃ (14℉ to 122℉)
Product Dimensions: 311×207×39mm (12.24×8.15×1.54 inches)
Packing Box Size: 507×380×147mm (19.96×14.96×5.79 inches)
Net Weight: 1574g (3.47 lbs)
Languages: 45 Supported Languages (English, French, German, Spanish, Portuguese, Russian, Japanese, Korean, Italian, Traditional Chinese, Simplified Chinese, Turkish, Polish, Serbian, Slovak, etc.)

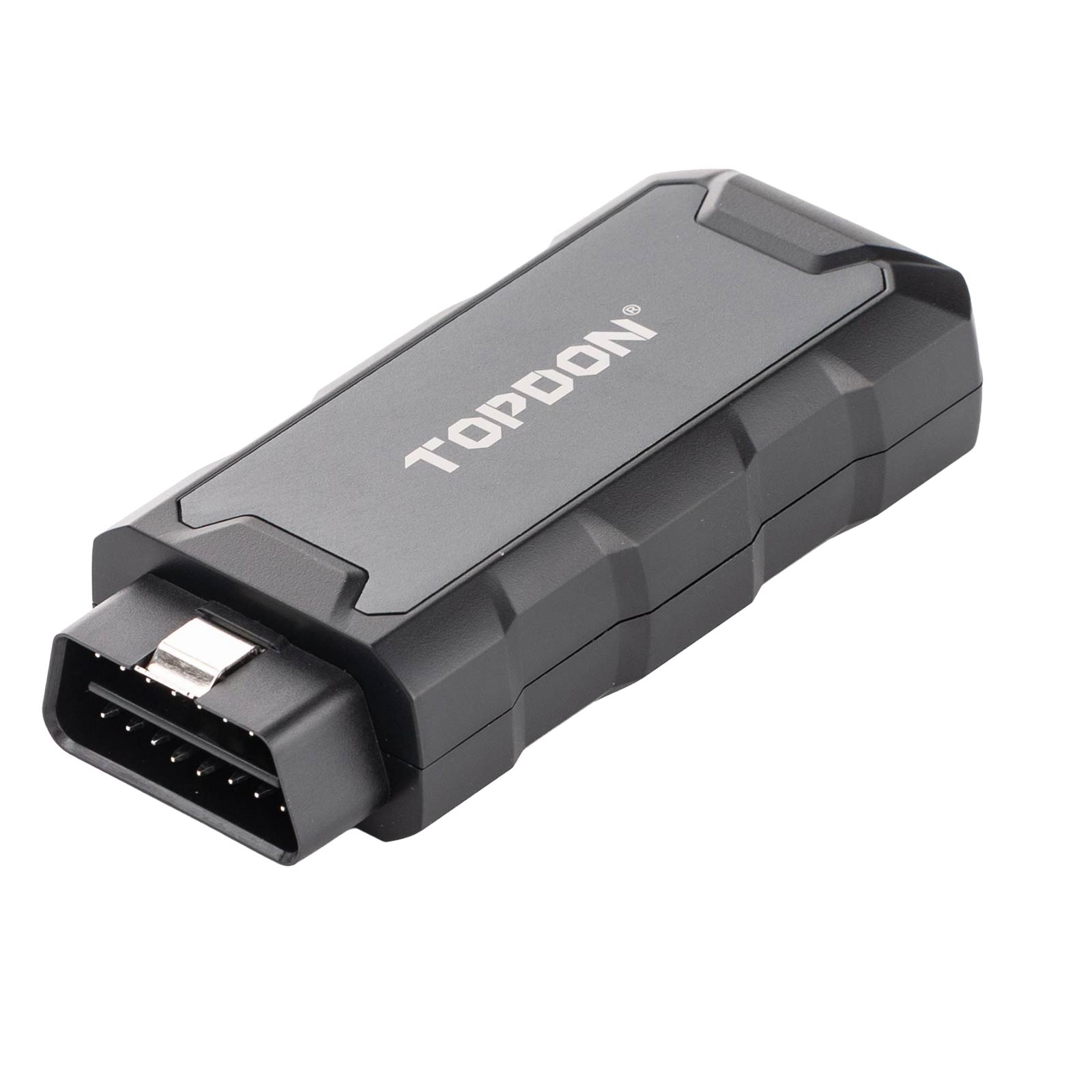

Specifications of the ONE MOTO VCI:
Bluetooth: 5.0 10m/33-foot range
WiFi: Supports AP mode; 802.11 b/g/n (2.4 GHz), 2T2R; Up to 300 Mbps
Storage Temperature: -20℃ to 70℃ (-4℉ to 158℉)
Operating Temperature: -10℃ to 50℃ (14℉ to 122℉)
Product Dimensions: 114.8×51×29mm (4.52×2.00×1.14 inches)
Net Weight: 96g (3.39 oz)

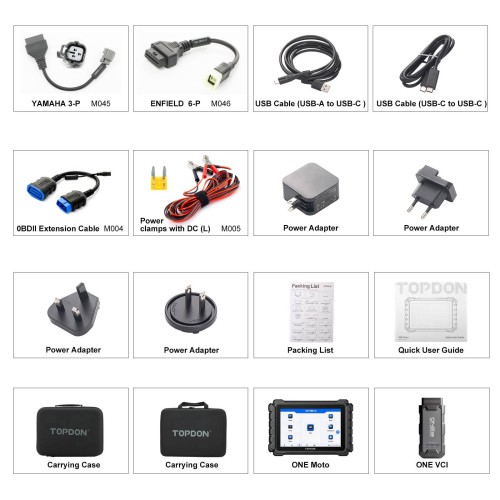

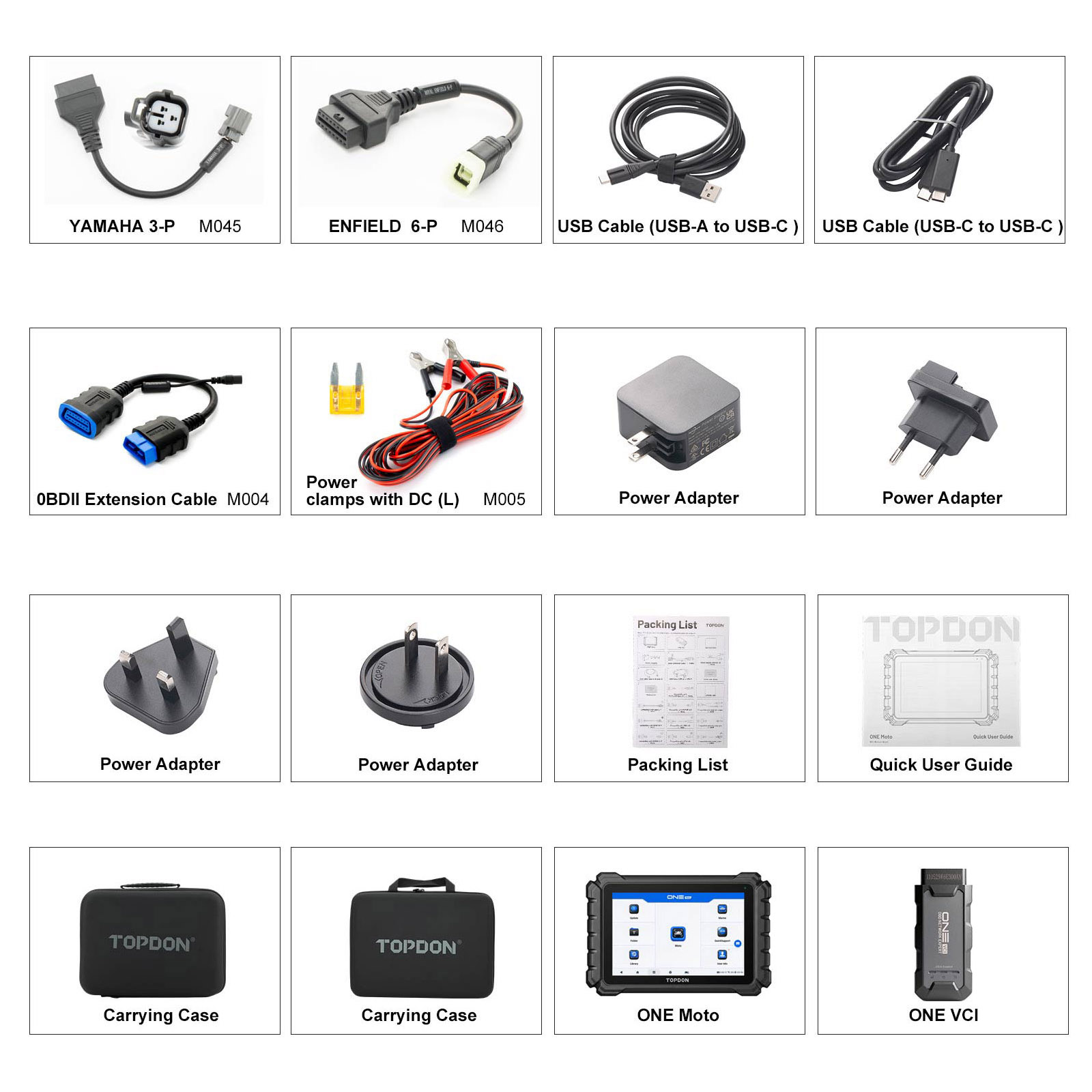

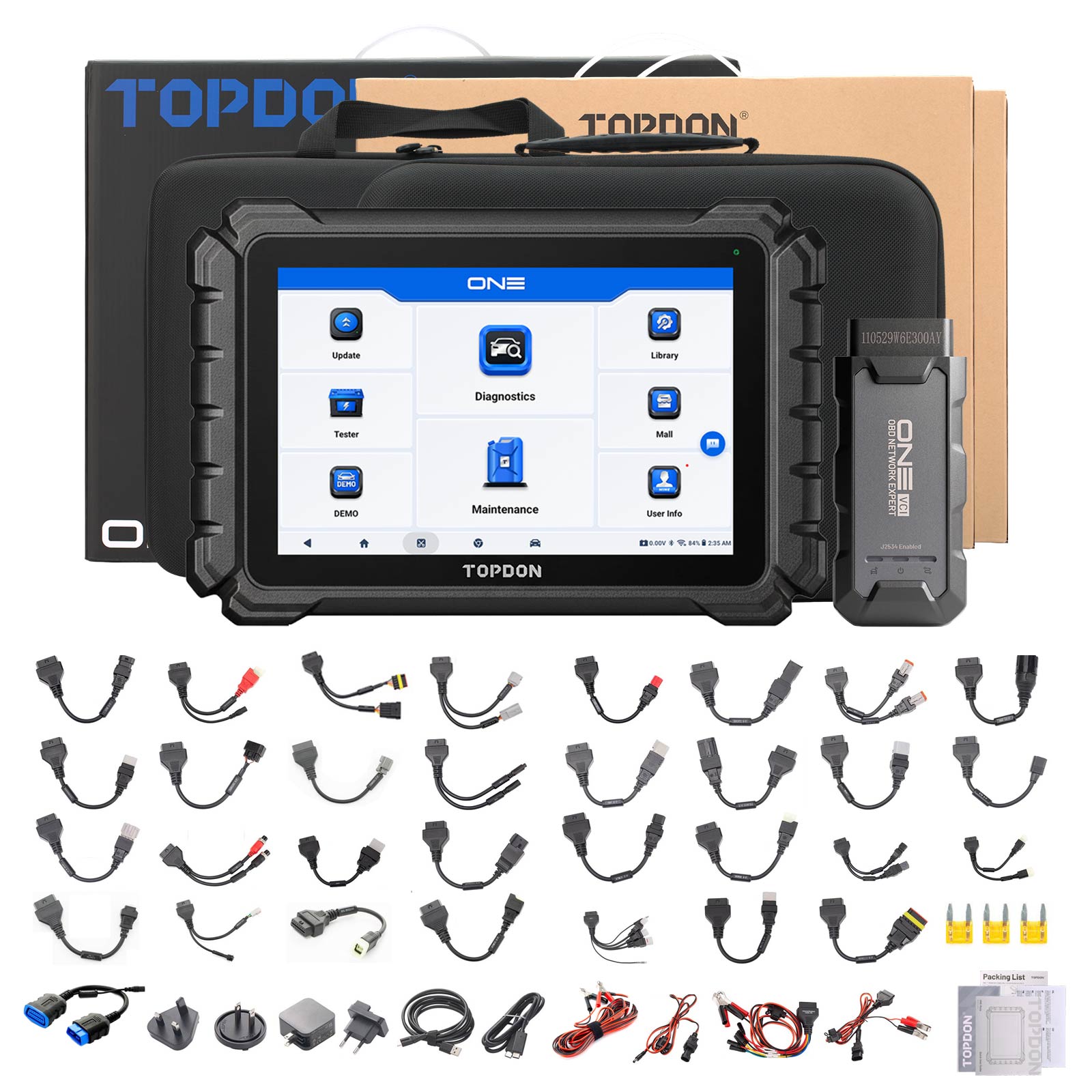

Topdon ONE Moto Package includes:
1pc x ONE Moto tablet
1pc x ONE VCI
1pc x Power Adapter
1pc x USB-C to USB-C Cable
1pc x USB-A to USB-C Cable
1pc x Quick User Guide
1pc x Packing List
2pcs x Carrying Cases

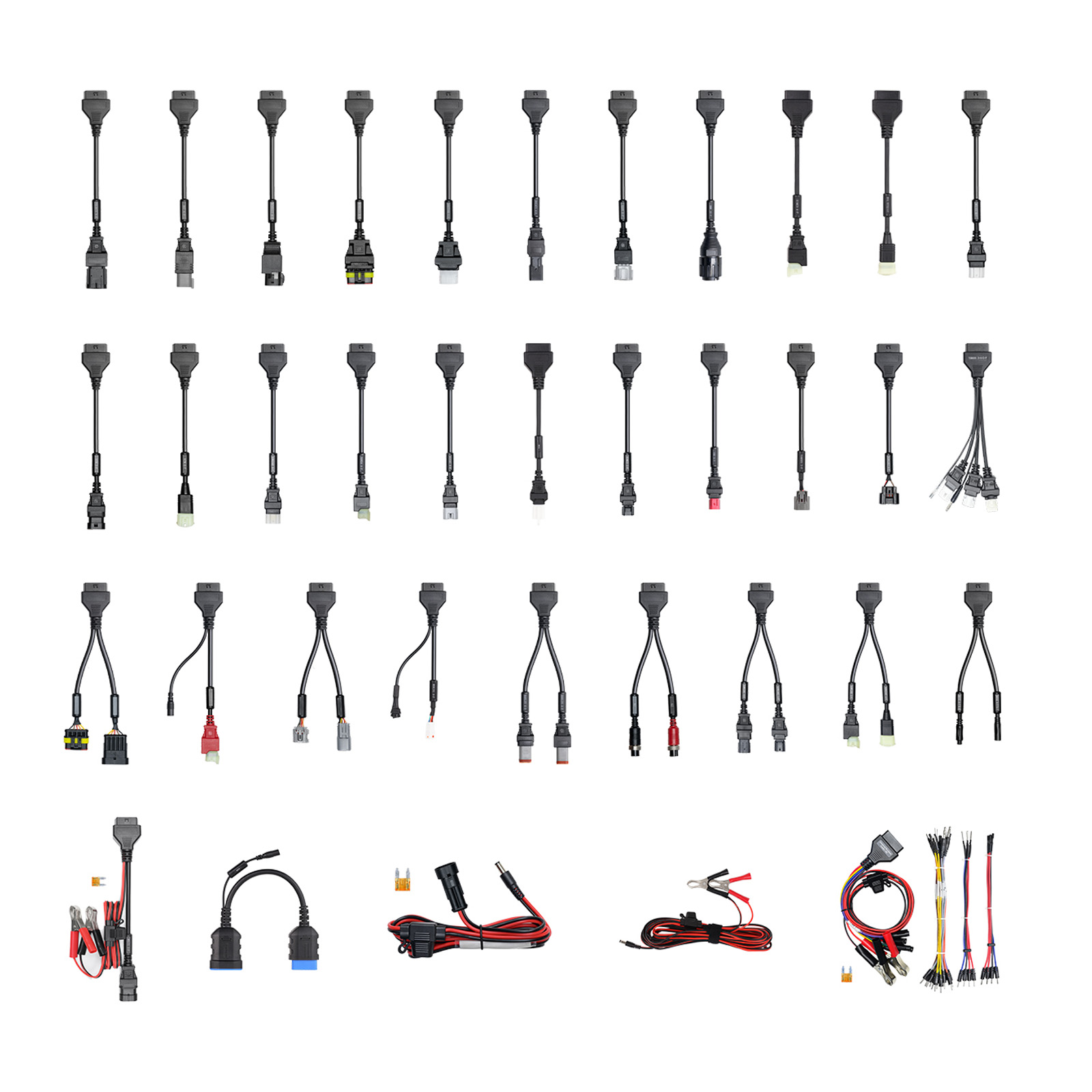

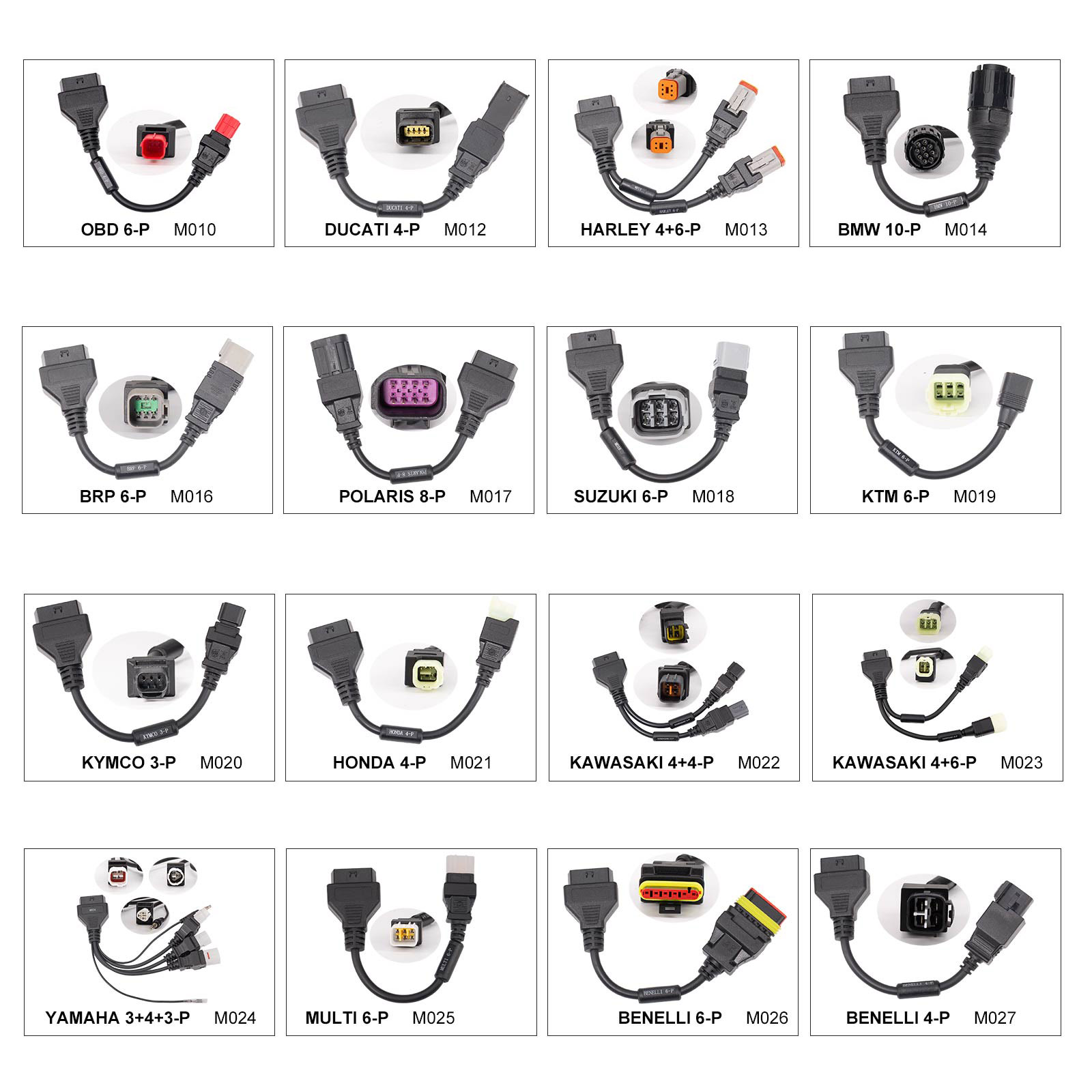

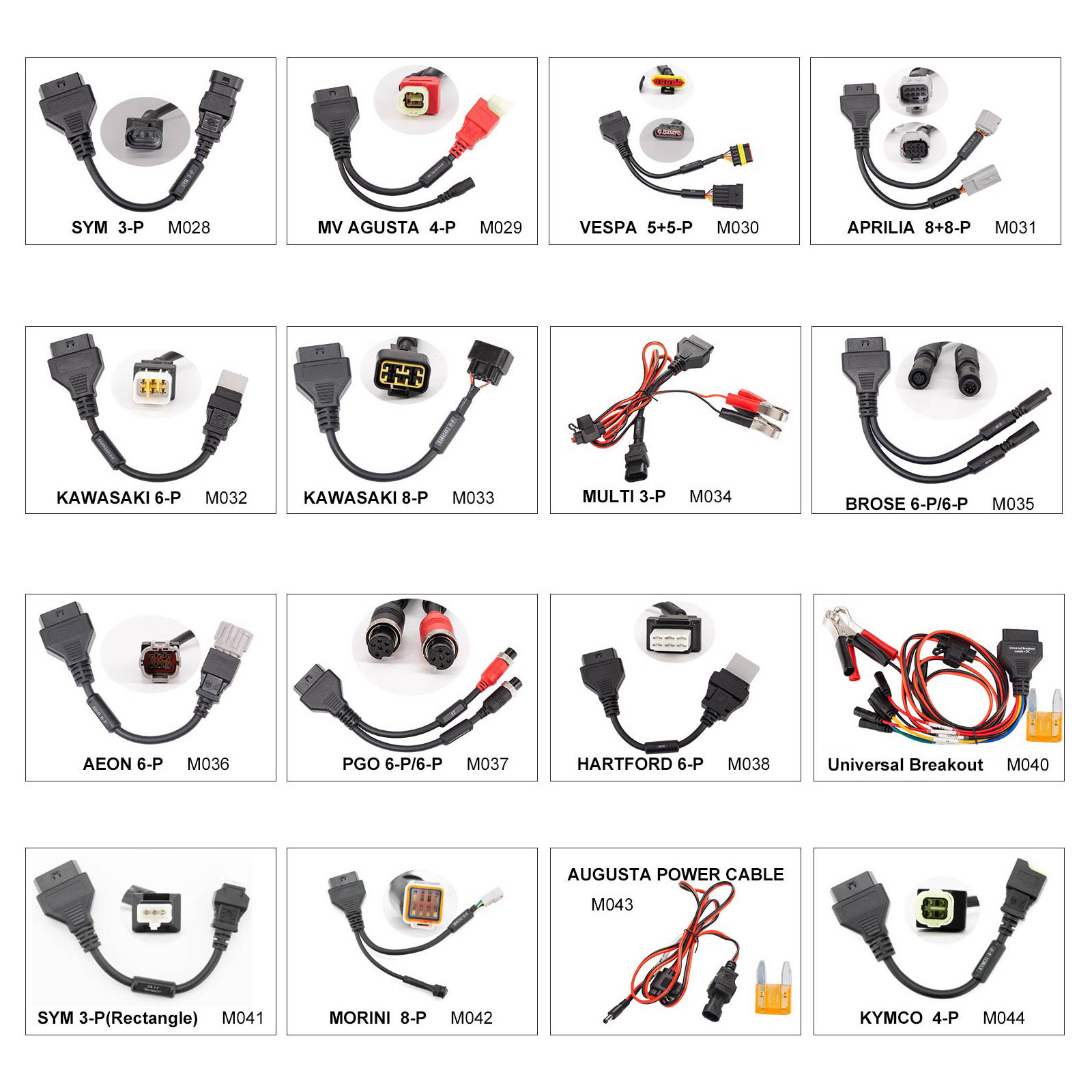

Diagnostic Connector Kit(36pcs of cables)
1pc x OBDII Extension cable M004
1pc x Power Cable with DC M005
1pc x OBD6-P M010
1pc x DUCATI 4-P M012
1pc x HARLEY 4+6-P M013
1pc x BMW10-P M014
1pc x BRP6-P M016
1pc x POLARIS 8-P M017
1pc x SUZUKI 6-P M018
1pc x KTM 6-P M019
1pc x KYMCO 3-P M020
1pc x HONDA 4-P M021
1pc x KAWASAKI4+4-P M022
1pc x KAWASAKI 4+6-P M023
1pc x YAMAHA 3+4+3-P M024
1pc x MULTI 6-P M025
1pc x BENELLI6-P M026
1pc x BENELLI4-P M027
1pc x SYM 3-P M028
1pc x MV AGUSTA 4-P M029
1pc x VESPA 5+5-P M030
1pc x APRILIA 8+8-P M031
1pc x KAWASAKI6-P M032
1pc x KAWASAKI8-P M033
1pc x MULTI 3-P M034
1pc x BROSE 6-P/6-P M035
1pc x AEON 6-P M036
1pc x PGO 6-P/6-P M037
1pc x HARTFORD 6-P M038
1pc x Universal Breakout Leads M040
1pc x SYM 3-P(Rectangle) M041
1pc x MORINI 8-P M042
1pc x AUGUSTA Power Cable M043
1pc x KYMCO 4-P M044
1pc x YAMAHA3-P M045
1pc x ROYAL ENFIELD 6-P M046
(Note: Please refer to the attached cable list for details and verify the correct box assignment for each cable.)
1pc x ONE Moto tablet
1pc x ONE VCI
1pc x Power Adapter
1pc x USB-C to USB-C Cable
1pc x USB-A to USB-C Cable
1pc x Quick User Guide
1pc x Packing List
2pcs x Carrying Cases
Diagnostic Connector Kit(36pcs of cables)
1pc x OBDII Extension cable M004
1pc x Power Cable with DC M005
1pc x OBD6-P M010
1pc x DUCATI 4-P M012
1pc x HARLEY 4+6-P M013
1pc x BMW10-P M014
1pc x BRP6-P M016
1pc x POLARIS 8-P M017
1pc x SUZUKI 6-P M018
1pc x KTM 6-P M019
1pc x KYMCO 3-P M020
1pc x HONDA 4-P M021
1pc x KAWASAKI4+4-P M022
1pc x KAWASAKI 4+6-P M023
1pc x YAMAHA 3+4+3-P M024
1pc x MULTI 6-P M025
1pc x BENELLI6-P M026
1pc x BENELLI4-P M027
1pc x SYM 3-P M028
1pc x MV AGUSTA 4-P M029
1pc x VESPA 5+5-P M030
1pc x APRILIA 8+8-P M031
1pc x KAWASAKI6-P M032
1pc x KAWASAKI8-P M033
1pc x MULTI 3-P M034
1pc x BROSE 6-P/6-P M035
1pc x AEON 6-P M036
1pc x PGO 6-P/6-P M037
1pc x HARTFORD 6-P M038
1pc x Universal Breakout Leads M040
1pc x SYM 3-P(Rectangle) M041
1pc x MORINI 8-P M042
1pc x AUGUSTA Power Cable M043
1pc x KYMCO 4-P M044
1pc x YAMAHA3-P M045
1pc x ROYAL ENFIELD 6-P M046
(Note: Please refer to the attached cable list for details and verify the correct box assignment for each cable.)
