Product Description

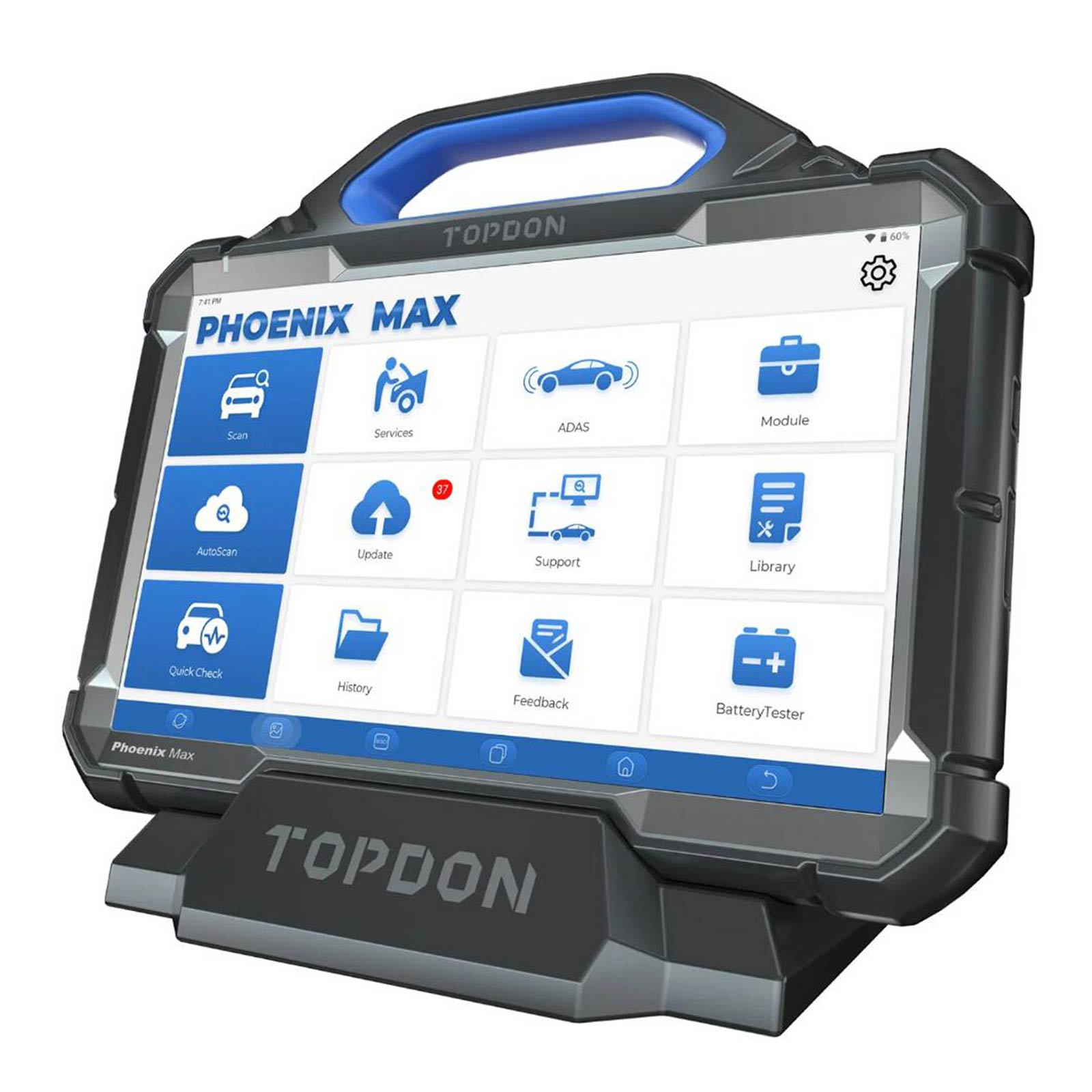

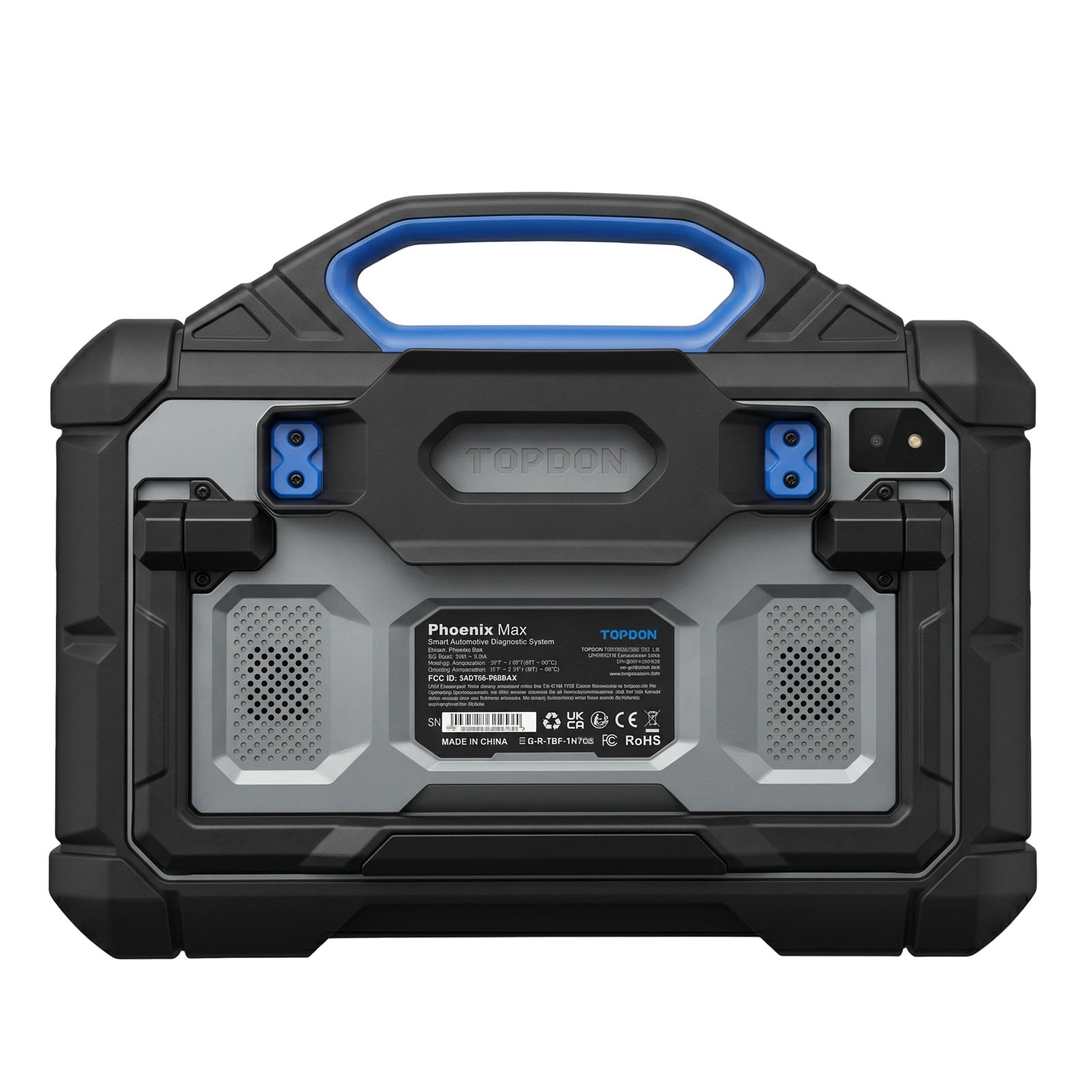

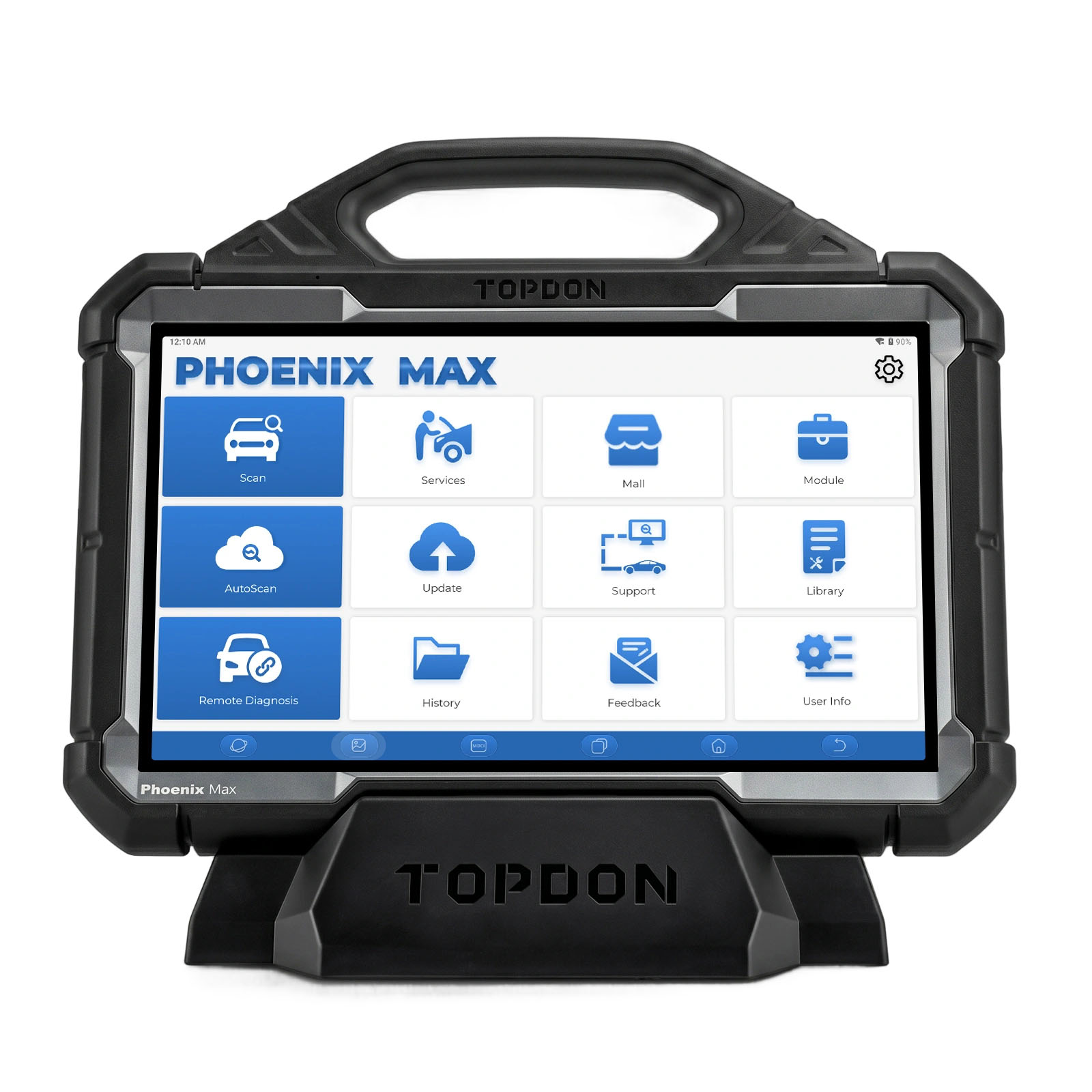

The Phoenix Max is TOPDON’s newest cutting-edge automotive diagnostic scanner. With a 13.3 inches screen, this all-in-one tool offers a wide array of functionalities that will expand any technician’s capacity to complete even more jobs.

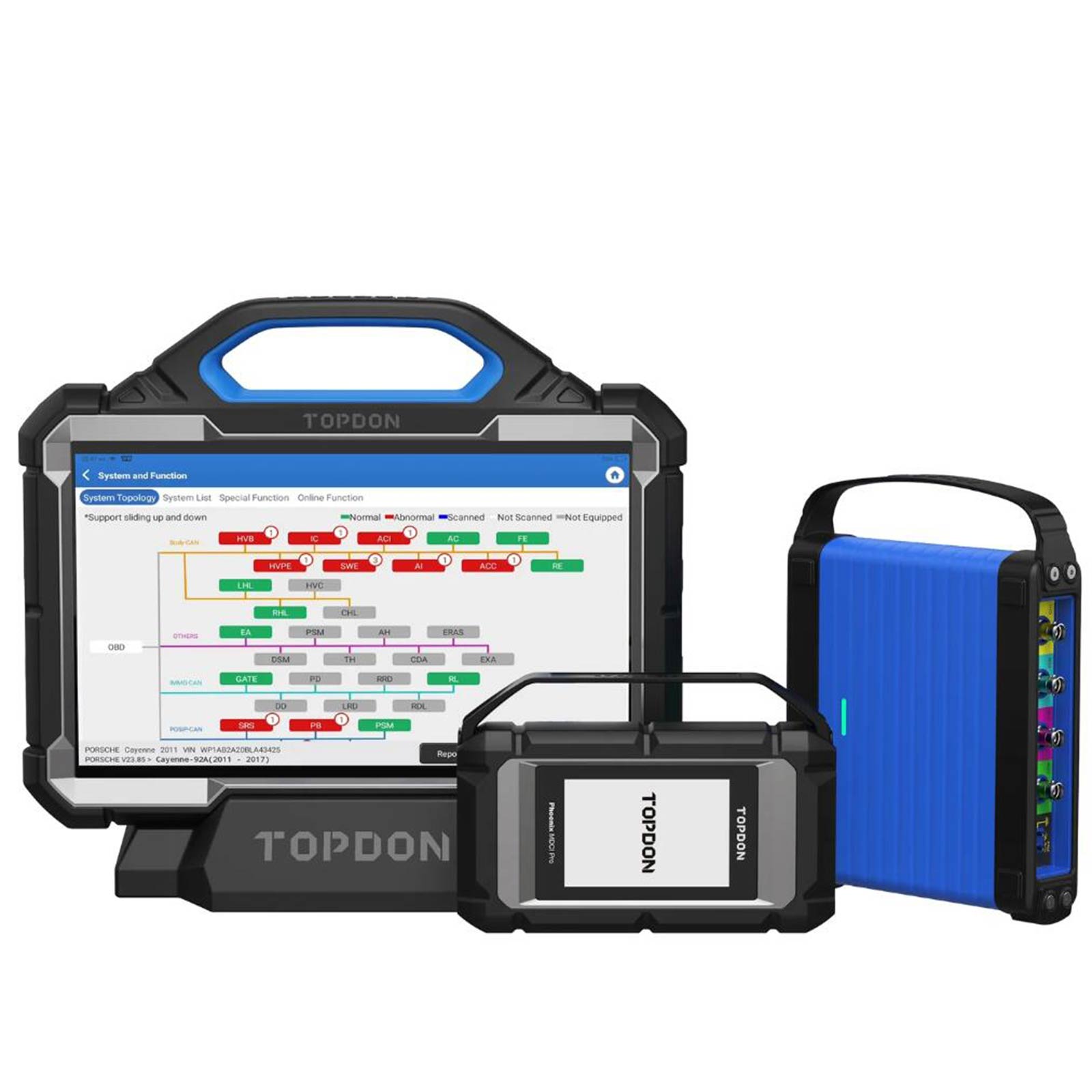

TOPDON Phoenix Max with Phoenix Scope included
TOPDON Phoenix Max Description:
The Phoenix Max is TOPDON’s newest cutting-edge automotive diagnostic scanner. With a 13.3-inch screen, this all-in-one tool offers a wide range of features that will expand any technician's capacity to complete more jobs.
The Phoenix Max includes a 4-channel oscilloscope, ADAS compatibility, and Topology Mapping, which shows all car systems in a single view. Its updated MDCI (Modular Diagnostics & Communication Interface) includes the latest protocols, enabling professionals to perform more complex repairs on a range of automotive and heavy-duty vehicles with optional add-on software.
TOPDON Phoenix Max Features:

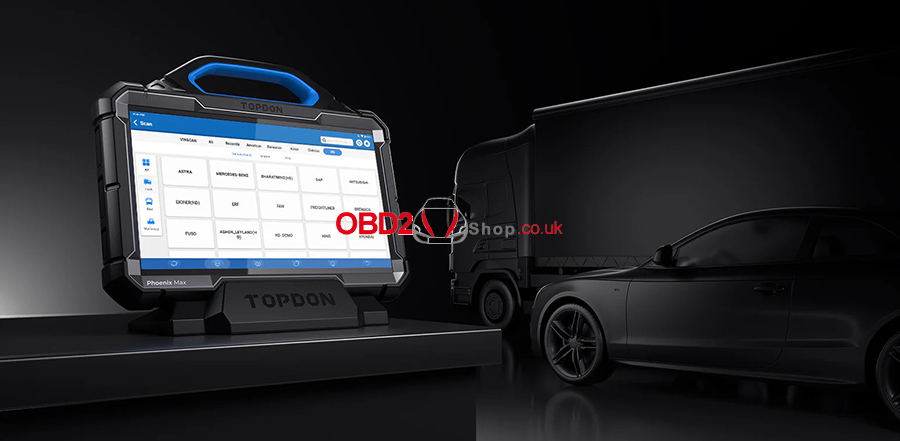

1. Get More Done
Automotive and Heavy-Duty coverage in one tool, it just makes sense. 2 years of automotive and 1 year of HD updates keep supporting the latest models.
*Heavy-Duty Cables and Software are optional, sold separately.

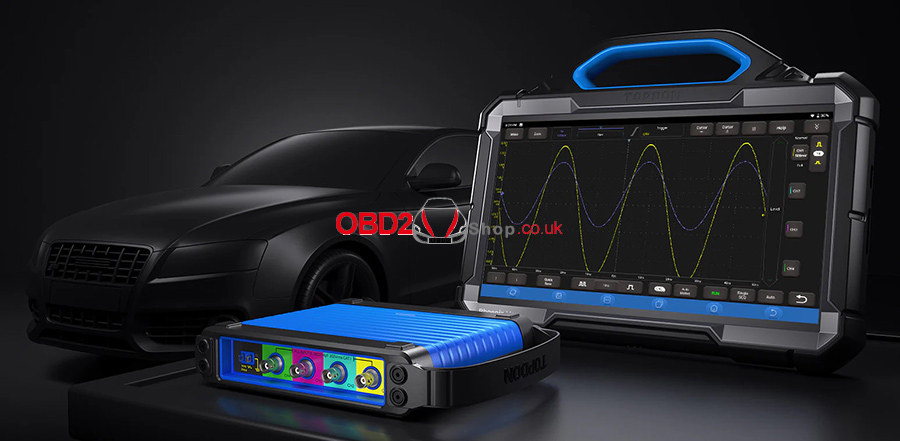

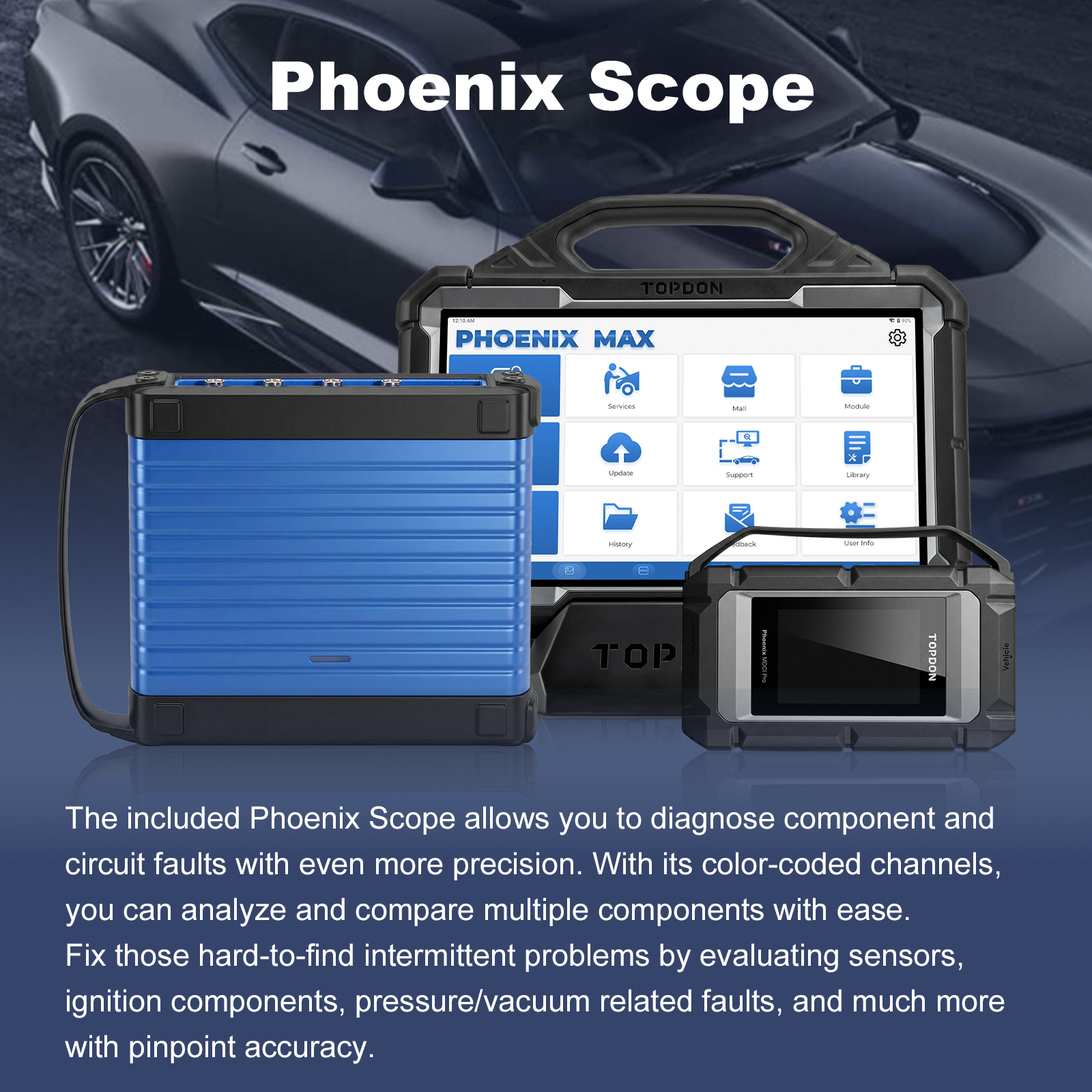

2. Phoenix Scope
The included Phoenix Scope lets you diagnose component and circuit faults with greater precision. With its color-coded channels, you can analyze and compare multiple components with ease.
Fix those hard-to-find intermittent problems by evaluating sensors, ignition components, pressure/vacuum-related faults, and much more with pinpoint accuracy.

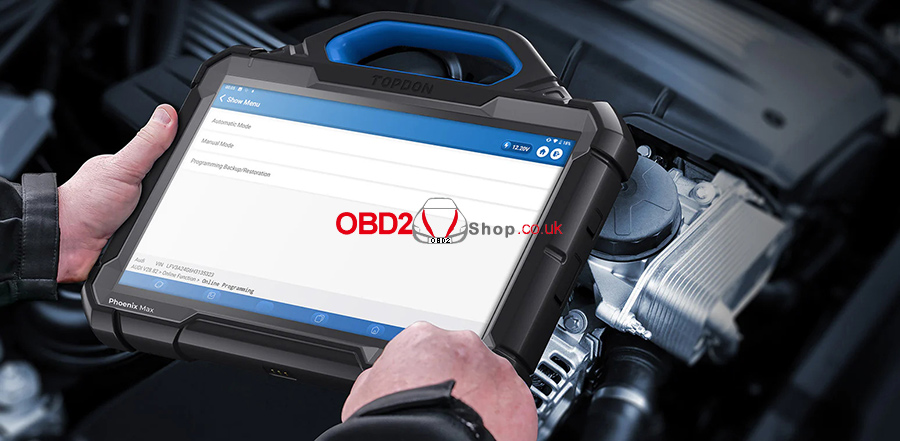

3. Cloud-Based Programming and Coding
Elevate your game with Cloud-based programming for brands like Benz, BMW, Volkswagen, Audi, Skoda, Seat, Porsche, Land Rover, Jaguar, Hyundai, Nissan, Subaru, Renault, and online coding for Audi, BMW, and Porsche.

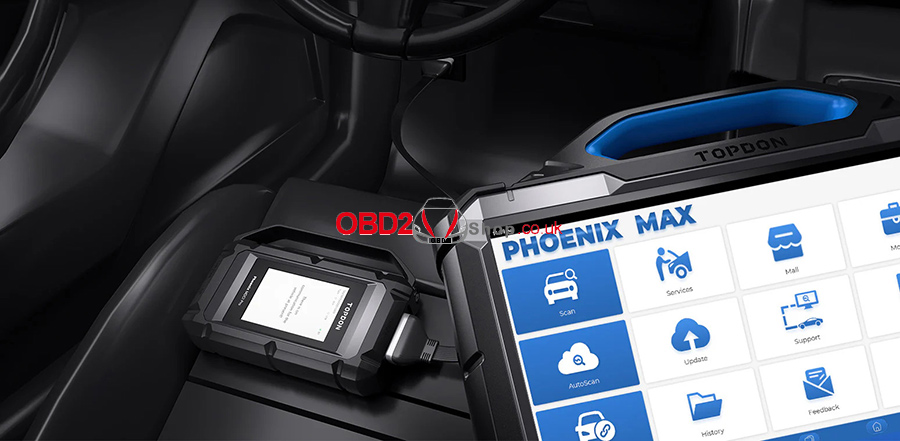

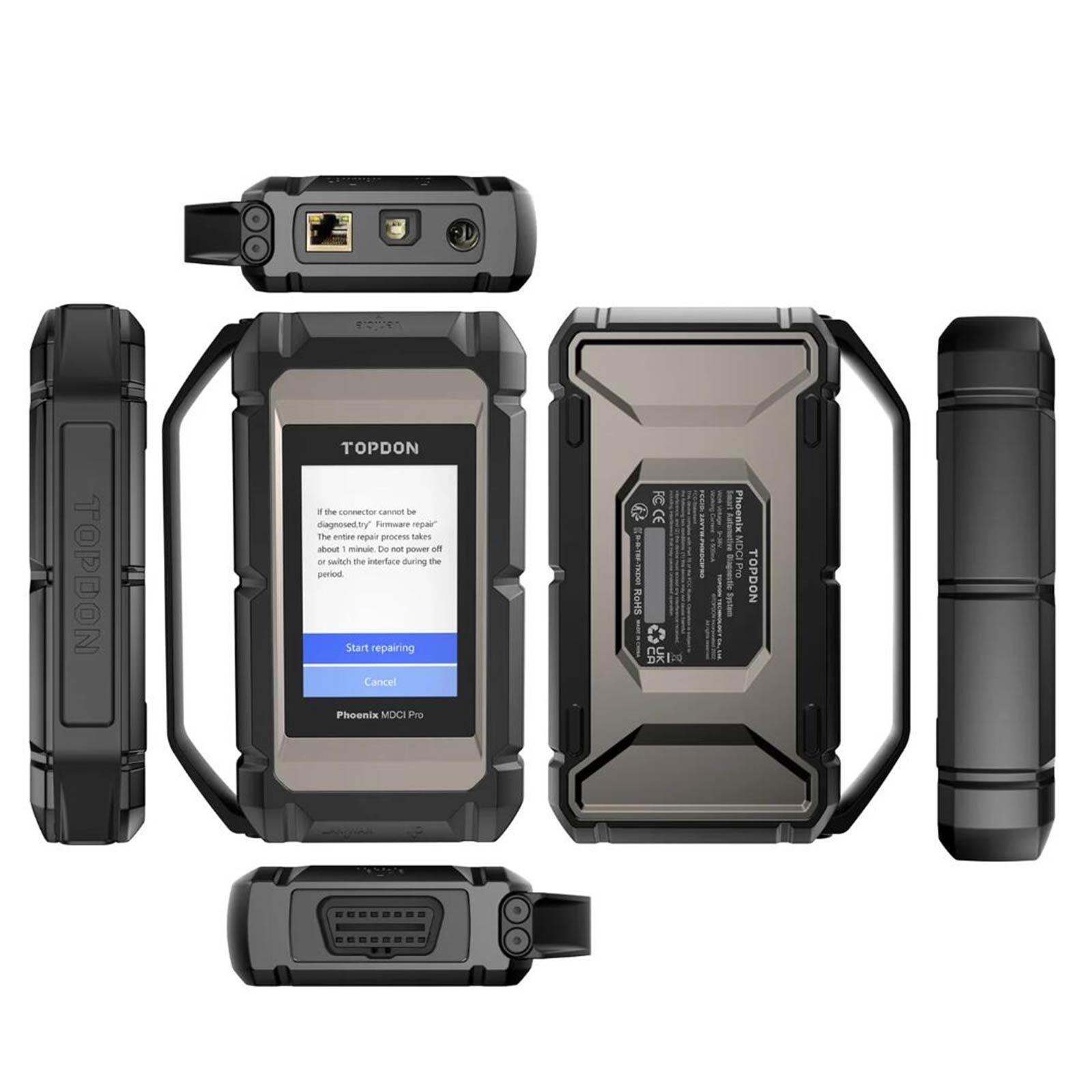

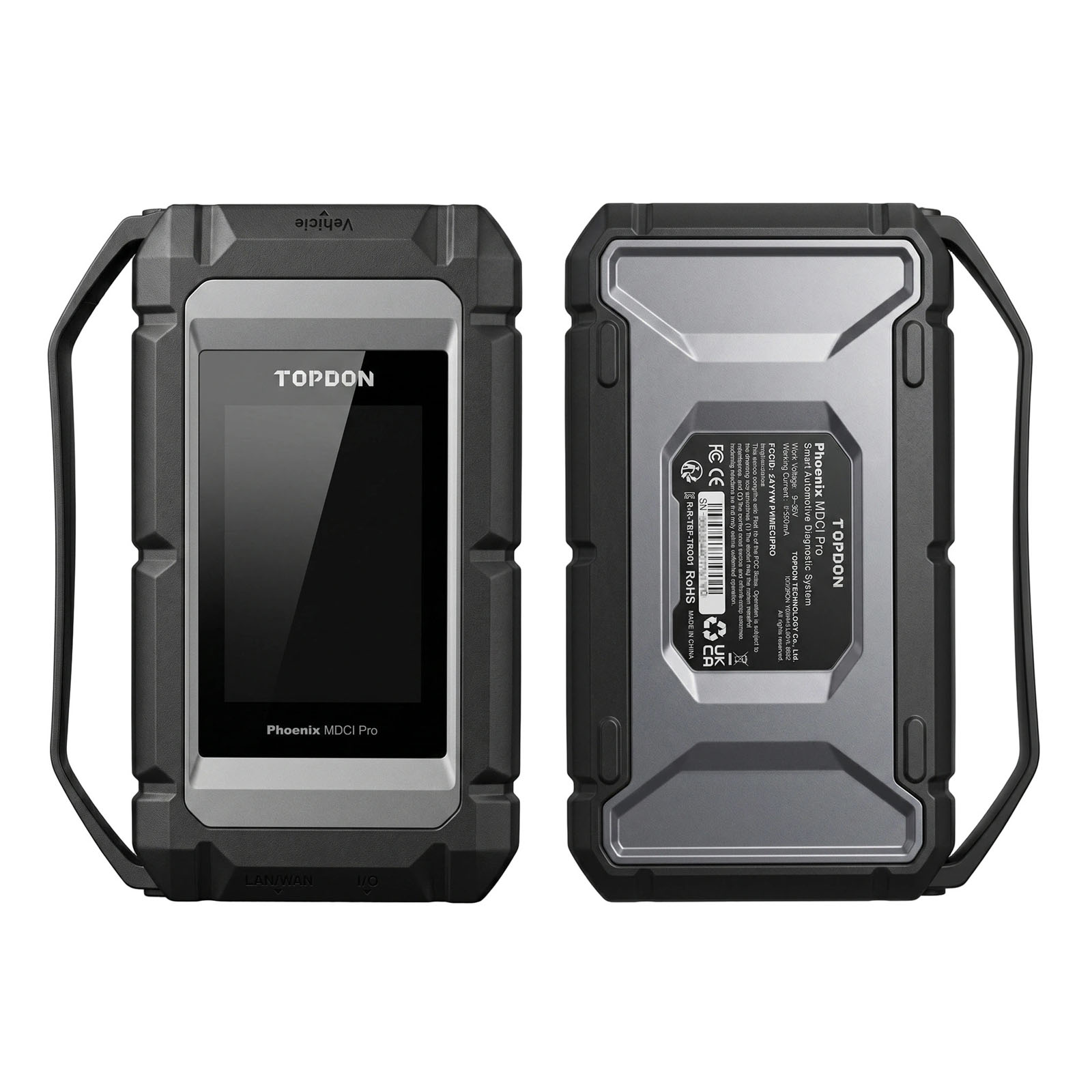

4. The Phoenix MDCI Pro Has You Covered
TOPDON’s Phoenix Max comes with the Phoenix MDCI Pro, a VCI that supports J2534, DoIP, CanFD, D-PDU, and RP1210 protocols. This MDCI Pro’s unparalleled coverage allows you to offer OE-level services to newer and more modern vehicles. With the Phoenix MDCI Pro, you will never be forced to outsource!

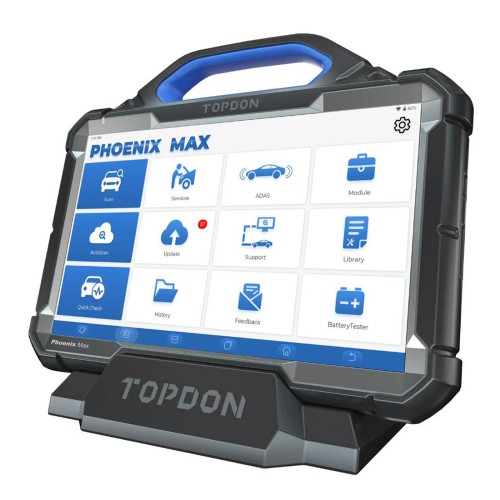

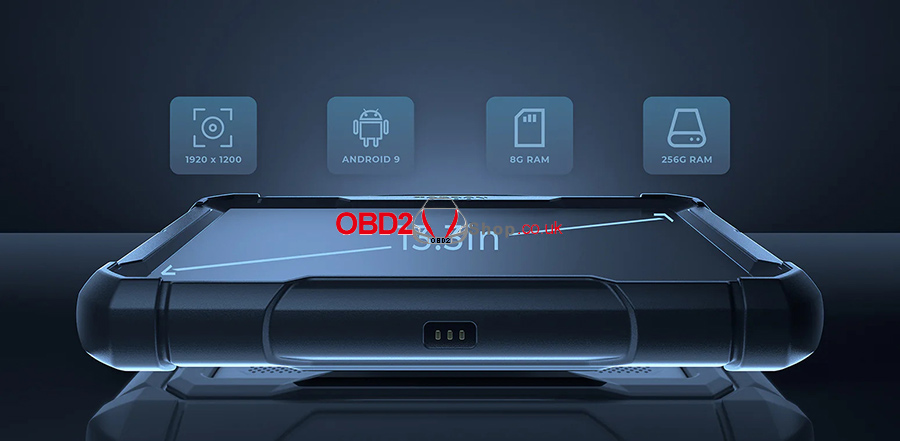

5. Big Display for Big Productivity
Featuring a large 13.3”, 1920 x 1200 display, 8G RAM/256G ROM, and utilizing Android 9, the Phoenix Max will take on whatever you throw at it with fast and smooth operation.

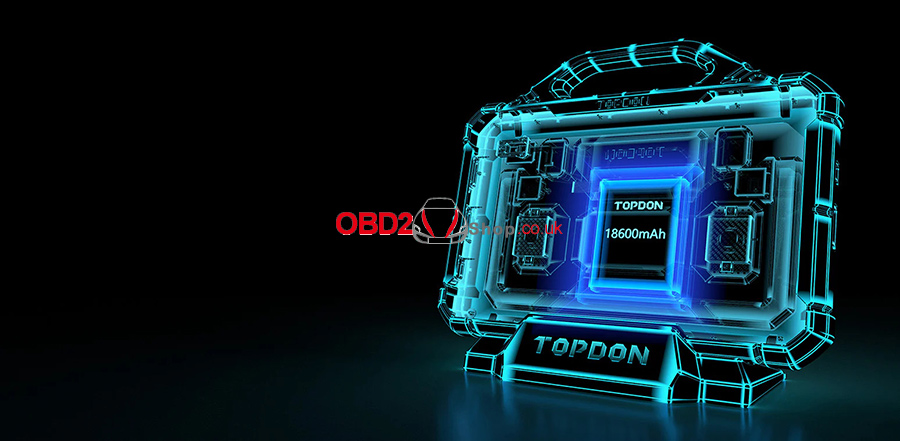

6. All-Day Battery Life
Convenient docking station included so your Phoenix Max is always charged and within reach.
The 18600 mAh, 3.8V battery will power through the day, just like you. 8 hours of run time will ensure you’re never down.

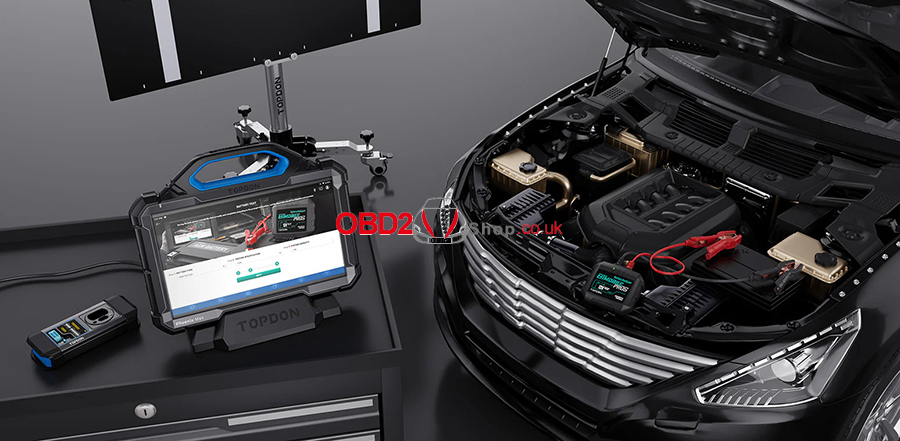

7. Extended Capability
Compatible with Phoenix Mobile ADAS, BTMobile ProS, and T-Ninja Box.

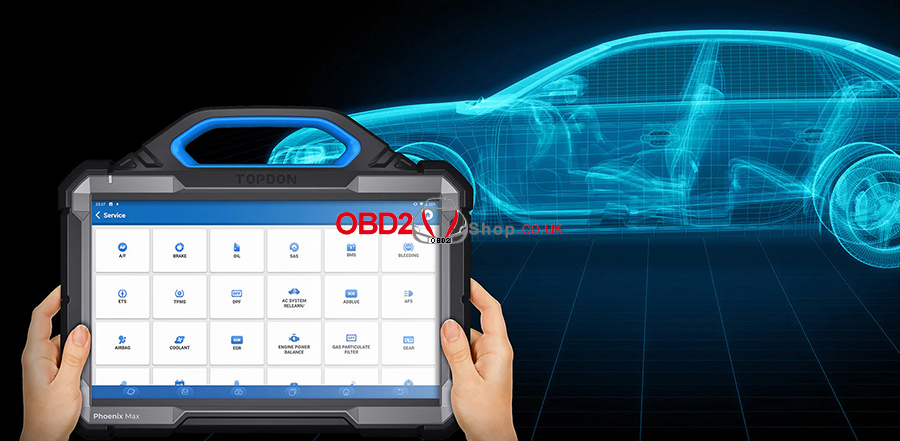

8. Explore More Features On the Phoenix MAX
* 41 maintenance services for mainstream vehicle models.

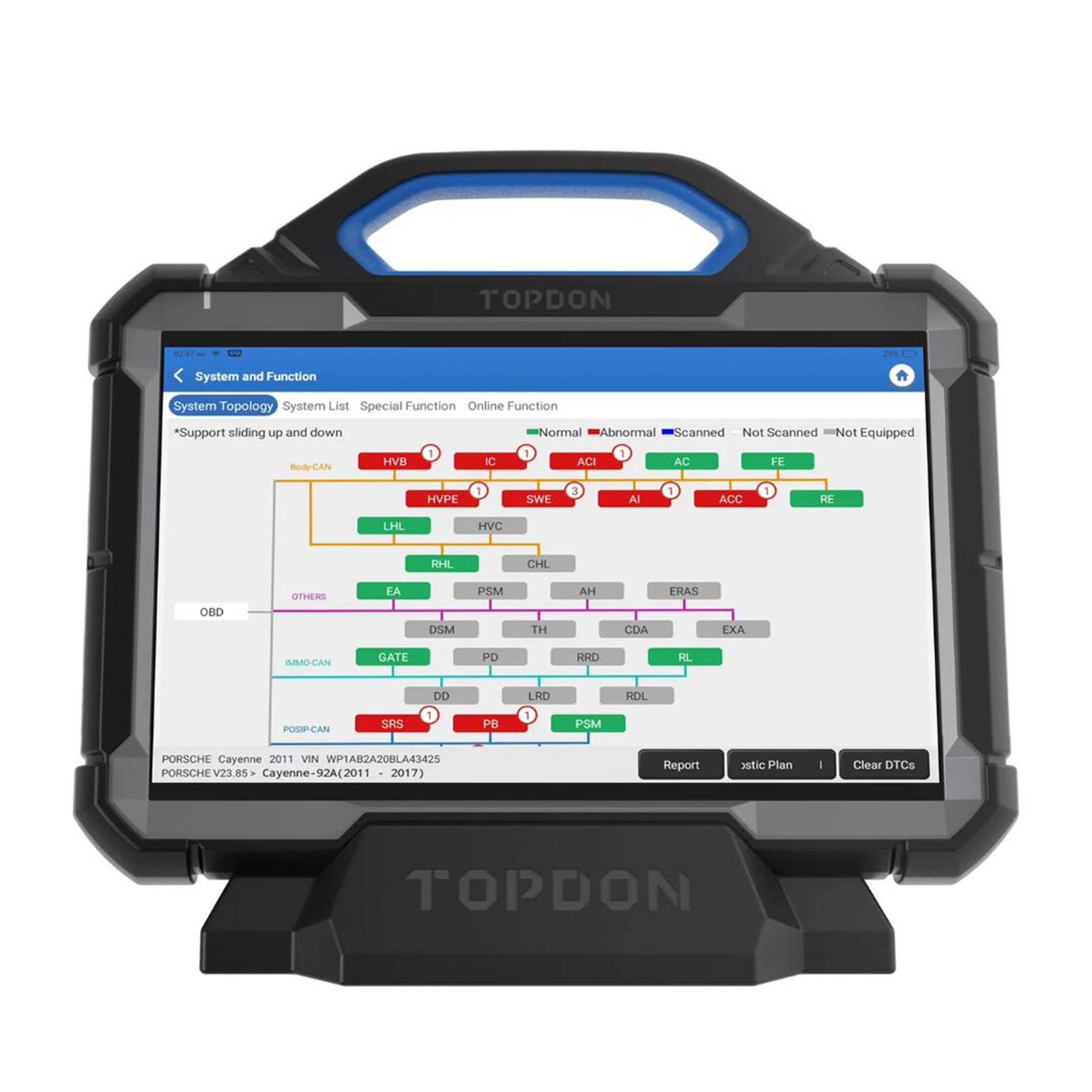

* Topology map granting a clear picture of relational vehicle systems and status.
* Full-system diagnostic (Engine, Transmission, Airbag, ABS, ESP, TPMS, Immobilizer, Gateway, Steering, Radio, Air Conditioning) for over 200 vehicle models.
* 5 Full-system diagnostic basic functions: access ECU info, read DTCs, clear DTCs, read data stream, and active test.
9. Explore More Features On the Phoenix MAX
* AutoVIN for automatic vehicle identification.
* Guide Function for VAG.
* The FCA Secure Gateway Module(SGW) unlocks the FCA vehicle to perform functions such as clearing DTCs, bi-directional testing, and calibration.
* Data stream recording for users to play back diagnostic activities.

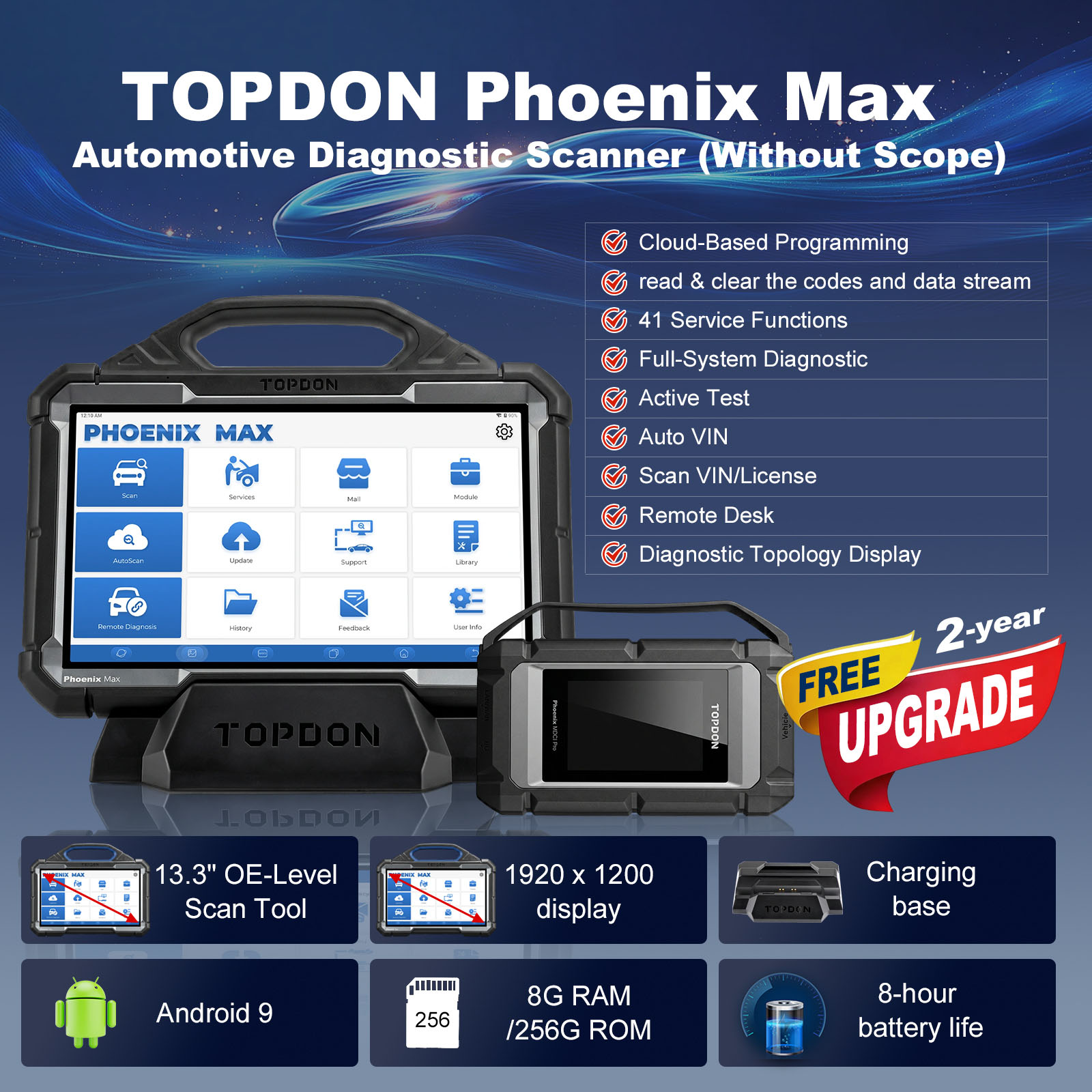

Phoenix Max Specifications:
Display: LCD 13.3 inches, 1920 x 1200 pixels
CPU: 8-Core Processor, 2.0 GHz, Android 9.0
RAM: 8G
ROM: 256G
Battery: 18600 mAh / 3.8V
Operating Voltage: 9~18V
Storage Temperature: -20℃ to 60℃ (-4℉ to 140℉)
Working Temperature: 0℃ to 50℃ (32℉ to 122℉)
Product Dimensions: 364 x 285 x 82mm (14.30 x 11.20 x 3.20 inches)
Package Dimensions: 673 x 474 x 201mm (26.50 x 18.66 x 7.91 inches)
Net Weight: 3.18kg(7.0 lb)
Multilingual Support: 24 Languages (English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian)
Phoenix MDCI PRO Specifications:
Display: TFT, 3.97 inches, 320 x 480 pixels
CPU: Cortex-A7 + Cortex-M7, Dual Processor
Operating System: Linux
RAM: 256M
ROM: 8G
Wi-Fi: 2.4GHz/5GHz, Dual Band
Operating Voltage: 9~36 V
Working Temperature: 0℃~50℃ (32℉~122℉)
Dimensions: 196 x 135 x 42.8 mm (7.72 x 5.31 x 1.69 inches)
New Protocols Supported: J2534, CAN FD, DoIP, D-PDU, RP1210

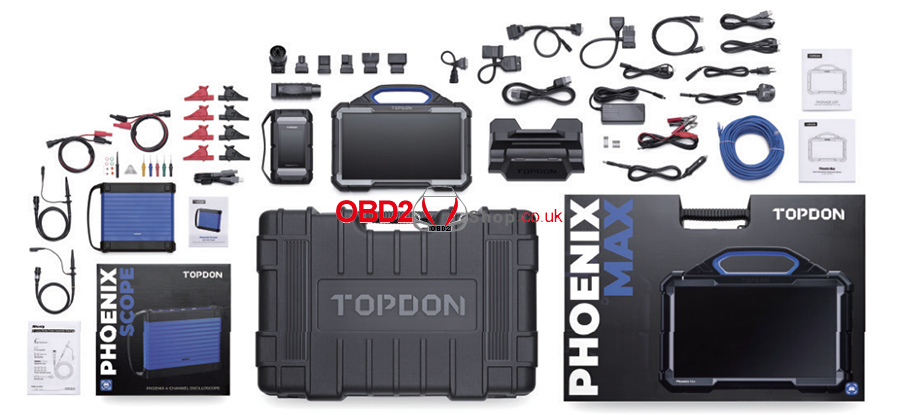

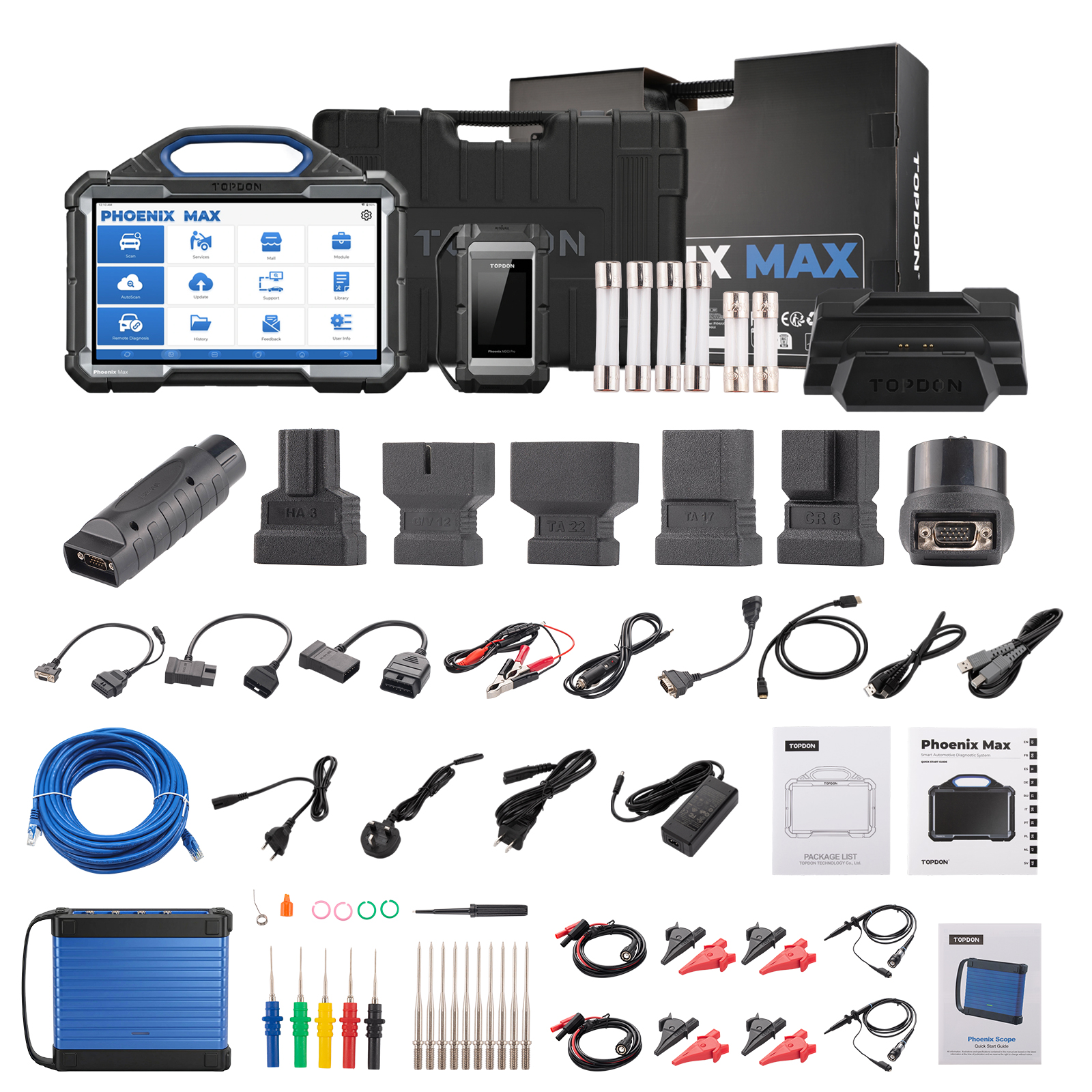

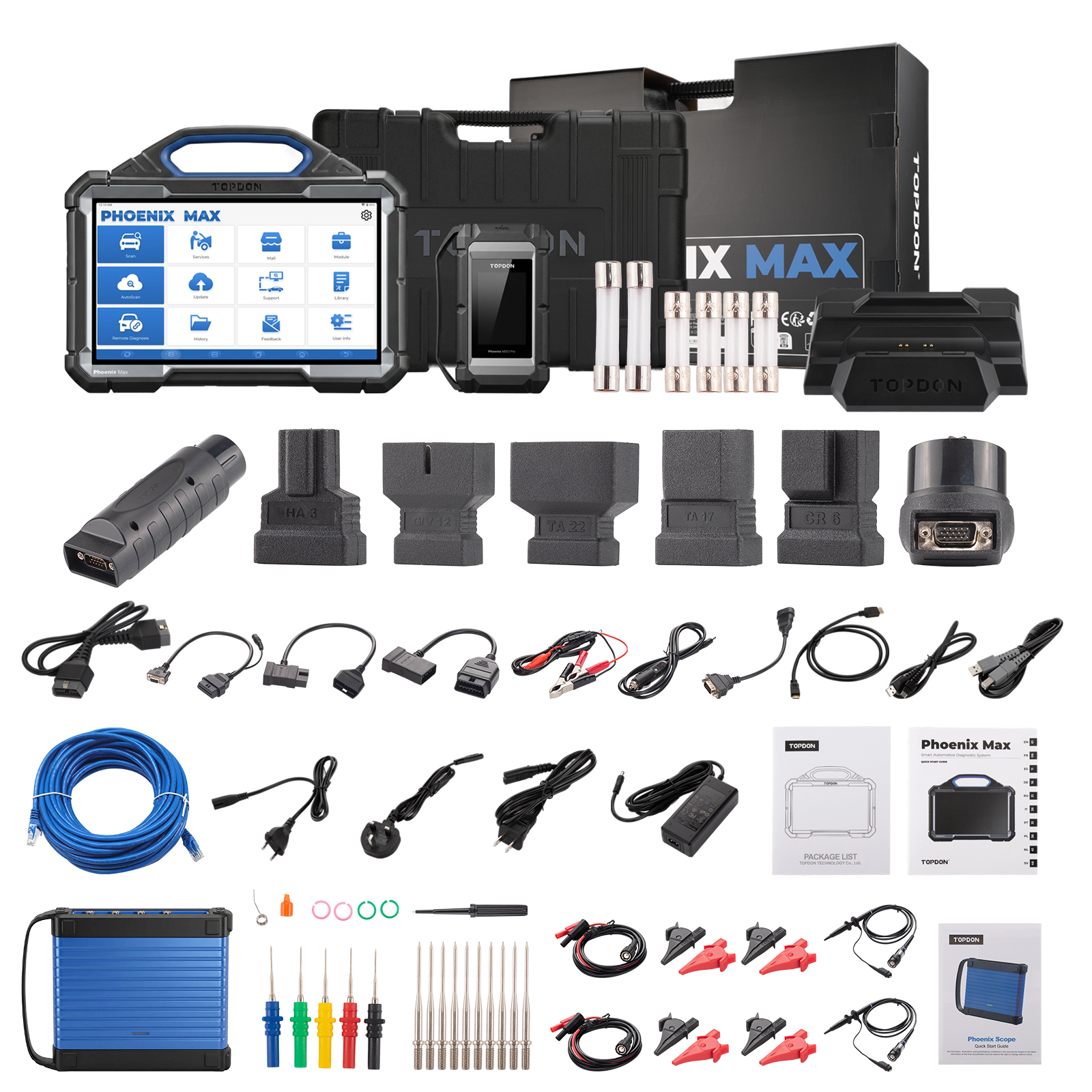

TOPDON Phoenix Max Package List:
1 pc x Phoenix Max
1 pc x Packing Box
1 pc x Carrying Case
1 pc x AC Cable (EU)
1 pc x AC Cable (UK)
1 pc x AC Cable (US)
1 pc x Adaptor
1 pc x Base
1 pc x BNC to 4mm Test Leads
1 pc x BZ-38 (BENZ)
1 pc x Cigarette Lighter Cable
1 pc x Clipper Cable
1 pc x CR-6 (CHRYSLER)
1 pc x Crocodile Clips
1 pc x Ethernet Cable
1 pc x FT-3 (FIAT)
4 pcs x Fuse (AC250V/5A, φ5*20mm)
2 pcs x Fuse (AC250V/5A, φ6*30mm)
1 pc x G/V-12(GM/VAZ)
1 pc x HA-3(HONDA)
1 pc x M/H-12+16(MITSUBISHI/HYUNDAI)
1 pc x MDCI Pro
1 pc x MDCI Pro Male to Male Diagnostic Cable
1 pc x MDCI Pro Type A to B Cable
1 pc x Mini-HDMI to HDMI
1 pc x NN-14+16(NISSAN)
1 pc x OBD I Adaptor
1 pc x Package List
1 pc x User Manual
1 pc x Phoenix Scope Box
1 pc x Phoenix Scope Probe Assembly User Manual
1 pc x Phoenix Scope Back Probe Pins Suite
1 pc x Phoenix Scope Probe Assembly
1 pc x Phoenix Scope Quick Start Guide
1 pc x Phoenix Scope
1 pc x Power Adapter
1 pc x TA-17(TOYOTA)
1 pc x TA-22(TOYOTA)
1 pc x Type A USB to Type C
1 pc x USB Cable (optional)
