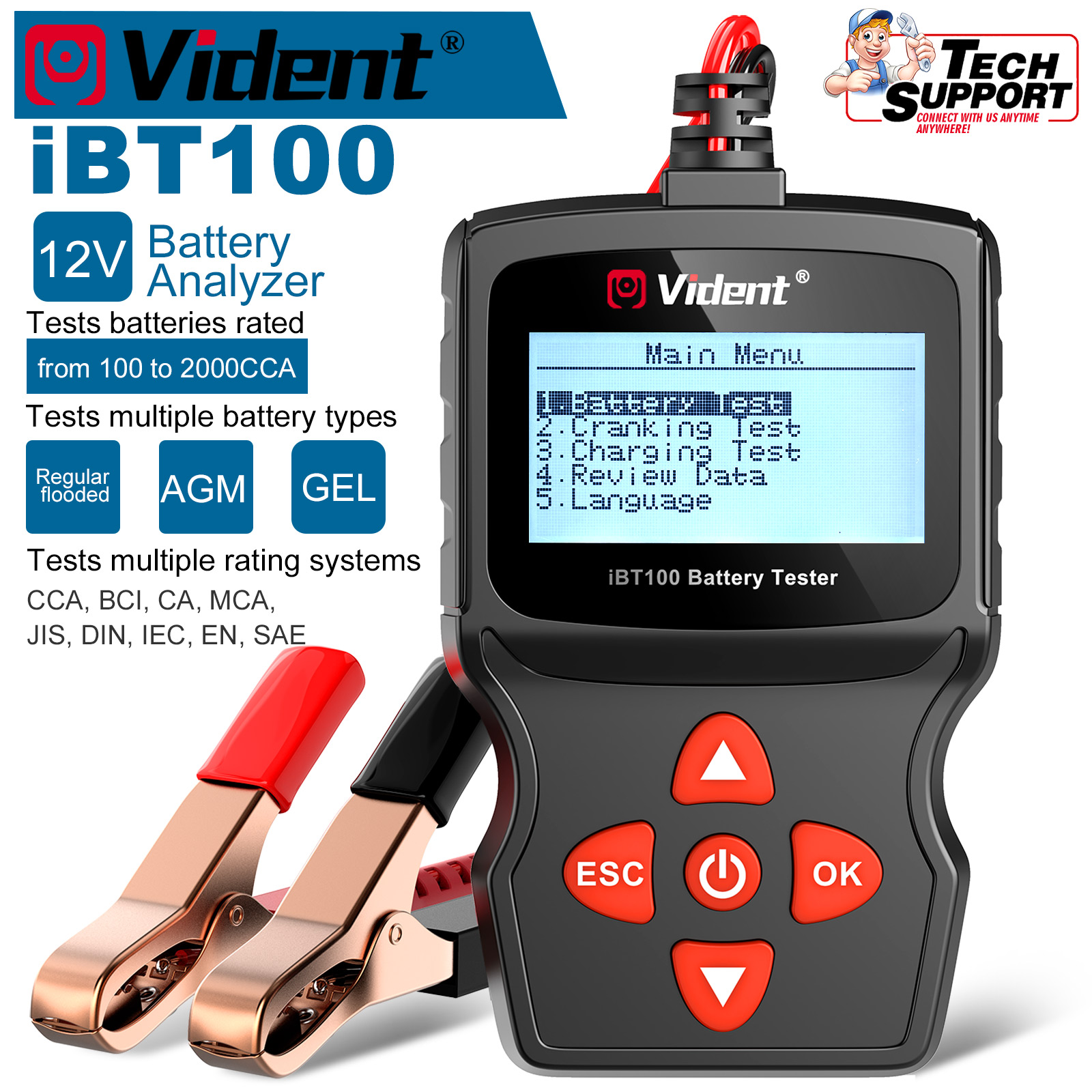

Vident iBT100 12V Battery Analyzer for Flooded, AGM,GEL 100-1100CCA Automotive Tester Diagnostic Tool

Product Description

Vident iBT100 12V Battery Analyzer for Flooded, AGM,GEL 100-1100CCA Automotive Tester Diagnostic Tool

Description

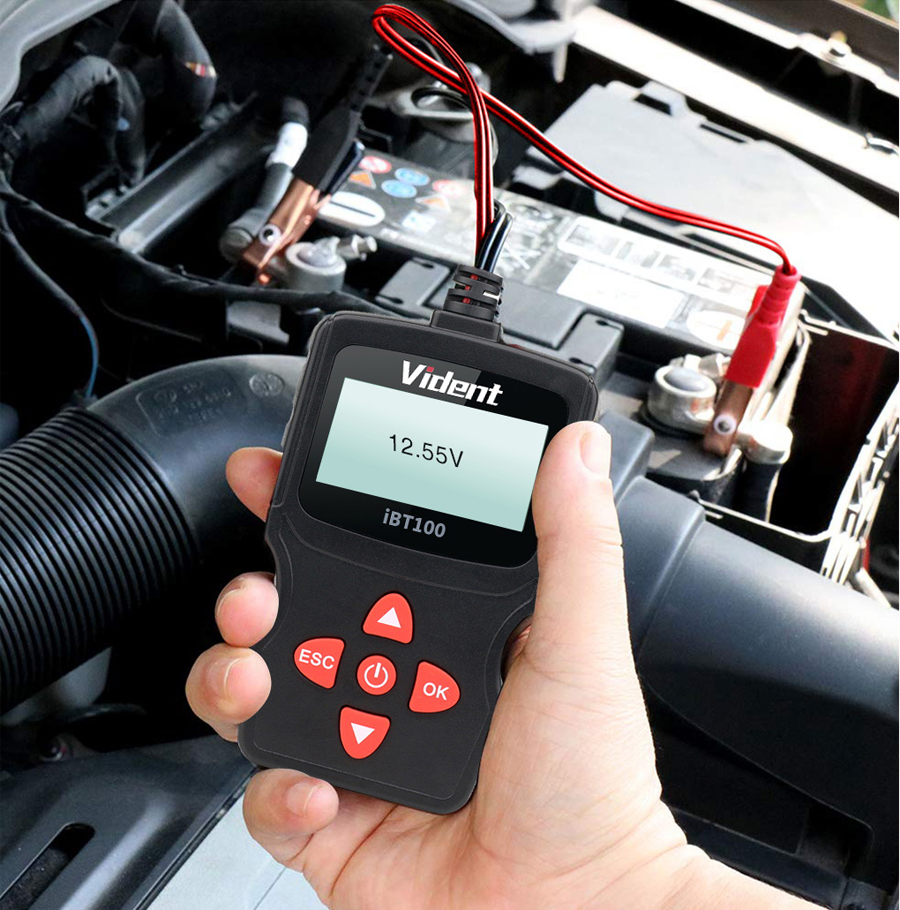

iBT100 12V Battery Analyzer is dedicatedly developed to test 12V regular flooded, AGM flat plate, AGM spiral, GEL and EFB batteries as a low cost solution. It provides a quick, easy and affordable solution for technicians to check battery health and faults.

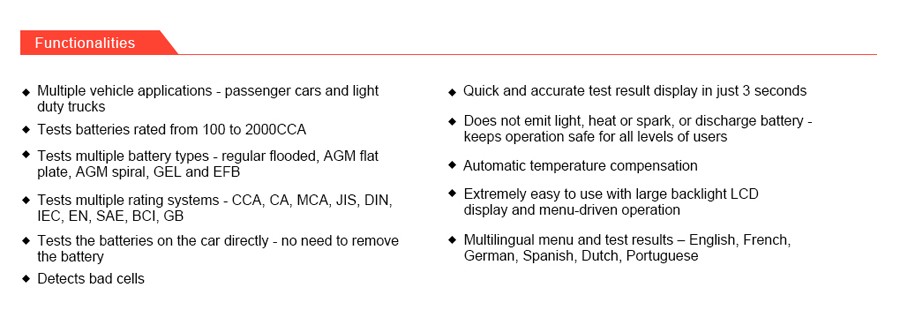

iBT100 12V Battery Analyzer Functions:


• Multiple vehicle applications-passenger cars and light duty trucks.
• Test batteries rated from 100 to 2000CCA.
• Test multiple battery types-regular flooded, AGM flat plate, AGM spiral, GEL and EFB

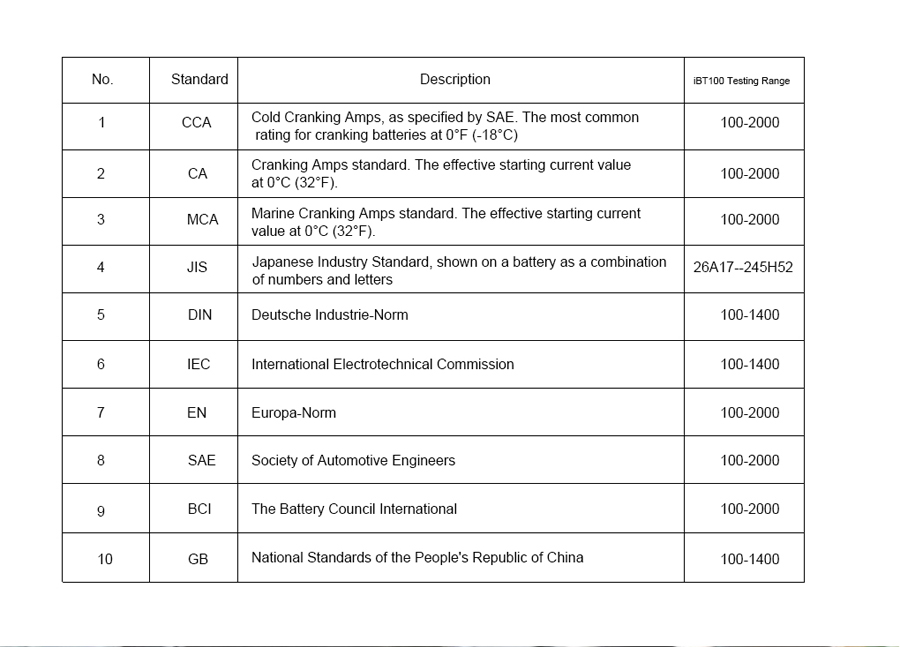

• Test multiple rating systems - CCA, CA, MCA, JIS, DIN,IEC, EN, SAE, BCI, GB

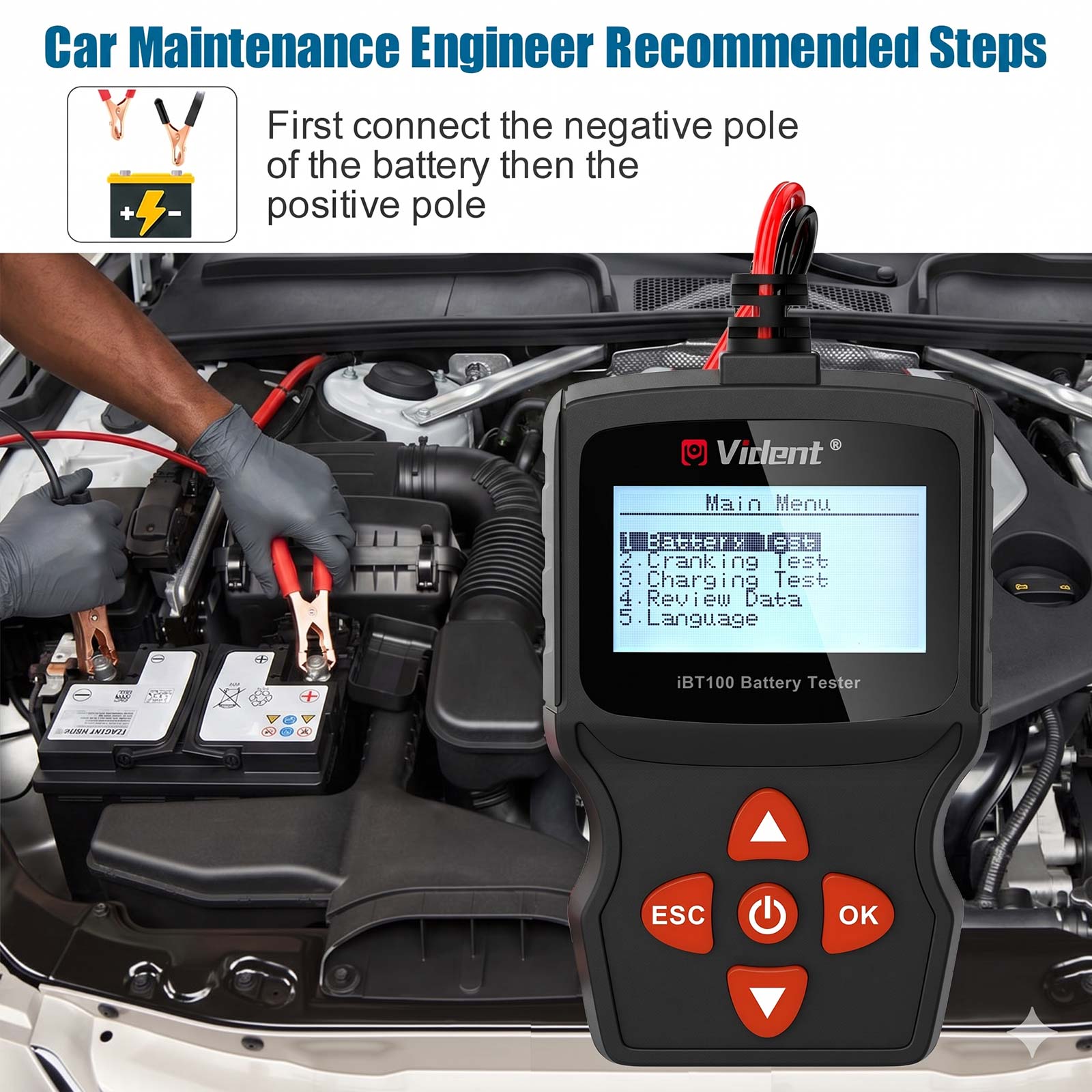

• Test the batteries on the car directly - no need to removethe battery
• Quick and accurate test result display in just 3 seconds
• Does not emit light, heat or spark, or discharge battery-keeps operation safe for all levels of users.
• Automatic temperature compensation

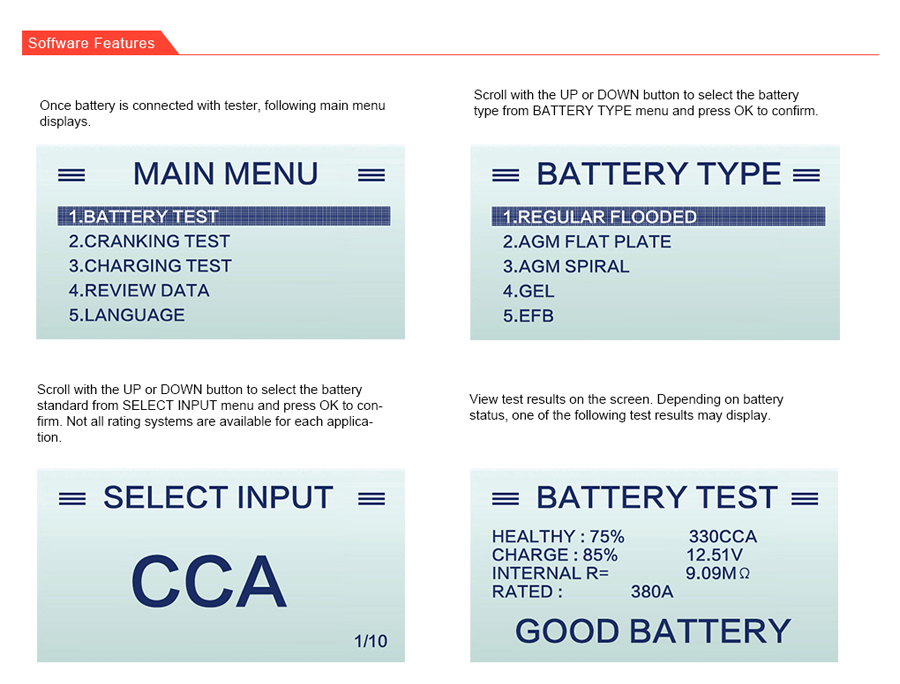

• Extremely easy to use with large backlight LCD display and menu-driven operatio
• Multilingual menu and test results- English, French, German, Spanish, Dutch, Portuguese
• Detects bad cells

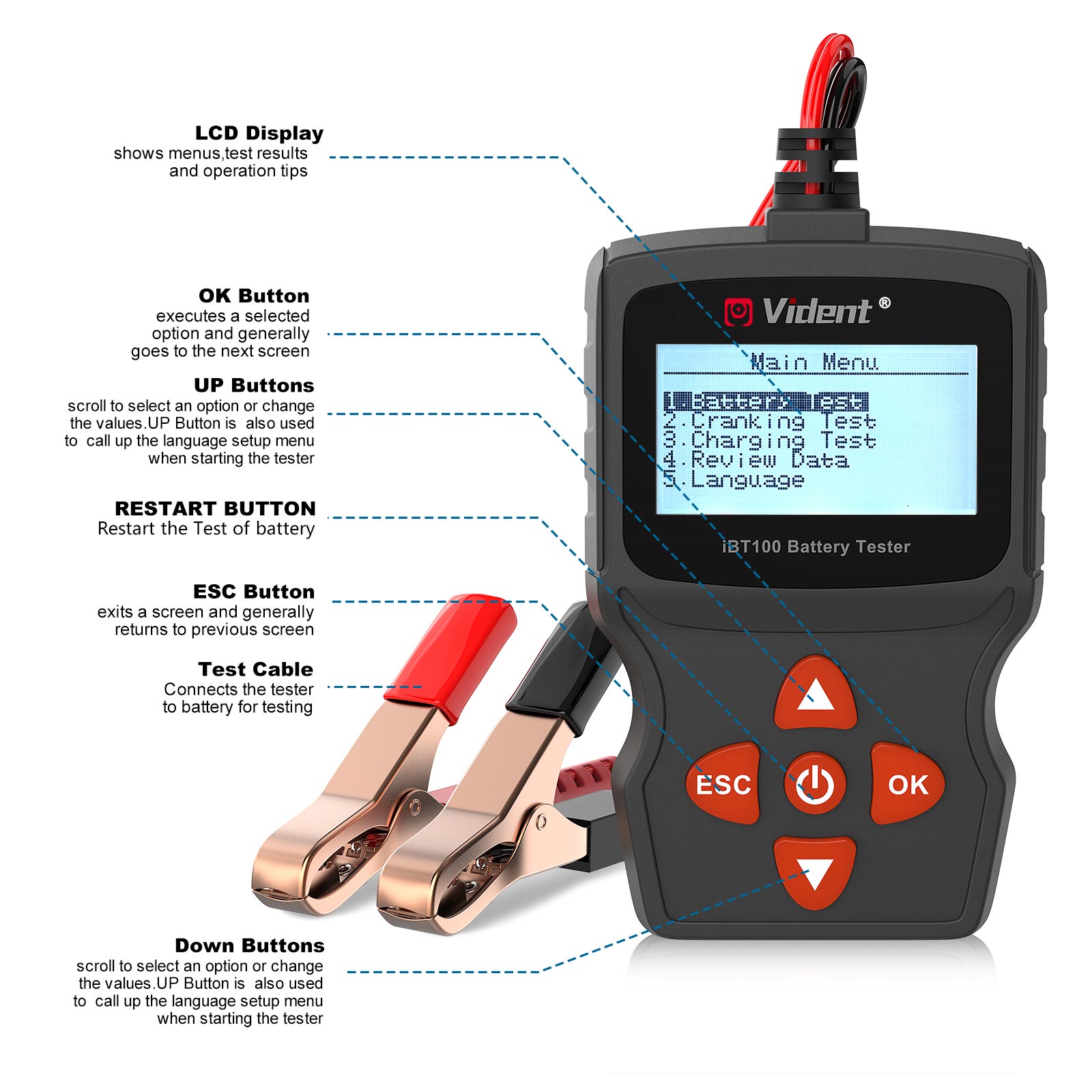

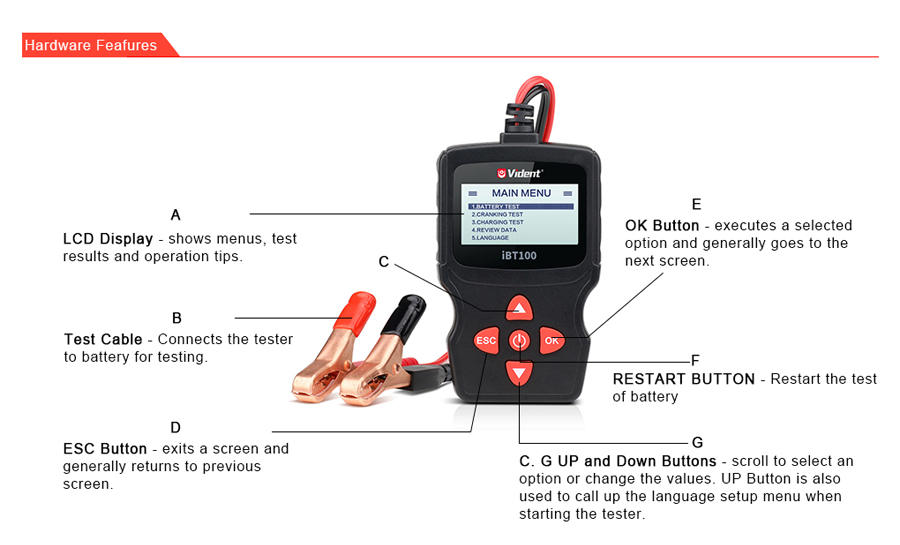

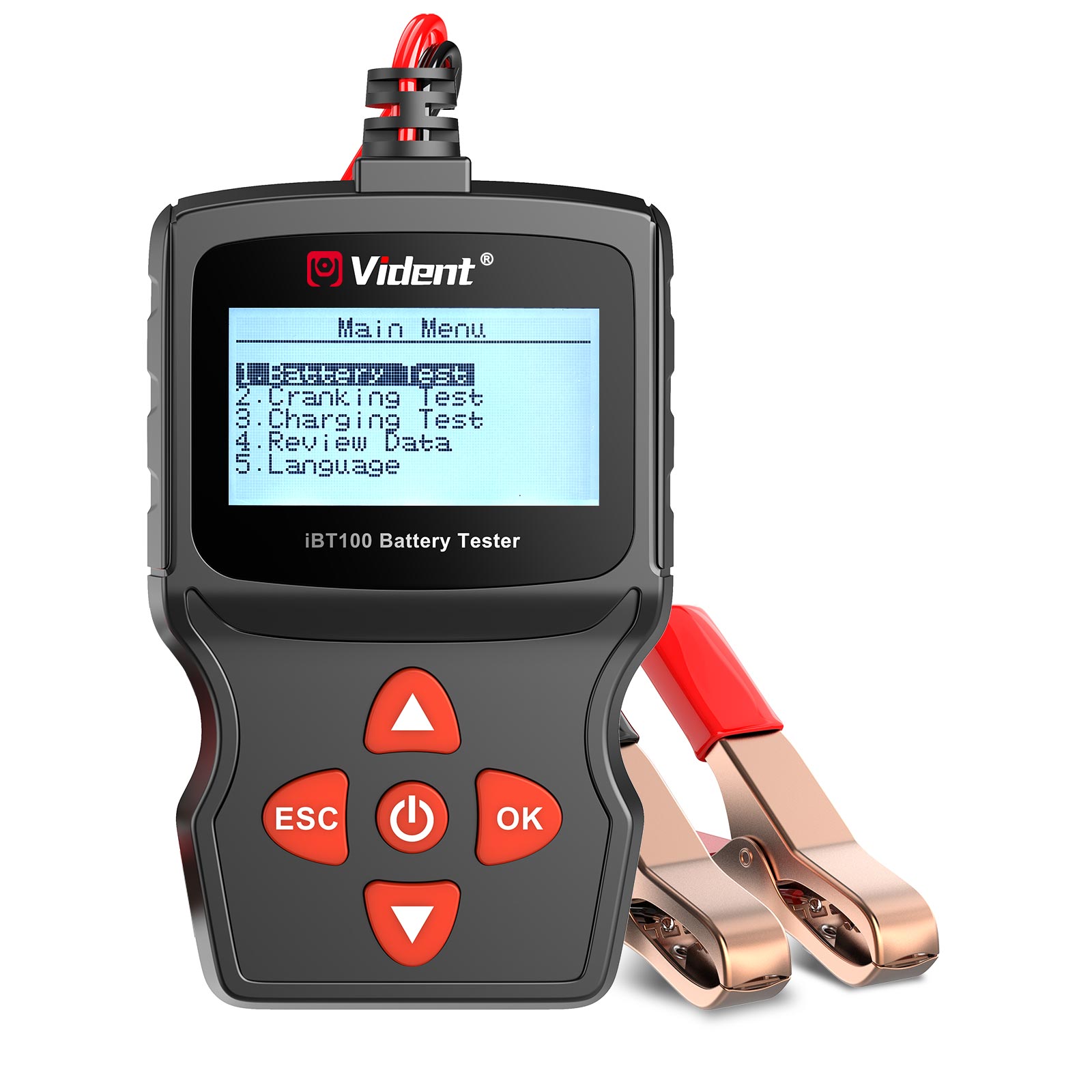

Hardware Features:


• LCD Display - shows menus, testresults and operation tips
• Test Cable -Connects the testerto battery for testing.
• ESC Button - exits a screen and generally returns to previous screen.
• OK Button - executes a selected option and generally goes to the next screen.
• RESTART BUTTON - Restart the test of battery
• UP and Down Buttons - scroll to select an option or change the values. UP Button is also used to call up the language setup menu when starting the tester.

Specifications:


Item	Range	Accuracy
Voltage measuring	6V to 18V	0.50%
Battery type	Flooded, AGM, GEL	N/A
Battery rating	100 - 2000CCA	±(3%+10)CCA
Standard support	CCA, CA, MCA, JIS, DIN, IEC, EN, SAE, BCI, GB	N/A
Operation Temperature	0 to 60°C (-4 to 140°F)	N/A
Storage Temperature	0 to 70°C (-4 to 158°F)	N/A
Product Size	125mm(4.0”)*80mm(2.96’’)*24mm(0.78”)	N/A
Product Weight	240g	N/A

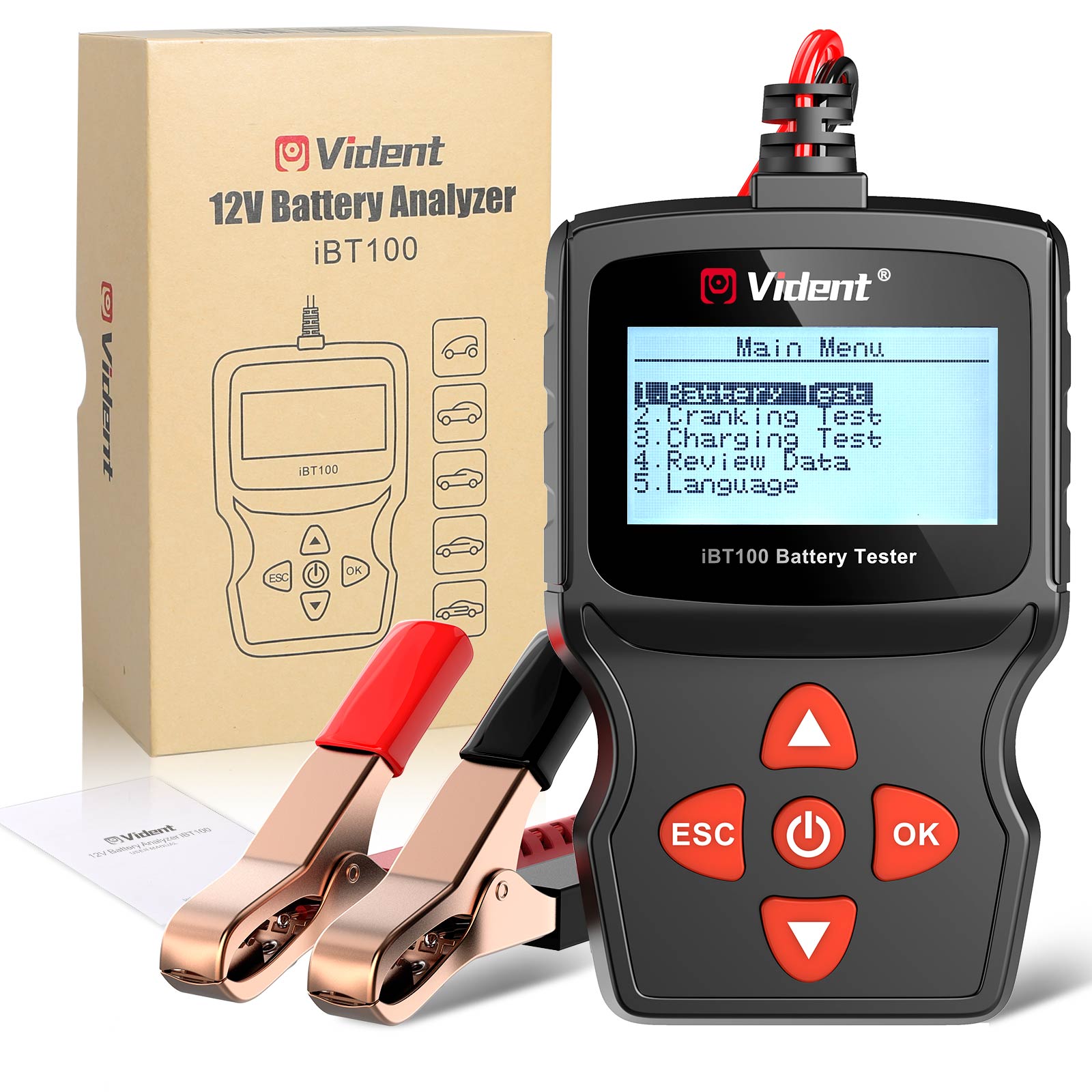

Package includes:

1PC x iBT100 Battery Analyzer
1PC x User's Manual


---



---
