2023 New XTOOL X100 PADS Auto Key Programmer Built-in CAN FD DOIP Full system diagnostic 23 Services 2 Years Free Upadte

Brand: Xtool Item No. SK417 In Stock. History 1 sold.

Buy Now: £429
Fast delivery No Tax No Vat !

Whatsapp contact: +86 13983755934
Free Shipping Express Shipping ServiceEstimated delivery time: 3-5 working days.See details »
32cm*28cm*10.8cm ( Inch: 12.57*11*4.24 )
Return for refund within 7 days,buyer pays return shipping. Read details »

Product Description

1) X100 PADS is Update version of X100 PAD and X100 PAD Plus, with Built-in CAN FD and DoIP protocols
2) Full system diagnostic + AutoVin + 23 Special Functions + Advanced Key Programming (Need KC100)
3) Multi-language, Support 2 years free update

X100 PADS Key Programming Tool

  1. Upgraded Ver. of X100 PAD & X100 PAD PLUS with New UI,  Add 8MP Camera, Self test, Collapsible stand.
  2. Support DoIP & CAN FD
  3. Key Programming: Work with KC100/KC501. to add keys for Mercedes, for Toyota etc. Read PIN codes, program new keys/fobs, perform remote learning, disabIe the lost keys etc.
  4. Built-in 5,000mAh battery larger than XTOOL D7 which includes 4,000mAh battery. long-time Working Battery.
  5. Can work with XTOOL XV100: Help you better check the vehicle by viewing details via the endoscope.
  6. Support 23+ Special Functions
  7. Powerful quad-core 1.5GHz processor with faster 2GB and reliable 64GB On-board memory, Dual-band wifi
  8. 2 Years Free Update
  9. Support 15 Languages: English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese. When you get the device, send us the seial number to change language for you.

Advanced IMMO/Key Programming/Key Coding(X100PADS + EEPROM Adapter)

The IMMO service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN code/pin code calculation,Check number of keys, Generate key, Add key, All key lost.
  • Read Pincode
  • Generate key, Key Refresh
  • Make Dealer Key
  • All Key Lost
  • Immobilizer Data Reading & Writing
  • Backup IMMO Data
  • Remote Frequency Detection
  • Immobilizer Module Replacement
  • IMMO ECU Reset & Coding
  • Mercedes lnfrared Key Read/Write
  • - And more...
  • Note: KC100 is Not Included, Needs to be Purchased Separately.

OE-Level Full Systems Diagnostic

XTOOL X100PADS automotive diagnostic scan tool enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information as trouble and event codes and live data for various vehicle control systems, such: ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.
  • Read/Clear Codes
  • View the Live Data stream
  • View the Freeze Frame of faults
  • Perform Active Tests
  • Read ECU Information

  • Oil Reset: Reset service intervals after oil change and turn off the oil light.
  • EPB Reset: Reset brake pads after replacement of brake system.
  • BMS Reset: Register the new battery to the CAR MO after replacement.
  • Throttle Relearn: Enables you to make initial settings to throttle to adjust the amount of air intake.
  • EEPROM Adapter: Used to read, write and backup the EEPROM chip inside the immo~bilizer module.
  • Injector Coding: Coding injectors after replacement.
  • ABS Bleeding: Perform ABS Brake Bleed function to cycle ABS pump to bleed the air out of the ABS.
  • Gearbox Match: Reset the adaptive shifting points in your automatic Transmission Control Unit.
  • Headlight: Initialize the adaptive headlight system.
  • Air Suspension: Calibrate the suspension height.
  • Window Initialization: Match windows to restore initial memory of the CAR MO and restore the power window.
  • Airbag Repair: Allows you resets the airbag data to clear the airbag collision/crash data.
More Functions Include: TPMS Reset,Seat Calibration, Cylinder, Transport Mode, Tire Upgrade, Electronic Pump Activation, DPF/GPF, SAS, Gear Learning, EPS, etc.
Note: Please provide your specific car model and VIN number to check compatibility before purchasing.

Built-in CAN FD & DoIP Protocol

Support CAN FD Protocol for GM,For GMC,For Cadillac, For Chevrolet,For Buick Cars after 2020. Support DoIP for BMW E/F/G Chassis, for Jaguar/Land Rover.

  • SUPPORT CAN FD PROTOCOL: Compatible More CAN FD Protocol Vehicles (For GM Vehicles After 2020).
  • SUPPORT DOIP PROTOCOL: With DoIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.
  •  8 IN 1 LVE DATA DISPALY: Reads, graphs and combines 8 independent streams of sensor data. Real-time data export to CSV file and data recording, playback, viewing. Allows you to export live data to a csv file for storage and comparison over time, or to view its graphical changes and textual readouts later.
  • FAST AUTO VIN SCAN: X100PADS is based on the latest VIN auto-scan function, which can quickly identify the vehicle and scan all diagnosable ECUs and run diagnostics on the selected system. For vehicles that do not support the automatic VIN scan feature, you can manually enter the vehicle VIN.
  • Record & print report: Share Report to mobile phone, tablet or computer via Bluetooth Print Report via connecting Printer
  • 2 YEARS FREE UPDATE (Value of $400): 2 Year Free Update, one-click update when the device is connected to the network, download the latest model, update the latest functions, and more functions are under development

X100PADS Supports 15 Kinds of Language

English, Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese.


XTOOL X100PADS Key Programming Tool is specially customized for large Maintenance Shops, Workshops, Car Dealers, Auto Mechanic. Work for 12V Petrol Sedans, SUVs, Minivans and Light-Duty Trucks across the globe, including:

Asia: For Toyota, For Lexus, For Honda, For Acura, For Mazda, For Nissan, For Infiniti, For Mitsubishi, For Subaru, For Suzuki, For Kia,For Hyundai, For Daewoo, For SSANGYONG, For Proton, etc

Europe: for Audi, For VW, For Skoda, For Seat, For Porsche, For Opel, For Citroen, For Peugeot, For Jaguar, For Land Rover, For Lincoln, For Renault, etc

America: For GM, For Cadillac, For Buick, For Chrysler, For Ford etc

China: For Great Wall, For Chery, For Brilliance-auto, For Geely, For LIFAN, For HAFEI, For CHANGAN, For LANDWIND, For BYD , For JAC, etc.

Advance Hardware Configuration:

Product Name: X100PAD S
Operating System: Android 10
Processor: Quad Core 1.5Ghz
Memory: 2+64G
Screen Size: 7 Inches (1024*600)
Mode of Operation: Tablet Touch Screen
Connection Method: WIFI Connection
Battery Capacity: 5000 mAh
Upgrade Method: WIFI Online Upgrade
Upgrade Period: 2 Years
Charging Method: Adapter Charging
Support: CAN FD & DOIP Function
USB Interface: USB2.0 (Supports KC100/KC501)
WIFI: 2.4G/5G

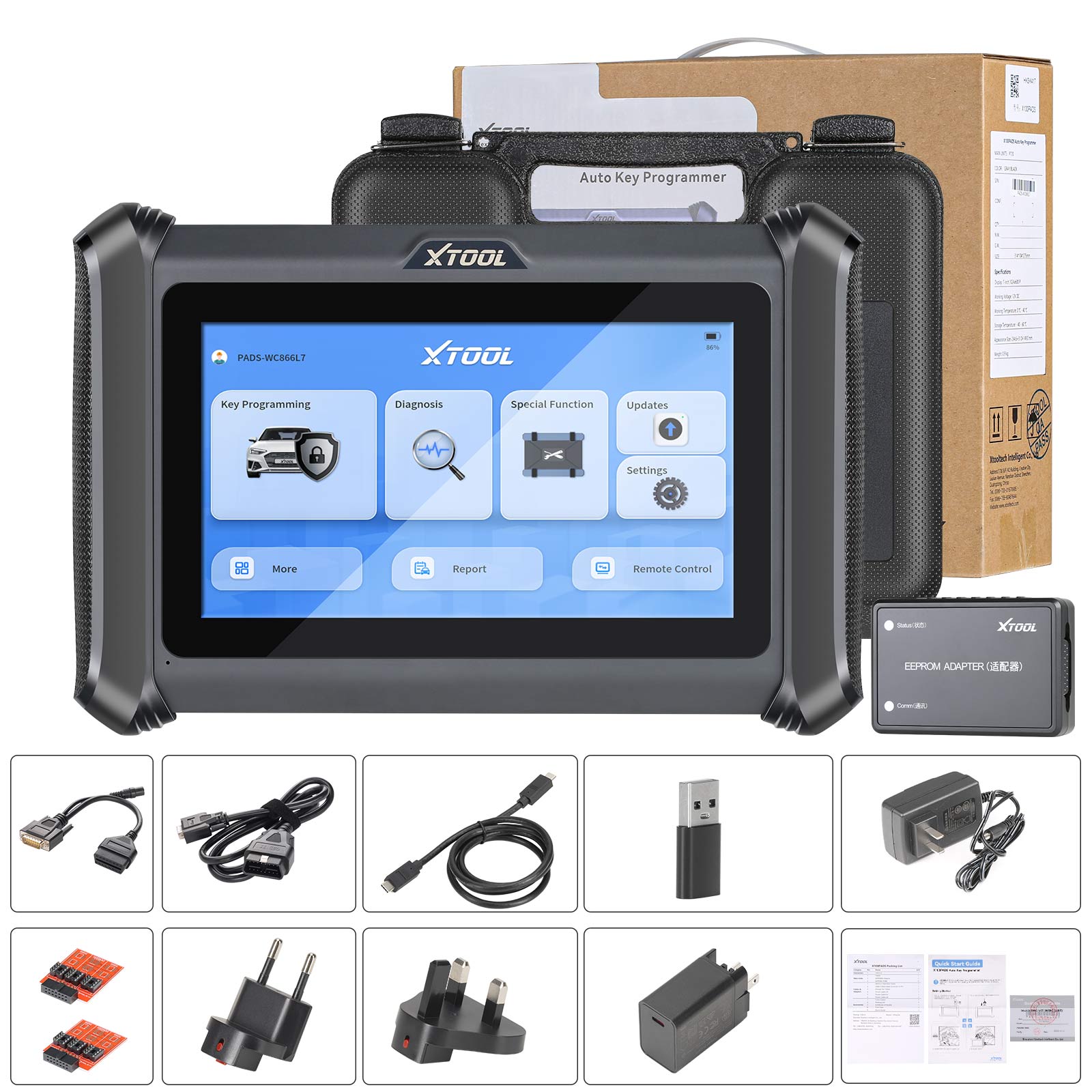

X100PADS Packing List:

1PC X X100PADS Main Unit
1PC X Quick Start Guide
1PC X DB15 to OBD2-16 Main Cable
1PC X Power Charger
1PC X USB3.0 Data Cable
1PC X Charger UE
1PC X Charger US
1PC X Charger UK
1PC X Packing List
1PC X Tool Kit
1PC X Carton
