YANHUA ACDP for Volvo (2023-) CEM Interface Board Set 2 Interface Boards

Product Description

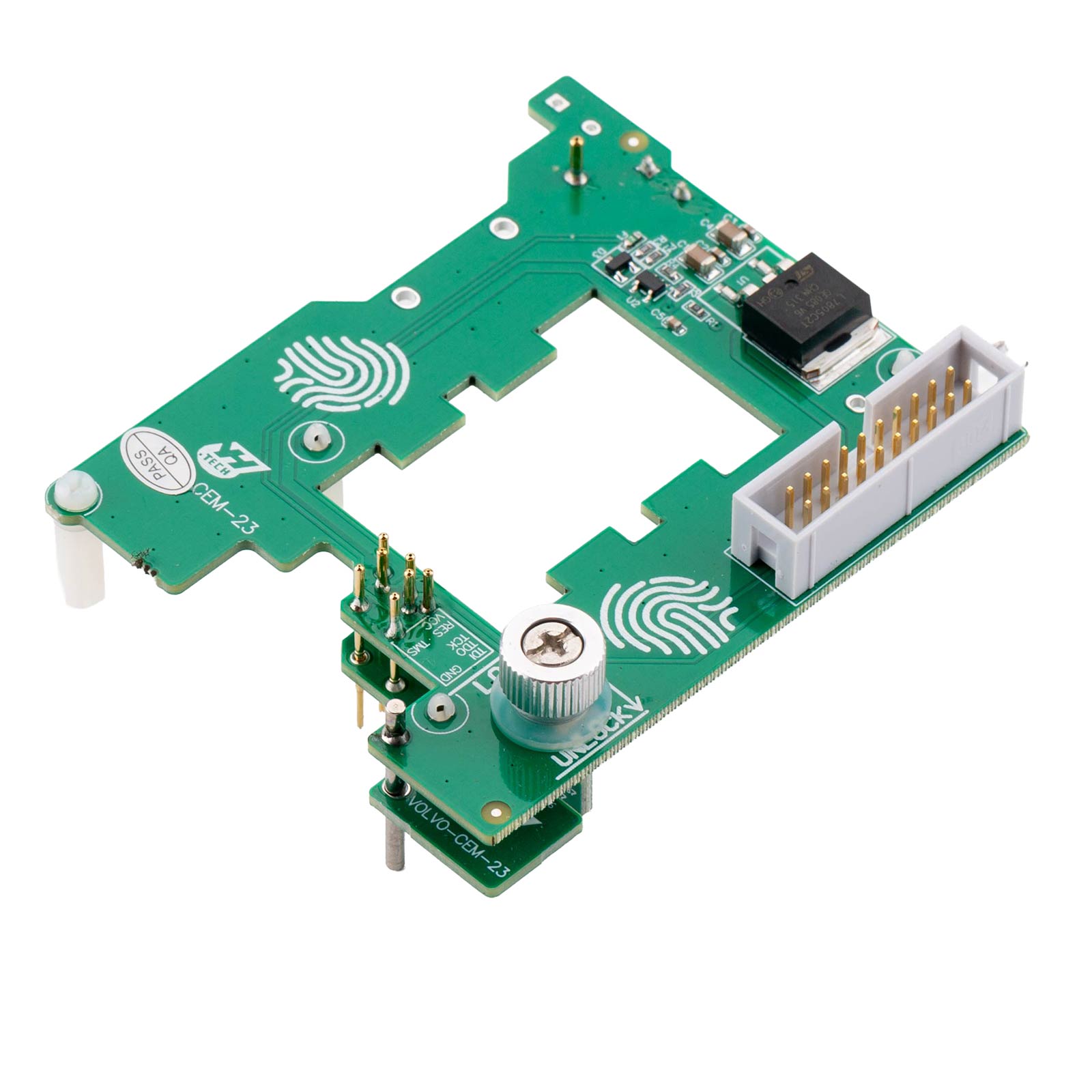

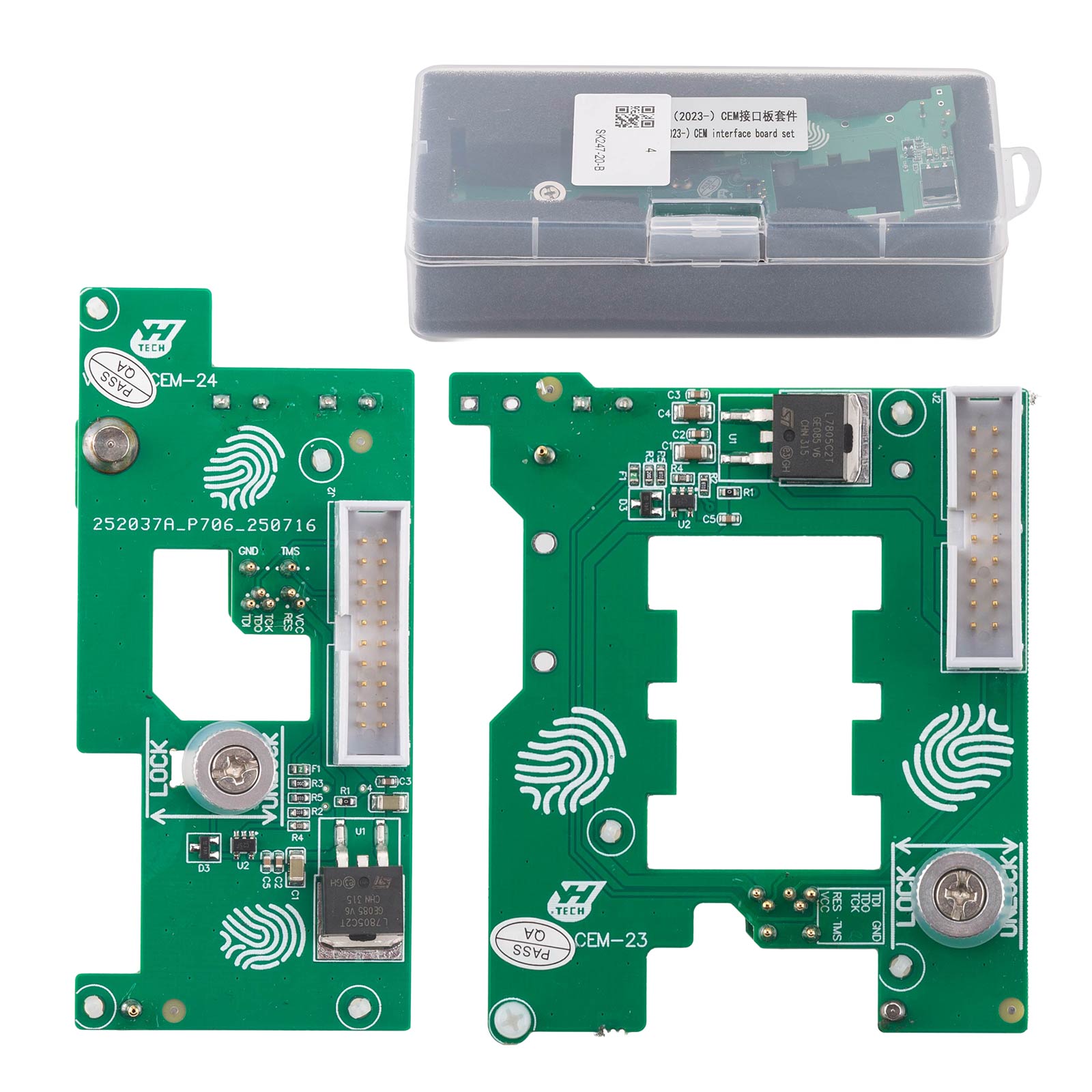

Yanhua Volvo (2023-) CEM Interface Board Set 2 Interface Boards

• If you also wanna for 2022-2023.6 cars, you need to use them together with Module 20.

• If you only wanna for 2023.7-2024 cars, only need a new Board + Module 20 license.

You can buy bundle kit Volvo (2023-) CEM Interface Board With Module 20 License


Can work for both ACDP 1 and ACDP-2

Supported Volvo models:
Supports 2023-2024 Volvo S60/S90/XC60 and Lynk&Co, etc.

Interface board features:
1. Read Volvo CEM, there is no need to dismantle any chip or Components, No soldering, No damage, and No mark.
2. A special interface board replaces welding, pins are intelligently detected, and data reading and writing are safe and reliable.

Connection Diagram:
The CEM module is generally located under the steering wheel on the main driver's side.

CEM chip model: SPC5748C

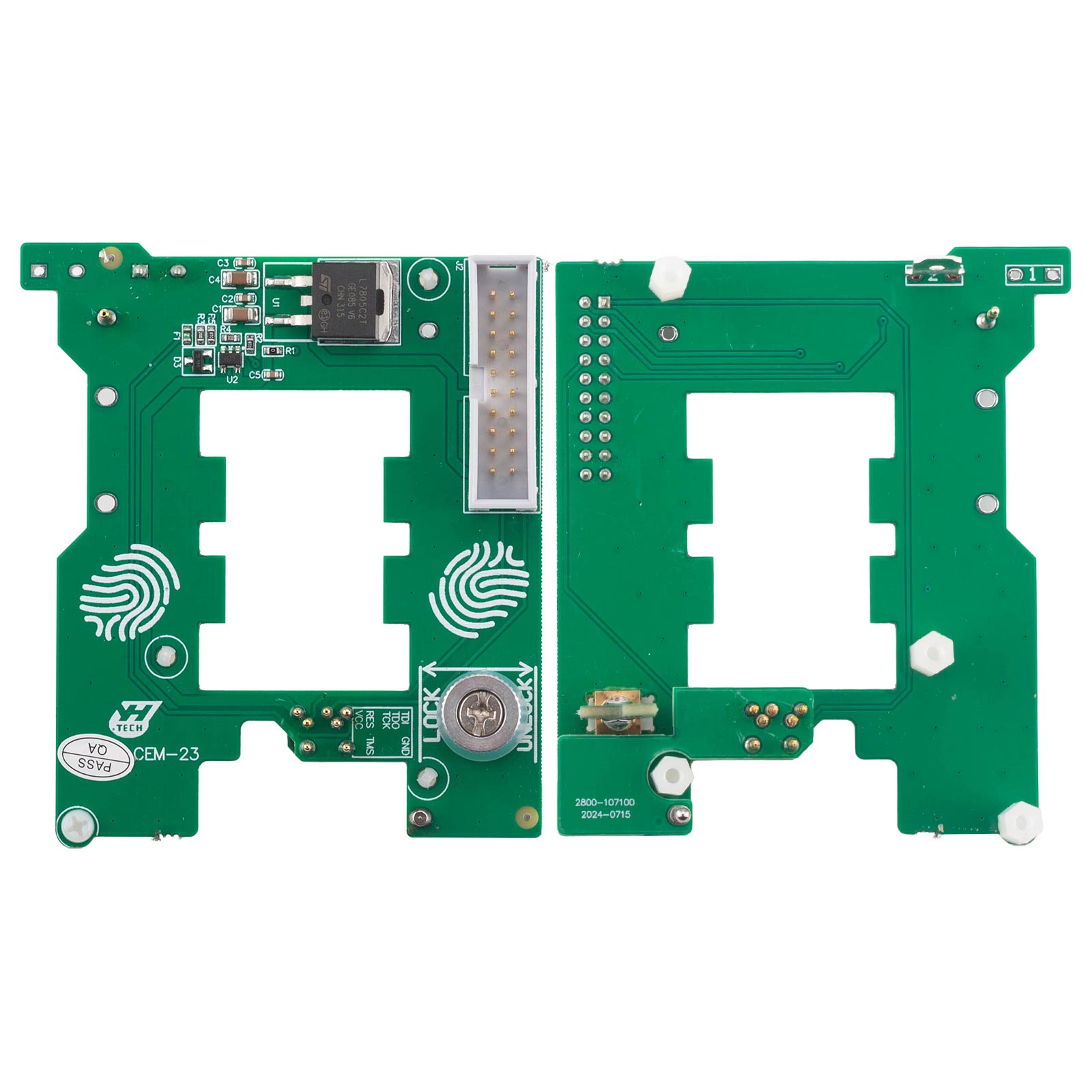

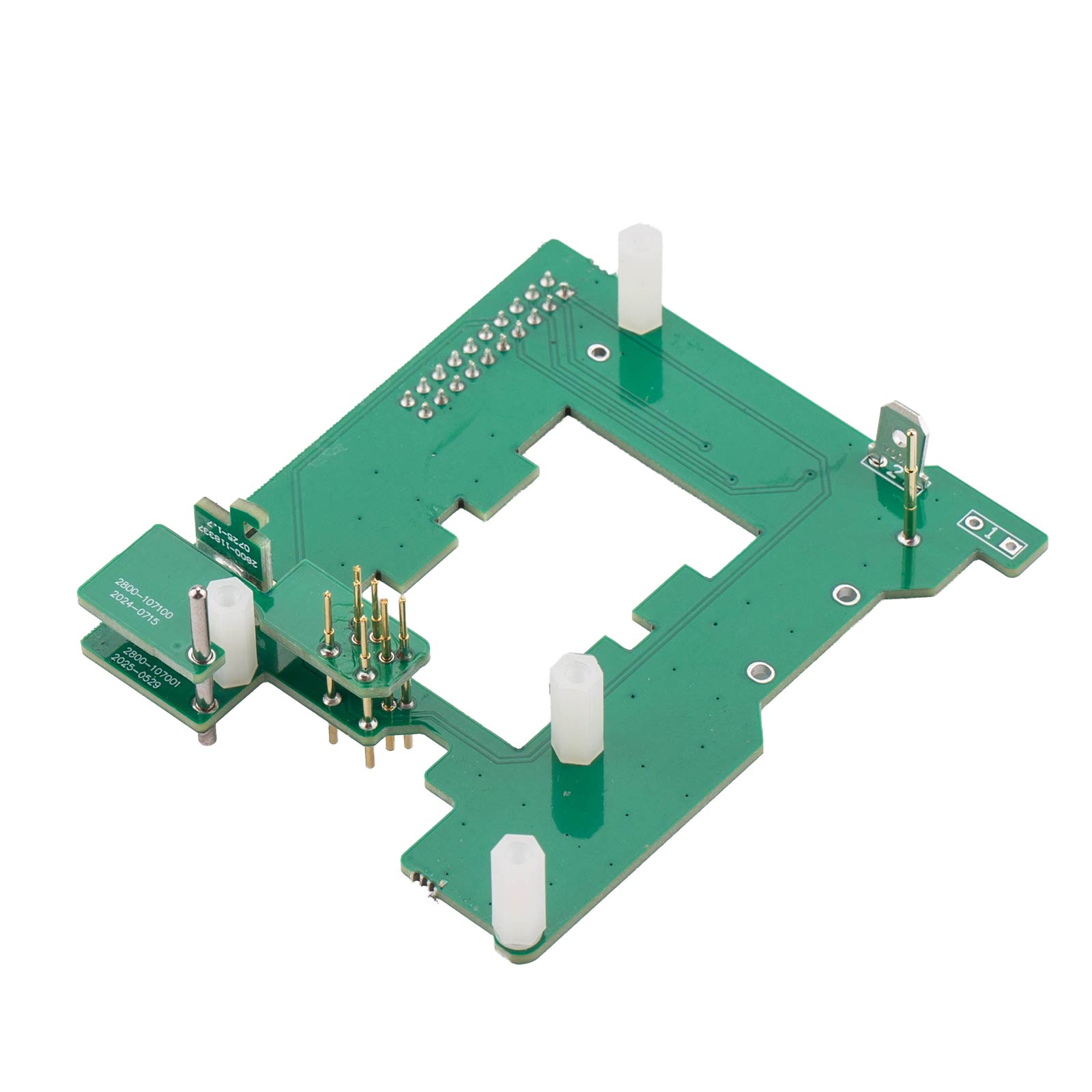

VOLVO-CEM-23 interface board installation required accessories.

Push the lock fastening of the interface board to the unlock position, and find the interface board installation area on the CEM according to the visual positioning mark on the interface board.

Align the interface board with the CEM socket, and align with the two positioning holes, as shown in the figure.


Press down on the interface board, push the PCB lock buckle to the Locked position to lock the interface board, and installation is done.

Lock fastening (VOLVO-CEM-23) interface board overall connection diagram.

CEM chip model: SPC5748G

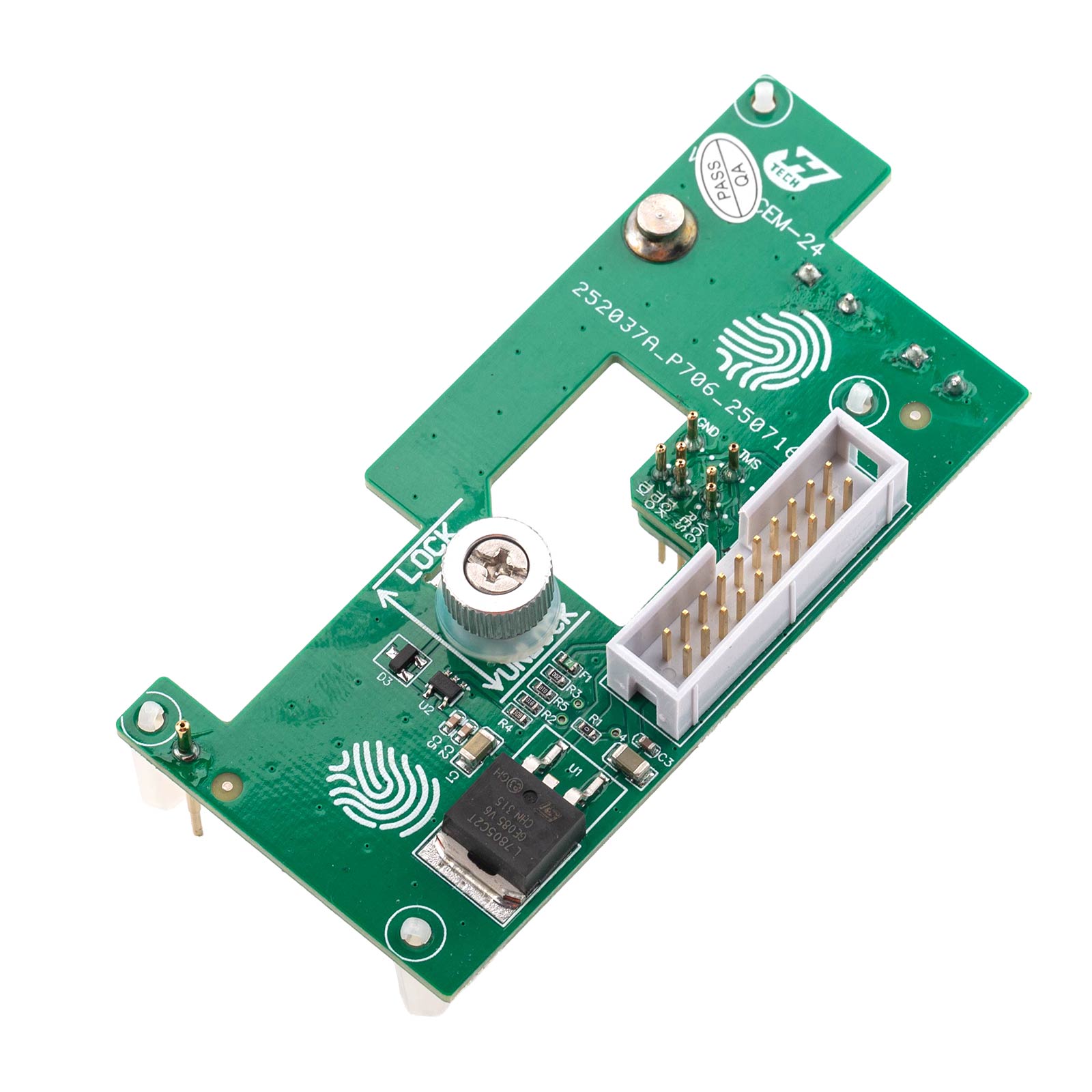

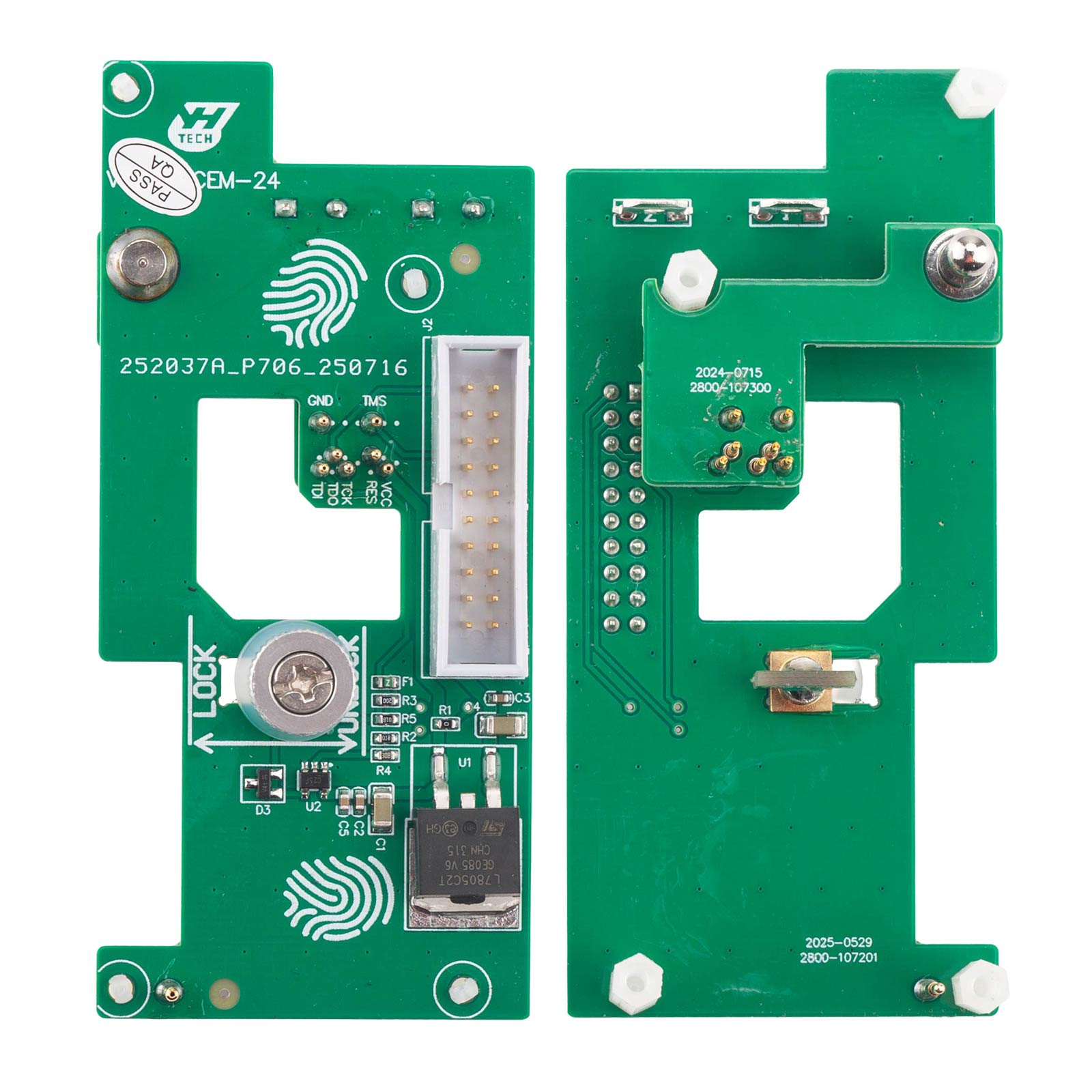

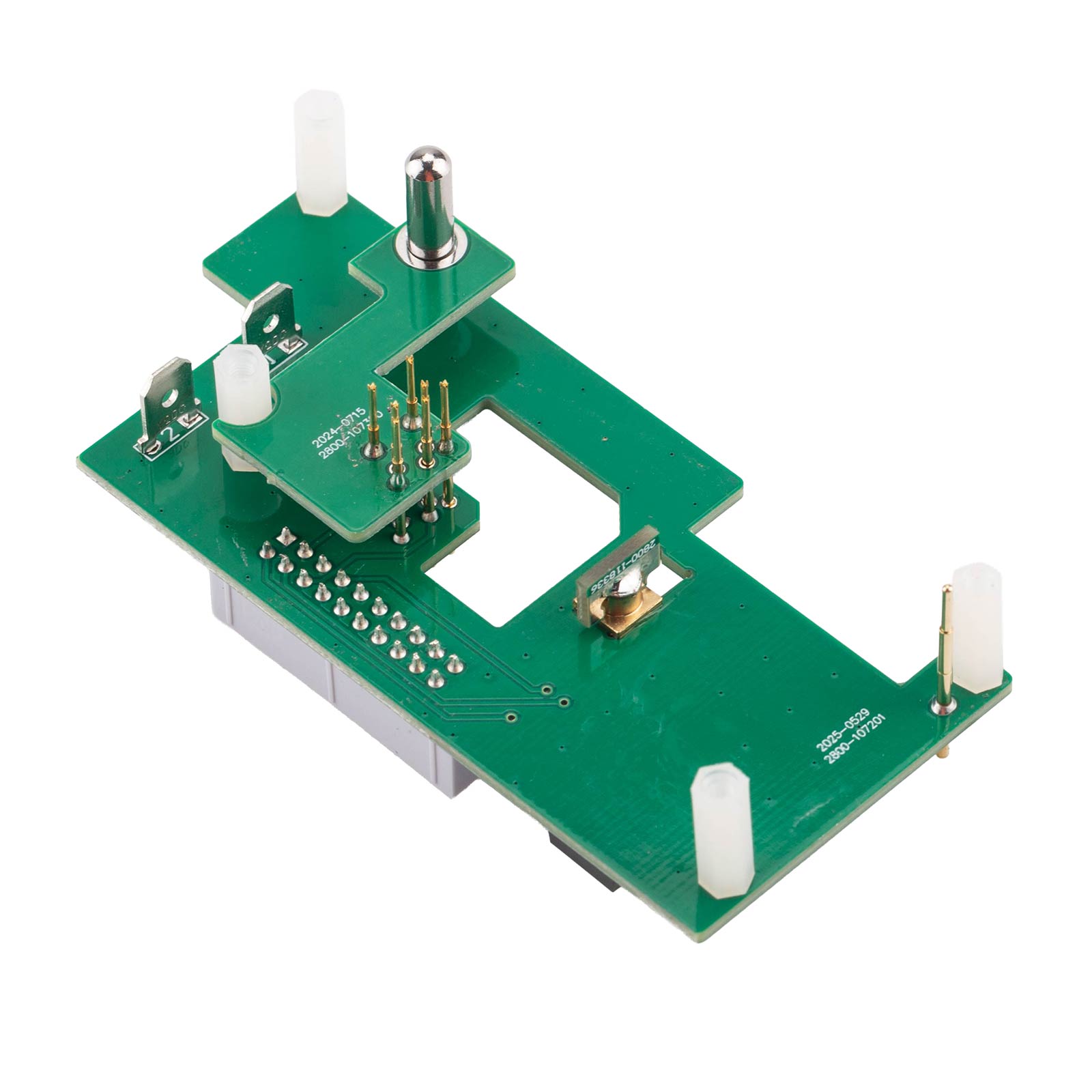

VOLVO-CEM-24 interface board installation required accessories.

Push the lock fastening of the interface board to the unlock position, and find the interface board installation area on the CEM according to the visual positioning mark on the interface board.

Place the interface board against the CEM socket, and align the three positioning holes, as shown in the figure.


Press down on the interface board, push the PCB lock buckle to the locked position to lock the interface board, and installation is done.

VOLVO-CEM-24 interface board overall connection diagram.


Package includes：
