[UK/EU Ship] [With Free MV108S] Autel MaxiSYS MS908S PRO II MS908S Pro2 Diagnostic Scan Tool J2534 ECU Programming for Benz& BMW Coding 36+ Services Active Tests FCA Autoauth

Product Description

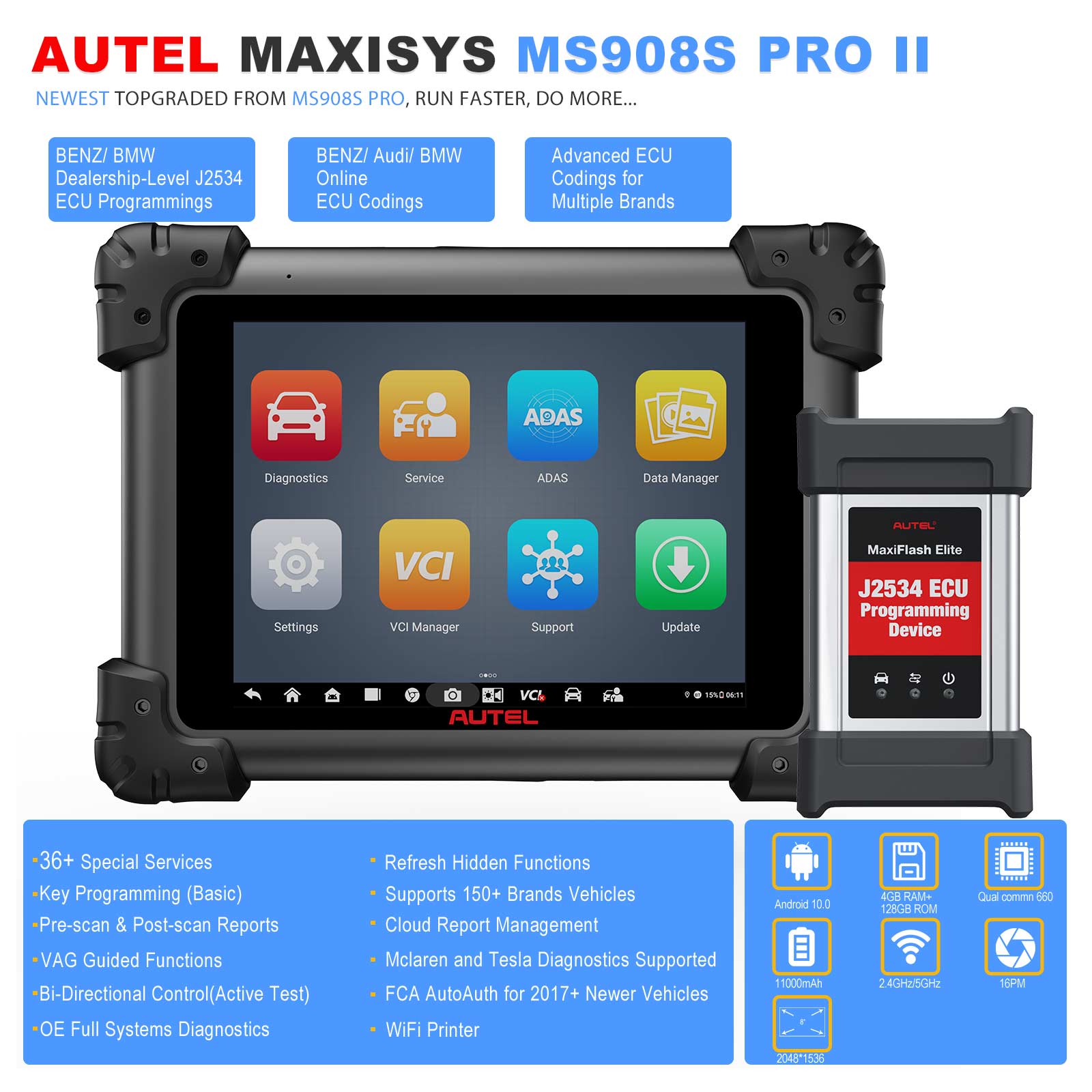

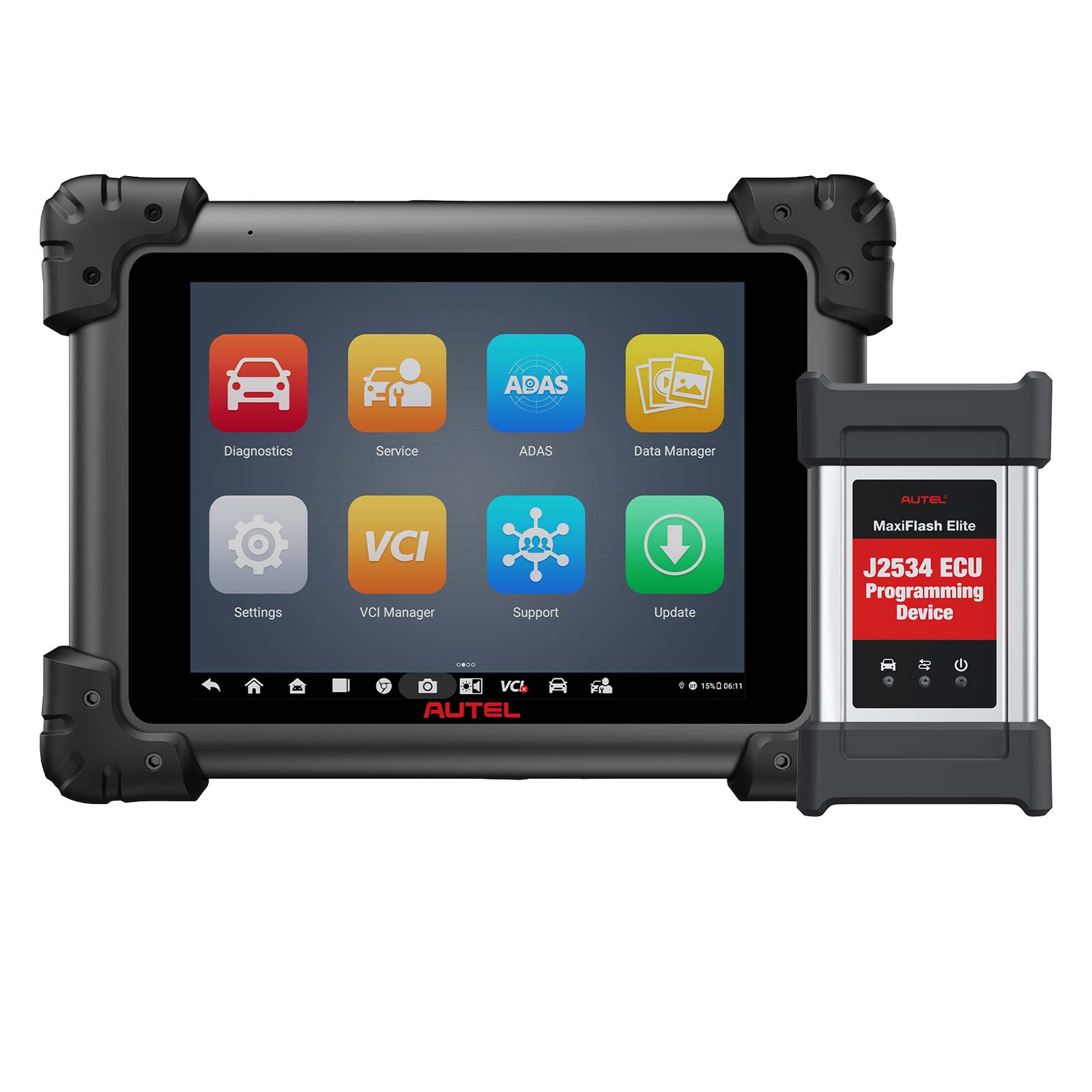

Autel MaxiSys MS908S Pro II Diagnostic Scan Tool

Descrption of AUTEL MS908S PRO II

Autel MS908S Pro II Autel's latest high-end car comprehensive diagnostic scan tool based on the Android 10 OS in 2023.
MS908S Pro II not only inherits many advantages of Autel MS908S Pro/ MK908P/MK908 II in car fault diagnostic technologies, including powerful diagnostic functions, ECU programming specially designed for Mercedes-Benz and BMW, etc. But also adds the latest hardware configuration, More extended functions, wider car model coverage, faster diagnostic speed, higher updating frequency, etc.

• Upgraded of MK908P, MaxiSys Elite,MS908S Pro: Compare to Autel MK908P, autel MS908S Pro II with more functions (Cloud Service/ Remote Expert (since 05-15-2021), wider vehicle coverage(support MACLAREN and TESLA diagnostic), and better technical s-upport (both online seller and US local agents support ). MS908S pro II same Functions as MaxiSys Elite But saves 500 Bucks.
• J2534 ECU Programming for BMW/Benz: Equipped with 1000+ bucks valued J2534 programmer, Autel scanner MS908S Pro II is able to replace the existing software & firmware and program new ECUs (PCM, ECM) for specific BMW and Benz cars.
• Advanced Online ECU Coding: Upgraded from Autel MS906BT/ MK906BT/ MK906 Pro/ MS906S/ MK906 Pro/ MS906, Autel MS908S Pro II with online ECU Coding for software modifications to a vehicle, allowing the use of functions not available in the car when it left the factory. Online coding for VW/ Audi / Porsche/ Benz/BMW.
• VAG Guided & Refresh Hidden for VW/ Audi/ Skoda/ Seat: MS908S Pro diagnostic scan tool with VAG Guided functions with simple step-by-step procedures for quick and accurate car diagnostics. Refresh Hidden can change the settings already in the software and turn on or off some functions according to your needs.
• Bidirectional Control / Active Tests: Active Tests to determine whether a specific subsystem or component in vehicles goes well.
• 36+ Functions: Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector Coding, SAS, Suspension, Throttle Matching, WIN DR ROOF, Seats, A/F, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, still growing
• OE-Level Full Systems: MaxiSYS MS908S Pro ii is able to access all available modules like Engine, ABS, SRS, Trans, EPB, Chassis, Steering, Emission System, Fuel system, TPMS and etc to read/clear codes, view live data in text or graph, retrieve freeze frame data, perform active tests and special functions for accurate diagnosis.
• 10000+ Extensive Vehicle Coverage: KWP/CAN/UDS/OBDII, D-PDU/J2534/RP1210, 2018+ FCA SGW (AutoAuth); cover the overwhelming majority of vehicles made of US, Asian, and European.
• Support 1 year free update online, after 1 year buy the update service

1. Full Diagnostics for McLaren & Tesla: Autel MS908S Pro II can work on McLaren, Tesla new energy vehicles to complete full system diagnosis, which other scanners cannot do.
2. FCA Vehicle Access: For the FCA vehicle equipped with the Security Gateway module, MS908S Pro II diagnostic scan tool can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations. Compatible with Fiat, Chrysler, Alfa Romeo, etc.
3. Battery Tests (work with BT506): Combined with the BT506 battery detector, MS908S Pro II can scan the BMS module, detect the battery type, aging condition, and storage condition, and give appropriate maintenance advice. Note: BT506 needs extra purchases.
4. Compatible with MV105/MV108: This bundle includes Autel MV108 digital inspection camera. It can turn your MaxiSys MS908S Pro scanner into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight.
5. Pre & Post-Scan: Pre- and post-scan reports keep your clients informed of the repair details and provide them with the evidence to settle insurance c~laims.
6. Scan VIN and Scan License: These two methods provide faster access to car information such as car manufacturer, model year, model, body type and code, engine code, and assembly location. This saves more time than manually entering the VIN.
7. Wi-Fi Printing: You can easily print the above diagnostic reports wirelessly from your diagnostic scanner via a Wi-Fi printer.
8. D-PDU/RP1210 New Protocols: Adds the latest D-PDU/RP1210 Protocols to cover newer vehicles.

•  Qualcomm 660 Octa-core processor (2.2GHz Quad-core A73 + 1.8 GHz Quad-core A53)
• 9.7-inch touchscreen Wi-Fi tablet
• Bluetooth-enabled VCI/J2534 pass thru programming device with wireless range up to 70 meters
• Rechargeable lithium battery delivers 7.5 hours of continuous performance on a single charge
• Comprehensive Service Menu for direct access to most commonly performed service tasks
• 128G storage memory for maintaining of all needed brand diagnostics software
• Android 10.0 operating system
• Extensive vehicle coverage •Comprehensive Service Menu for direct access to most commonly performed service tasks
• Read/Erase Codes on all available systems
• Perform bi-directional active tests
• Perform adaptations and coding View freeze frame data and view and graph systems live data

Advanced ECU Programming for Specific BMW & Benz

Autel MaxiSys MS908S Pro II with J2534 ECU programming device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues for some BMW and Benz.

NOTE: ECU Programming applies to specific BMW & Benz vehicles ONLY.

Online ECU Coding for VW/ Audi / Porsche/ Benz/BMW

Autel MS908S Pro ii has the capability of ECU coding to optimally code your car by changing some settings to fit your needs, such as setting alarms, door locking, etc.
Access the ECU to make full use of the hidden features or disable the car’s annoying functions:1. Changing the color of interior lights 2. Switching on/off the auto hold, 3. Customizing dash kits 4. Activating the auto side mirrors folding functiond 5. Disable auto start-stop .
Provide excellent solutions for issues of drivability, power loss, fuel efficiency, etc. to improve the car’s performance.




Product Comparison:


	MaxiSys MS908S Pro II	MaxiSys MS908S II	MaxiSys MS906TS	MaxiSys MS906BT	MaxiSys MS906
All Systems DTC Scan	√	√	√	√	√
Service   Function	√	√	√	√	√
Bi-Directional   Control	√	√	√	√	√
Auto   VIN Technology	√	√	√	√	√
ECU   Coding	√	√	√	√	×
ECU   Programming	√	×	×	×	×
MaxiFix   Cloud-Based Info System	√	√	√	√	√
Data   Manager	√	√	√	√	√
Shop   Manager	√	√	√	√	√
Remote   Support	√	√	√	√	√
Pre-scan   Report & Post-scan Report	North America Only	North America Only	√	North America Only	North America Only
Print   Feature	√	√	√	√	√
Multi-language   Support	√	√	√	√	√
Domestic/Asian/European Coverage(1996-Present)	√	√	√	√	√
Display   Size	9.7"	9.7"	8"	8"	8"
Wireless   VCI	MaxiFlash Elite	Wireless Diagnostic Interface	MaxiVCI V100	MaxiVCI V100	×
Battery   Life	11000 mAh 3.7 V	11000 mAh 3.7 V	10000 mAh 3.7 V	10000 mAh 3.7 V	5000 mAh   3.7 V
Memory Storage	128GB	128GB	32GB	32GB	32GB
Connector   Kit	√	√	√	√	√
TPMS	×	×	√	×	×
Oscilloscope	√	√	√	√	×
Inspection   Camera	√	√	√	√	×
ADAS	√	√	×	√	√

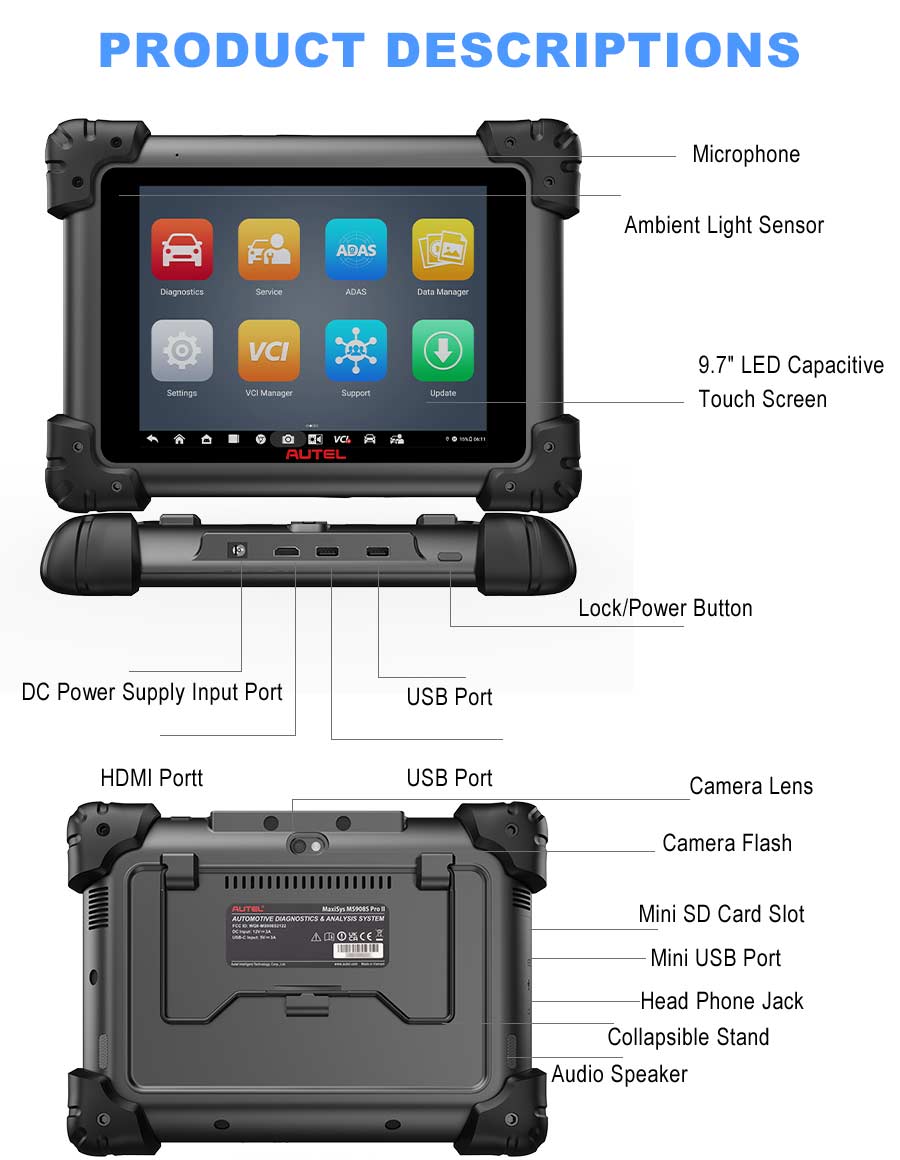

Specifications:


Operating System	Android™ 10.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 +   1.8GHz Quad-core A53)
Memory	4GB RAM &128GB On-board Memory
Display	9.7 inch LED capacitive touch screen with 2048x1536 resolution
Connectivity	Wi-Fi (802.11 a/b/g/n/ac) USB   2.0 (2 USB TYPE-A ports and a Mini USB port) BT V5.0 + BR/EDR SD Card (Support up to 64GB) HDMI
Camera(rear)	16 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and   45°C
Input Voltage	12V (9-24 V)
Power Consumption	6.5W
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions(WXHXD)	300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight	NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)
Protocols	ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code,   SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed,   Middlespeed, Lowspeed   and Singlewire CAN,GM UART, UART Echo Byte Protocol, Honda Diag-H   Protocol, TP 2.0, TP 1.6, SAE J1939,SAE J1708, Fault-Tolerant CAN

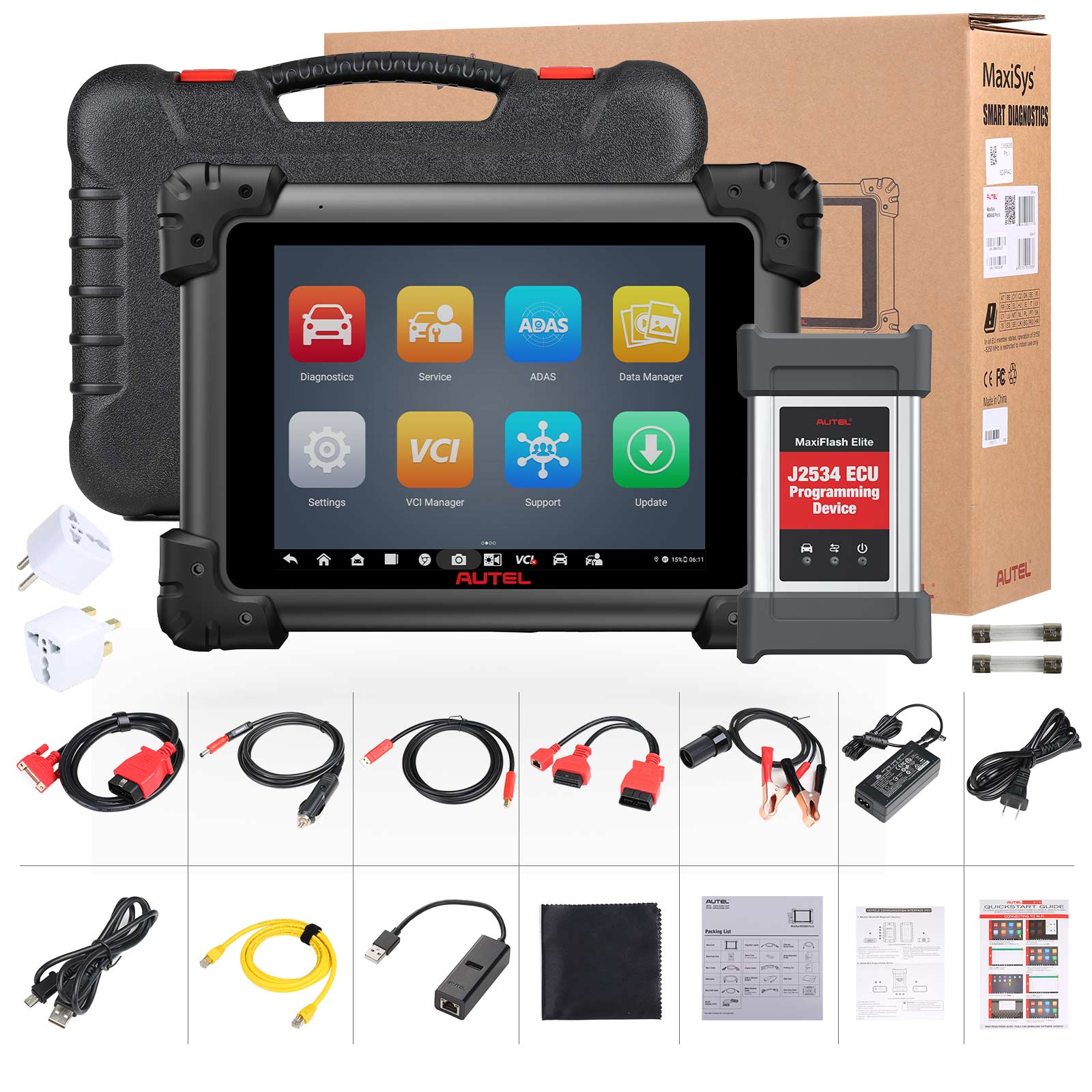

Packing List:

1pc x Autel MaxiSYS MS908S Pro II Tablet
1pc x Main Cable — 1.5 m in length
1pc x Standard 2.0 USB Cable
1pc x Mini USB Cable
1pc x AC/DC External Power Adapter
1pc x Auxiliary Power Outlet Adapter
1pc x Ethernet Serial Cable
2pcs x Spare Fuse
1pc x Clamp Cable
1pc x USB to Ethernet Adapter
1pc x BMW Ethernet Cable
