Product Description

CGDI CG100X New Generation Smart Car Programmer

Advantages of CG100X:


• Functions Including Airbag Reset, Mileage Adjustment, ECU, and BCM Chip Reading
• Support BMW Land Rover Key match
• Free Update for 1 Year, after one year, it will cost $89 per year. If not forced to update, the device can still perform if you don't want to pay for the update cost after the first year.
• Language: English/ Chinese
• CG100X Latest Software Free Download
• How to activate CGDI CG100X Programmer
• CG100X Airbag Reset Vehicle List
• CG100X Dashboard Vehicle List
• CG100X ECU Vehicle List
• CG100X BCM Vehicle List
• CG100X Support VW Dashboard and Chip List

Kind Note
1. Please replace the PRO V1 harness with a PRO V2 harness free of charge. And the PRO V1 harness will have limited functionality after one month.
Buy CG100X Now, Get Free PRO V2 Harness in Package
2. If your CG100X was bought before, please buy PRO V2 Harness separately.
3. The menu Programmer only supports read and write, please enter into the Dashboard menu for mileage correction



if the model is not in the dashboard menu, how to change the mileage

First, enter the programmer to read the data.
Tell us your detailed module information.
If it is a dashboard module, tell us the detail year, model original KM, and how much KM you wanna change.
If it is an Airbag module, take a picture of the Airbag cover shell, the original faulty code picture
Send us the original data, and the engineer will change it well, then the customer can write it back, and the mileage change will be successful!


CG100X Update information:

CG100X 2.1.1.0

1. Added 69 models to airbag.
2. Added 1 models to read-write.

The following models are added for Body repair.
BAIC A00043650 R7F7010643(encrypted)
BAIC A00043673 R7F701A033(encrypted)
BAIC A00108505 R7F701A033(encrypted)
BAIC A512C00112 A00108504 R7F7010643(encrypted)
BYD AUTO SL2H-3658100 R7F7010643(encrypted)
DongFeng 3658100-SE01 R7F701A033(encrypted)
DongFeng CM5J-5824010 R7F7010643(encrypted)
DongFeng SX5-5824010 R7F701A033(encrypted)
Toyota 8040003CVN0200 R7F7010643(encrypted)
Ford MK7T-14B321-AA R7F701A033(encrypted)
Ford MK7T-14B321-AB R7F701A033(encrypted)
GAC AION 8040003AFC0001 R7F7010643(encrypted)
GAC AION 8040003CVN0100 R7F7010643(encrypted)
Trumpchi 8040003CAD0103 R7F701A033(encrypted)
Trumpchi 8040003DRD0000 R7F701A033(encrypted)
Trumpchi 8040003ERD0000 R7F701A033(encrypted)
ARCFOX A512C00112 E00107516 R7F701A033(encrypted)
ARCFOX A512C00112 E00117805 R7F7010643(encrypted)
ARCFOX A512C00112 E00128355 R7F7010643(encrypted)
ARCFOX A512C00112 E00133011 R7F7010643(encrypted)
JAC 5824901U3400 R7F701A033(encrypted)
JAC 5824901U3402 R7F701A033(encrypted)
JAC 5824901X4401 R7F701A033(encrypted)
JAC 5824901S5503 R7F7010643(encrypted)
JAC 5824901S5503 R7F701A033(encrypted)
Chery 407000746AA R7F7010643(encrypted)
Chery 407001075AA R7F7010643(encrypted)
SAIC C00060652 R7F701A033(encrypted)
SAIC C00204141 R7F701A033(encrypted)
SAIC C00363122 R7F701064(encrypted)
wei lai P0203850 R7F701A033(encrypted)
WuLing 23663031 R7F7010643(encrypted)
WuLing 23764776 R7F701A033(encrypted)
WuLing 26155513 R7F7010643(encrypted)
WuLing 27100523 R7F7010643(encrypted)
WuLing 27107077 R7F7010643(encrypted)
WuLing 27178893 R7F7010643(encrypted)
WuLing 23764772 R7F7010643(encrypted)
WuLing 23755014 R7F7010643(encrypted)
WuLing 23756588 R7F7010643(encrypted)
Xiao Peng 6590001DG1 R7F7010643(encrypted)
FAW 1BA5-57K30 R7F701A033(encrypted)
FAW 8203115-BA01 R7F7010643(encrypted)
FAW 8230115 BG01 R7F7010643(encrypted)
FAW 8230115-BH01 R7F7010643(encrypted)
FAW D077 C0 LLE07 8230115-BB02 R7F701A033(encrypted)
FAW 8250115-BQ01 R7F701A033(encrypted)
FAW E311 LLE07 8230115-BN01 R7F701A033(encrypted)
ChangAn 3658100-MK09-FL01 R7F7010643(encrypted)
ChangAn 3658100-CD02 R7F701A033(encrypted)
ChangAn 3658100-MK01-CJ01-AA R7F7010643(encrypted)
ChangAn 3658100-MK01-W01-AC R7F701A033(encrypted)
ChangAn 3658100-MK03-M52 R7F7010643(encrypted)
ChangAn 3658100-MK05-BN35 R7F7010643(encrypted)
ChangAn 3658100-MK06-DE03 R7F7010643(encrypted)
ChangAn 3658100-MK09-AW01-AA R7F7010643(encrypted)
ChangAn 3658100-MK09-CD51 R7F7010643(encrypted)
ChangAn 3658100-MK09-DE02 R7F7010643(encrypted)
ChangAn 3658100-MK09-ES01 R7F7010643(encrypted)
ChangAn 3658100-MK09-EY01 R7F7010643(encrypted)
ChangAn 3658100 MK01 AK60 R7F7010643(encrypted)
ChangAn 3658100 MK06 CD01 R7F701A033(encrypted)
ChangAn 3658100-MK06-CR30 R7F7010643(encrypted)
ChangAn 3658100-MK09-AW01 R7F701A033(encrypted)
ChangAn 3658100-MK09-DY05 R7F701A033(encrypted)
Great Wall 3658100XNW60A R7F7010643(encrypted)
Great Wall 3658110XNW19A R7F7010643(encrypted)
Great Wall 3658111XKN02A R7F7010643(encrypted)
Great Wall 3658112XVD01A R7F7010643(encrypted)

The following models are added for dashboard read-write.
Trumpchi T51 SE203 8040003AFT0000 R7F7010643(encrypted)(read write)

CG100X 2.0.7.0
1. Added 6 models to India Advanced Edition.
2. Added 37 models to dashboard.
3. Added 1 models to airbag.
4. Added 3 models to read-write.

The India Advanced Edition adds the following models.
Honda Motor Activa S6J336CHTB
Mahindra Marazo 24C16
Mahindra Thar Roxx 24C16
Mahindra Thar 24C64
Hyundai Aura 2024- 24C32
Hyundai I20 2022- 24C32

The following models are added for dashboard.
Arit Street Sweeper STM8S105S4
BAIC BJ30 9S12ZVH128(Dashboard)+95320(BCM)
Honda Motor Honda 24C04(Write board)
BYD AUTO V3 Electric Van R5F10TPJL
DongFeng Dolika D9 PIC18F66K80
DongFeng Captain K5 R5F10PXXX
feifan R7 R7F701649(Main Unit)+95640(Body)
Toyota Land Cruiser VXR 4.7 (Middle East Version) 93A86
Ford YeMa 2019- 93C86(US Standard)
FOTON Tractor Truck (Cummins A13580) 93C86
KYMCO KS125 R5F10DPECJ
Trumpchi GS3 95160
JAC Forklift 9S12HY64
JMC Luda 2024- 24C32
JMC JMC Avenue 2025- 24C08
JMC V7H R7F701461
Jaguar XEL 2021- 24C64
JieFang JK6 2024- 24LC04
JINPENG Rongguan PIC18F45K80
Caterpillar 301.7 DCR Excavator 24C01
KAIwo Box Truck 24C08
Excelle 450RR 24C32
leijun L3 2017- R5F10CXXX
Long Xin Voge 24C02
NETA U 24C32(Cockpit Domain Controller Assembly)
Chery Yaoguang 24C64
Venucia Venucia T60EV FS32K148(Main Unit)
XIAgong Forklift PIC16F917
Lingong 955 9S12HY64
HONGYAN Genlyon H6 560 24C16(Write board)
SRM T50 EV 24C16
XCMG Hanfeng New Energy 95320
YAMAHA NVX 2023- PIC18F87K90
Ford New energy STM8S105S4
YUEJIN S80 2025- 24C16
ChangAn CS15 EV PRO 2020- 25640
ChangAn EADO PLUS 2025- 24C16(Write board)

The following models are added for airbag.
Leapmotor 5723100-BE01 R7F701010

The following models are added for dashboard read-write.
Trumpchi M8 2023- R7F701651(Head Unit)(read write)
Chery 407000745AA R7F701018+95640(read write)
WANDA Bus 2014- CAT1025(read write)

1. Added remote generation function, supporting the generation of Wire Remote, Wireless Remote, and NXP Smart Remote using CG100X.

2. Added multi-partition read/write function for some models; some chip models support back-up of other partition data of the chip on the model page.

Optimized the read/write function of the Trumpchi M8 head unit R7F701651DFLASH.
Optimized 9S08 error code prompt.
Optimized the read/write function of the Suzuki airbag R7F701042.
Added remote generation functions.
Added read/write repair function for Leapmotor R7F701010.
Optimized SPC/MPC read/write speed.
Added decryption functions for R7F701008/9/10, and fixed bugs.
Optimized the decryption driver for Toyota R7F701644.


CGDI CG100X Highlights:

1. Top ten accessories, functional classification
In addition to the main unit, it comes with 10 kinds of accessories, and the functions do not overlap; the DB25 connection method is used, which is more stable and safe; the wire number is clearly marked to avoid welding errors.

2. Reading and writing speed up, status monitoring
Compared with conventional programmers on the market, CG100X has an overall speedup of more than 120% for chip reading and writing, and some chips can reach 200%. The operation is monitored in real-time to protect data and chips.
For large-capacity eight-pin chips, the speed of reading and writing is increased by more than 500%, shortening the operation time, so that customers no longer have to wait, and truly achieve twice the result with half the effort.

3. Eight pins without dismantling, pin detection#
Supports eight-pin chips without dismantling, avoiding the risk of back-and-forth soldering. Strong drive capability, free from communication interference.
Provide pin detection, red means poor contact, green means good contact, and visually display the pin status.
It is more compatible with Honda instruments without dismantling and provides wiring diagrams to avoid motor damage caused by disassembling the pointer. More disassembly-free wiring diagrams are continuously added.

4. Intelligent algorithm, real-time upgrade
Automatic analysis of instrument kilometers, the error does not exceed 32 km, some hybrid models support modification of HEV+EV, engineering vehicles can modify working hours, and more than 50% of trucks provide fuel consumption modification.
Airbag computer reset provides two solutions: fault clearing and data overwriting.
① Fault clearing: The original data is stored in the chip, and the fault code is clear, such as collision fault or air curtain fault. If you choose this repair method, only the relevant fault data in the chip will be cleared, and other data areas will not be affected.
② Data coverage: When we are not sure how many jobs we have received and the data is not the most original, we can choose this repair method. After replacing all the data in the chip, a fault code may be reported due to the different configurations of the vehicle, and we need to reprogram and match.
Focus on the development of R7F7 instrument, D70F instrument, SPC instrument, and new airbag computer, so that 100% of the eight-pin chip can be disassembled, and is committed to covering 99% of the models and modules in the market.

5. Hardware upgrade, data loss prevention
Although CG100X and CG100 are different in one word, the equipment is completely different. CG100X adopts the industry's ideal architecture design and is equipped with the world's most advanced MCU. It is known as a fighter among single-chip computers, and its operation is more stable and safer.
The advantages in hardware come from market demand. We attach great importance to customer feedback and suggestions. CG100X will support new modules and new chips more easily.
Adopting a DB25 communication interface, compact design, and stronger driving ability, OBD mode can be upgraded later and supports CAN, LIN, K, and other automotive communication protocols.

6. Easy access, automatic search
① Open the software without plugging in the device, which is convenient for viewing the vehicle model and functions;
② The car model search automatically matches special characters such as spaces and bars, regardless of the case;
③The general programmer search mask directly displays the chip;
④ In the list interface, click to enter and press Enter to enter;
⑤ Support picture scaling, display file open/save path.


CGDI CG100X Functions:



1. Meter mileage adjustment
The software is embedded with intelligent algorithms, and the mileage data is automatically analyzed. It supports more than 4,600 car models, with a success rate of over 95%. It is closely following the market and is being upgraded in real-time.

2. Airbag computer reset
Contains more than 4,500 ACU models, dedicated to solving airbag faults, analyzing the cause of the light, perfectly clearing the fault code, and giving car owners peace of mind, and more models are continuously added.

3. Car body failure maintenance
Focus on automotive electronic faults, good at repairing various common faults, support engine computer, steering angle, footwell module, keyless entry module, audio amplifier, gearbox computer, 48V light hybrid lithium battery, 12V lithium battery, etc. A body computer that provides vehicle data and assists repairmen in resolving vehicle failures.

4. Accessory clone replacement
Solve the pain points of the repair shop, a single device can replace accessories, data cloning, analysis and repair, and one-click operation without asking for help.

5. Chip data burning
Covers more than 90% of automotive chips, supports more than 1,800 models, reads, modifies, writes, erases, partitions, and saves to meet daily car repair needs, and can also use the browser that comes with the software to analyze data.

Octal chip (EEPROM)
24 series, 25 series, 35 series, 93 series, 95 series, X50 series, S29 series, RH series, CAT10 series, CR series

Fujitsu
MB90 series, MB91 series, MB96 series

Microchip
PIC18F series

Texas Instruments (TI)
TMS series

NXP (NXP)
S32K1 series

Motorola/Freescale
9S08 series, 9S12 series, HC908 series, HC912 series, MAC series, MPC56 series

Atmel
ATMEGA series

Renesas
H8SX series, M32R series, R5F10D series, RH850 series, V850 series

Infineon
TC series, XC series

Saiyi Law (ST)
SPC series, ST10F series, STM32F series, STM8 series

Cypress/Spansion Semiconductor (Cypress/Spansion)
S6J series

6. Car key matching
Support BMW CAS series and Land Rover models, automatically display the key ID and usage status, and assist the locksmith to complete the key matching work.


CGDI CG100X Software Display:


















Difference among CG100X CG100 and CG70:


	CG100X	CG100	CG70
Hardware	The connection software requires a 12V power supply, and the use process is needed	The connection software does not require a 12V power supply, The use process is needed	The connection software requires a 12V power supply, and the use process is needed
Packing	Plastic suitcase	White Carton Box	Plastic suitcase
Annual fee	Free update for 1 year, update costs $89/year. Device can still work if don't pay for update cost after the first year.	Free update for 1 year, update costs $89/year. Device can still work if don't pay for update cost after the first year.	The first year is free to use, annual fee is needed from the 2nd year
Language	English/Chinese	English/Chinese	English/Chinese
Features	1. Instrument adjustment 2. airbag repair 3. Body failure repair 4. BCM module read and write 5. Reading and writing of various non-encrypted chips 6. BMW Land Rover writes key	1. Instrument adjustment 2. airbag repair 3. Engine and computer read and write 4. BCM module read and write 5. Reading and writing of various non-encrypted chips	Mainly work for Airbag repairing, No Welding No Disassembly Get Free ECU Uncover Tool
Highlight	Hardware upgrade, read and write data faster and more stable The upgrade frequency is faster. 1. 8 -foot removal of adapter (CG100 Many customers ask) 2. CAN line communication (similar to CG70) 3. BMW Land Rover Key match (CG100 cancel KEY adapter) 4. Can support more chips, keep pace with the times, and have strong new MCUs. The adapter is upgraded. 5. BCM can be enhanced, for battery repair, and various types of common problems (steering angle), and the future growth will be stronger. 6. All of the CPT wiring will be added (add 3-5K airbag models at a time), mainly for foreign models	Support multiple instrument and airbag repair BMW FRM repair Mercedes-Benz Porsche Battery Repair	No need to disassemble the airbags to repair the airbags without welding 1. Similar to the CPT device, the price is more competitive 2. The operation is easy, no need to disassemble the welding line 3. models are constantly upgrading
Support Models	A total of 1538 chips, 4600 instrument mileage, more than 4,500 ACUs, ECUs, BCM; Contact sales to get the support list	Support 1503 chip models, 4767 instruments, 4570 airbags, ECU, BCM Contact sales to get the support list	Support 3806 airbag models, continuously increasing (final 5000+); Contact sales to get the support list

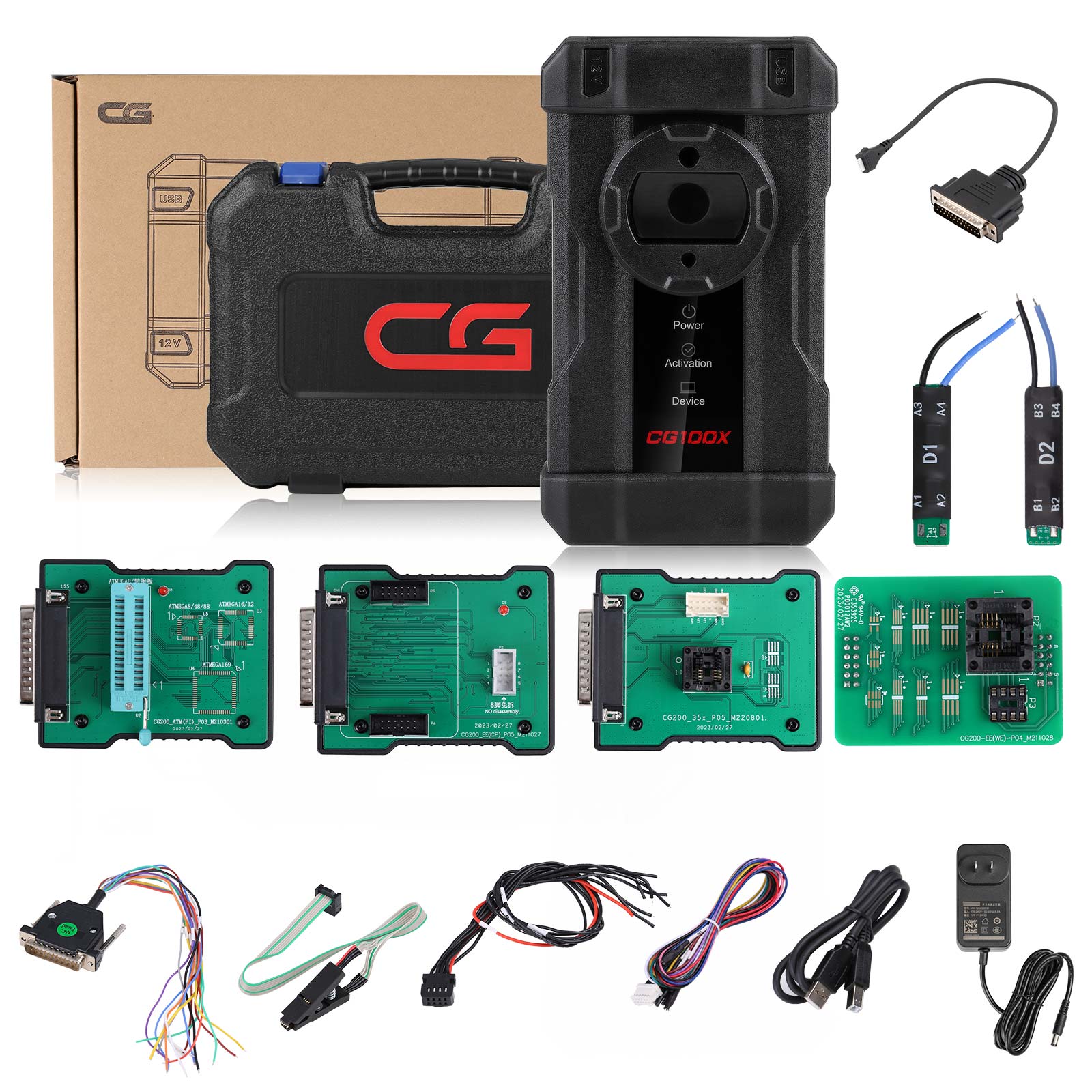

CG100X Package Includes:


1pc x CG100X unit
1pc x EEPROM holder
1pc x EEPROM adapter
1pc x PRO cable
1pc x USB cable
1pc x CAN cable
1pc x EEPROM solering cable
1pc x EEPROM clip
1pc x EEPROM adapter
1pc x Pro V2 cable
1pc x D1
1pc x D2
1pc x Wired Key Programming Cable

---



---

Hot Branded Products:






---

Shipping method and delivery time:

UK Shipping (No Tax) : 2-4 working days arrive. For products marked " UK Ship " and UK local customer
EU shipping (No Tax) : 5-7 working days arrive. For products marked " EU Ship " and from EU countries, if not belong to EU, need to clearance
Yodel (No Tax) :  5-7 days arrive . For products UK out of stock, and customers from UK
Yun Express ( No Tax) :  5 - 9 working days to UK,  7-14 days to other European Countries.
Yanwen (No Tax) : 5 - 9 working days to UK,  7-14 days to other European Countries, ship to all over the world, mainly for UK/EU warehouse no stock
DHL: need to clearance, 3-5 working days arrive. Used for UK/EU no stock, customers request ship this way. Need to clearance, we will declare a low price on the invoice help to clearance.


---

If you have any questions about the device, the price, or the payment, please feel free to contact us.

Contact Person: Elyza

Whatsapp: +86 13983755934

Telephone: +86 13983755934

Wechat: +86 13983755934

Official Email: Sales@obd2shop.co.uk
