Product Description
CK-PROG supports reading/writing for SPC56xx, MAC7, MC68HC(9)12, TC2xx, FS32K1xx, 9s12/9s08, H8S, ATMEGA, PIC16/18, S6J, RH850, RL78, STM8, V850, MB91, and EEPROMs. Features decryption, read/write/erase/lock/unlock/verify, and one-click flashing. Supports Freescale, Renesas, NXP, with more coming.

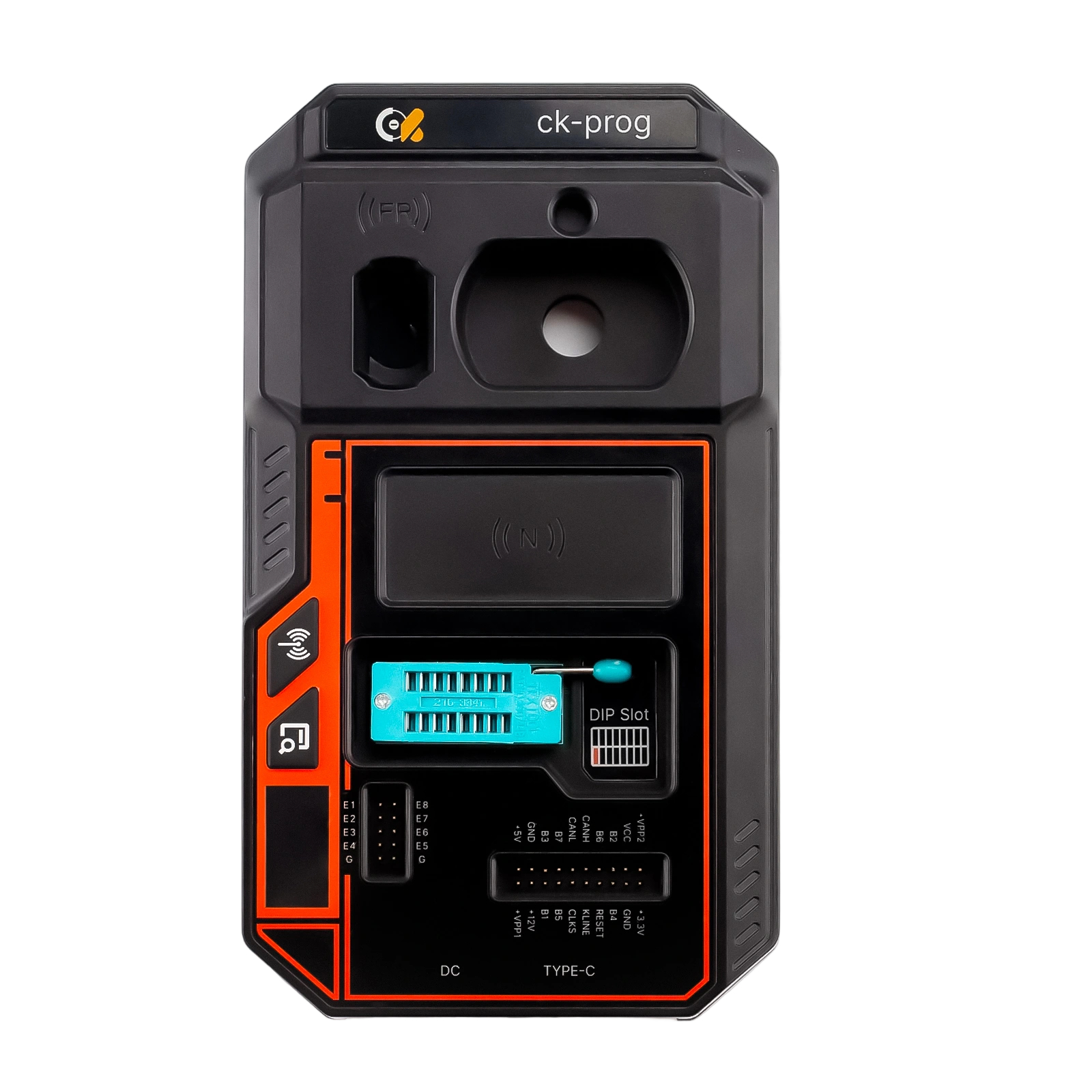

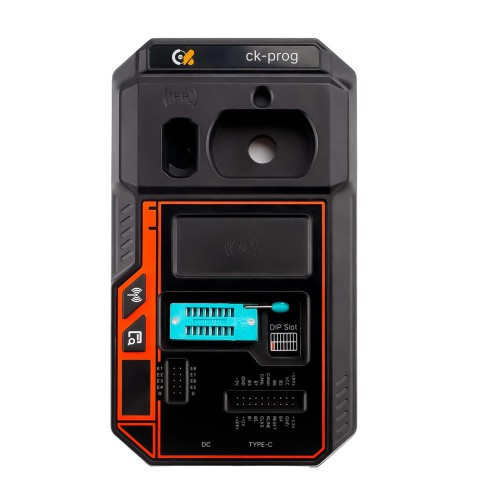

CK PROG Automotive Intelligent Programmer
CK-PROG Description:
The CK-PROG device supports reading and writing data for a wide range of chips, including SPC56xx/SPC564xx/MAC7 series, MC68HC(9)12 series, TC2xx series, FS32K1xx series, 9s12/9s08/M68Hxx series, H8SR5F61725 series, ATMEGA series, PIC16/PIC18 series, S6J series, RH850 (R7F7) series, RL78 (R7F1/R5F5) series, STM8 series, V850 (D70F) 2-wire series, V850 (D70F) 1-wire series, MB91 series, and EEPROM chips, among others. It includes decryption functionality and currently supports chips from Freescale, Renesas, NXP, and others, with additional models in continuous development.
It supports programming operations such as chip reading, writing, erasing, unlocking, locking, and data verification, as well as user-defined programming menus for one-click flashing.
Wiring diagrams are provided for each vehicle model to facilitate user wiring.
CK-PROG Software Features:
1. Core Processing: Upload data to the cloud for processing and repair.
2. Programming module: Supports general-purpose memory and MCU options.
3. Automotive Electronics Repair Functions
Airbag repair: Cover 80%-90% of airbag control modules available on the market.
Odometer correction: Covers 75%-85% of instrument clusters on the market.
Repair of commonly damaged modules: includes standard steering locks and frequently damaged body control modules.
4. Key-related Function:
Key unlocking: Unlocks standard OEM keys available on the market.
Key detection: Detects key chips and frequencies.
Supports copying both encrypted and unencrypted keys, including for BMW BDC2, BDC3, U-chassis, and LCD keys, onto new or used key shells.
5. Immobilizer/ Immobilizer Programming Function:
Immobilizer data processing: Load immobilizer data into the vehicle's immobilizer control unit and write/start the system.
6. Auxiliary Functions:
User-defined programming menu and one-click flashing. Program log recording(including logs of updates, diagnostics, and other processes). Wiring diagrams and guidance.
7. Automotive Electronics Repair Functions
Airbag Repair: Resets the “crash lockout status” and clears fault codes stored in the airbag control module after airbag deployment, thereby unlocking and restoring the module to normal operational condition.
Applicable Scenarios: Apply to 80%-90% of common vehicle models on the market (e,g., for Volkswagen, for Toyota, for Honda, allowing repair of the airbag control unit without hardware replacement.)
Odometer /Dashboard Calibration: Calibrates displayed data on the vehicle's dashboard, including odometer reading, fuel gauge accuracy, and tachometer/speedometer display errors, to correct abnormal or inaccurate readings.
Applicable Scenarios: Suitable for 75%-85% of vehicles with mechanical or digital instrument clusters(e.g., cases involving erratic mileage jumps or inaccurate fuel level indications).
8. Repair of Commonly Damaged Modules
Resets and repairs fault data in commonly damaged modules such as the steering column lock module(direction lock) and body control modules(BCM).
Applicable Scenarios: Steering lock jamming or failure. Intermittent malfunctions in body control modules(e.g., erratic window operation, door lock failures)
9. One year free update: The programming function can still be used without upgrading, but the other features require a paid upgrade.
CK-PROG Specifications:
USB Interface: USB 2.0
External Power Supply: 12V/2A
Power: 1W
Product Dimensions: 176mm x 101.5mm x 31mm
Accessories Introduction:
MCU - Cable V1 Programming Cable: widely compatible, supports programming of various chips, clearly labeled wire numbers, ensuring stable and safe soldering.
Precautions:
1. After soldering, please inspect all connections to ensure they are correctly connected.
2. Do NOT extend the CLK line or the GND-C line yourself, as this may cause data reading failures.
ATMEGA Adapter: compatible with various chip specifications, including 8/16/32-pin packages.
Supports odometer correction and chip erasure.
Octagonal Adapter Board: Used together with an adapter socket to program 8-pin chips.

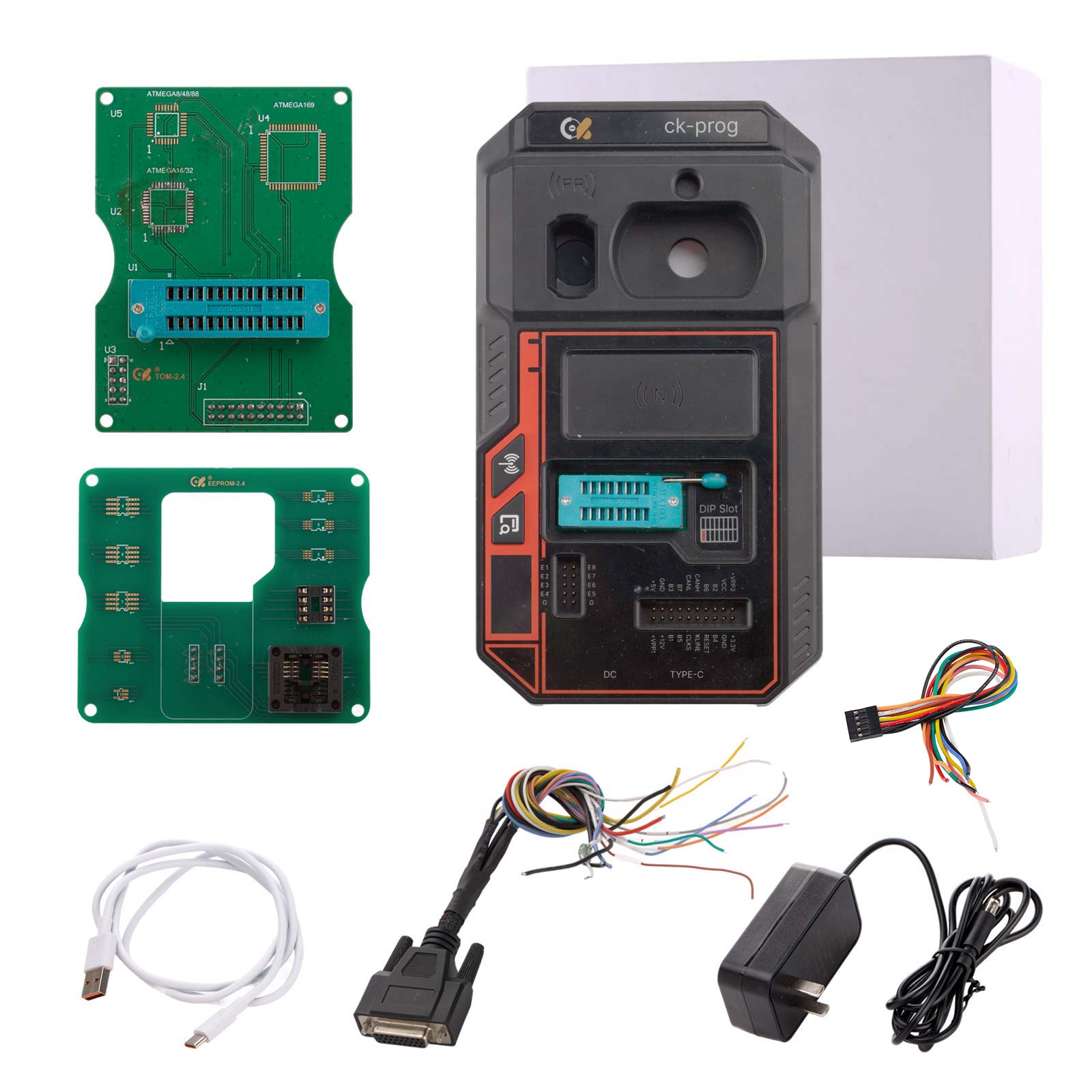

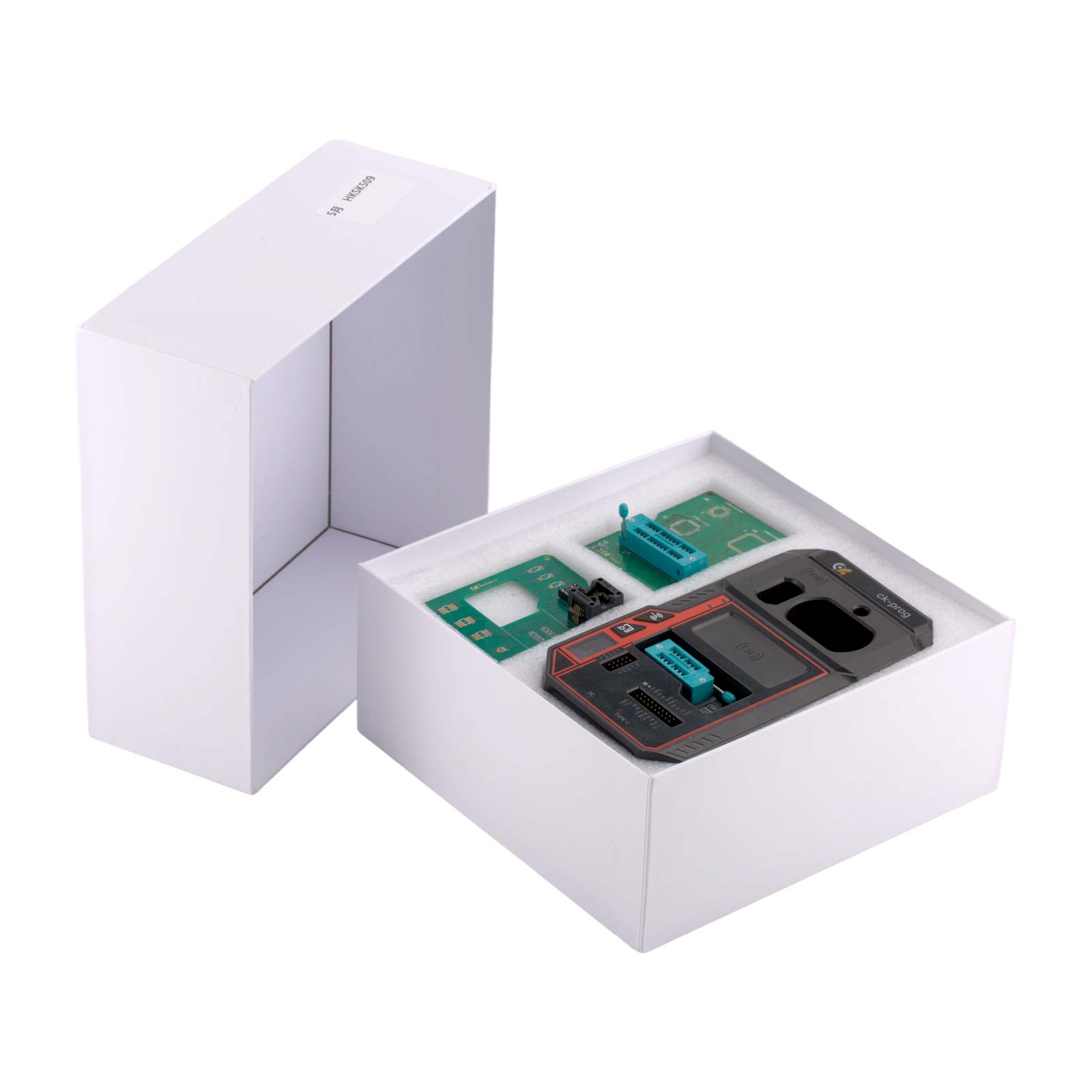

CK-PROG Package includes:
1pc x CK-PROG Main Unit
1pc x Power Cord
1pc x USB Data Cable
1pc x ATMEGA Adapter(Standard)
1pc x 8-pin Adapter Board (Standard)
1pc x MCU-Cable V1 Programming Cable
1pc x 8-pin Solderless Cable
1pc x Ribbon cable
