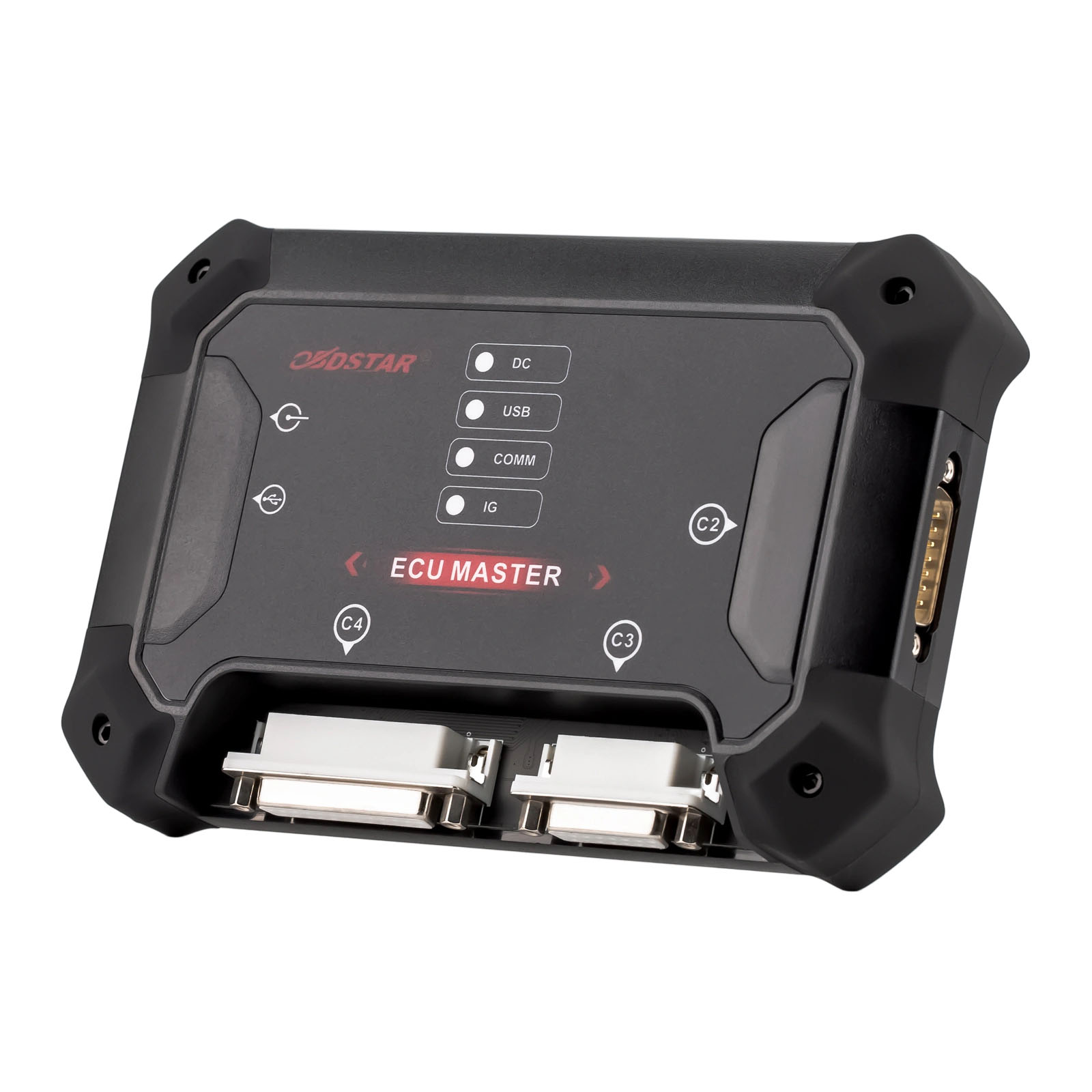

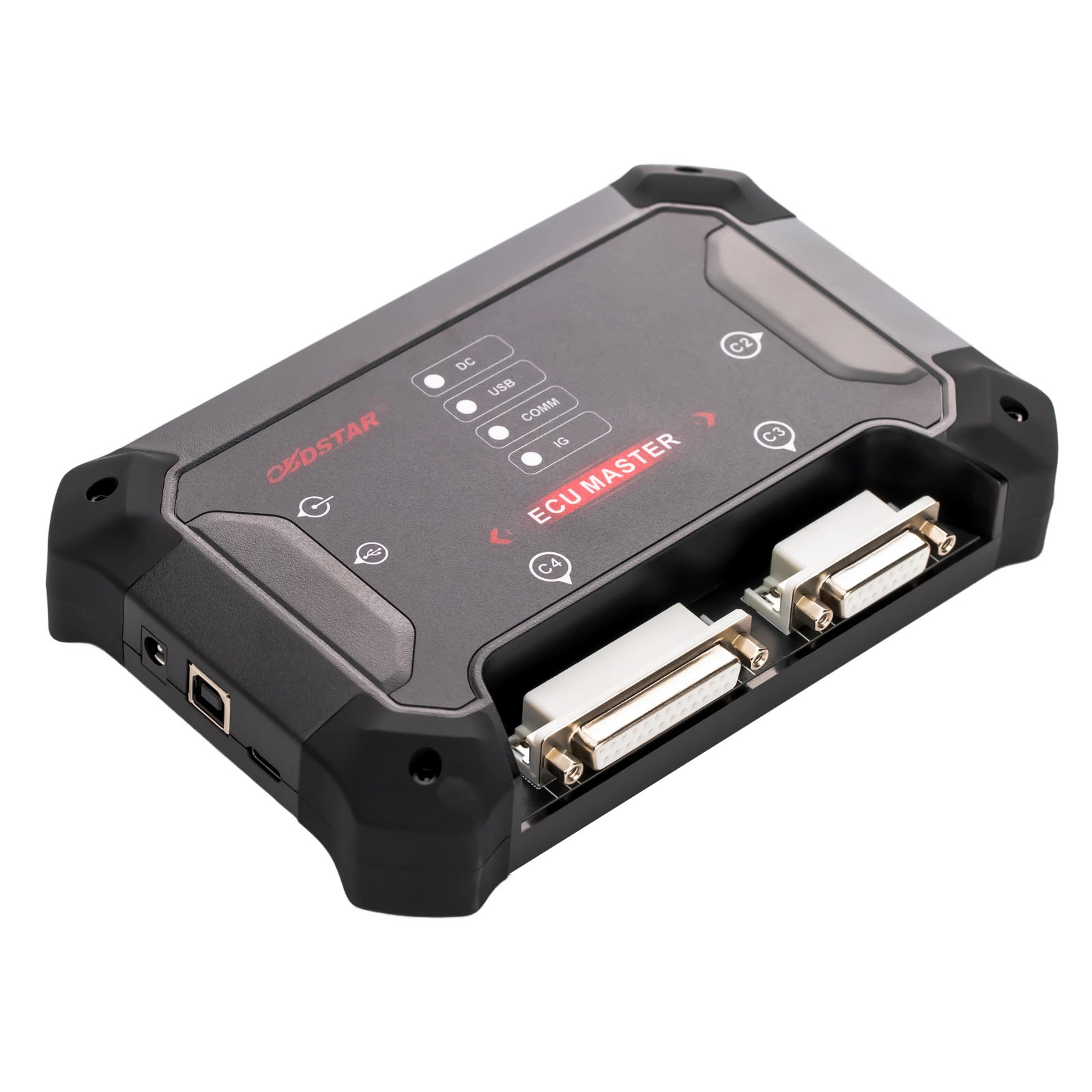

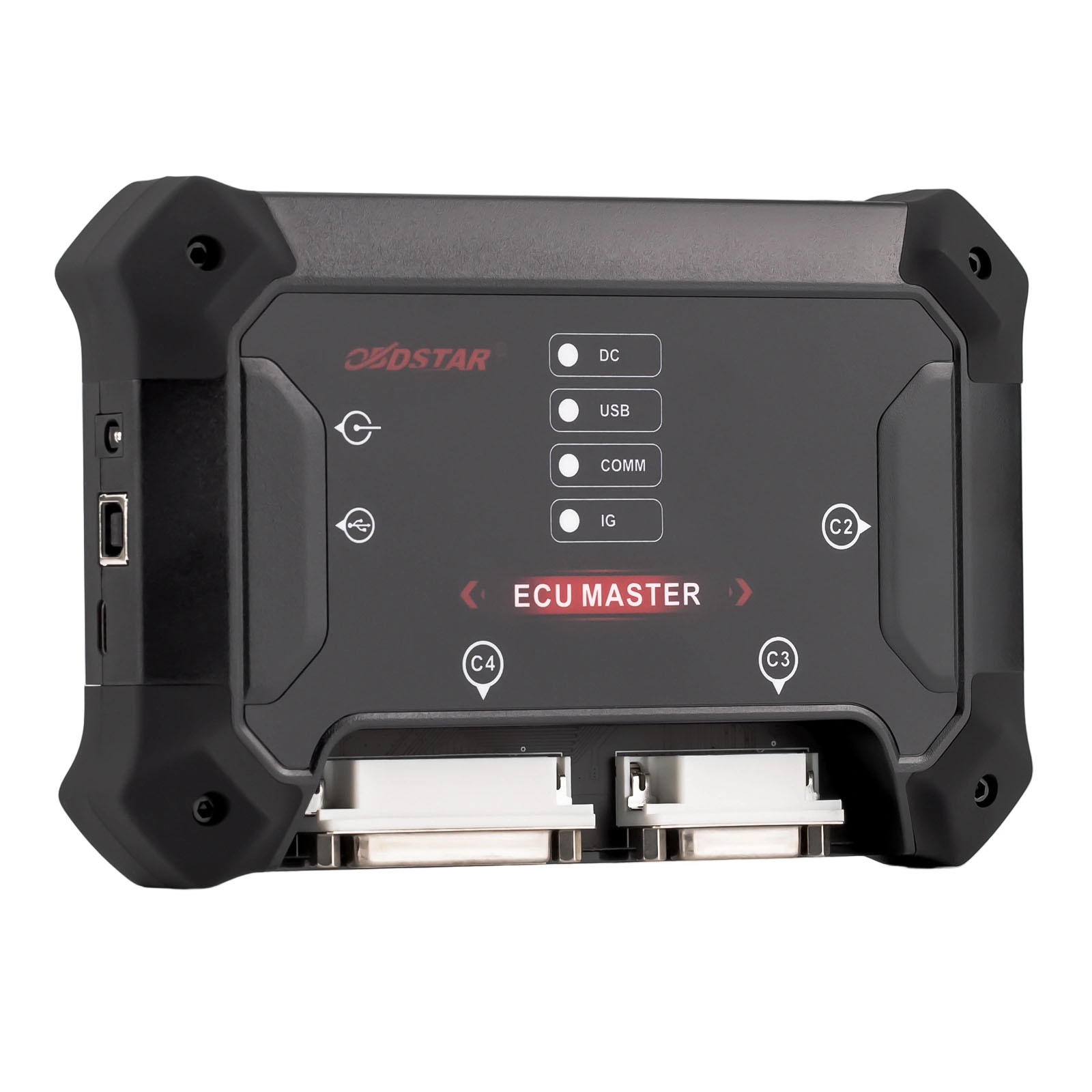

OBDSTAR ECU MASTER A Configuration: Passenger Car TCM + ECM + BODY

Product Description

OBDSTAR ECU MASTER A: Passenger Car TCM + ECM + BODY

ECU MASTER A Support Functions:

1. Passenger Car ECM / TCM / BCM Cloning
Support Reading and Writing ECU units for thousands of car models:
BOSCH MED/EDC17 series, CONTINENTAL SIMOS series, GPEC series, DELPHI series, DSG TCM units, MB FBS4 series units, etc.

2. Supports ECU advanced functions:
CheckSum, IMMO Data Convert, IMMO Data Decryption, IMMO OFF/ON, Coolant Temperature Sensor Calibration, Mileage Calibration, ECU RunTime Calibration, VlN Read/Write, Virgin Reset, etc.

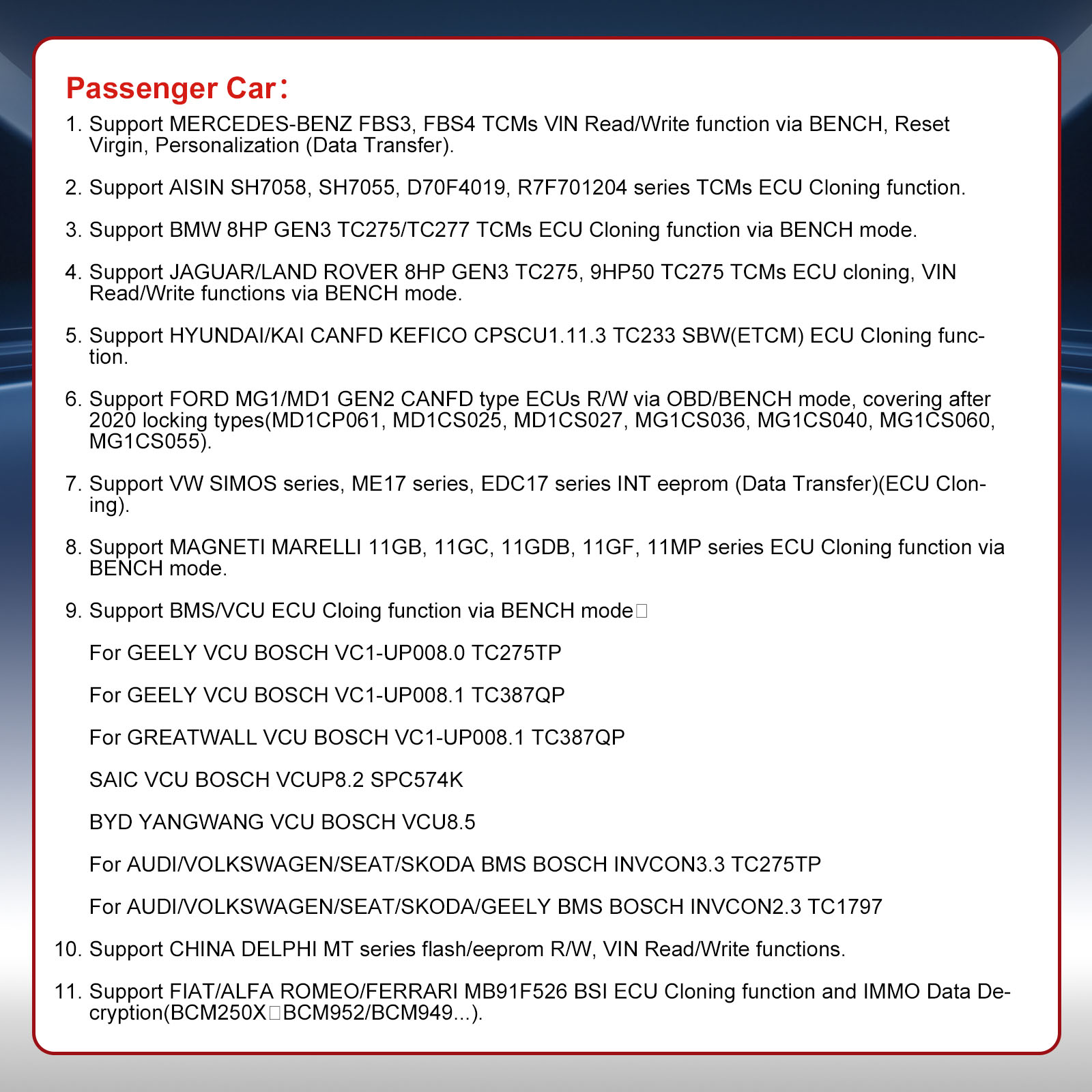

ECU MASTER A Support Models:

1. Support MERCEDES-BENZ FBS3, FBS4 TCMs VlN Read/Write function via BENCH, Reset Virgin, Personalization (Data Transfer).
2. Support AISIN SH7058, SH7055, D70F4019, R7F701204 series TCMs ECU Cloning function.
3. Support BMW 8HP GEN3 TC275/TC277 TCMs ECU Cloning function via BENCH mode.
4. Support JAGUAR/LAND ROVER 8HP GEN3 TC275, 9HP50 TC275 TCMs ECU cloning, VIN Read/Write functions via BENCH mode.
5. Support HYUNDAI/KAI CANFD KEFICO CPSCU1.11.3 TC233 SBW(ETCM) ECU Cloning function.
6. Support FORD MG1/MD1 GEN2 CANFD type ECUs R/W via OBD/BENCH mode, covering after 2020 locking types(MD1CP061, MD1CS025, MD1CS027, MG1CS036, MG1CS040, MG1CS060, MG1CS055).
7. Support VW SIMOS series, ME17 series, EDC17 series INT eeprom (Data Transfer)(ECU Cloning).
8. Support MAGNETI MARELLI 11GB, 11GC, 11GDB, 11GF, 11MP series ECU Cloning function via BENCH mode.
9. Support BMS/VCU ECU Cloning function via BENCH mode:
GEELY VCU BOSCH VC1-UP008.0 TC275TP
GEELY VCU BOSCH VC1-UP008.1 TC387QP
GREATWALL VCU BOSCH VC1-UP008.1 TC387QP
SAIC VCU BOSCH VCUP8.2 SPC574K
BYD YANGWANG VCU BOSCH VCU8.5
AUDI/ VOLKSWAGEN/ SEAT/ SKODA BMS BOSCH INVCON3.3 TC275TP
AUDI/ VOLKSWAGEN/ SEAT/ SKODA/ GEELY BMS BOSCH INVCON2.3 TC1797
10. Support CHINA DELPHI MT series flash/eeprom R/W, VIN Read/Write functions.
11. Support FIAT/ ALFA ROMEO/ FERRARI MB91F526 BSI ECU Cloning function and IMMO Data Decryption(BCM250X/ BCM952/ BCM949...).
...


OBDSTAR ECU MASTER Specifications:


Operation system	Windows 10 or above
CPU	STM32H723, STM32F407
Working Voltage	DC14V
Working temperature	-10℃~55℃（14℉~131℉）
Storage temperature	-20℃~70℃（-4℉~158℉）
Weight	About 0.7kg
Dimension	176mm*115mm*31.7mm
Warranty	1-year hardware warranty; software updates start from the date of manufacture (duration TBD)

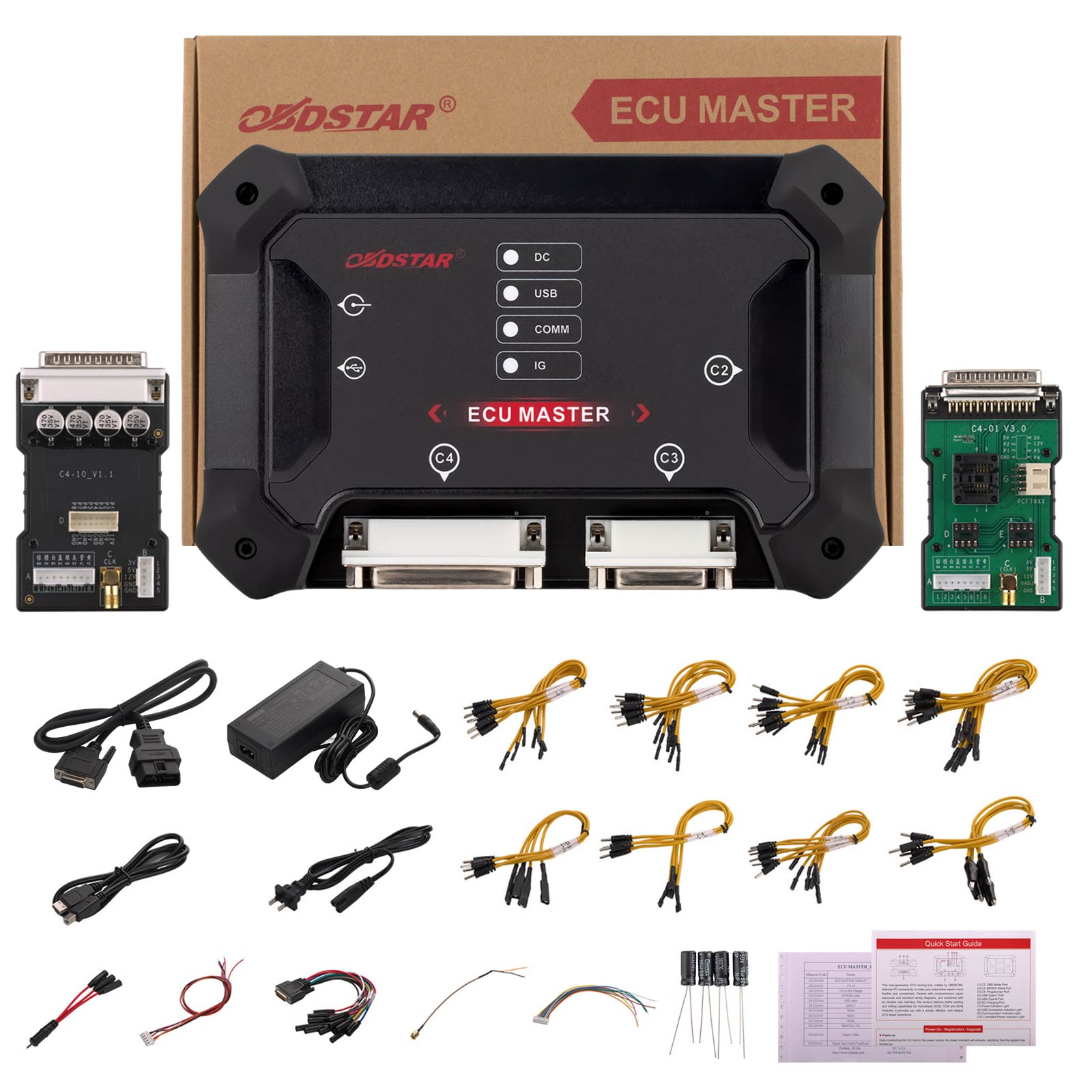

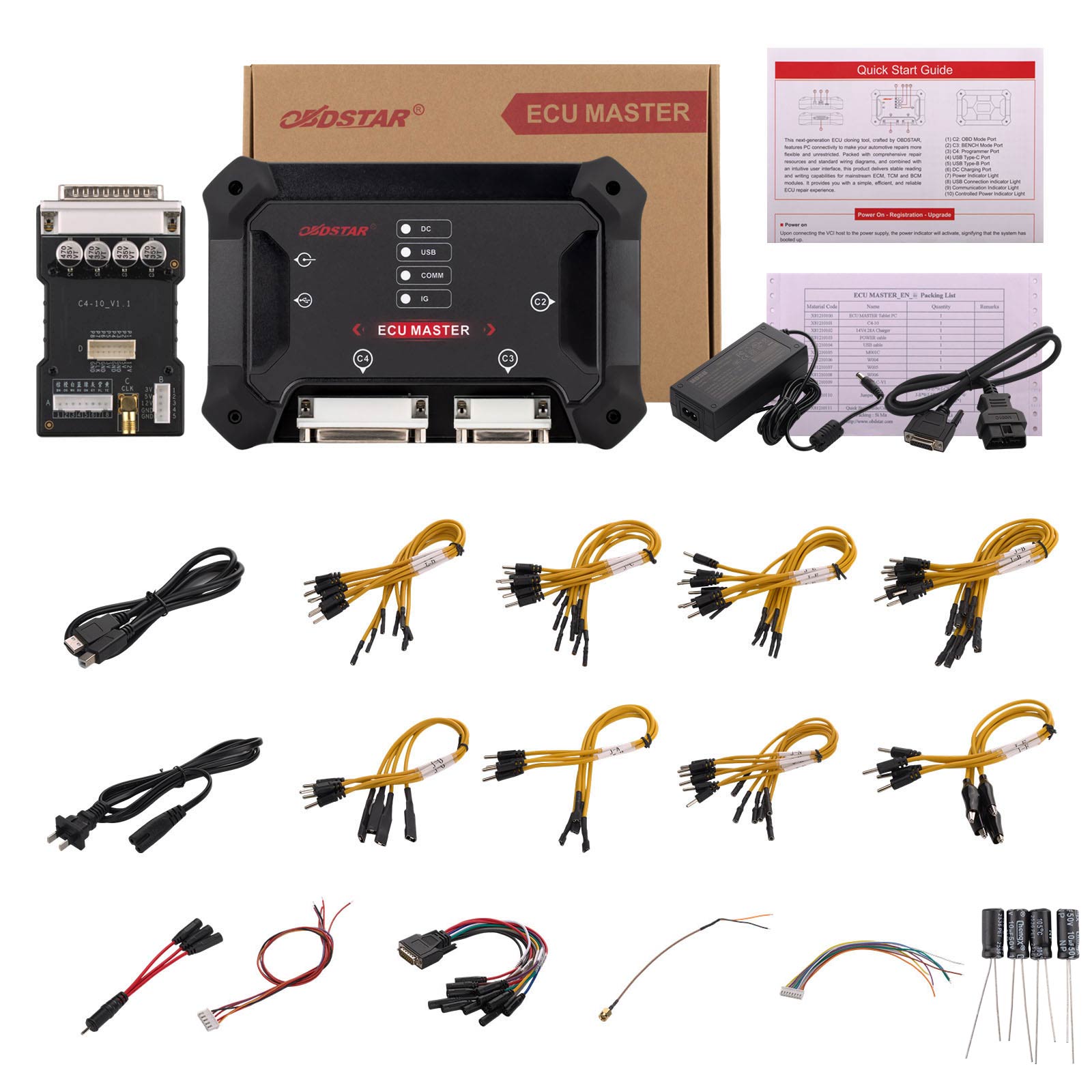

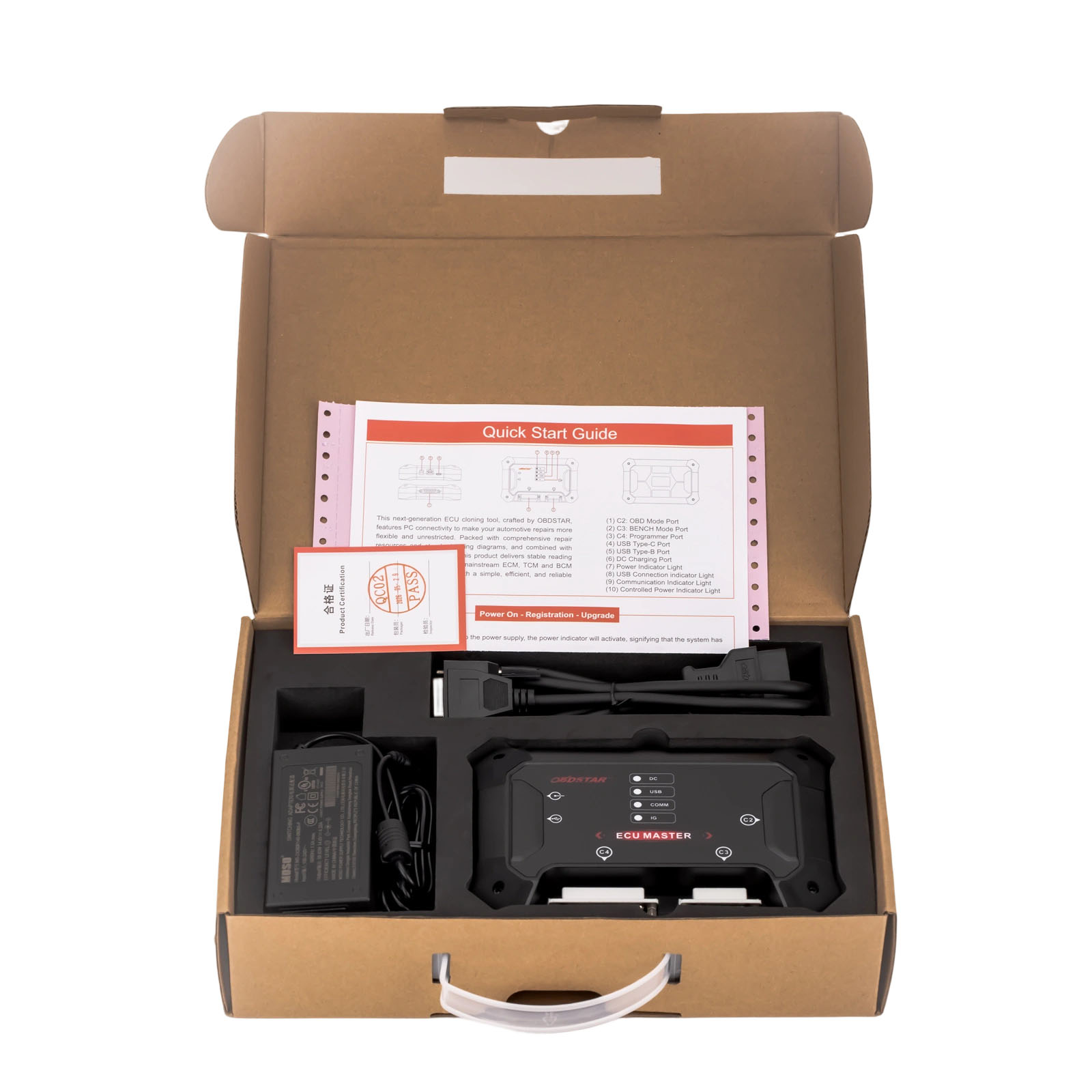

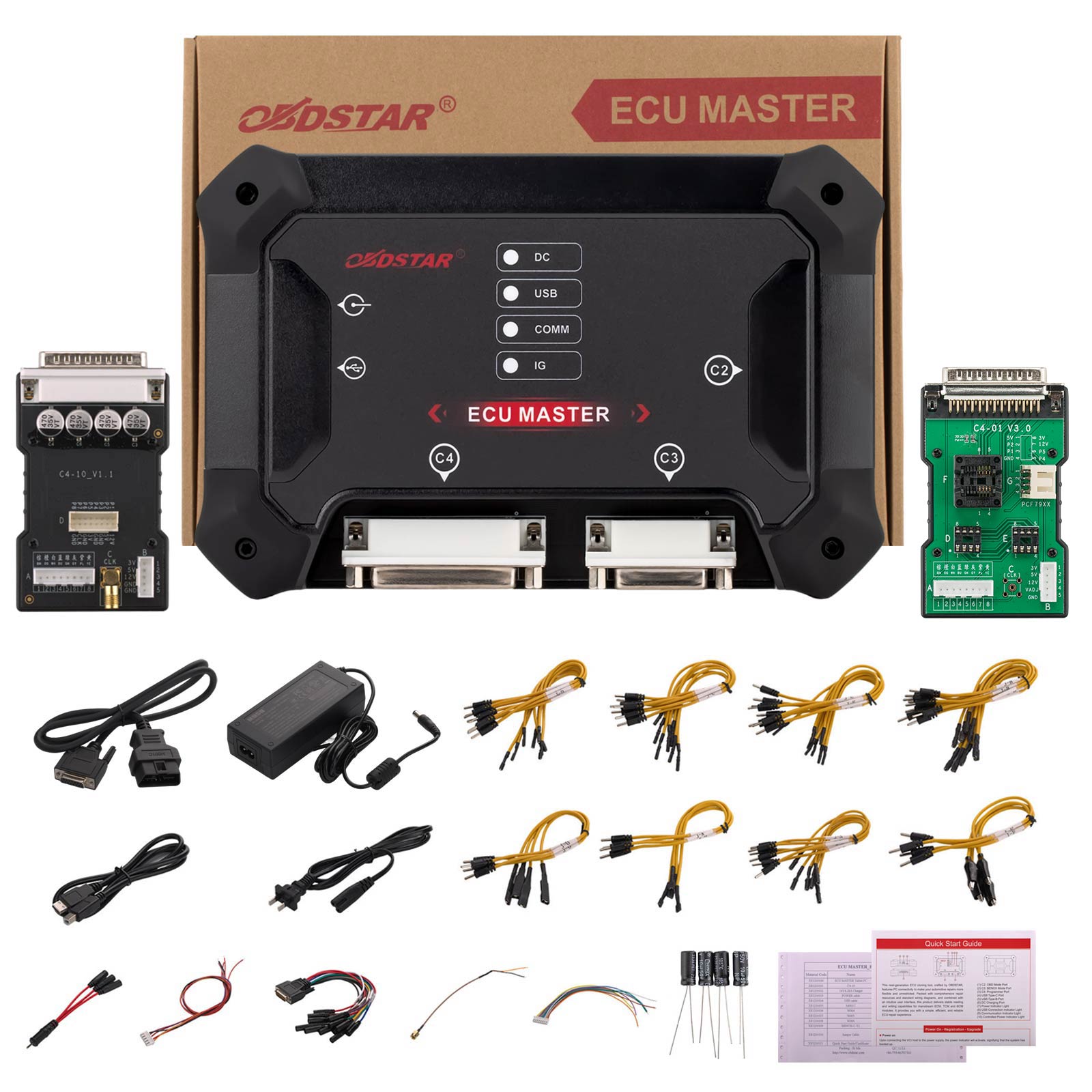

Package includes:

1pc x ECU MASTER host
1pc x C4-10
1pc x C4-01
1pc x Charger(14V 4.28A)
1pc x Power cable
1pc x USB cable
1pc x 3-in-1 jumper cable
4pcs x J-A jumper
9pcs x J-B jumper
7pcs x J-C jumper
8pcs x J-D jumper
8pcs x J-E jumper
4pcs x J-F jumper
6pcs x J-N jumper
4pcs x J-O jumper
1pc x M001C
1pc x W004
1pc x W005
1pc x W006
1pc x BENCH-C-V1
4pcs x capacitance


---



---
