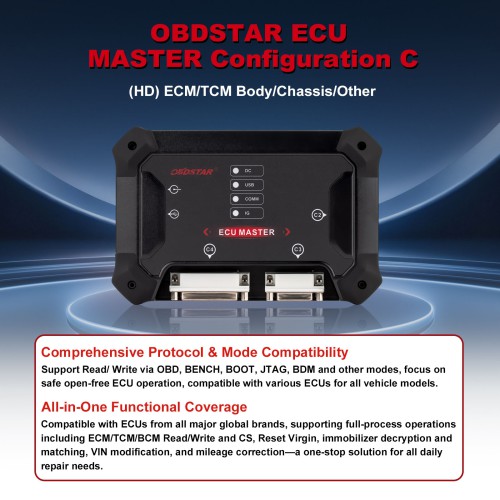

OBDSTAR ECU MASTER C Configuration: Heavy-duty truck ECM + TCM + BODY

Product Description

OBDSTAR ECU MASTER C: HD ECM + TCM + BODY

OBDSTAR ECU Master C Description:

ECU Master C Pack is specially designed for Heavy Duty; Different configurations support different functions and can be freely combined with other ECU MASTER configurations.





OBDSTAR ECU Master C Features:

① Compatible with mainstream communication protocols, covering OBD/ BENCH/ BOOT/ JTAG/ BDM read & write modes;
② All-in-One Functional Coverage;
③ Precise maintenance for common vehicle modules, Targeted Solutions for Critical Industry Challenges;

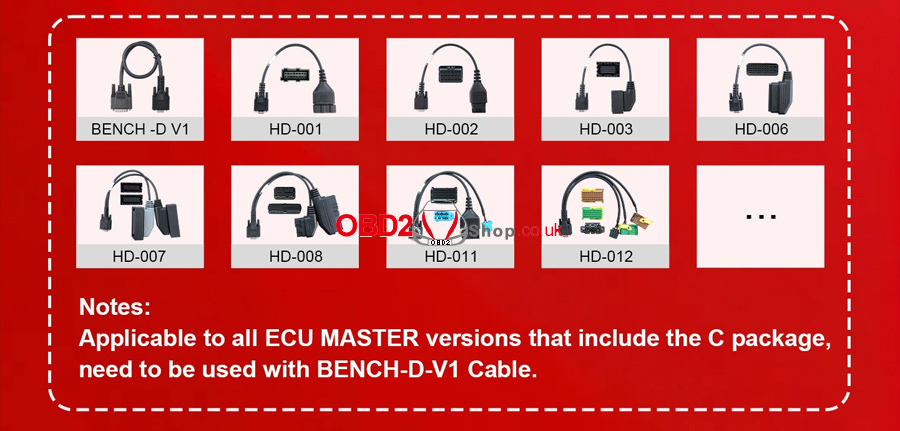

④ Multiple dedicated wiring cables available as options, no jumper connection required, one-step connection solution.


OBDSTAR ECU Master C Functions:

HEAVY DUTY (HD)
1. Support Function
① Support read/write operations for ECM, TCM, and BCM of major global commercial vehicle brands;
② Support VIN Read/Write, Virgin Reset, Mileage Calibration, CheckSum, MAPS Read/Write, ECU Lock/Unlock, IMMO OFF/ON, etc.

2. Brand
① TRUCK: MERCEDES-BENZ, VOLVO, SCANIA, MAN, IVECO, ISUZU, MITSUBISHI FUSO, FAW, FORD, etc.
② TRACTOR/OHW(OFF-HIGHWAY VEHICLES/MACHINERY): JOHN DEERE, CNH INDUSTRIAL, KUBOTA, YANMAR, etc.
③ HD ECU: BOSCH, DENSO, CONTINENTAL, DELPHI, SIEMENS, CUMMINS, WABCO, ZF, etc.

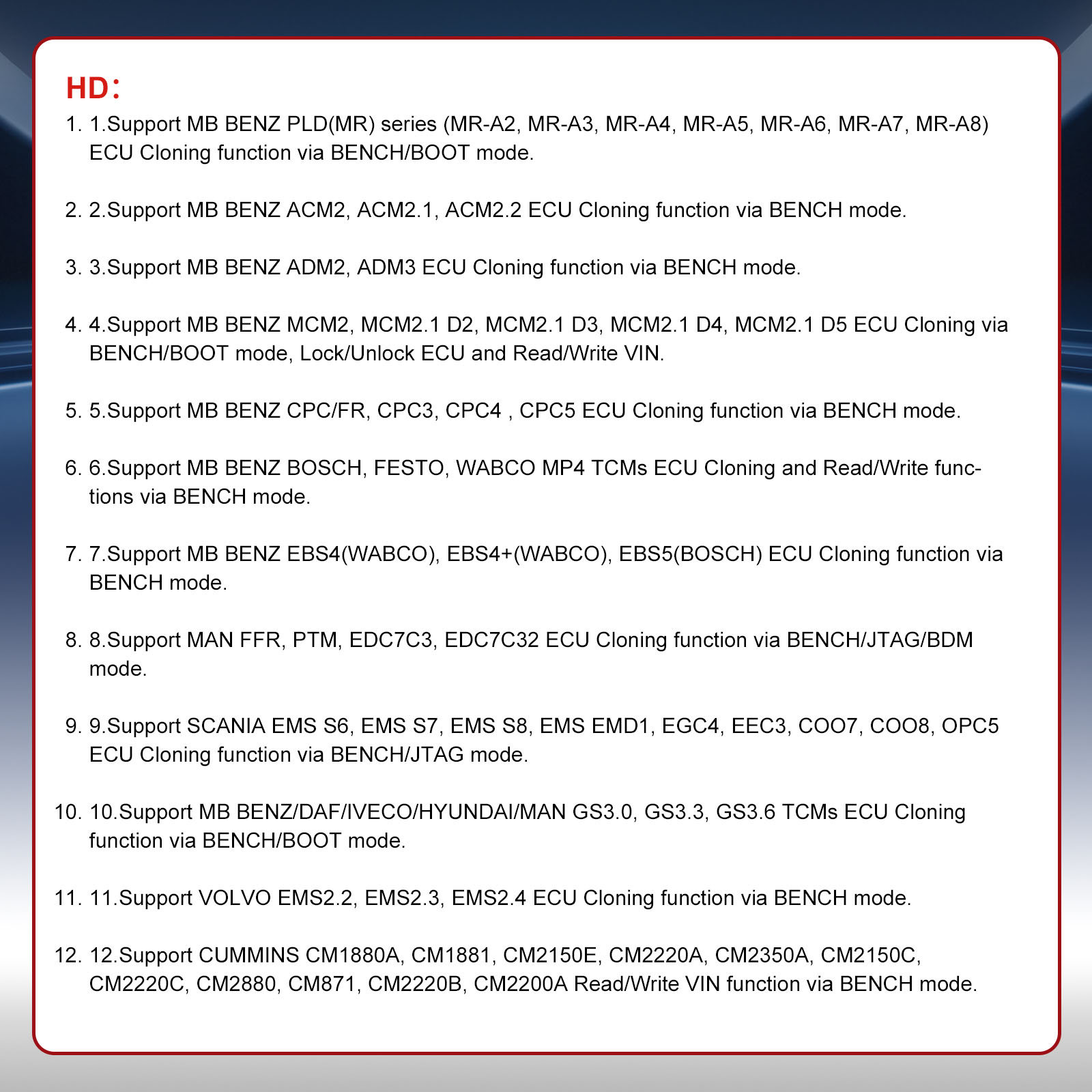

3. Support Model
① Support MB BENZ PLD(MR)series (MR-A2, MR-A3, MR-A4, MR-A5, MR-A6, MR-A7, MR-A8) ECU Cloning function via BENCH/BOOT mode;
② Support MB BENZ ACM2, ACM2.1, ACM2.2 ECU Cloning function via BENCH mode;
③ Support MB BENZ ADM2, ADM3 ECU Cloning function via BENCH mode;
④ Support MB BENZ MCM2, MCM2.1 D2, MCM2.1 D3, MCM2.1 D4, MCM2.1 D5 ECU Cloning via BENCH/BOOT mode, Lock/Unlock ECU, and Read/Write VIN;
⑤ Support MB BENZ CPC/FR, CPC3, CPC4, CPC5 ECU Cloning function via BENCH mode;
⑥ Support MB BENZ BOSCH, FESTO, WABCO MP4 TCMs ECU Cloning and Read/Write functions via BENCH mode;
⑦ Support MB BENZ EBS4 (WABCO), EBS4+(WABCO), EBS5(BOSCH) ECU Cloning function via BENCH mode;
⑧ Support MAN FFR, PTM, EDC7C3, EDC7C32 ECU Cloning function via BENCHJTAG/BDM mode;
⑨ Support SCANIA EMS S6, EMS S7, EMS S8, EMS EMD1, EGC4, EEC3, COO7,COO8, OPC5 ECU Cloning function via BENCHIJTAG mode;
⑩ Support MB BENZ/DAF/IVECO/HYUNDAI/MAN GS3.0, GS3.3, GS3.6 TCMs ECU Cloning function via BENCH/BOOT mode;
⑪ Support VOLVO EMS2.2, EMS2.3, EMS2.4 ECU Cloning function via BENCH mode;
⑫ Support CUMMINS CM1880A, CM1881, CM2150E, CM2220A, CM2350A, CM2150C, CM2220C, CM2880, CM871, CM2220B, CM2200A Read/Write VIN function via BENCH mode.
 …

OBDSTAR ECU MASTER Specifications:


Operation system	Windows 10 or above
CPU	STM32H723, STM32F407
Working Voltage	DC14V
Working temperature	-10℃~55℃（14℉~131℉）
Storage temperature	-20℃~70℃（-4℉~158℉）
Weight	About 0.7kg
Dimension	176mm*115mm*31.7mm
Warranty	1-year hardware warranty; software updates start from the date of manufacture (duration TBD)

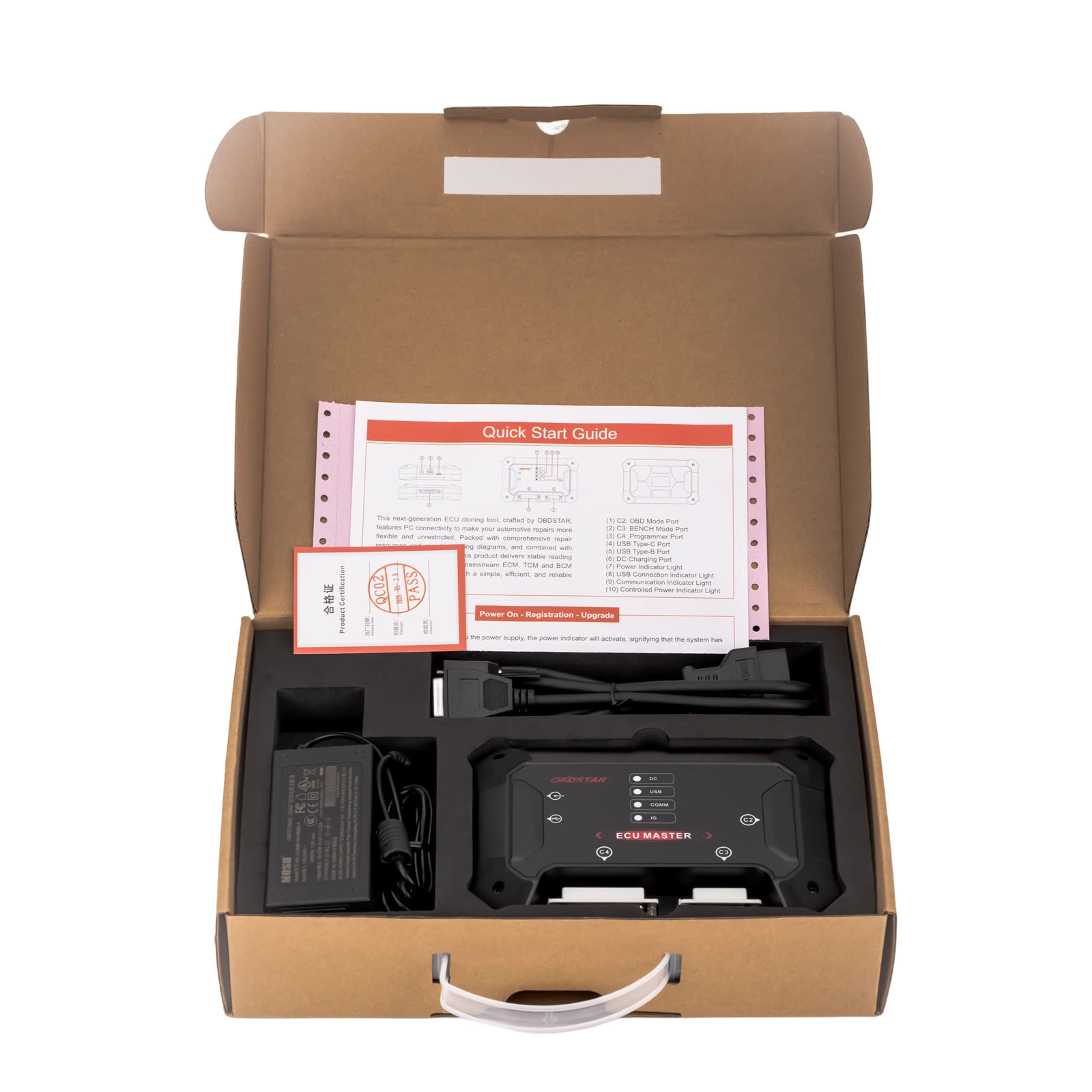

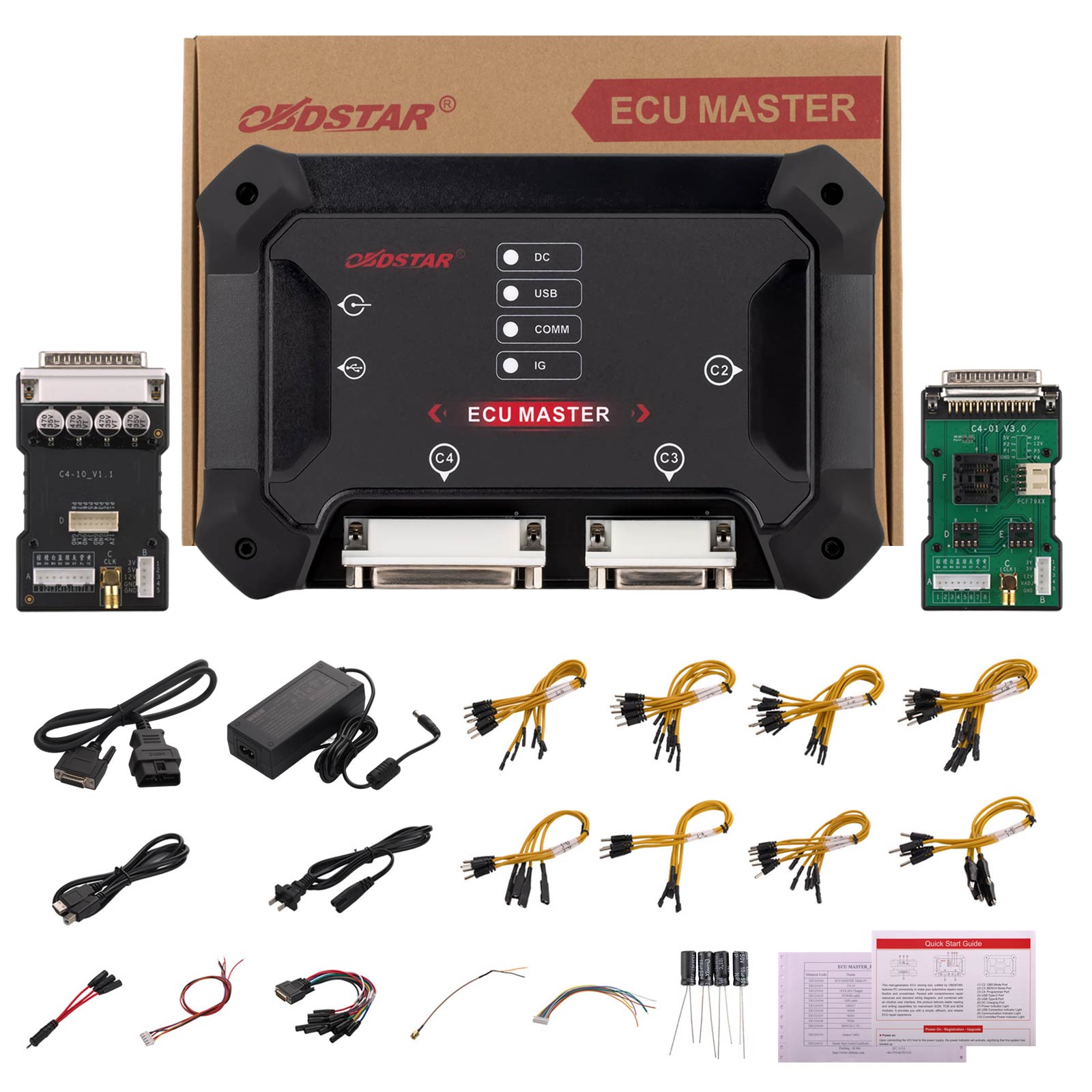

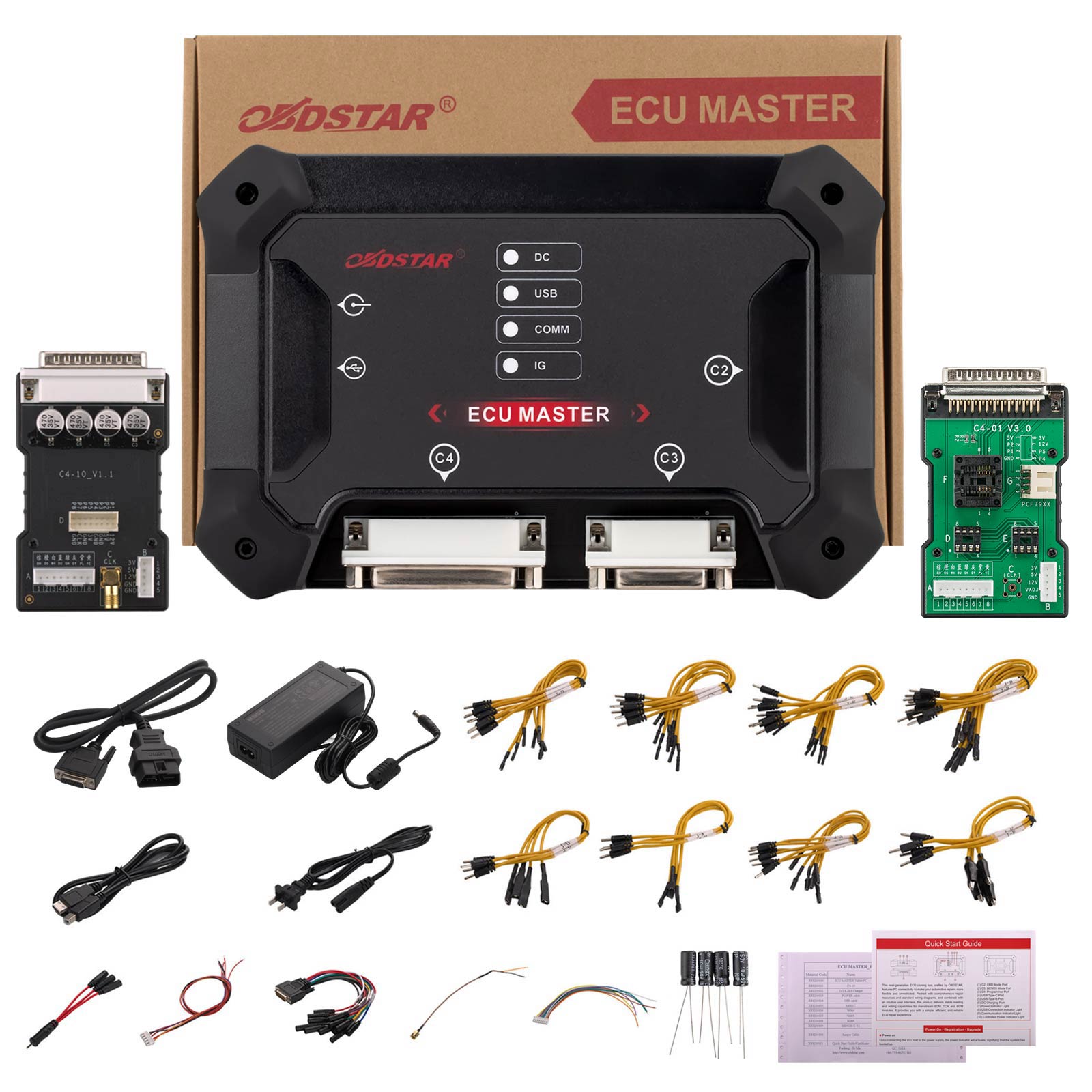

OBDSTAR ECU MASTER C Package list:

1pc x ECU MASTER host
1pc x C4-10
1pc x C4-01
1pc x Charger(14V 4.28A)
1pc x Power cable
1pc x USB cable
1pc x 3-in-1 jumper cable
4pcs x J-A jumper
9pcs x J-B jumper
7pcs x J-C jumper
8pcs x J-D jumper
8pcs x J-E jumper
4pcs x J-F jumper
6pcs x J-N jumper
4pcs x J-O jumper
1pc x M001C
1pc x W004
1pc x W005
1pc x W006
1pc x BENCH-C-V1
4pcs x capacitance


---



---
