OBDSTAR MS50 Tablet for Motorcycle/ Snowmobile/ ATV/ UTV Support most of the Asian and European models

Product Description

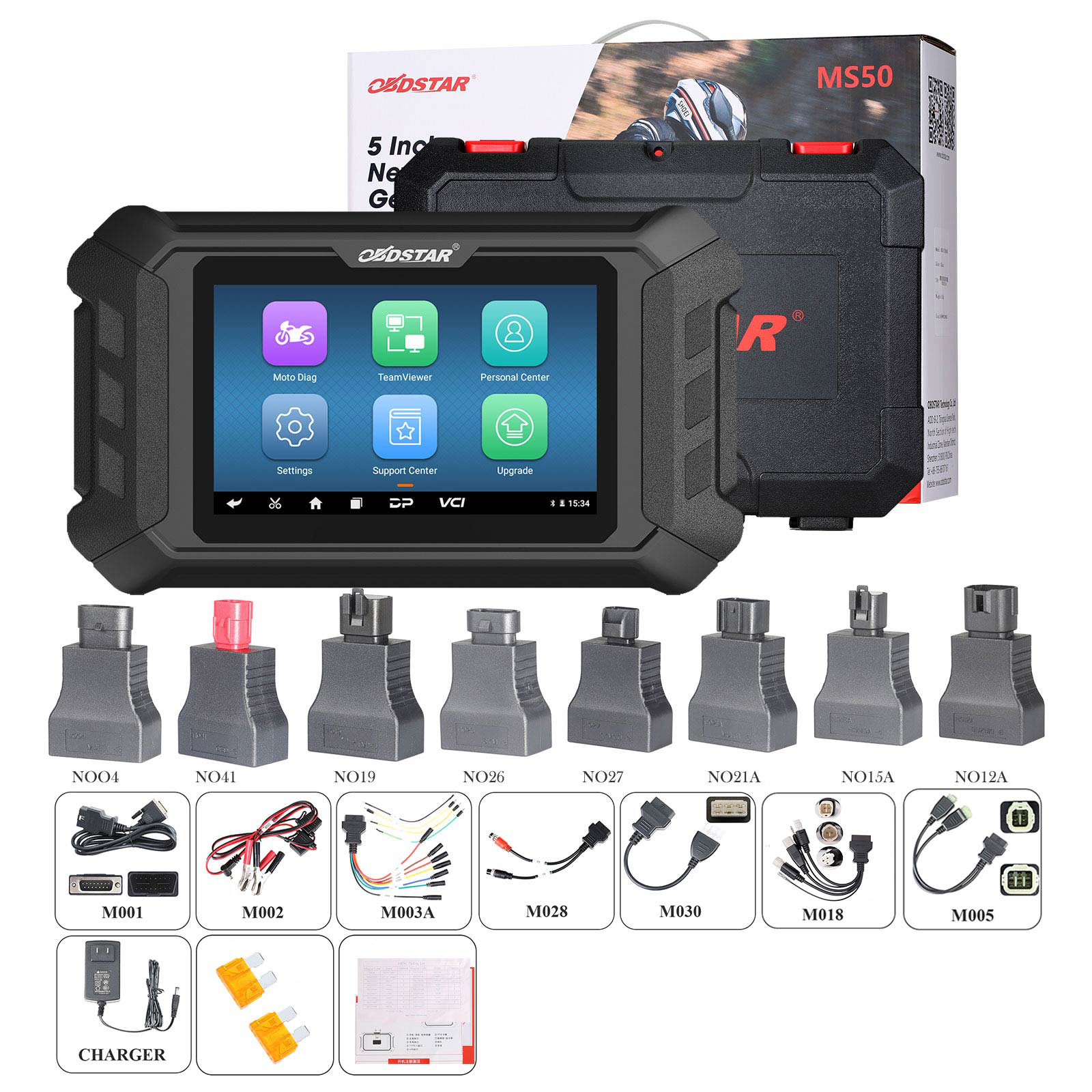

OBDSTAR MS50 Tablet Motorcycle Diagnostic Tool

OBDSTAR MS50 Description:

OBDSTAR MS50 is a portable tablet that has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.


OBDSTAR MS50 Functions:

1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and playback real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support most of the Asia and Europe models.


MS50 Advanced function:

1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data stream display modes such as text, waveform diagram, and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory, etc.


MS50 Update Information

Moto Diag Software Update information

 BETAMOTOR【Version:V33.01】
Add below models:
● ALP4.0/ALPX3504T
● RR-S
● RR-RS
● RX4504T


SHERCO【Version:V33.01】
Add below models:
●125 SM 2T
●300 ST
●500 SMF
●125 ST
●250 ST

ROYAL ENFIELD) [Version:V33.01)
Add below models (non EU market type):
● Meteor 350
● Scram 411
● Continental GT.

VOGE
【Version:V33.01】
Add Brivido 525R model.

KTM [Version:V33.00]
 1.Add below models:
 ·250 EXC Six Days 2023 ●300 EXCSix Days 2023
 ●300 EXC HARDENDURO 2024 ●890 SMT 2023 …

 2.Some models aresupported until 2024.

 3.Add below special functions:
 ·gear shift indicator level setting ·service reset
 ·Heated grips …

 4.Optimized software.


OBDSTAR MS50 Car list:

Motorcycle/snowmobile/ATV/UTV support car series:
Asia: CFMOTO, Royal Enfield, Hero, TVS, Bajaj, Honda, Kawasaki, Kymco, Suzuki, SYM, Yamaha, PGO, Hartford, AEON.

Europe: Benelli, KTM, Piaggio, Vespa

More functions under development...


OBDSTAR MS50 Latest Update Information:

VESPA Upgrade [V30.9]

Royal Alloy Upgrde to [V30.00]

1. Details added:

Royal Alloy
GP200S-Grand Prix  2020-
GP300S-Grand Prix 2020-
TC200S-Tigara Grande 2020-
TG300S-Tigara Grande 2020-

All of these models system : Special Adjustmens, ENG

With highlights: Stored data file reset and clearning, EEPROM control unit reset, TPS reset, ASR activation, ASR OFF

2. Add help data: Diag connector, abbreviation

Shineray Upadte [V30.05]

Detail added:

Add ENG system (DELPHI) diagnosis
Add ABS system (SAFE) diagnosis
Add ABS system ( BOSCH ) diagnosis

Hao Jue Update to [V30.03] on May,2021

Add ENG (GB IV)
Add one diag socket pic
Add one diag connector pic

BAJAJ [V30.00] UPGRADE on Mar 30th, 2021:


Brand	Model	Year	System
BAJAJ	Ninja 650R	2006-2011	ENG
		2012-	ENG
	Ninja 300	2013-	ENG
	Pulsar 200 NS	2014-	ENG
			ABS
	Pulsar 200 NS		ENG
			ABS
	Pulsar FF 200		ENG
			ABS
	Pulsar RS 200		ENG
			ABS
	Pulsar 150	2014-2016	ENG
	Dominar 400	2016-	ENG
			ABS
	Pulsar LS	2017-	ENG
	Pulsar NS160		ENG
			ABS

ENFIELD[V30.00] UPGRADE on Mar 30th, 2021


Brand	Model	Year	System
ENFIELD	Interceptor	2018-	ENG
			ABS
	Continental GT		ENG
			ABS
		2014-2017	ENG
	Bullet 500 EFI	2009-	ABS
			ENG
	BUullet Electra		ABS
			ENG
	Classic		ENG
	Himalayan	2016-	ABS
			ENG

OBDSTAR MS50 Specifications:

Operation system: Android 5.1.1
CPU: RK3128 Quad-Core ARM Cortex A7
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD: 5.0 inch
LCD resolution: 800*480
Touch screen: capacitive touch screen
Wifi: supported
Working temperature: -20℃  ~  55℃（14℉  ~  131℉ ）
Storage temperature: -20℃  ~  70℃（-4℉  ~ 158℉ ）
Weight: about 700g
Dimension: 140mm*89mm*18mm


OBDSTAR MS50 Vs MS80:


			MS50	MS80
COVERAGE	DIAG	EUROPE	BENELLI, KTM, PIAGGIO, VESPA	APRILIA, BENELLI, BMW, DUCATI, KTM，PEUGEOT，PIAGGIO, TRIUMPH, VESPA, MALAGUTI, GASGAS, GILERA, DERBI, MOTO GUZZI, MV AGUSTA
		AMERICAS	--	HARLEY, INDIAN, VICTORY, BRP
		ASIA	HONDA, KAWASAKI, KYMCO, SUZUKI, SYM, YAMAHA, PGO AEON, HARTFORD	HONDA, KAWASAKI, KYMCO, SUZUKI, SYM, YAMAHA, MONTESA, PGO, HARTFORD, AEON, BENELLI DSK
	IMMO	EUROPE	--	TRIUMPH, GILERA, PEUGEOT, PIAAGIO, DUCATI, VESPA
		AMERICAS	--	HARLEY
FUNCTION	Basic Function		√	√
	Special Function		Auto Scan, Auto Identify [VIN], ECU Reset, Oil Reset, CO Adjustment, Idle Adjustment, Clear ECU Memory and etc...	Auto Scan, Auto Identify VIN, Control Module Programming and Coding, ECU Setting, Instrument Panel Coding, TPMS, Service Reset, CO Adjustment, Idle Adjustment, A/F Value Reset, ABS, EOL Mode, Transmission Storing Reset,  Clear ECU Memory.
	IMMO Function		--	1. Removing Immo Box and Directly write the key, including HONDA, KAWASAKI, SUZUKI, YAMAHA, APRILIA, DUCATI, GILERA, PEUGEOT, VESPA.  2. Part of the Models can be supported by OBD or on Bench to Program the keys.
INTELLIGENT DIAG	Diag Socket Diagram		√	√
	Diag Connector Diagram		√	√
	Tech Bulletin		√	√
	Read DTC		√	√
	Data Flow Diagram		√	√
	Data Flow Meter Diagram		√	√
	Interactive Circuit Diagram		--	√
	Interactive Component Description		--	√
More Features and Software are Under Development...
Makes will be different by configurations. Please contact OBDSTAR or a local reseller for more details. The final interpretation right belongs to OBDSTAR.

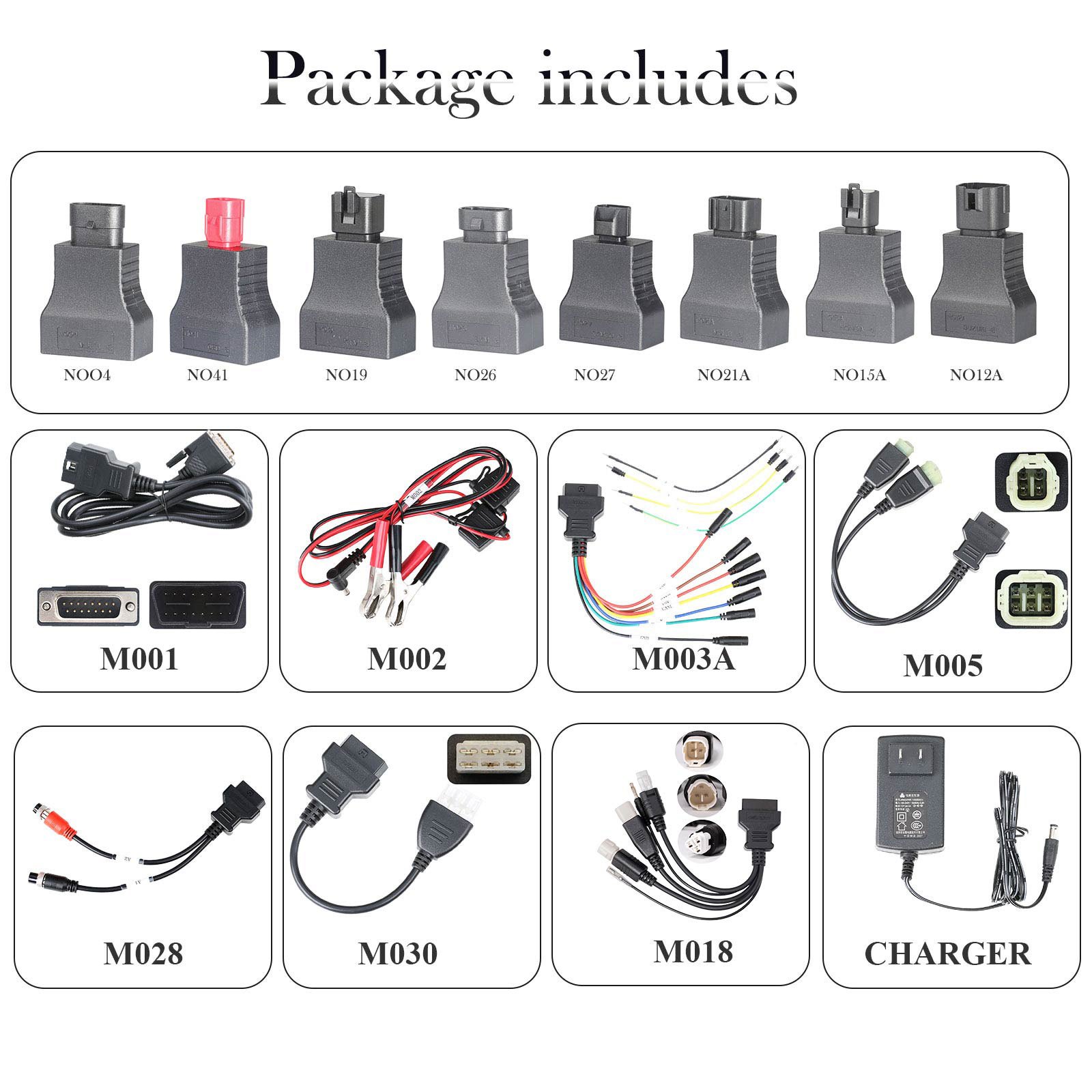

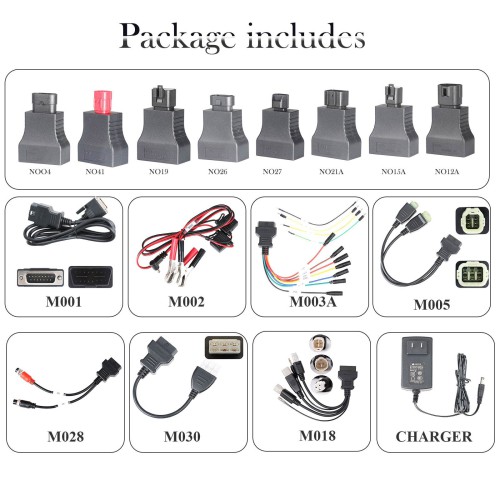

OBDSTAR MS50 Accessories:

1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi functional jumper
1pc x M004 For APRILIA/ DUCATI/ HONDA/ KTM/ PIAGGIO/ VESPA/ YAMAHA
1pc x M005 For KAWASAKI
1pc x M012 For SUZUKI
1pc x M015A For HONDA/ HONDA MONTESA
1pc x M018 For YAMAHA
1pc x M019 For KTM
1pc x M021 For AEON/BENELLI/ BENELLI DSK
1pc x M026 For SYM
1pc x M027 For KYMCO/ KAWASAKI
1pc x M028 For PGO
1pc x M030 For HARTFORD
1pc x M041 EURO V
1pc x 12V2A CHARGER

---



---
