Yanhua Btool - BCP Key Cutting Kits for Safely Disassembling the BMW BCP Key Inner Shell
Buy Now: £94
Whatsapp +86 13983755934
Shipping:
Free Shipping
Standard Flat Rate Shipping ServiceEstimated delivery time: 7-15 working days.See details »
Weight:
0.7KG
Package:
19.5cm*15cm*5.5cm
( Inch: 7.66*5.89*2.16 )
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »
£94
In Stock.
Free Shipping
Product Description
The Yanhua Btool BCP Key Cutting Kit for BMW enables fast, safe, and precise cutting of BMW BCP key inner shells, allowing easy PCB removal for key duplication while reducing damage risk.
Yanhua Btool - BCP Key Cutting Kits
Description
Key programming is easy; opening the shell is hard. Btool makes it easy.
Function:
The BMW BCP Key Cutting kits enable standardized, fast, and safe cutting of the inner shell of BMW BCP keys, allowing the key circuit board to be removed for key duplication. It can greatly reduce the risk of damaging the key shell during disassembly.

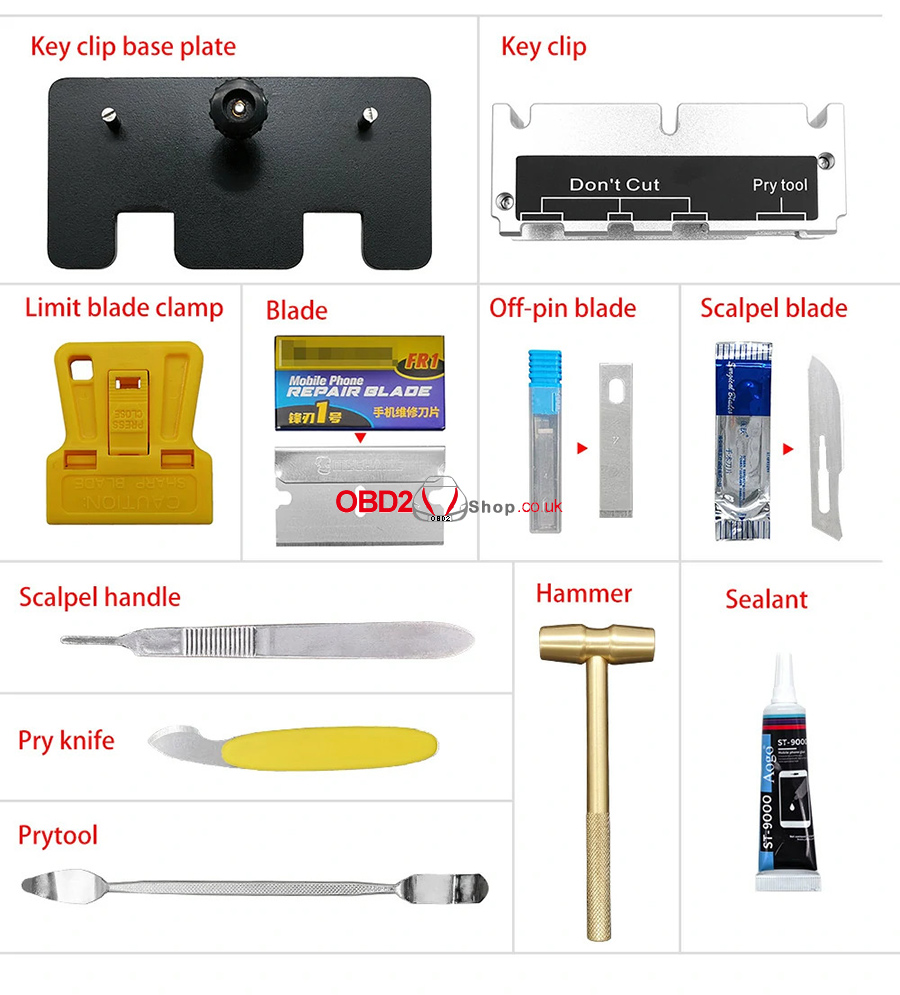

Overall connection diagram:

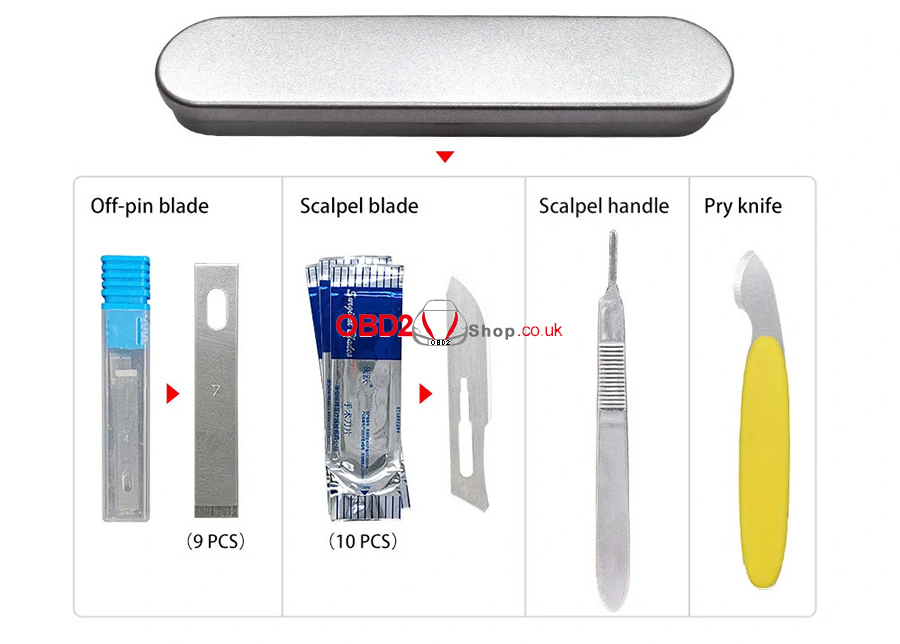

Storage box

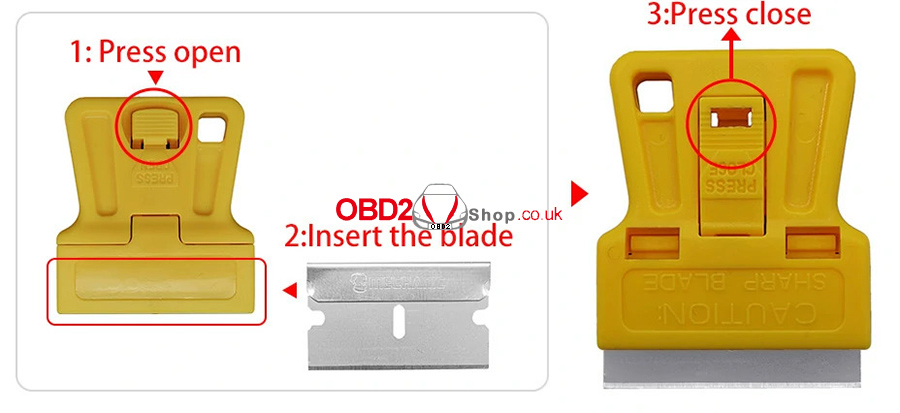

Install blade:

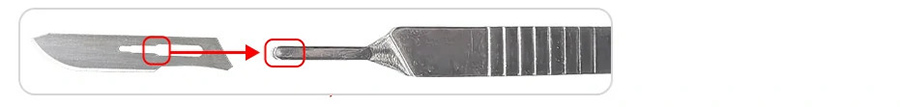

Install the surgical knife:
1. Align the square hole of the blade with the protruding slot at the front end of the handle.
2. Push the blade backwards to ensure that it is completely in contact with the handle and does not loosen.

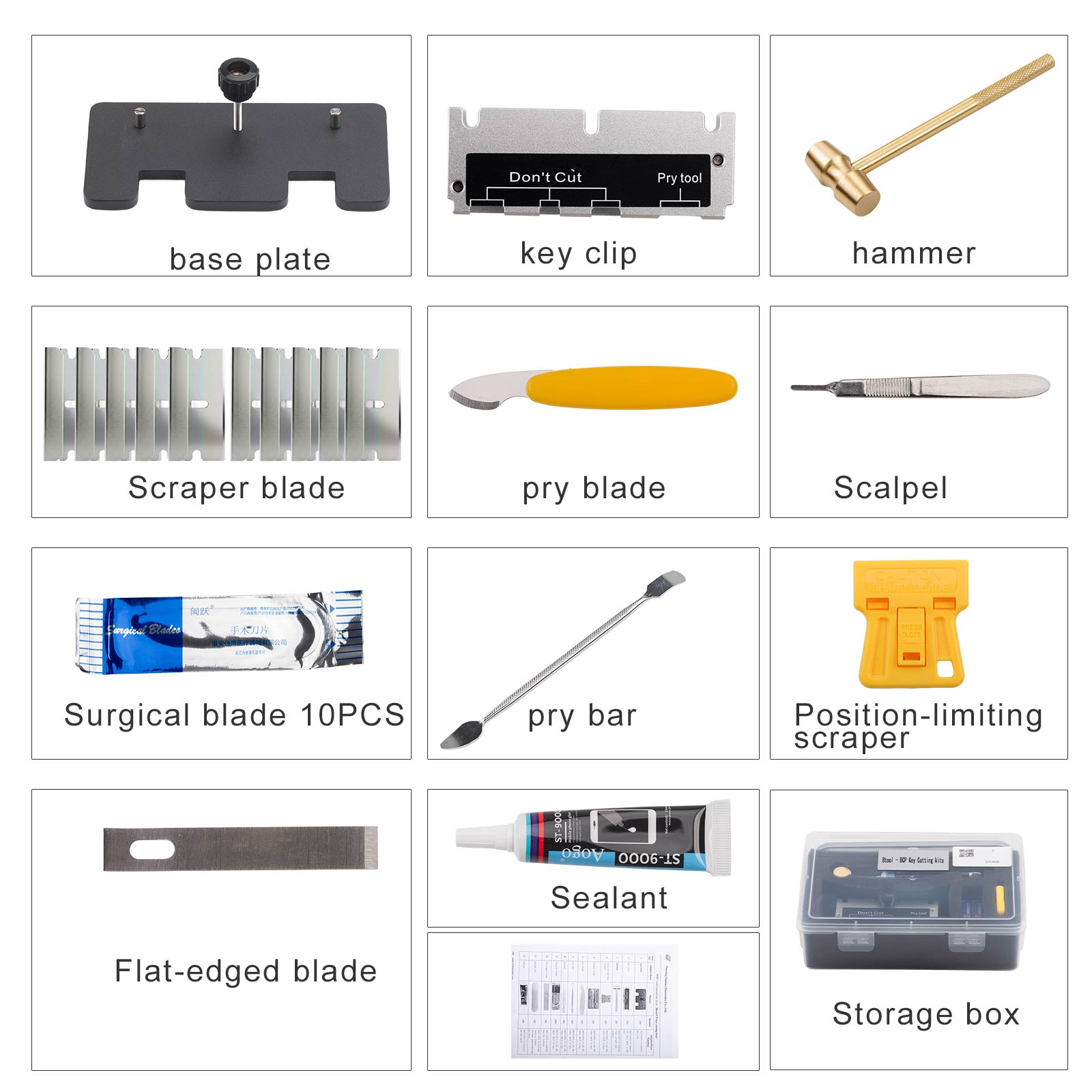

Package includes:

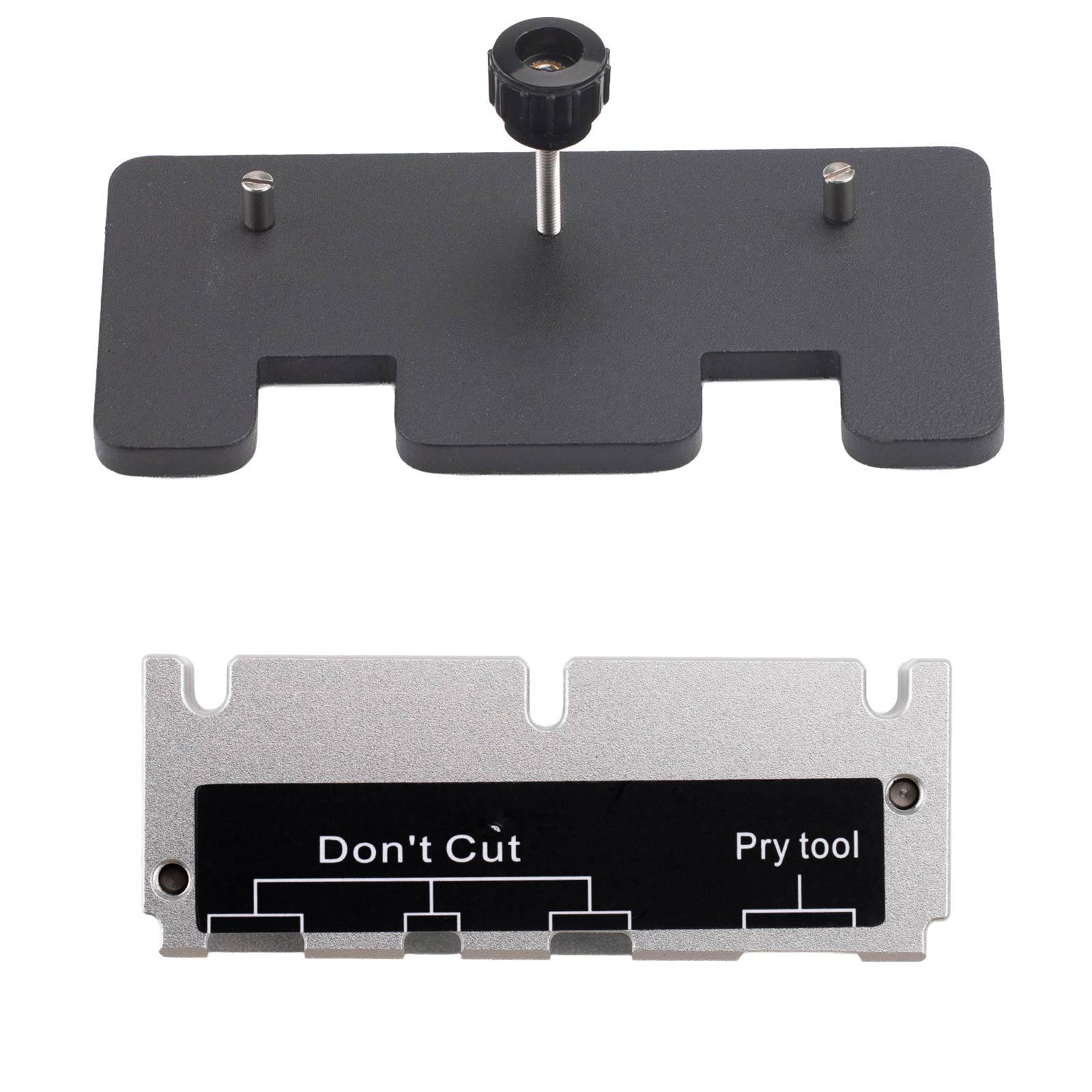

1pc x base plate
1pc x key clip
1pc x hammer
1pc x position-limiting scraper
2pcs x scraper blade
1pc x pry blade
1pc x pry bar
1pc x scalpel
10pcs x surgical blade
1pc x flat-edged blade

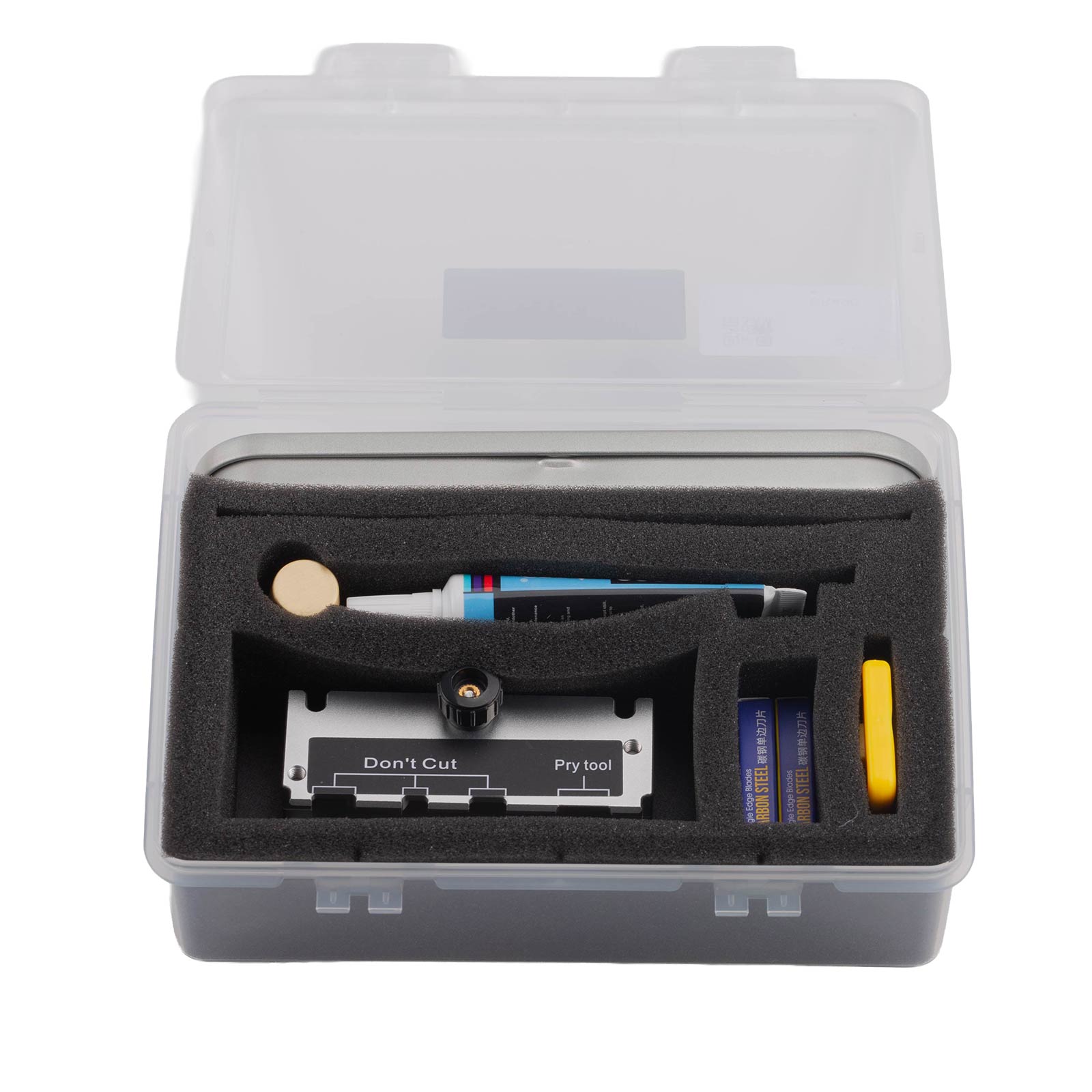

1pc x storage box
1pc x sealant
Key programming is easy; opening the shell is hard. Btool makes it easy.
Function:
The BMW BCP Key Cutting kits enable standardized, fast, and safe cutting of the inner shell of BMW BCP keys, allowing the key circuit board to be removed for key duplication. It can greatly reduce the risk of damaging the key shell during disassembly.
Overall connection diagram:
Storage box
Install blade:

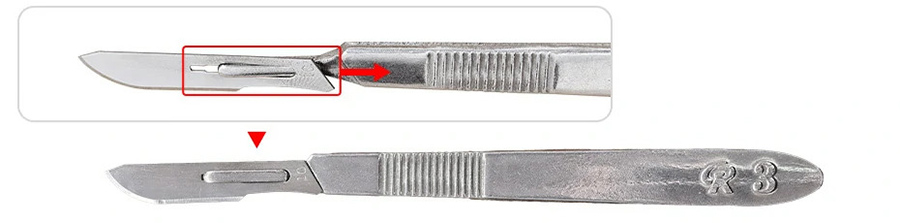

Install the surgical knife:
1. Align the square hole of the blade with the protruding slot at the front end of the handle.
2. Push the blade backwards to ensure that it is completely in contact with the handle and does not loosen.
Package includes:
1pc x base plate
1pc x key clip
1pc x hammer
1pc x position-limiting scraper
2pcs x scraper blade
1pc x pry blade
1pc x pry bar
1pc x scalpel
10pcs x surgical blade
1pc x flat-edged blade
1pc x storage box
1pc x sealant
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |

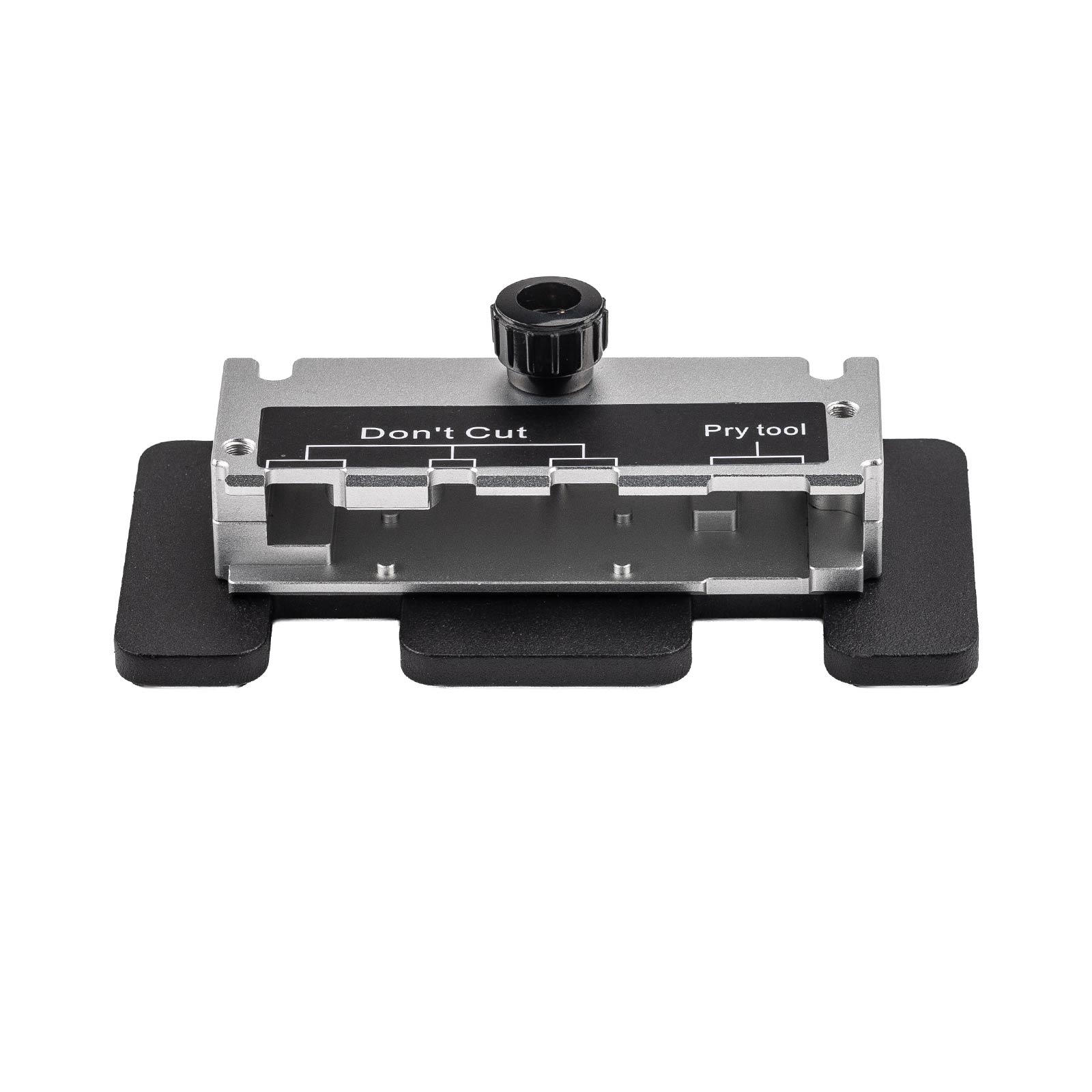

| 1 | base plate |  |
Applicable to connect key clip. | 1 |

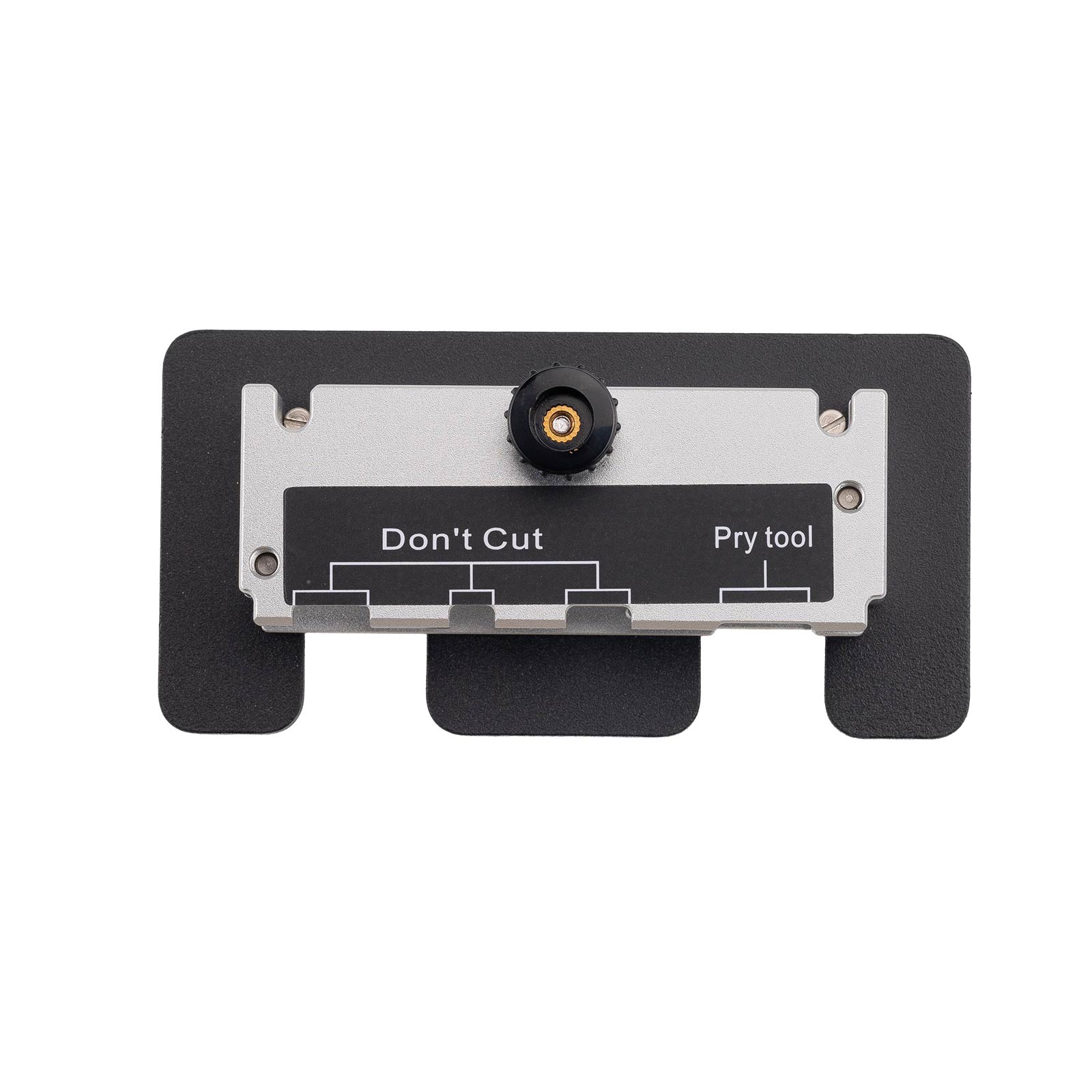

| 2 | key clip |  |
Applicable to connect the inner shell of BCP key. | 1 |
| 3 | hammer |  |
Applicable to connect the inner shell of BCP key. | 1 |
| 4 | Position-limiting scraper |  |
Applicable to cut the inner shell of key. | 1 |
| 5 | Scraper blade |  |
Applicable to cut the inner shell of key. | 2 |
| 6 | pry blade |  |
Applicable to cut the inner shell of key. | 1 |
| 7 | pry bar |  |
Applicable to cut the inner shell of key. | 1 |
| 8 | Scalpel |  |
Applicable to cut the inner shell of key. | 1 |
| 9 | Surgical blade |  |
Applicable to cut the inner shell of key. | 10 |
| 10 | Flat-edged blade |  |
Applicable to popping open key buckles. | 1 |
| 11 | Storage box |  |
Applicable to storing surgical blades, straight-edge blades and pry bars. | 1 |
| 12 | Sealant |  |
Applicable to restore the key shell. | 1 |
Hot Branded Products:
Shipping method and delivery time:
UK Shipping (No Tax) : 2-4 working days arrive. For products marked " UK Ship " and UK local customer
EU shipping (No Tax) : 5-7 working days arrive. For products marked " EU Ship " and from EU countries, if not belong to EU, need to clearance
Yodel (No Tax) : 5-7 days arrive . For products UK out of stock, and customers from UK
Yun Express ( No Tax) : 5 - 9 working days to UK, 7-14 days to other European Countries.
Yanwen (No Tax) : 5 - 9 working days to UK, 7-14 days to other European Countries, ship to all over the world, mainly for UK/EU warehouse no stock
DHL: need to clearance, 3-5 working days arrive. Used for UK/EU no stock, customers request ship this way. Need to clearance, we will declare a low price on the invoice help to clearance.
If you have any questions about the device, the price, or the payment, please feel free to contact us.
Contact Person: Elyza
Whatsapp: +86 13983755934
Telephone: +86 13983755934
Wechat: +86 13983755934
Official Email: Sales@obd2shop.co.uk
Video
How to use Yanhua Btool BCP Key Cutting kits to disassemble BCP key inner shell
Tech Support
Learn how to disassemble a BMW BCP key inner shell using the Yanhua Btool BCP Key Cutting Kit. Step-by-step guide with images and video tutorial for locksmiths.
This guide explains how to safely disassemble the BMW BCP key inner shell using the Yanhua Btool BCP Key Cutting Kit.By following the correct cutting positions and angles, the key shell can be opened without damaging the internal PCB board.
This procedure is recommended for locksmiths and technicians who need to access the internal components of BMW BCP keys.

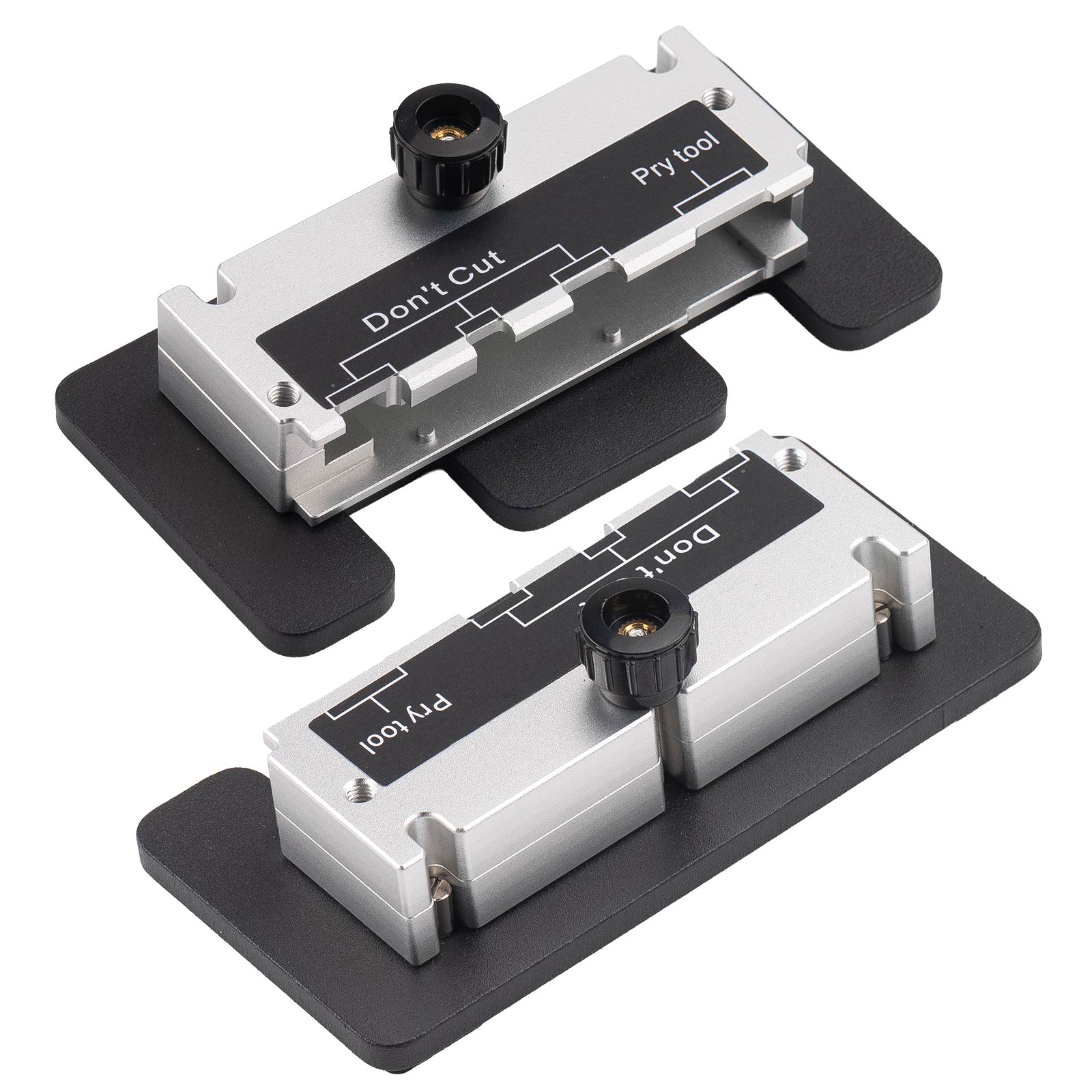

Step 1. Install the Key in the Fixture
1. Open the key clip.2. Align the LOGO button of the key with the inner column of the key clip.
3. Place the key firmly into the clip.
4. Align the limiting hole with the limiting pin.
5. Close the clip and secure the key tightly.
6. Push the key clip into the key clip base plate.
7. Tighten the nut to fix the key in place.
At this stage, the cutting tool will be positioned at the ultrasonic welding area of the key side frame.

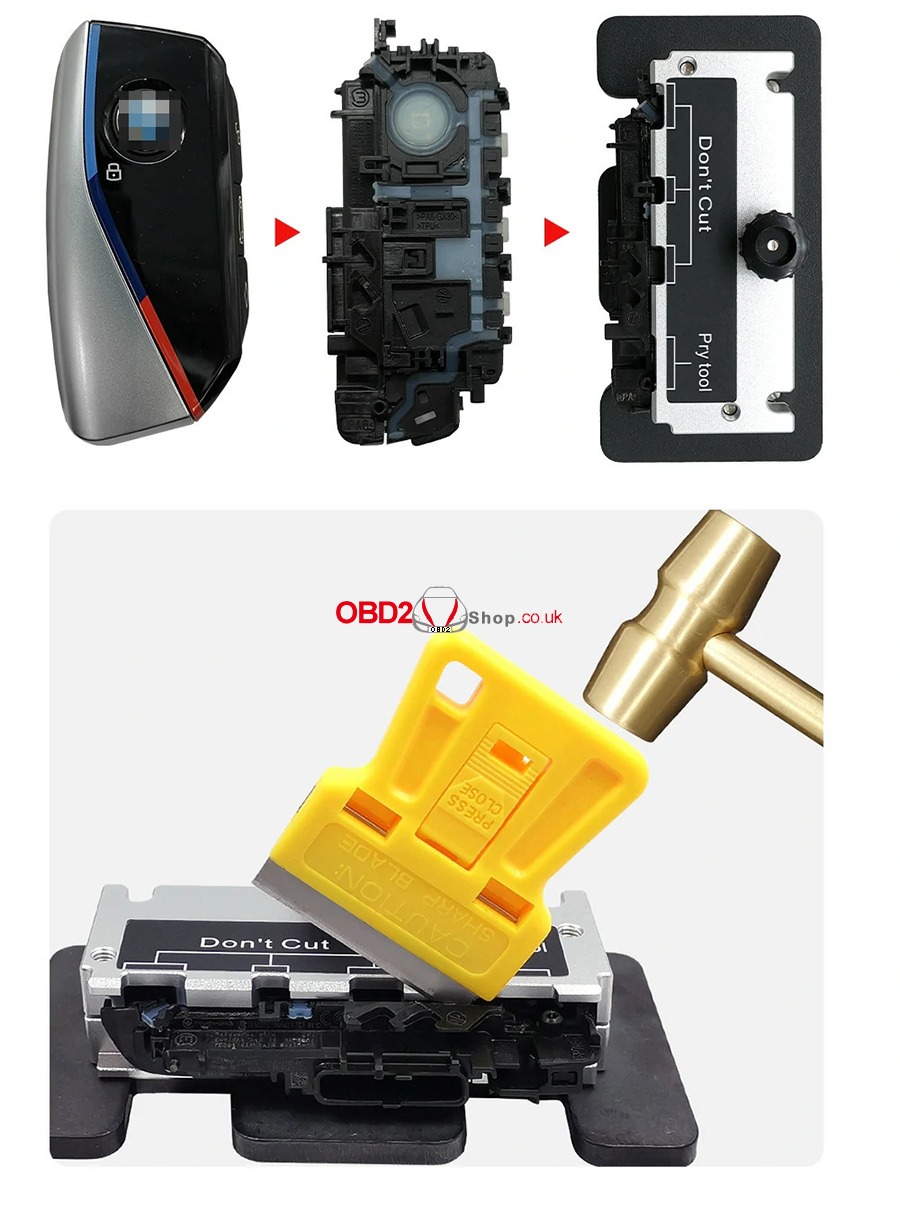

Step 2. Cut the Back Side of the Key Shell
1. Start cutting from the far right side of the key shell.2. Align the left edge of the blade with the right edge of the slot.
3. Insert the blade into the gap.
4. Gently strike the blade with a hammer.
5. Stop when the blade reaches the locking notch.
Next:
6. Place the blade into the blade clamp.
7. Tilt the blade at approximately 20° and align it with the weld seam.
8. Strike the upper-right part of the blade to cut along the weld seam.
When the cut reaches the fixture groove, switch to a scalpel to continue.
Scalpel operation:
- Keep the blade facing right.
- Insert the tip vertically into the groove.
- Move the scalpel horizontally so the back of the blade presses against the left bevel.
- Tap the scalpel gently with the hammer until the blade reaches the bottom of the shell.
Step 3. Cut the Front Section of the Shell
Move to the front side of the key shell.Pay attention to the warning labels on the shell:
Three grooves marked: “Don't Cut.”
One groove marked: “Pry Tool.”
Operation steps:
1. Cut the three designated cutting areas first.
2. Tilt the blade at 20° and insert it into the gap.
3. Strike the blade gently to cut the weld seam.
4. When reaching Area 3, remove the blade.
5. Reinsert the blade at an angle aligned with the weld seam.
6. Continue striking the blade to complete the cut.
Step 4. Remove the Key Inner Shell
After completing the cutting steps, the shell can be separated.1. Remove the off-pin blade.
2. Insert it into the clip on the front cover.
3. Insert the pry tool into the groove on the back of the key.
4. Apply force toward the side cover to pry it open.
When using the pry knife:
Insert it into the welding seam.
Apply force left and right alternately.
Gradually tear open the welding seam.
Repeat the same method on the front side until the shell is fully separated.
Finally:
Remove the internal PCB board.
Confirm that the PCB board remains undamaged.
The BMW BCP key inner shell disassembly process is now complete.
Video Tutorial
For a quick demonstration, please watch the video guide below:
https://youtube.com/shorts/o86z6o73D-E?si=_bbJQzz_jeuXXZzq
