[UK/EU Ship] NEW GODIAG GT100 PLUS GPT ENET DOIP 24V-12V AUTO TOOLS OBD II Break Out Box ECU Connector

Brand: GODIAG Item No. SO537-C In Stock. History 18 sold.
0 rating
|
Buy Now: £101
GBP 101.00 EUR 116.47 USD 129.28
7 Product: GT100 PLUS GPT [UK/EU Ship] NEW GODIAG GT100 PLUS GPT ENET DOIP 24V-12V AUTO TOOLS OBD II Break Out Box ECU Connector
Whatsapp +86 13983755934
Shipping:
Free Shipping Standard Flat Rate Shipping ServiceEstimated delivery time: 7-15 working days.See details »
Weight:
1.4KG
Package:
23cm*20cm*10cm ( Inch: 9.03*7.85*3.93 )
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »

Product Description

GODIAG GT100 PLUS GPT is a versatile testing platform for OBDII communication detection and ECU maintenance, diagnosis, programming, and coding. It features a real-time voltage and current display, enabling engineers to easily assess the ECU’s operating status.

GODIAG GT100 PLUS GPT OBD II Breakout Box ECU Connector


GODIAG GT100 PLUS GPT Description:

GODIAG GT100 PLUS GPT is a testing platform for OBDII protocol communication detection and ECU maintenance/ diagnosis/programming/ coding. GT100 PLUS has a voltage and current display, which is convenient for maintenance engineers to judge the current working status of the ECU.
Check the Goidag GT100 Plus GPT User manual

It can convert the car OBD2 interface into 16 pin for signal detection. It can be connected to the single modules or multiple modules of the vehicle. It can also be connected with any diagnostic tool to tell whether the car's communication is good or not.

It supports the 24V to 12V voltage conversion, DOIP-ENET communication, and GPT to read and write ECU data.
It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically lock the vehicle, the key remote control fails, and the fault light turns on.
The product uses CANH and CANL shielded twisted cables, which can resist electromagnetic interference and make communication more stable.


Godiag GT100 Plus Vs. GT100+ Vs. GT100:

Model SO537-C(GT100 Plus GPT) SO537-B(GT100+) SO537(GT100)
24v-12v voltage conversion √ × ×
DOIP ENET Diagnostics √ × ×
GPT connection method to read and write the ECU √ × ×
Connect SK420 SK421 airbag 100K CANBUS communication √ × ×
 Voltage and current value display function √ √ ×
Pin 1, 9, 3, 11, 12, 13, 8 Display CANBUS  communication. √ √ ×
Pin 1, 9, 3, 11, 12, 13, 8 Display K-Line Pwm Vpw+ KWP 2000 protocol communication. √ √ √
PIN2. 10  VPW PIN6.14  CANBUS PIN 7.15  k-line √ √ √
Check whether tools can send communication signals. √ √ √
Program key for VW, Porsche, Mitsubishi, etc, with all keys lost √ √ √
Communicate with a single ECU on the bench √ √ √
Replace the auxiliary power supply for the battery √ √ √
Convert the OBD1 port of the special truck to the standard OBD2 √ √ √
Test whether the programmed key works with CAS4 √ √ √
Work with the BMW FEM/BDC Programming Test Platform √ √ √


Godiag GT100 GPT Functions:

1. Use GPT to read and write ECU with devices (such as PCMFLASH, KESSV2)

Support GPT to read and write data without disassembling the ECU.
Supports OBD2 BENCH [CAN bus & K-Line]
Supports GPT BOOT CNF1

godiag gt100 plus gpt 01

2. Check OBDII diagnostic interface Communication Status and Display Voltage

By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100 PLUS GPT's LED will indicate whether the OBDII diagnostic interface has good communication with the car. It monitors the voltage of the vehicle's OBDII interface and displays it in real time. If it is less than 11V, please stop the diagnosis and programming to avoid data loss/ module locked/ the vehicle being unable to start. It supports OBD2 BENCH full protocols.

godiag gt100 plus gpt 02

1. Manufacturer custom
2. SJE1850 wire
3. Manufacturer custom
4. Power grounding
5. Signal grounding
6. SAEJ2284《CAN》high
7. ISO9141-2&iso, DIS4230-4K wire
8. Manufacturer custom
9. Manufacturer custom
10. SJE1850 wire《bus->
11. Manufacturer custom
12. Manufacturer custom
13. Manufacturer custom
14. SAEJ2284《CAN》low
15. ISO9141-2 & ISO/DIS 4230-4L wire
16. Car battery positive


3. Support DOIP-ENET Diagnostics

Support DOIP-ENET communication
Support diagnostic programming and coding for BMW Benz, Volkswagen, Audi, and other vehicles that support DOIP protocol. [No software is provided.]
Can be used for diagnostic programming and coding of Land Rover, VOLVO, and Geely vehicles that support DOIP communication. [No software is provided.]

godiag gt100 plus gpt 03

4. 24V to 12V Voltage Conversion

Convert the 24V voltage of the diagnostic interface of heavy trucks, light trucks, pickups, etc., into 12V voltage that can be used by diagnostic equipment.

godiag gt100 plus gpt 04

5. Connect with the Airbag ECU

godiag gt100 plus gpt 05

6. Used to check whether the diagnostic/programming/coding tool can send communication signals.

godiag gt100 plus gpt 06


7. ECU connection: single module connection

GODIAG GT100 PLUS GPT, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.

godiag gt100 plus gpt 07


8. GT100 PLUS GPT program key for VW, Porsche, Mitsubishi, etc, with all keys lost - activate the instrument or immobilizer module.

godiag gt100 plus gpt 08

A. To program VW 4th generation / 5th generation Lost all keys (for example: new A6L Touareg A4 Q5 A7), please use GT100 PLUS GPT to short-circuit banana connector PIN 16----PIN 1 to lit up the dashboard, after that use the key programmer tool to connect with the female adapter of GT100 PLUS GPT+ for data collection. Some vehicle dashboards won't be lit up, but data can also be collected, for example: A6L Q7.
B. To replace the engine ECU of Toyota or to use a key programmer to program Toyota when all keys lost, it needs to short-circuit PIN13-PIN4
C. To program the Mitsubishi key with all keys lost or to set OBDII when all remote keys lost, please short-circuit PIN1-PIN4.
D. To program the Porsche Cayenne key with all keys lost or with all remote keys lost, please short-circuit PIN3-PIN7.


9. Voltage and Current Value Display function

On the bench, connect the ECU module by using the banana connector or the DB25 dedicated ECU interface, and Godiag GT100 Plus GPT will display the voltage/ current value.
The user can intuitively see the current status of the ECU. If there is no current display or the actual displayed current is inconsistent with the engineer's expected current, then you can immediately check whether the wiring is wrong. If the wiring is correct, he can judge that the ECU may be broken, so there is no need to perform diagnostic communication and can directly repair the ECU.

If it shows too much current, then you can also determine if the cable is wrongly connected or the ECU is broken.

godiag gt100 plus gpt 09

10. GT100 PLUS GPT Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interfaces may display CAN BUS or K-Line communication protocol. GT100 PLUS GPT can only display K-Line PWM Vpw+ KWP 2000 protocol. GT100 PLUS GPT will display CANBUS K-Line PWM Vpw+ KWP 2000 protocol communication.

11. Quickly communicate with a single ECU on the bench by connecting with the ECU diagnostic/programming tool. [Which allows the engineers or technicians to complete the job on the bench, also keeps away the risk of data loss in other modules when directly testing on the vehicle.

godiag gt100 plus gpt 10

12. Multiple vehicle ECU module connecting. [It’s aimed at solving the problem of engineers and technicians who need to connect multiple ECU during programming a module, such as connecting to multiple ECU modules for key programming

godiag gt100 plus gpt 11

13. Replace the auxiliary power supply for the battery - uninterruptible power supply connecting mode. [Since there’s failure or missing anti-theft remote control data of some vehicles when the battery is dismantled, the auxiliary power supply aims at supplying power to the car through GT100 PLUS GPT before replacing the battery to sustain the power supply to the car. It guarantees the vehicle ECU is power connected during replacement of the battery.]

godiag gt100 plus gpt 12

14. The OBD2 cable of GT100 PLUS GPT is as long as 1.4 meters, which will solve the problem that the diagnostic tool cable is not long enough or the vehicle diagnostic port is too narrow to connect. Please connect the GT100 PLUS GPT first, turn on the power switch, and you will see the voltage on the screen, which can tell whether the power supply of the vehicle is normal. [Which keeps away the risk of burning out the diagnostic & programming tool due to the modified vehicle OBD2 port]

godiag gt100 plus gpt 13

15. For old OBD1 vehicles or special diagnostic ports, please connect GT100 PLUS GPT through the banana plug and DB25 jumper. The OBD1 diagnostic port or special diagnostic port can be transferred to the standard OBD2 diagnostic port.

16. GT100 PLUS GPT will convert the OBD1 port of the special truck to the standard OBD2 diagnostic port according to the protocol.

godiag gt100 plus gpt 14

17. Work with CAS1/CAS2 Mech-Key Test Platform

godiag gt100 plus gpt 15

18. Work with CAS2 CAS3 SER Semi Smart Test Platform

godiag gt100 plus gpt 16

19. For the BMW-CAS4/CAS4+Programming Test Platform, it’s used to test whether the programmed key works with CAS4 normally

godiag gt100 plus gpt 17

20. For BMW FEM/BDC Programming Test Platform

godiag gt100 plus gpt 18

21. More connectors and dedicated modules are under development, please wait...

godiag gt100 plus gpt 19


GODIAG GT100 PLUS GPT Specifications:

Item Specification
Diagnostic port OBDII
Working voltage DC 9V-24V
Work and power 0.5-0.6W
Adapter power Input AC100v-240v, Output DC12.5V 2.5A
Operating temperature range -20 to 70 °C ( -4 to 158 °F )
Storage temperature range -40 to 85 °C ( -40 to 185 °F )
Dimension L: 23cm, W: 18cm, H: 7cm

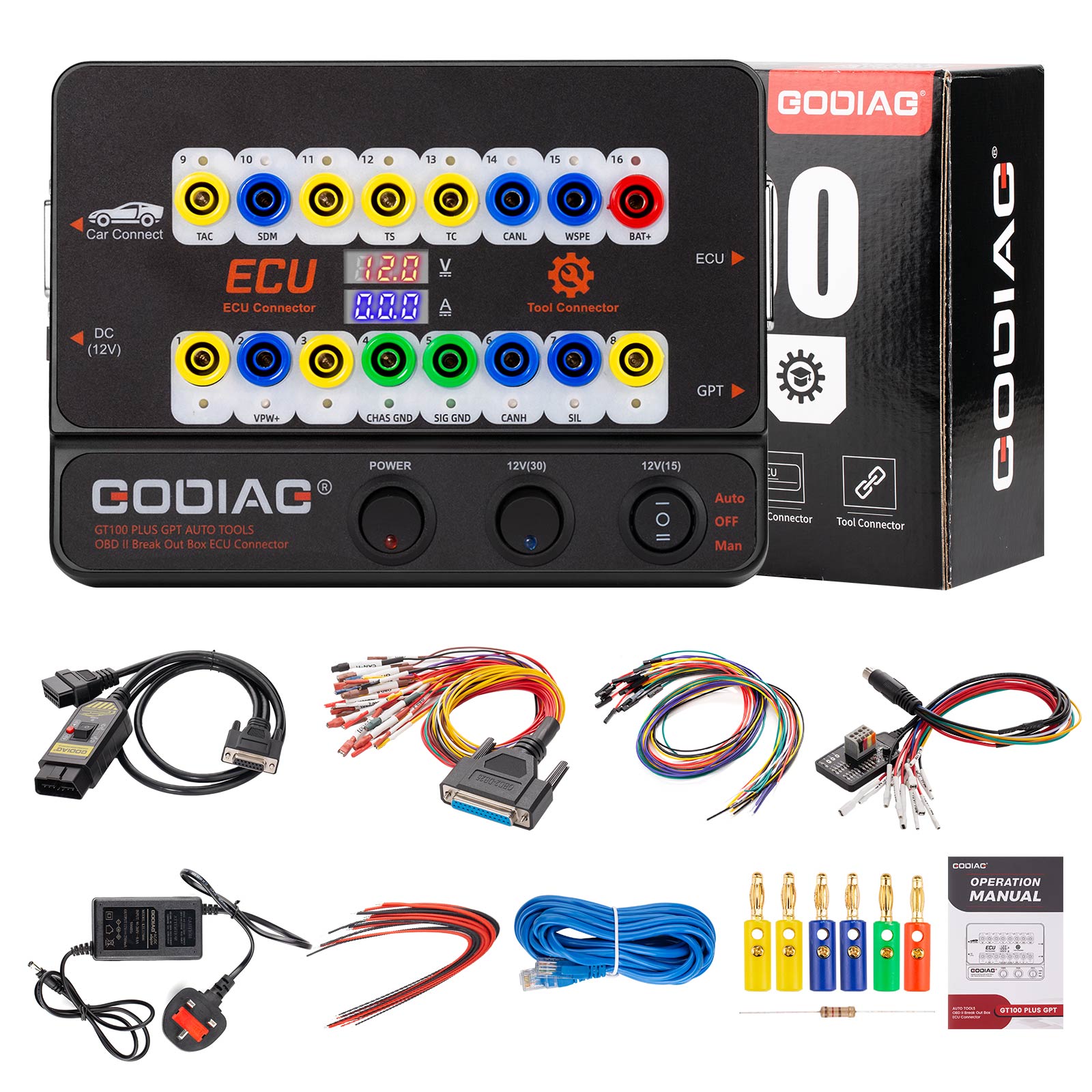

GT100 PLUS GPT Package list:

1pc x Host

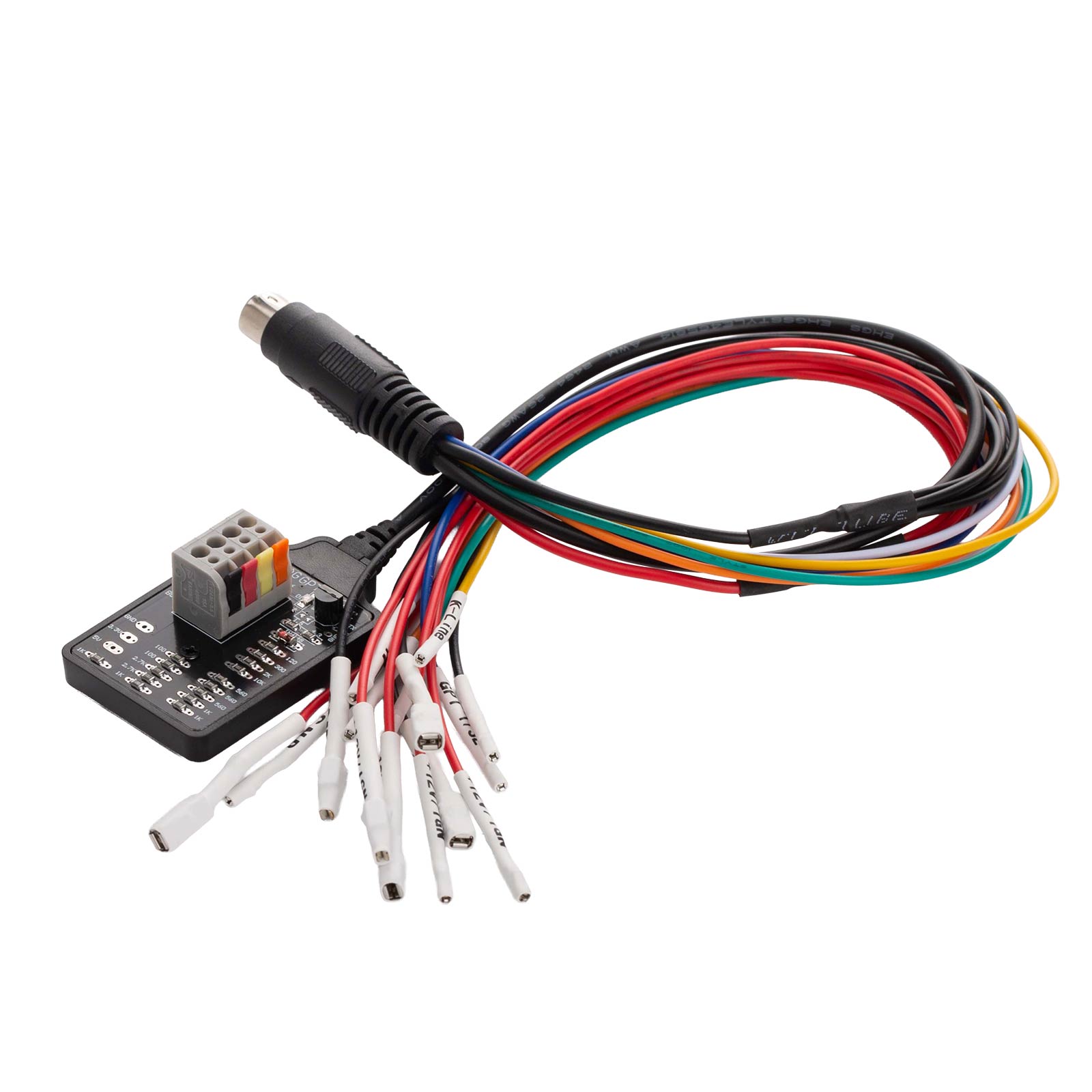

1pc x GPT connecting cable
1pc x Ethernet cable
1pc x OBD 2-in-1 extension cable
1pc x Colored jumper cable
1pc x Power supply 12V
1pc x Resistance 120 ohm
6pcs x Banana plug
24pcs x Wire accessories, Dupont 2.54mm connector female pins
1pc x Manual
