GODIAG GT100 Auto Tool OBDII Break Out Box ECU Connector Plus for BMW CAS4 & CAS4+ Programming Test Platform

Brand: GODIAG Item No. SO537+SK310 In Stock.

Buy Now: £115
3 Godiag GT100: Godiag GT100 + BMW CAS4 GODIAG GT100 Auto Tool OBDII Break Out Box ECU Connector Plus for BMW CAS4 & CAS4+ Programming Test Platform
Good day :)

Enjoy6% OFF! Add to cart, discount automatically !

Valid from Jan,13th-Jan,22nd

Note: AUTEL and Products marked sales not participating in discount again.

Whatsapp contact: +86 13983755934
Shipping:
Free Shipping Express Shipping ServiceEstimated delivery time: 5-7 working days.See details »
Weight:
1.4KG
Returns:
Return for refund within 7 days,buyer pays return shipping. Read details »

Product Description

GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding,with CAS4 / CAS4+ test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS4 CAS4+ programming engineers.

GODIAG GT100 Auto Tool OBDII Break Out Box ECU Connector Plus for BMW CAS4 & CAS4+ Programming Test Platform


This package including SO537 Godiag GT100 ECU connector + SK310 BMW CAS4 & CAS4+ Programming Test Platform



Advantages:

1. GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and ECU maintenance, diagnosis, programming & coding.
2. It can convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.
3. Able to connect the single modules or multiple modules of the vehicle.
4. Connect with any diagnostic tool to tell whether the car communication is good or not.
5. Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
6. One Year Warranty.
7. Work together with Xhorse VVDI2, Autel devices, Launch, Foxwell etc.
8. Godiag CAS4 / CAS4+ test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS4 CAS4+ programming engineers.


GODIAG GT100 Features:

1. OBDII Protocol Detector & Communication Detection
1). Connect GODIAG GT100 to the OBDII diagnostic port of the car.
2). When the device displays the voltage, turn on the power switch of GODIAG GT100.
3). Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash. ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)

2. ECU connection: single module connection
GODIAG GT100, connected to a single ECU module, is convenient for a user to do the single-module diagnosis and programming.
1). Connect the ECU with the color jumpers. (If the ECU is CAN protocol, please check whether you will need to connect a 120 ohm resistor.)
2). The Godiag GT100 can be powered by connecting to the OBDII diagnostic interface of car, or by an AC power adapter.
3). To diagnose and program for a single ECU by connecting the diagnostic tool or ECU programmer.

3. Banana plug extension connection:
Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.

4. Convert OBD1 diagnostic interface to the standard OBD2
Use the connector to convert the OBD1 interface into obd2 interface according to the diagnostic interface communication protocol.

5. Connect multiple ECU control modules at the same time, which is convenient for the professional engineers to detect and maintain.

6. When to use the extension cables:

The space of the diagnostic interface location is too narrow to connect to the diagnostic tool, or the user find that the diagnostic cable is not long enough during maintenance. It can be extended by 1.2 meters.

7. Able to power the car when replacing the used battery.

1). Prepare battery A to supply power by connecting to No. 16 / 4 / 5 holes of Godiag GT100 & to the OBD2 diagnostic interface of the car.
Notice
*Turn on the power switch of Godiag GT100.
*Don't turn on the ignition switch, don't start the car.

2). Then replace the brand-new battery B with the used battery in the car, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.

8. GT100 will convert the OBD1 port of special truck to the standard OBD2 diagnostic port according to the protocol.

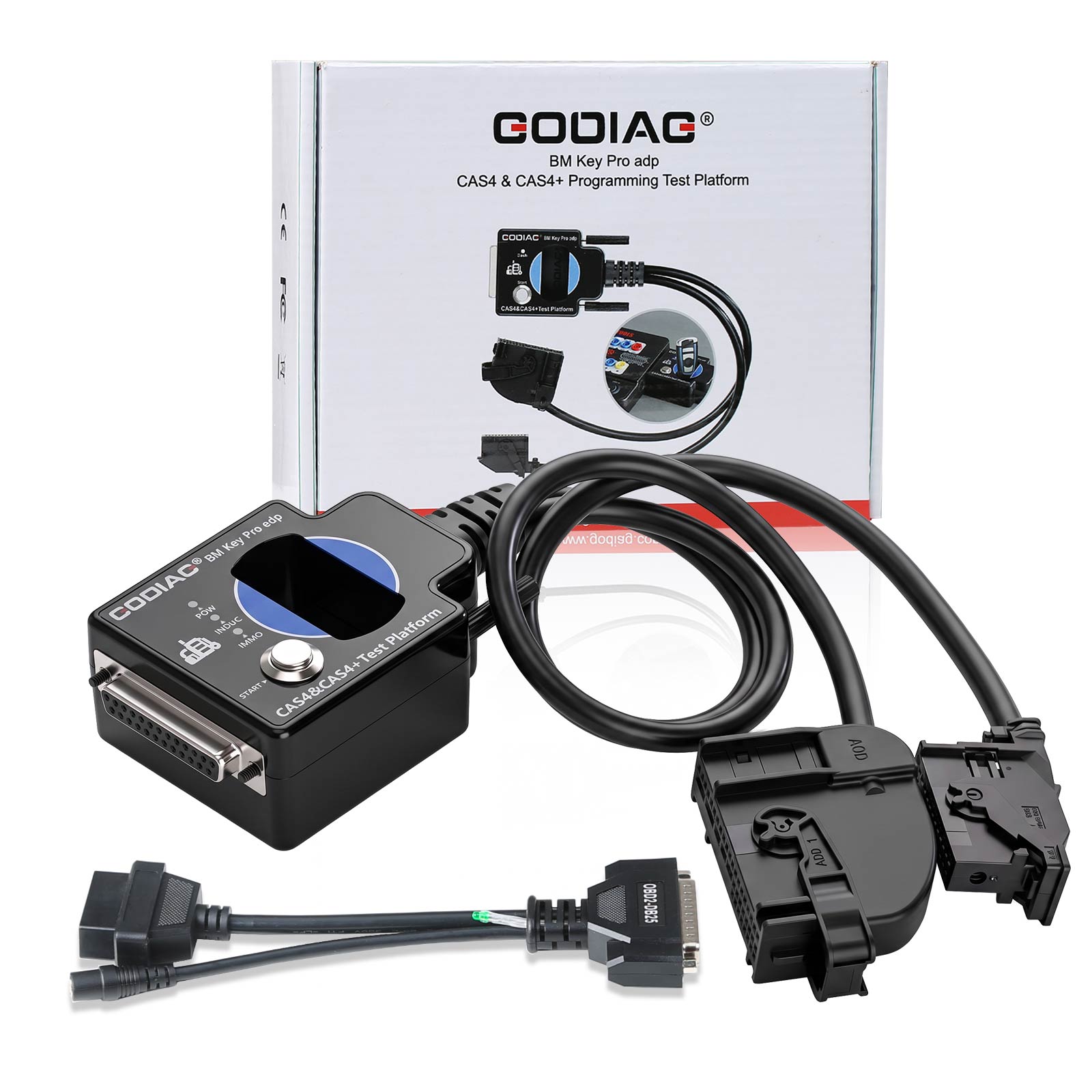

BMW CAS4 & CAS4+ Programming Test Platform

1. By working together with Godiag GT100 & xhorse vvdi 2 / bmw vvdi bim tool / Lonsdor k518 / Autel im608 etc, Godiag CAS4 / CAS4+ test platform can program new key when all keys lost, can add new key and replace CAS4 / CAS4+ ECU module.

2. Before installing back the CAS4 /CAS4+ module to the car, you are allowed to connect this test platform to the CAS module to test whether
it can communicate or there is any malfunction.

3. Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module
(for example: replace 2-port CAS4 with 3-port immobilize system with comfort access.)

4. Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the programmed key synchronizes with cas4 cas4+.

5. Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to program CAS4 /CAS4+ key.
When a car owner lost the key, he / she can remove the CAS4 module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and CAS4 / CAS4+.

6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between cas4 cas4+and the key.

7. This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.

Package including :
1 whole set SO537 Godiag GT100
1 while set  SK310  BMW CAS4 & CAS4+ Programming Test Platform
