Product Description

Compared with IM608, Autel MaxiIM IM608 PRO II has improved firmware, larger RAM and ROM, with new JVCI+VCI, it can support CAN protocol read and write without password, and also add built-in DoIP and CAN FD protocol, and add the remote expert function with 2 years free update.

AUTEL IM608 PRO II Global Version Key Programmer


Autel MaxiIM IM608 II Description:

Autel IM608 II is the most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.


Autel MaxiIM IM608 II  Advantages:

1. No IP Limitation: You Can Use it All Around the World without Limitation.
2. Two Years Free Update Online (After 2 Years, you can buy IM608 PRO II update subscription).
3. Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration.
4. Smart Mode and Expert Mode Solution In One Tool to Easy Operation with Ambient Light Sensor – detects ambient brightness.
5. Support Multi-Language: Both Diagnose Software and IMMO Software Support Multi-Language. (Default Language is English, Can Be Changed Language to German, Swedish, Italian, Portuguese, French, etc.)
6. Works for 85% of Cars In Worldwide, Including BMW, BENZ, VW, AUDI, etc. making your work simple and easier, Best Choice for Locksmiths and Workshop.
7. Extended to Work with Autel MV108/ MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.


Autel IM608 II Main Features:

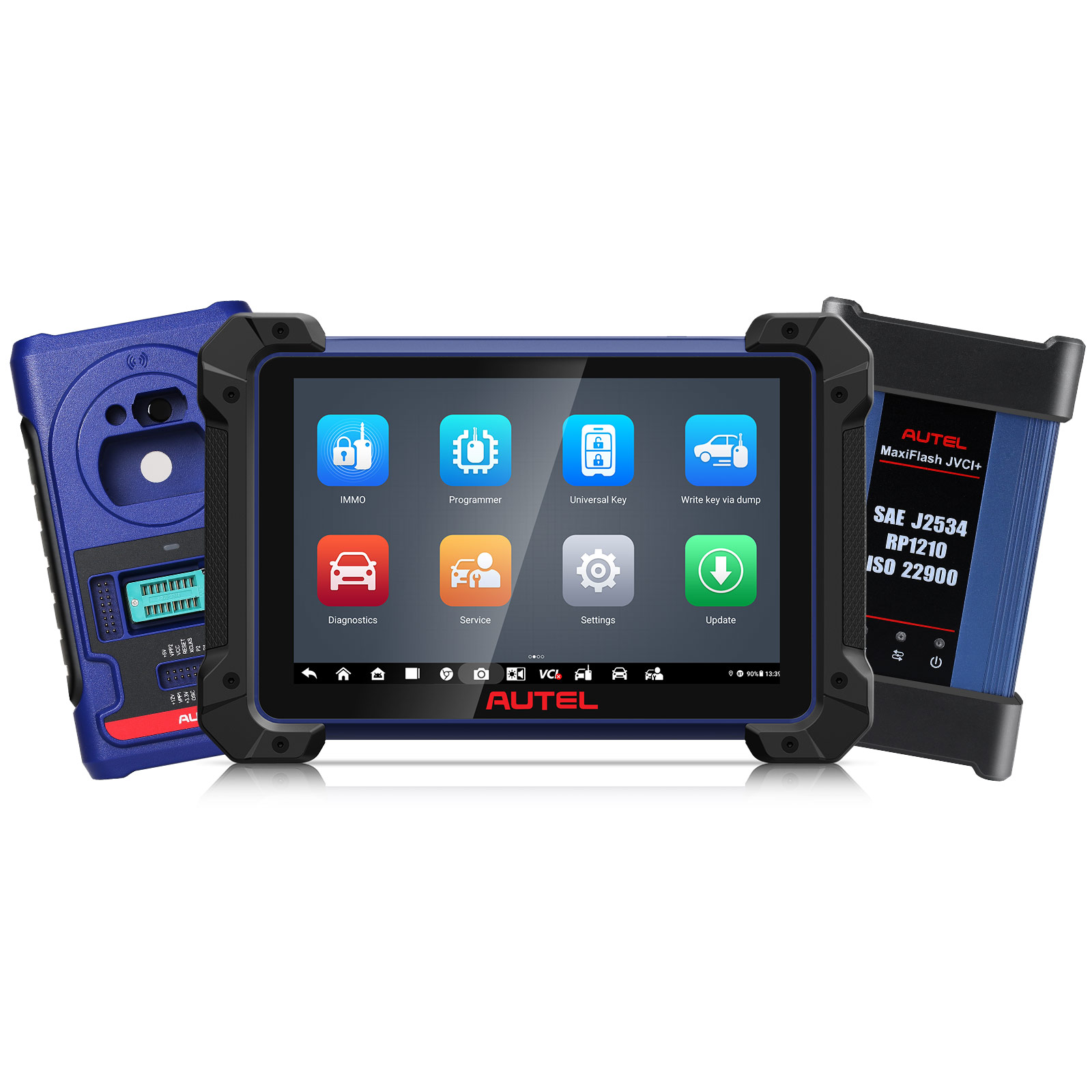

  • IMMO & Key Programming Bundle
  • MaxiIM IM608 II 10.1-inch Android Touchscreen Tablet
  • Program IMMO & Keys for U.S., Asian, and European Vehicles
  • XP400Pro Key and Chip Programmer
  • JVCI Wireless J2534 Pass-Thru Programming Device
  • Bi-directional Control/ Active Tests
autel maxiim im608 ii key programmer


Autel IM608 Pro II Vs. IM608 Pro:

1. IM608Pro II has improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI.
2. Supports CAN protocol read and write without a password.
3. Add the built-in DoIP and CAN FD protocol (don't need a converter).
4. Support remote expert function.


Product Model / IM608 II IM608 Pro
Accessories VCI JVCI+ JVCI
Programmer XP400Pro XP400Pro
Hardware Configuration CPU Qualcomm SDM660 Octa-core Processor
4x 2.2 GHz(A73)
4x 1.8 GHz(A53)
Samsung Exynos T5260 6-Core Processor:
4x 1.3 GHz(A7)
2x 1.7 GHz(A15)
OS Android 10.0 Android™ 4.4.2, KitKat
Memory 4 GBRAM+128GB FLASH 2 GBRAM+64GB FLASH
Display 10.1 inches 10.1 inches
Resolution 1920*1200 1920*1200
Battery 3.8V 15000 mAh 3.8V 15000 mAh
BT BT V5.0 + BR/EDR BT V2.1 + EDR
DoIP Yes Adapter required
CANFD Yes Adapter required
diagnostic function Basic functions Full Function Full Function
Coding Yes Yes
Programming Mercedes-Benz BMW system Mercedes-Benz BMW system
IMMO Functions Matching device Full Function Full Function
Programmer EEPROM reading and writing, MCU reading and writing EEPROM reading and writing, MCU reading and writing
Key tool Yes Yes
Remote expert / Yes No


IM608 II Supported Functions:

1. IMMO Functions
  • Auto Detect Make/Model/Year/System
  • Read PIN (All Key Lost)
  • Key Learning
  • IMMO ECU Reset/Adaption
  • IMMO ECU Refresh/Coding
  • Remote Learning
  • AUDI Q5/A4/A5 2015-2017 Key Learning
  • VW MQB Key Learning
  • BMW FEM/BDC Key Learning and Adaption
  • BMW CAS4 Key Learning and Adaption
  • Mercedes Key Learning
  • 2015-2018 Land Rover & Jaguar write key via dump
  • Volvo Smart Key Learning/knob-style smart key
  • Advanced Programming Functions
  • EEPROM Read/Write
  • MCU Read/Write
  • Key Programming
  • Mercedes Key Read/Write
  • Remote Frequency Detect
  • OE-Level Diagnoses

2. All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI+ J2534 ECU Reprogrammer)

  • Oil Service Reset
  • Parking Brake Pad Relearn After Replacement
  • Steering Angle Sensor Relearn
  • Battery Registration and Reset
  • Diesel Particulate Filter Regeneration
  • Tire Pressure Monitoring System
  • Active Test
  • ECU Coding
  • VW/Audi Component Protection
  • Complete Service Functions
autel maxiim im608 ii all system diagnostic

3. Advanced Key Programming Functions

  • Exclusive Smart Mode to guide Key Programming
  • Auto Read IMMO Data via OBD
  • One-tap Key Programming via OBD & Easy-to-use Remote Programming
  • With the newly upgraded key programmer XP400 Pro
  • Extensive Vehicle & Functionality Coverage
  • Support Diagnostics & IMMO Programming for 10,000+ Models;
  • Support Models Up to 2020;
  • All System Diagnostics and Advanced Maintenance Services;
  • Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;
  • BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;
  • Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;
  • GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;
  • Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;
  • Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;
  • FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;
  • Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020
  • Jaguar LandRover -- Add Key / All Key Lost up to 2019
  • Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump
autel maxiim im608 ii advanced immo key programming

4. 36+ Advanced Service Functions
  • Oil Reset: Reset service mileage & service intervals after the engine oil is changed.
  • EPB Service: Resetting brakes after disc or pad replacement and etc.
  • SAS Calibration: Clear SAS fault memory and reset the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
  • DPF Regeneration: Performs DPF Regeneration to clear the blockage through continuous burning of the particulate matter captured in the DPF filter and turning off the DPF light.
  • ABS/SRS Services: Perform various active/functional tests to check ABS and SRS (Airbag) systems like ABS Brake Bleeding, Pump Motor Test, and checking Module Information and etc.
  • ABS Bleeding: Autel scanner allows you to check the operating conditions of the Antilock Braking System, such as Automated Bleeding, ABS Brake Bleeding enables technicians and home mechanics to bleed air out of the ABS module and saves you time and money.
  • etc...
autel maxiim im608 ii special functions

XP400 Pro adds support for the following Chips:


EEPROM-->AMD-->AM29FXXX series chip
EEPROM--> FUJITSU-->MB29FXXX series chip
EEPROM-->ST-->M29FXXX series chip
Engine control module-->SIMTEC76(AM29F800BB) write
IMMO-->BENZ-->ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->BMW-->EWS3 module read/write function
REMOTE_RENEW(renew key)-->NEC-->V51 and V5 chip read/write/erase

XP400 Pro adds support for the following adapter board:

APB113 PCF79XX adapter board
APB114 EWS3 adapter board
APB115 NEC Adapter board
APB118 NEC ELV adapter board
APB119 TB28FXXX adapter board
APB120 TMS370 adapter board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adapter board 1
APB123 AM29FXXX adapter board 2
APB126 M35080/D80 adapter board
APB127 MC68HC0(7)05BXX adapter board
APB128 MC68HC05X32 adapter board


Comparison IM508, IM508S, IM608 PRO, IM608 PRO II
  IM508 IM508S IM608 PRO IM608ProⅡ/IM608SⅡ/IM608Ⅱ
Features
Processor Quad-core Quad-core Hexa-core Octa-core
Touchscreen 7-inch 7-inch 10.1-inch 10.1-inch
Resolution 1024x600 1024x600 1920x1200 1920x1200
Memory 32GB 64GB 64GB 128GB
Rechargeable Li-ion Battery 5000 mAh 5000 mAh 15000 mAh 15000 mAh
Internet Updatable Wi-Fi Wi-Fi Wi-Fi Wi-Fi
Camera NO NO 8.0 Megapixel 16.0 Megapixel
Connection OBD   Cable OBD   Cable JVCI JVCI+
Programmer XP200 XP200 XP400PRO XP400PRO
Weight 0.78   kg 0.78   kg 1.48   kg 1.58   kg
Remote Expert NO NO NO Advanced
Device/Report   Management Yes Yes Yes Yes
Programmer Function
    (Note: requires the use of the  XP400   PRO and applicable accessory)

Reading/Writing EEPROM Yes Yes Yes Yes
Reading/Writing MCU Yes Yes Yes Yes
Reading/Writing Engine ECU Yes Yes Yes Yes
Reading/Writing IMMO ECU Yes Yes Yes Yes
Universal Key Information Detection Yes Yes Yes Yes
Write key to ECU by programmer Yes Yes Yes Yes
Key Unlocking Yes Yes Yes Yes
Frequency Detection Yes Yes Yes Yes
Keytool   Functions
Universal key generation Yes Yes Yes Yes
Chip Simulation (Requires the use of the Autel APB112) Yes Yes Yes Yes
Diagnostic   Functions
Auto VIN Yes Yes Yes Yes
Reading/ Erasing codes Yes Yes Yes Yes
Read Live Data Yes Yes Yes Yes
Read Freeze Data Yes Yes Yes Yes
Read ECU information Yes Yes Yes Yes
Active Test Yes Yes Yes Yes
Service Function Yes(40+service functions) Yes(40+service functions) Yes(40+service functions) Yes 40+service functions)
Special Function Yes Yes Yes Yes
Online Coding No No Yes   (Mercedes-Benz vehicles are not covered) Yes (Mercedes-Benz vehicles are not covered)
Offline Coding No No Yes Yes
Hidden Function No No Yes.   (Mercedes-Benz vehicles are not covered) Yes.  (Mercedes-Benz vehicles are not covered)
Guided Function No No Yes.   (Mercedes, BMW, JLR  vehicles are not   covered)) Yes.  (Mercedes, BMW, JLR vehicles are not covered)
Offline Programming No No Yes Yes
Cloud Service Report   Management Report   Management Report   Management Report Management
Other Remote Desk
CANFD(Adapters required)

Remote Desk
CANFD(Adapters required)

Remote Desk
 DoIP(Adapters required)
 CANFD(Adapters required)
SCAN VIN

SCAN License

Remote Desk

DoIP
CANFD


Note: XP400 Pro can be purchased separately.

Some listed functions are manufacture dependent. Constantly update MaxiIM for current vehicle coverage. Update software on a regular basis to get the latest tool features.

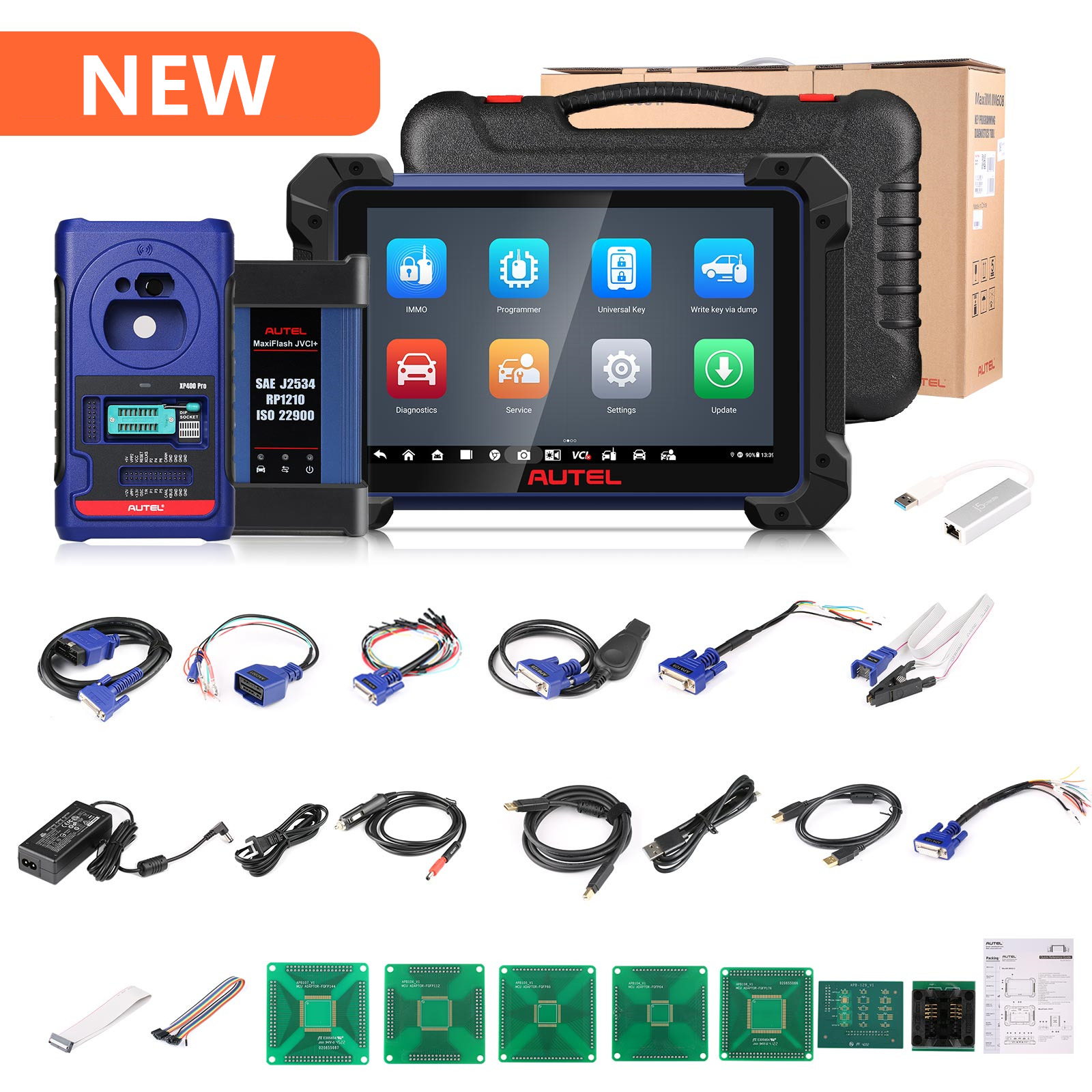

Autel IM608 II Package Includes:

1pc x IM608 II Tablet
2pcs x OTOFIX Smart Key Watches
1pc x XP400 Pro Key Programmer
1pc x JVCI+ ECU Reprogrammer
1pc x Carry Case
1pc x Main Cable
1pc x USB Cable (2m)
1pc x Connect Cable
1pc x Mini USB Cable
1pc x AC/DC Adapter (12V)
1pc x AAC001
1pc x APC101 (USB Cable)
1pc x APB129 (EEPROM Adapter)
1pc x APB125 (Mercedes Infrared Collector)
1pc x APB104 (MCU_FQFP64)
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB109
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Signal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Clamp)
1pc x APA108 (MCU Clamp)
1pc x APA109 (MC9S12 Clamp)
1pc x USB to Ethernet Adapter
1pc x Packing list
1pc x Quick reference guide








Xhorse hot sales !


Hot Branded Products:



xhorseautellaunch x431cgdi

xtoolvxdiagyanhualonsdorobdstar


Shipping method and delivery time:

UK Shipping: No Tax, 2-4 working days arrive. For products marked " UK Ship " and UK local customer

EU shipping: No Tax, 5-7 working days arrive. For products marked " EU Ship " and from EU countries, if not belong to EU, need to clearance

Yodel/Royal Post/herems: No tax, around 5-7 days arrive . For products UK out of stock, and customers from UK

Yanwen: No Tax, 7-14 working days arrive, ship to all over the world, mainly for UK/EU warehouse no stock

DHL: Has Tax, need to clearance, 3-5 working days arrive. Used for UK/EU no stock, customers request ship this way. Need to clearance, we will declare a low price on the invoice help to clearance.


If you have any questions about the device, the price, or the payment, please feel free to contact us.

Contact Person: Elyza

Whatsapp: +86 13983755934

Telephone: +86 13983755934

Wechat: +86 13983755934

Official Email: Sales@obd2shop.co.uk

Skype: OBD2Tool.co.uk



OBD2shop.co.uk

Video

Unboxing 2023 New Autel MaxiIM IM608 II Key Programming Tool

Tech Support

Compared with IM608 Pro, IM608Pro II has improved firmware, added the built-in DoIP and CAN FD protocol, and support remote expert functions.
We recently have a new product on our website: Autel MaxiIM IM608 Pro II, many customers are curious about the difference between this new product and IM608 Pro, this article will tell you.


Product Model / IM608 Pro II IM608 Pro
Accessories VCI JVCI+ JVCI
Programmer XP400Pro XP400Pro
Hardware Configuration CPU Qualcomm SDM660 Octa-core Processor
4 x 2.2 GHz(A73)
4 x 1.8 GHz(A53)
Samsung Exynos T5260 6-Core Processor:
4x 1.3 GHz(A7)
2x 1.7 GHz(A15)
OS Android 10.0 Android™ 4.4.2, KitKat
Memory 4 GB RAM+128GB FLASH 2 GB RAM+64GB FLASH
Display 10.1 inches 10.1 inches
Resolution 1920*1200 1920*1200
Battery 3.8V 15000 mAh 3.8V 15000 mAh
BT BT V5.0 + BR/EDR BT V2.1 + EDR
DoIP Yes Adapter required
CANFD Yes Adapter required
diagnostic function Basic functions Full Function Full Function
Coding Yes Yes
Programming Mercedes-Benz BMW system Mercedes-Benz BMW system
IMMO Functions Matching device Full Function Full Function
Programmer EEPROM reading and writing, MCU reading and writing EEPROM reading and writing, MCU reading and writing
Key tool Yes Yes
Remote expert / Yes No


In conclusion:

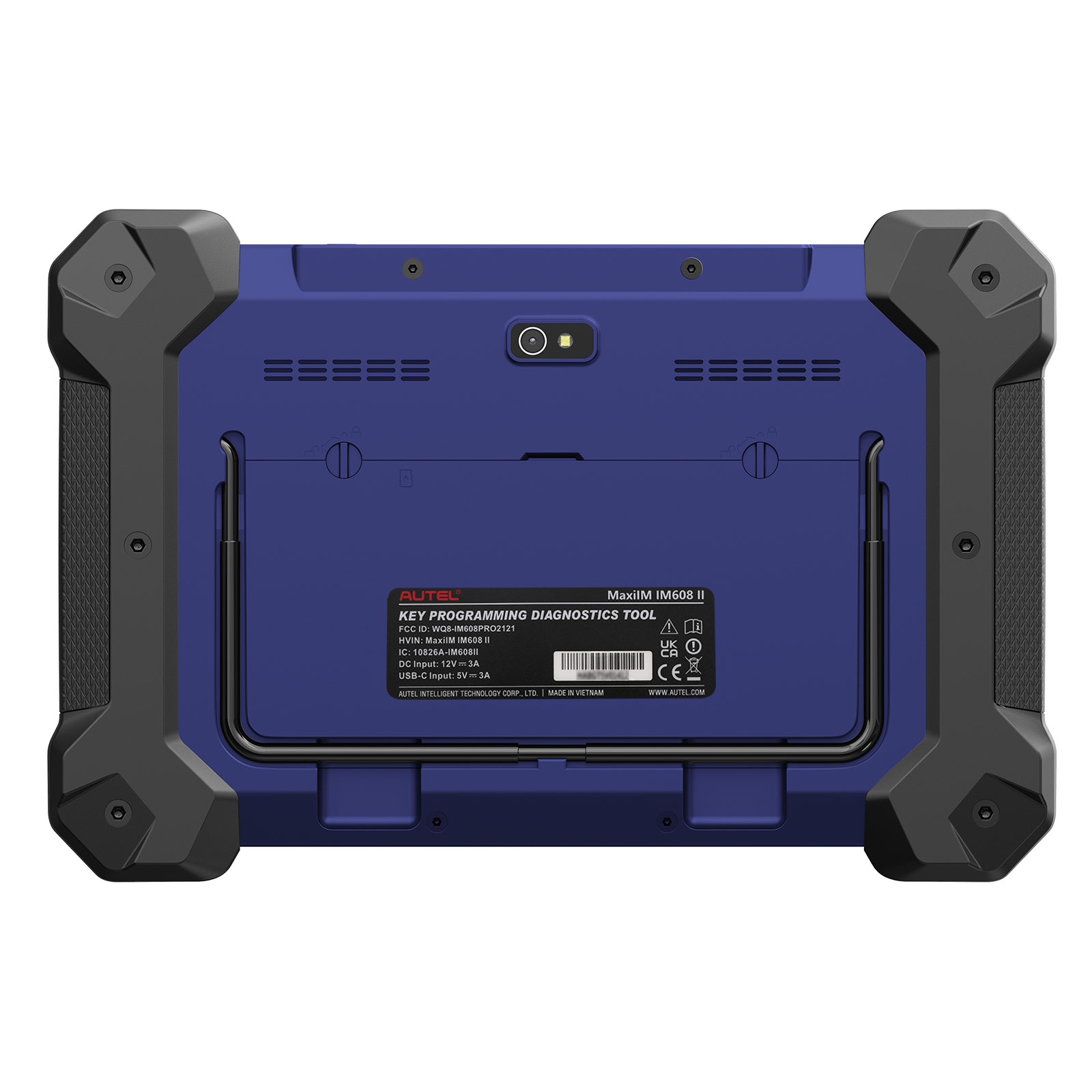

1. IM608Pro II has improved firmware, Android 10, a larger RAM and ROM, with new JVCI+ VCI.
2. Supports CAN protocol read and write without a password.
3. Add the built-in DoIP and CAN FD protocol (don't need a converter).
4. Support remote expert function.
