7% off

May Sales [UK/EU Ship] Xhorse Multi-Prog Multi Prog Programmer ECU Gearbox Programmer Expert Mode Batch Write Chips Free MQB48 License Update of VVDI Prog

Brand: Xhorse Item No. SK408 In Stock. History 64 sold.

Latest price: £661
Buy Now: £615 7% off
6 Product: Xhorse Multi-Prog [UK/EU Ship] Xhorse Multi-Prog Multi Prog Programmer ECU Gearbox Programmer Expert Mode Batch Write Chips Free MQB48 License Update of VVDI Prog
Good day :) Fast delivery no tax !

May Promotion for Hot Products
From May,20th - May,29th

Any inquiry or questions contact : +86 13983755934
Shipping:
Free Shipping Express Shipping ServiceEstimated delivery time: 3-5 working days.See details »
Weight:
3.0KG
Package:
35cm*25cm*13.5cm ( Inch: 13.74*9.82*5.3 )
Returns:
Return for refund within 7 days,buyer pays return shipping. Read details »


Product Description

1. Xhorse Multi-Prog Programmer ECU Programmer
2. Firmware can be updated yourself by "update kit"
3. Support self-test and smart operation mode
4. Read BMW ISN and NEC, MPC, Infineon etc chip

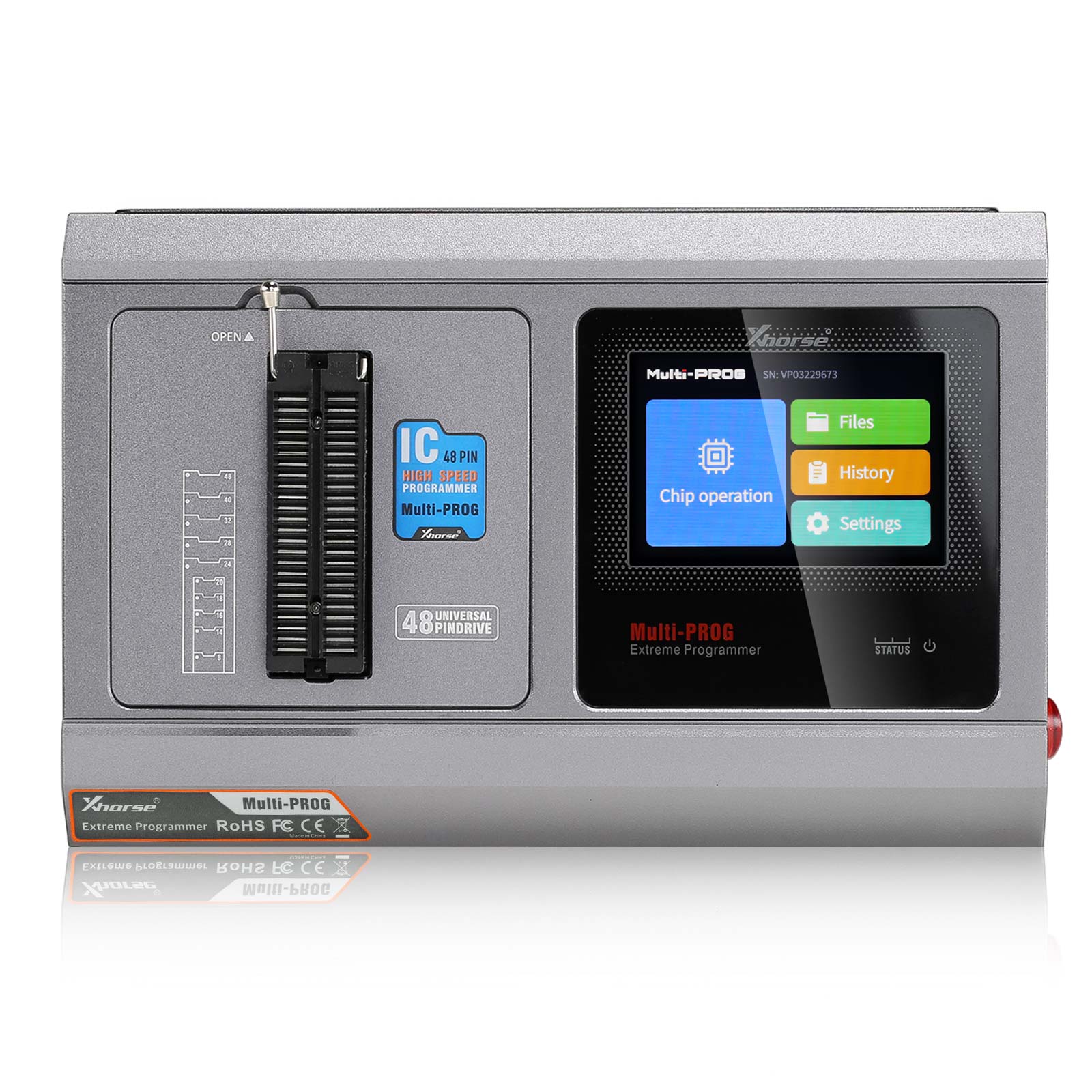

Xhorse Multi-Prog Programmer ECU Programmer



Advantages of Xhorse Multi-Prog:
  1. Newest Software Version: V1.0.9, Hardware Version: V1.1.5
  2. Built-in update software: Make Multi-Prog firmware updates timely. Free download Xhorse Multiprog software
  3. High-speed USB communication interface: Make software automatically connect.
  4. Smart operation mode: possible causes of error will be listed
  5. Reserve ports: For future updates.
  6. Self-test function: Check if the machine works well or not.
  7. Power supply: Through the USB cable, the software will automatically prompt if the external USB power supply is needed
  8. Get free BMW ISN read function and NEC, MPC, Infineon etc chip continuously update service
  9. With Free MQB48 License. Bind Multi-prog and VVDI2 full version to the same Xhorse app account to use MQB48 NEC35XX function
  10.  Add Vehicle Engine Data Calculation and Processing (MED17, EDC17 etc)
  11.  Support Checksum Function
  12. Also Compatiable with Xhorse MQB Solder-free Adapters

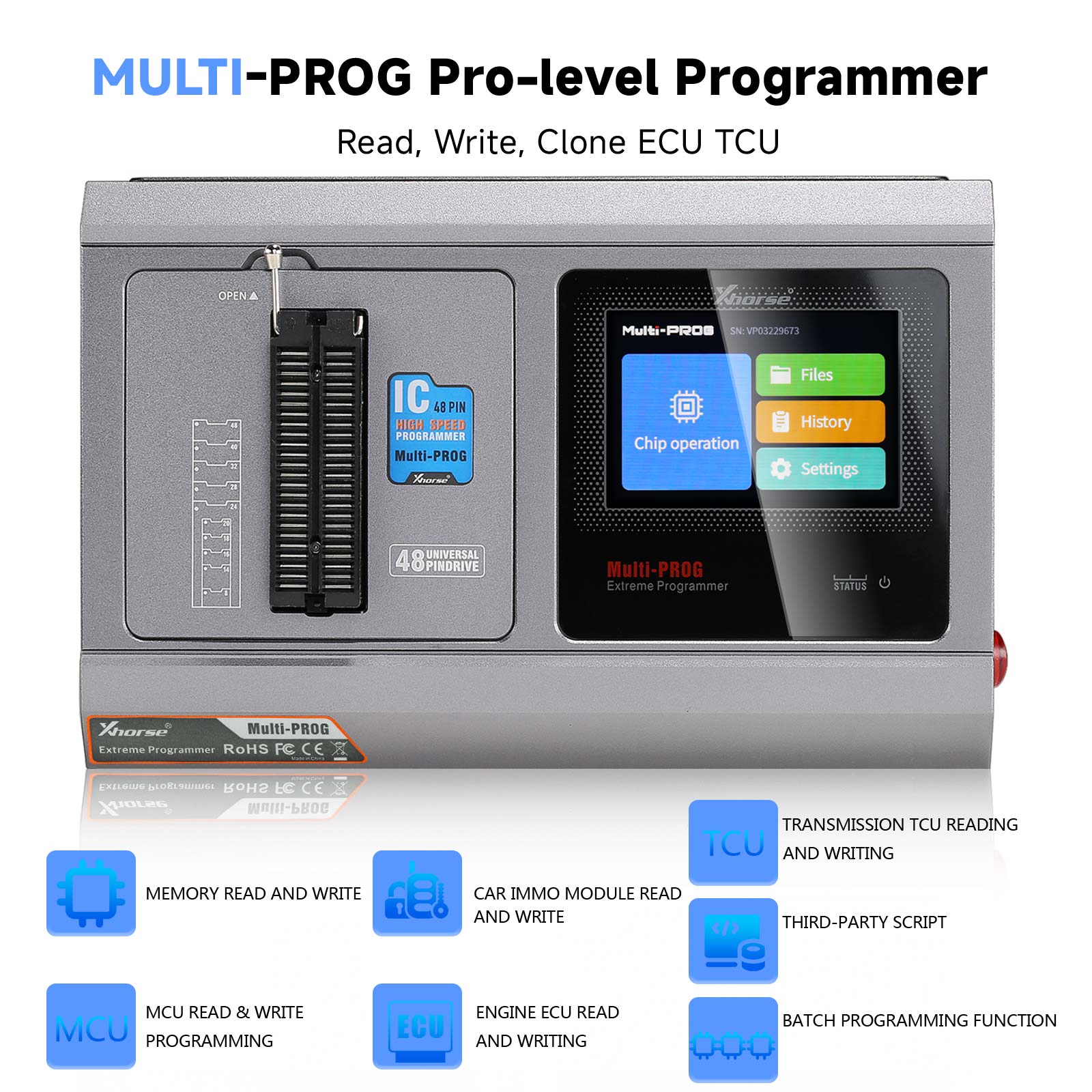

Multi-PROG Programmer Introduction:

Xhorse MULTI-PROG Pro-level  programmer is a reading and writing device for automotive chips, electronic modules, especially ECU modules. It integrates the programming, reading, writing and cloning functions of common automotive MCUs, automotive memory chips, common electronic modules and automotive ECU boards.

Multi-PROG Pro-level  programmer supports batch writing of chips, and batch writing of chips is often used in factories when production requires large-scale writing of chips. The types of writes supported are common memory series and common microcontroller series. For the specific usage of batch writing, please refer to the documentation of the factory usage mode that comes with the software.

Batch programming function: Multi-PROG devices support factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be realized. The main difference between Xhorse VVDI PROG programmer and Xhorse MULTI-PROG Pro-level  programmer is that  MULTI-PROG Pro-level  programmer has the batch programming function but VVDI PROG programmer does not.

xhorse multi-prog programmer 01

Xhorse Multi-Prog Functions:

1. Read, Write, and Clone ECU
BMW B48/B58 reading ISN
BMW MSD80/81 /85/87/MSV90
Mercedes-Benz SIM271
BMW MSV80
VW BOSCH MED17 Series ECU
BMW N13/N20/N55/B38/TC17X
Support Marelli, Siemens, Delphi, and other ECU manufacturers

2. Read, Write and Clone TCU
Volkswagen Audi Skoda DQ200, DQ250, VL381 TCU etc.
Porsche DL501 TCU
Ford Dodge and other MPS6 series TCU
BMW DKG, Mercedes-Benz VCS, and other models TCU

3. Vehicle Engine Data Calculation and Processing
MEDl 7/EDC17 data processing

4. Support Flexible Extension of Third-party Plug-ins
Support the development of third-party plug-ins and provide data processing and modification services

5. Read & Write MCU
Support reading and writing MCU of various brands including Renesas, Motolora, NXP, Infineon, etc.
Support certain encrypted chip reading and writing

6. Read & Write Vehicle Immo Module
Support Porsche, Land Rover, Mercedes-Benz EZS, VOLVO,
VW MQB dashboard, AUDI BCM2, etc.
Support modules including BMW EWS, CAS1 \CAS2\CAS3\CAS4+, FEM BDC, etc.
Support other common IMMO modules
Note: Compatible with Xhorse solder-free adapters and cables

7. Read & Write EEPROM
Support EEPROM and FLASH

8. Read & Write Vehicle Dashboard
Support dashboard of VW, Honda, Hyundai, Kia, etc.


Xhorse Multi-Prog ECU and TCU List: (Keep Updating)

ECU (Bench Mode)
  • VAG
1. SIMOS PCR2.1, EDC17c64
2. BOSCH: MG1CA811
3. BOSCH: MED17.1.6, MED17.1.21, MED17.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED1 7.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25
4. BOSCH: EDC17C46, EDC17C74, EDC17CP24, EDC17CP44, EDC17CP54, EDC17U01, EDC17U05
5. BOSCH: MG1CS002一SPC5777, MD1 CP014_TC298TP, MG1 CS001_SPC5777, MG1 CS011 _SPC5777, MG1CS002_TC298TP, MD1 CP004_TC298TP, MD1 CP004一SPC5777, MG1 CS111 一SPC5777, MD1 CS004_TC298TP, MG1 CS008_SPC5777, MG1CS008_TC298TP
6. CONTINENTAL: SIMOS8.3x, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X
  • BMW
1. CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
2. BOSCH: MD1CP002_SPC5777, MG1 CS003_SPC5777 (B48, B58), MG1 CS201 _TC298TP (B38, B48, B58), MD1CS001_TC298TP, MG1 CS024_TC298TP(B48, B58), MD1CP032_TC299
3. BOSCH: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC1 7CP45_Exx, EDC17C06, EDC17C56
4. BOSCH: MEI 7.2.1
5. BOSCH: MEVD1 7.2.3, MEVD1 7.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD17.2.9_Exx, MEVD17.2.G, MEVD17.2.G (N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD17.2.P_Fxx, MEVD17.2.K
6. OSCH: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1
  • Mercedes Benz
1. CONTINENTAL: SIM271 DE, SIM271 KE
2. BOSCH: MEI 7.7, MED17.7.3.1, MED1 7.7.1, MED1 7.7.2, MED1 7.7.3, ME1 7.7.8
3. BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
4. BOSCH: CRD3x.x_TC1793, CRD3x.x_TC1 797
5. BOSCH: MD1CP001-SPC5777, MG1 CP002_SPC5777, MD1CS006_TC298TP
  • GM
1. DELPHI: DCM3.7AP
2. DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98
  • Nissan
1. DENSO: 23740-3Nxxx_Gen1 SH72531
2. BOSCH:EDC17C84
  • Hyundai/Kia
1. BOSCH: ME17.9.11, MEI 7.9.11.1
2. BOSCH:EDC17C53
3. BOSCH: MEG17.9.1 2_ECU
  • Ford
1. BOSCH: EDC17C70, EDC17CP65
2. BOSCH: ME17.0.3, ME17.8.5
  • Volvo
BOSCH: EDC17CP48, EDC1 7CP48_ver2, EDC1 7CP22
  • Other
1. AM_ME1 7.8.5,DOO_ME17.8.5
2. BOSCH: MG1CA007, MEI 7.8.8_TC1728, ME1 7.8.8_TC1 728_HW2, ME17.8.8_TC1 767, ME1 7.8.31, ME1 7.9.52
3. BOSCH: EDC1 7C55, EDC1 7C1 0, EDC1 7C1 0_TC1 796, EDC1 7C1 0_TC1 797, EDC1 7CP42, EDC1 7CP14, EDC17c81
4. BOSCH: MEVD1 7.8.4
5. BOSCH: MED17.8.1 0_TC1 728, MED17.8.1 0_TC1 728_Hw2, MED1 7.8.1 0_TC1 767
6. BOSCH: MD1 CS01 8, MG1 CS026_SPC58, MG1 CS032, MG1CS163, MD1CS01 2, MD1CS089, MD1CS069, MD1CS005_TC298TP, MG1 CS01 5_TC277TP, MG1 CS01 6_TC275TP, MG1CS01 7_TC277TP, MG1CS01 8, MG1CS019, MG1CS088
7. CONTINENTAL: SID208, SID209, SID211, SID807EVO ⑧ DENSO: KH, ZY, SH70xx_275xxx-xxx

ECU (Boot Mode)
  • VW series
1. SIMOS PCR2.1, EDC17c64
2. BOSCH: MED17.1.6, MED17.1.21, MED1 7.1.61, MED17.5, MED1 7.5.1, MED1 7.5.2, MED17.5.5_TC1 766, MED1 7.5.5_TC1 767, MED1 7.5.20, MED1 7.5.21, MED1 7.5.25
3. BOSCH: EDC1 7C46, EDC1 7C74, EDC1 7CP24, EDC1 7CP44, EDC1 7CP54, EDC17U01, EDC17U05
4. BOSCH: SIMOS8.3X, SIMOS8.4x, SIMOS8.5x, SIMOS8.6X
  • BMW series
1. CONTINENTAL: MSD80, MSV80, MSD81, MSD85, MSD87, MSV90
2. BOSCH: EDC1 7CP09_Fxx_TC1 796, EDC1 7C50_Exx, EDC17CP45_Exx, EDC17C06, EDC17C56
3. BOSCH: ME1 7.2.1
4. BOSCH: MEVD1 7.2.3.MEVD17.2_Fxx, MEVD1 7.2.4_Fxx(N20), MEVD1 7.2.6_Fxx, MEVD1 7.2.9_Exx, MEVD17.2.G, MEVD17.2.G(N55), MEVD17.2.H, MEVD1 7.2.6_Fxx, MEVD1 7.2.P_Fxx, MEVD1 7.2.K
5. BOSCH: MEV17.2_TC1766, MEV1 7.2_TC1 767, MEV17.2_TC1796, MEV1 7.2.1
  • Mercedes Benz series
1. CONTINENTAL: SIM271 DE,SIM271 KE
2. BOSCH: ME17.7, MED17.7.3.1, MED17.7.1, MED1 7.7.2, MED1 7.7.3, ME17.7.8
3. BOSCH: EDC17CP10, EDC17CP57, EDC17CP46, EDC17CP60
4. DELPHI: CRD2.x_MPC556x
  • Nissan series
BOSCH: EDC17C84
  • GM series
1. DELPHI: MT80.MT80.1
2. DELCO: E37, E38, E39, E39A, E67, E78, E80, E82, E83, E83A, E83B, E84, E87, E92, E98
  • Hyundai/Kia series
1. DELPHI: MT86
2. DELCO: DCM6.2AP
  • Other
1. CONTINENTAL: SID208, SID209, SID211, SID807EVO, SID310
2. SDI21.1 ,SDI21.2,SDI21.3
3. BOSCH: ME1 7.3.0
4. MARELLI: 8DF, MM10JA

TCU (Bench Mode)
  • VW
DL382, VL381, DL501 Genl, DL501 Gen2, DQ200Dxx, DQ200-G2, DQ200-G2_PQ, DQ200-MQB, DQ250-MQB, DQ250
  • Exx/Fxx BMW series
GETRAG DKG 436 Genl, GETRAG DKG 436 Gen2
  • Mercedes Benz series
VGS-FDCT, VGS2-FCVT, VGS2-FDCT
  • Ford series
1. ETRAG MPS6GETRAG
2. DPS6, DC4

TCU (Boot Mode)
  • Ford series
DPS6, DC4
  • Other
ZF 9HP

Multi-Prog Software Display:

xhorse multi-prog programmer software display 01

xhorse multi-prog programmer software display 02

xhorse multi-prog programmer software display 03

xhorse multi-prog programmer software display 04

xhorse multi-prog programmer software display 05


Xhorse Multi-Prog Specifications:

Operating system: Linux
Processor: ZYNQ7020 Dual-core Cortex A9 +FPGA
Memory: 256M* 2 DDR+64M NOR FLASH
Display: 3.5-inch
Input voltage: 15V/4A
Working current: 300mA(14V)
Working temperatures: -20-50℃
Storage temperatures: -30-65℃

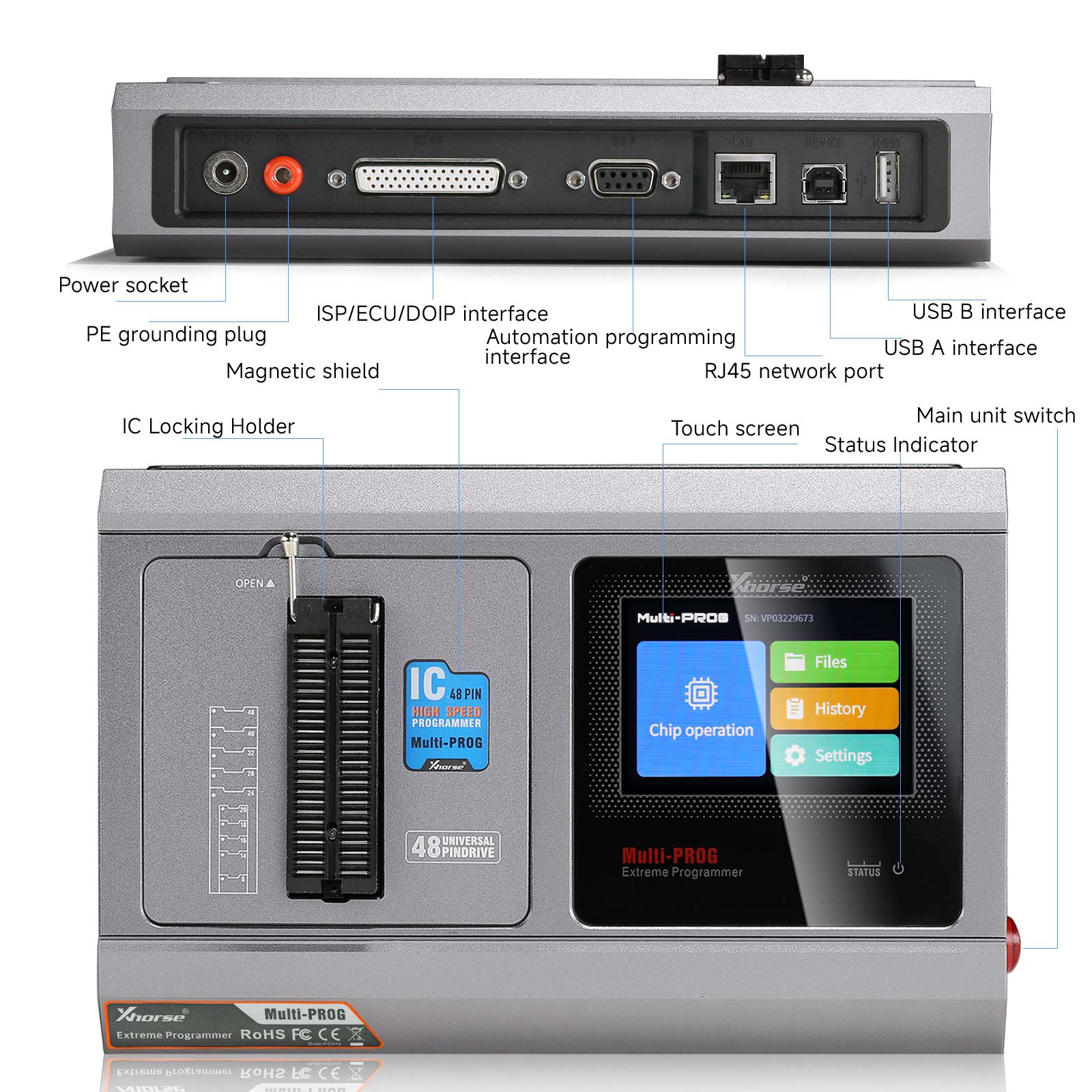

External interface: USB/RJ45
Dimensions: 233*150*54mm
xhorse multi-prog programmer 02

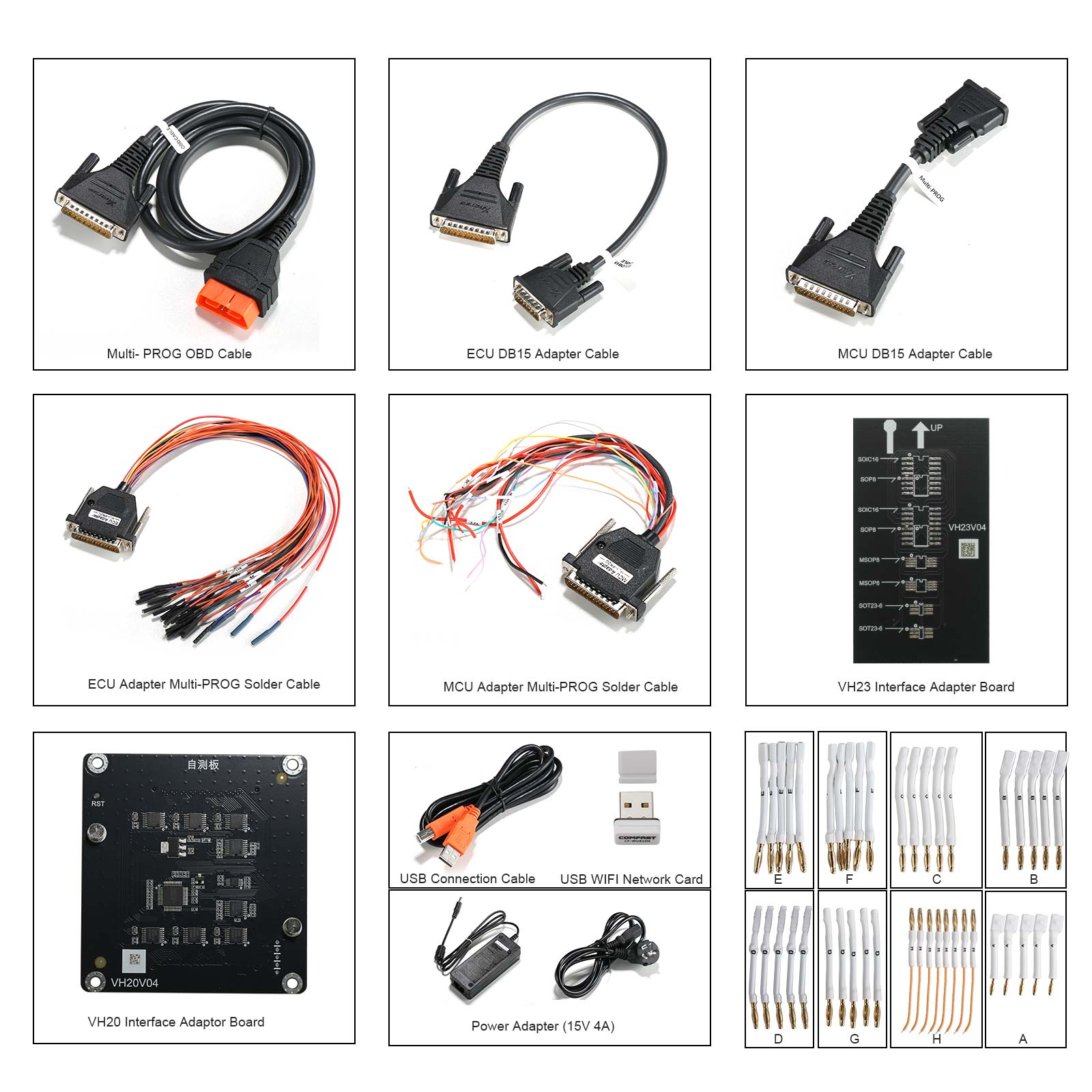

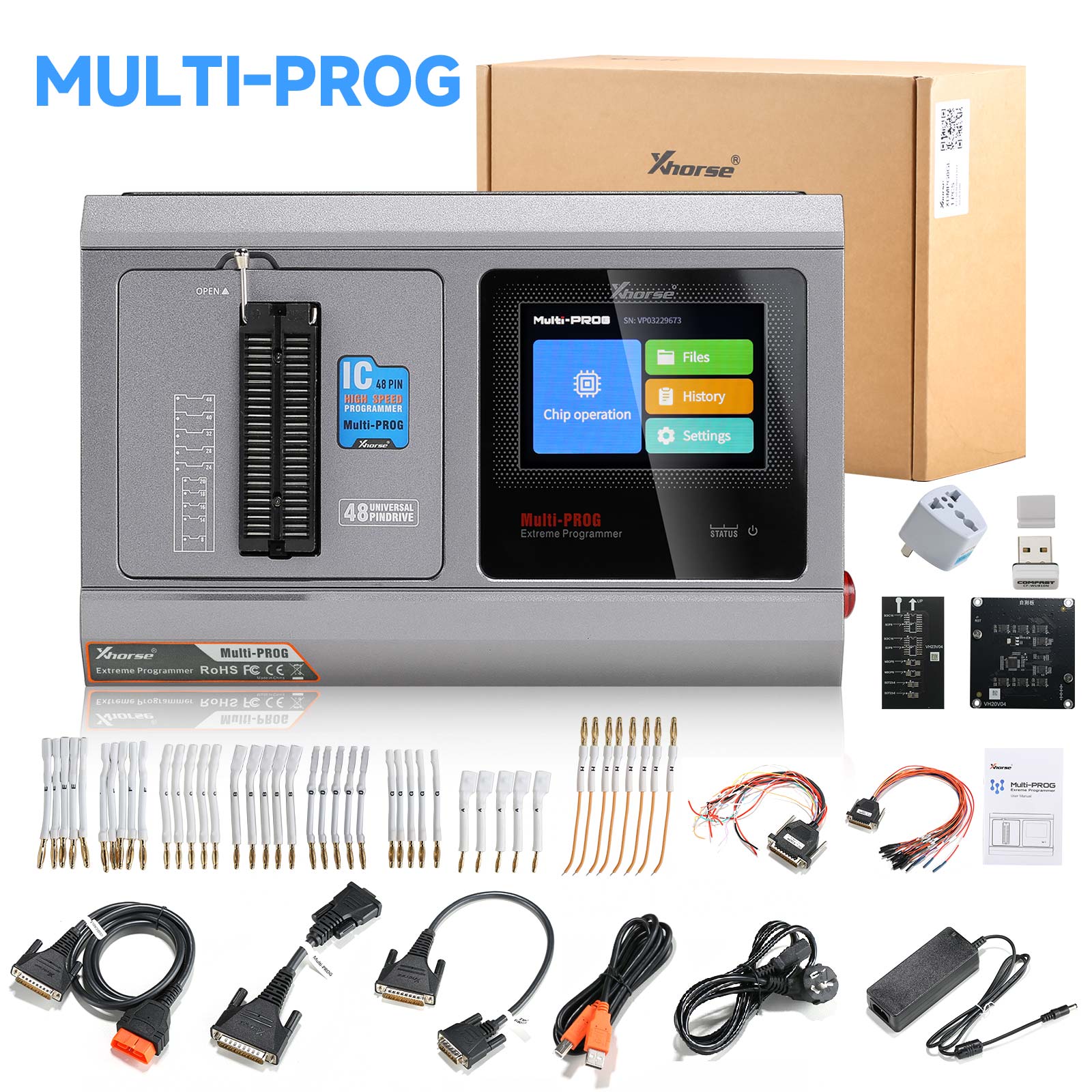

Xhorse Multi-Prog Package Includes:

1pc x power cable
1pc x MCU DB15 cable
1pc x USB cable
1pc x Main unit + VH13 adapter
1pc x Power adapter
1pc x MCU cable
1pc x ECU cable
1pc x VH24 interface adapter board
1pc x VH20 interface adapter board
1pc x OBD cable
1pc x ECU DB15 cable
1pc x USB WiFi adapter
43pcs x ECU harness plug replacement parts










Xhorse hot sales !


Hot Branded Products:



xhorseautellaunch x431cgdi

xtoolvxdiagyanhualonsdorobdstar


Shipping method and delivery time:

UK Shipping: No Tax, 2-4 working days arrive. For products marked " UK Ship " and UK local customer

EU shipping: No Tax, 5-7 working days arrive. For products marked " EU Ship " and from EU countries, if not belong to EU, need to clearance

Yodel/Royal Post/herems: No tax, around 5-7 days arrive . For products UK out of stock, and customers from UK

Yanwen: No Tax, 7-14 working days arrive, ship to all over the world, mainly for UK/EU warehouse no stock

DHL: Has Tax, need to clearance, 3-5 working days arrive. Used for UK/EU no stock, customers request ship this way. Need to clearance, we will declare a low price on the invoice help to clearance.


If you have any questions about the device, the price, or the payment, please feel free to contact us.

Contact Person: Elyza

Whatsapp: +86 13983755934

Telephone: +86 13983755934

Wechat: +86 13983755934

Official Email: Sales@obd2shop.co.uk

Skype: OBD2Tool.co.uk



OBD2shop.co.uk

Videos

Xhorse Multi PROG Unboxing and Introducing

How to install the Xhorse Multi-PROG Driver

Read and Write EEPROM via Xhorse Multi PROG

Read BCM2 Module via Xhorse Multi PROG without Soldering

Read and Write Microcontroller via Xhorse Multi PROG

Tech Support

Steps how to Read Audi BCM2 Module with Xhorse Multi Prog No Soldering

We need to use Xhorse Audi BCM2 Solder-Free Adapter to work with Multi Prog to read BCM2 all data, and use VVDI2 Key Programmer to calculate BCM2 immo data and save service file, and then write the service file back to BCM2 module with Multi-Prog.


  • 1. Read BCM DATA1 with Multi Prog

Connect Multi-Prog Programmer and a computer via USB cable



Open Multi-Prog software

Select Device>> BCM2>> LOCK_BCM2-2 (ADAPTER) (AUDI->AUDI) >> OK >> Detail >> General info/ Connection diagram

We need XDNP62-64-66 Adapters





Follow the connection diagram to connect BCM2 Solder Free Adapter, BCM2 module and Multi Prog Programmer

Power the adapter, and connect Xhorse VVDI2 to the computer







Read DATA1 and save the data file (Read operation takes 22s 47ms



  • 2. Show BCM2 Info with VVDI2

Open VVDI2 software, select VW >> Key Learn >> Fifth Immobilizer System-Locked BCM2 version >> Step1: Show BCM2 information >> Load DATA1 file >> Confirm vehicle info







It will show this BCM2 supports to continue Step2 Get BCM2 IMMO data.



  • 3. Read BCM DATA2 with Multi-Prog

Read and save DATA2 file. (Read operation takes 18s 833ms)



  • 4. Get BCM2 IMMO data with VVDI2 Programmer

Select Step2: Get BCM2 immodata

Load the DATA2 file just saved with Multi Prog Programmer

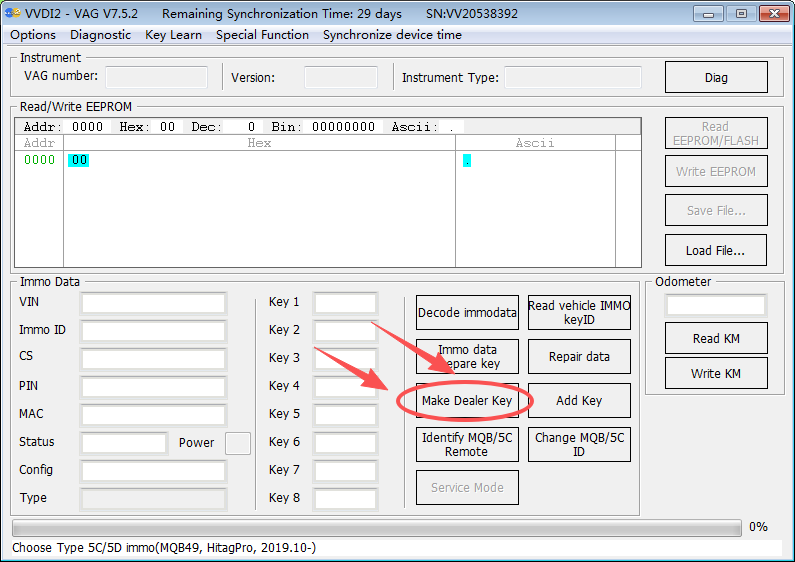

Xhorse VVDI2 Key Programmer will calculate the immo data of the module

Save the BCM2 immo data. The file can be used to prepare dealer key and learn key.

We also need to save the service data and write it back to BCM2 with Multi-Prog. Otherwise, the module cannot function properly.





  • 5. Write service data back to BCM2 module with Multi-Prog

Select SERVICE-DATA/FILE>> Open file >> Load the service data file >> Write

Write chip data successfully (Write operation takes 3 min 35s 650ms)





  • 6. Restore BCM2 module to the car, it will work normally.

Done!
