Yanhua Mini ACDP-1 Module 19 SH725XX Gearbox Module Clone for All ZF 8HP/ DQ380/DQ381 0DE/ MB VGS-NAG3/ BMW GETAG 7DCT/ TEMIC DKG

Brand: Yanhua Item No. SK247-19 In Stock. History 4 sold.

Latest price: £269
Buy Now: £254 6% off
Good day :) Fast delivery no tax !

May Promotion for Hot Products
From May,20th - May,29th

Any inquiry or questions contact : +86 13983755934
Shipping:
Free Shipping Express Shipping ServiceEstimated delivery time: 3-5 working days.See details »
Weight:
100g
Returns:
Return for refund within 7 days,buyer pays return shipping. Read details »

Product Description

Yanhua ACDP Module 19 supports all ZF 8HP, DQ380/DQ381 0DE, MB VGS-NAG3, BMW GETAG 7DCT, and BMW TEMIC DKG gearbox clone.

Yanhua Mini ACDP-1 Module 19 SH725XX Gearbox Clone


Please note that this module 19 is suitable for first-generation ACDP. If you are a second-generation ACDP, purchase ACDP-2 Module 19.
Contact us to get a VIP Discount! Email: sales@obd2shop.co.uk, Whatsapp: +86 13983755934


ACDP-1 Module 19 functions:

1. Supports all ZF 8HP gearbox clones.
Supported car brands: BMW, JLR, VW/Audi, Rolls-Royce, Porsche, Bentley, Aston Martin, Lamborghini, Maserati, Dodge, Jeep, Chrysler, etc
2. Support VW/Audi DQ380/DQ381 0DE gearbox clone.
3. Support Mercedes-Benz 9GT (VGS-NAG3) gearbox clone.
4. Support BMW 7-speed dual-clutch (GETAG 7DCT) gearbox clone.
5. Support BMW 7-speed dual-clutch (DKG) gearbox clone.


Connection diagram display:

Benz 9GT VGS-NAG3

Connection method 1: Connect ACDP, DB15-LAN adapter, interface board, and gearbox as shown in the figure:
benz 9gt vgs-nag3 connection diagram 01
Connection method 2: Connect ACDP, PTCU line, and gearbox as shown in the figure:
benz 9gt vgs-nag3 connection diagram 02
BMW-Getrag 7DCT
Connection method 1: Connect ACDP, DB15-LAN adapter, interface board, and gearbox as shown in the figure:
 bmw-getrag 7dct connection diagram 01
Connection method 2: Connect ACDP, PTCU line, and gearbox as shown in the figure:
 bmw-getrag 7dct connection diagram 02
BMW-TEMIC DKG
Connection method 1: Connect ACDP, DB15-LAN adapter, interface board, and gearbox as shown in the figure:
bmw-temic dkg connection diagram 01
Connection method 2: Connect ACDP, PTCU line, and gearbox as shown in the figure:
bmw-temic dkg connection diagram 02
DQ380/DQ381 0DE
Connection method 1: Connect ACDP, DB15-LAN adapter, interface board, and gearbox as shown in the figure:

dq380dq381 0de connection diagram 01
Connection method 2: Connect ACDP, PTCU line, and gearbox as shown in the figure:

dq380dq381 0de connection diagram 02
ZF 8HP
Connection method 1: Connect ACDP, DB15-LAN adapter, interface board, and gearbox as shown in the figure:
zf 8hp connection diagram 01
Connection method 2: Connect ACDP, PTCU line, and gearbox as shown in the figure:
zf 8hp connection diagram 02

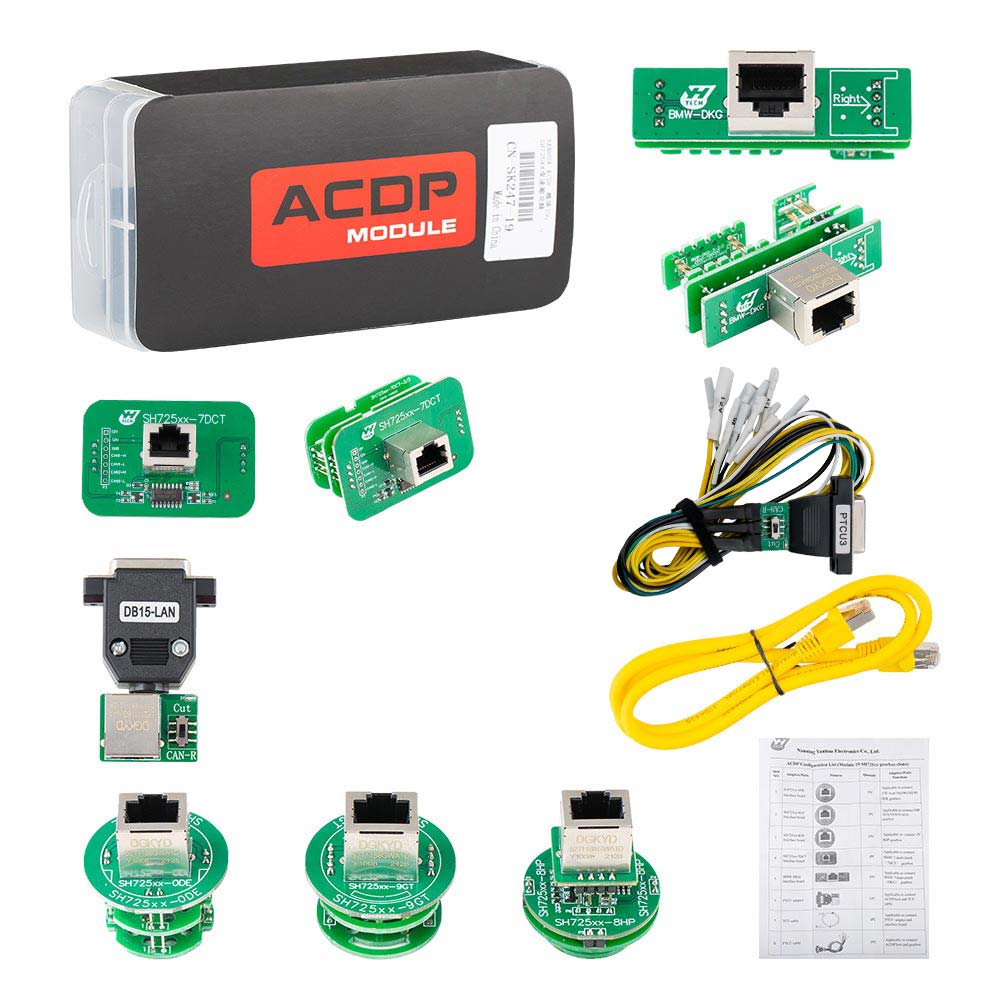

Module 19 Packing List:

1PC x SH725xx-0DE Interface board
1PC x SH725xx-9GT Interface board
1PC x SH725xx-8HP Interface board
1PC x SH725xx-7DCT Interface board
1PC x BMW-DKG Interface board
1PC x PTCU adapter
1PC x TCU cable

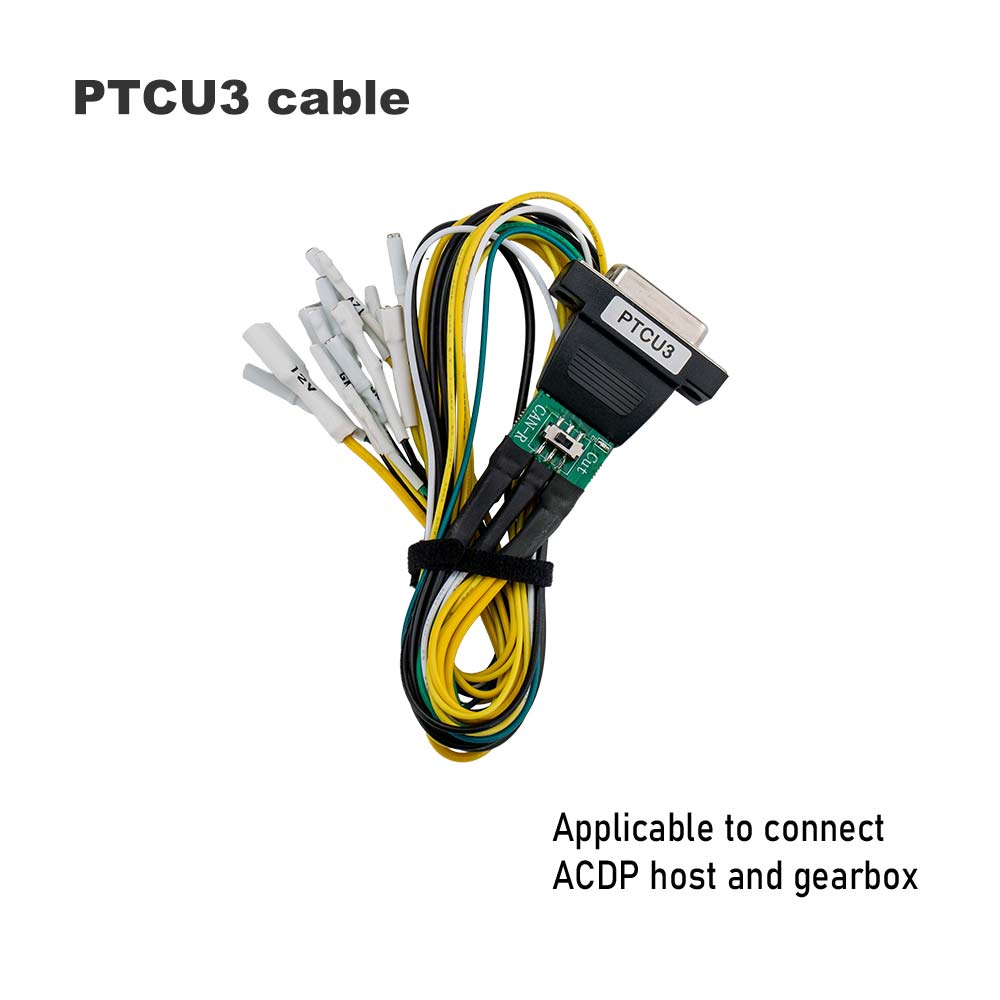

1PC x PTCU cable

acdp module 19 package list




Xhorse hot sales !


Hot Branded Products:



xhorseautellaunch x431cgdi

xtoolvxdiagyanhualonsdorobdstar


Shipping method and delivery time:

UK Shipping: No Tax, 2-4 working days arrive. For products marked " UK Ship " and UK local customer

EU shipping: No Tax, 5-7 working days arrive. For products marked " EU Ship " and from EU countries, if not belong to EU, need to clearance

Yodel/Royal Post/herems: No tax, around 5-7 days arrive . For products UK out of stock, and customers from UK

Yanwen: No Tax, 7-14 working days arrive, ship to all over the world, mainly for UK/EU warehouse no stock

DHL: Has Tax, need to clearance, 3-5 working days arrive. Used for UK/EU no stock, customers request ship this way. Need to clearance, we will declare a low price on the invoice help to clearance.


If you have any questions about the device, the price, or the payment, please feel free to contact us.

Contact Person: Elyza

Whatsapp: +86 13983755934

Telephone: +86 13983755934

Wechat: +86 13983755934

Official Email: Sales@obd2shop.co.uk

Skype: OBD2Tool.co.uk



OBD2shop.co.uk

Videos

Mercedes Benz VGS-NAG3 9GTronic gearbox clone using Yanhua Mini ACDP

Yanhua Mini ACDP with Module 19 to clone VW/Audi DQ380/DQ381 0DE gearbox

Tech Support

How to use Yanhua Mini ACDP and Module 19 to clone VW/Audi DQ380/DQ381 0DE gearbox on mobile phone? This article is showing the procedure step by step.
  1. Install Modules
Install the SH715XX-ODE interface board & DB15-LAN adapter, then connect together.
  1. Save Original Module Info
Open Mini ACDP app, press
  • VW >> Gearbox Clone >> Audi >> Detect module info >> Read EGS information >> OK
Check the identified module info, then save the screenshot, press “Exit”.


  1. Backup Data
Go back to press
  • DQ381(0DE) >> Full backup data >> Continue >> Check the info, continue >> OK >> Save >> OK >> OK >> OK
Backup chip data finished.


  1. Write Data
Connect another 0DE gearbox and prepare to write original data.
  • Full write data >> Continue >> Check the info, continue >> OK >> select the data to be written >> Check info from loaded data, continue >> Continue >> OK >> OK

Note: please don’t cut the power or pull out the device during the programming!
Writing chip data finished.


  1. Check If The Clone Is Successful
  • Go back to detect module info >> Read EGS information >> OK

Save the module info screenshot to compare with the original info, check whether the clone is successful.
Done!


Yanhua ACDP Module 19 also supports to clone Mercedes-Benz 9GT(VGS-NAG3) gearbox, BMW 7 speed dual clutch(GETAG 7DCT) /(DKG) gearbox.
